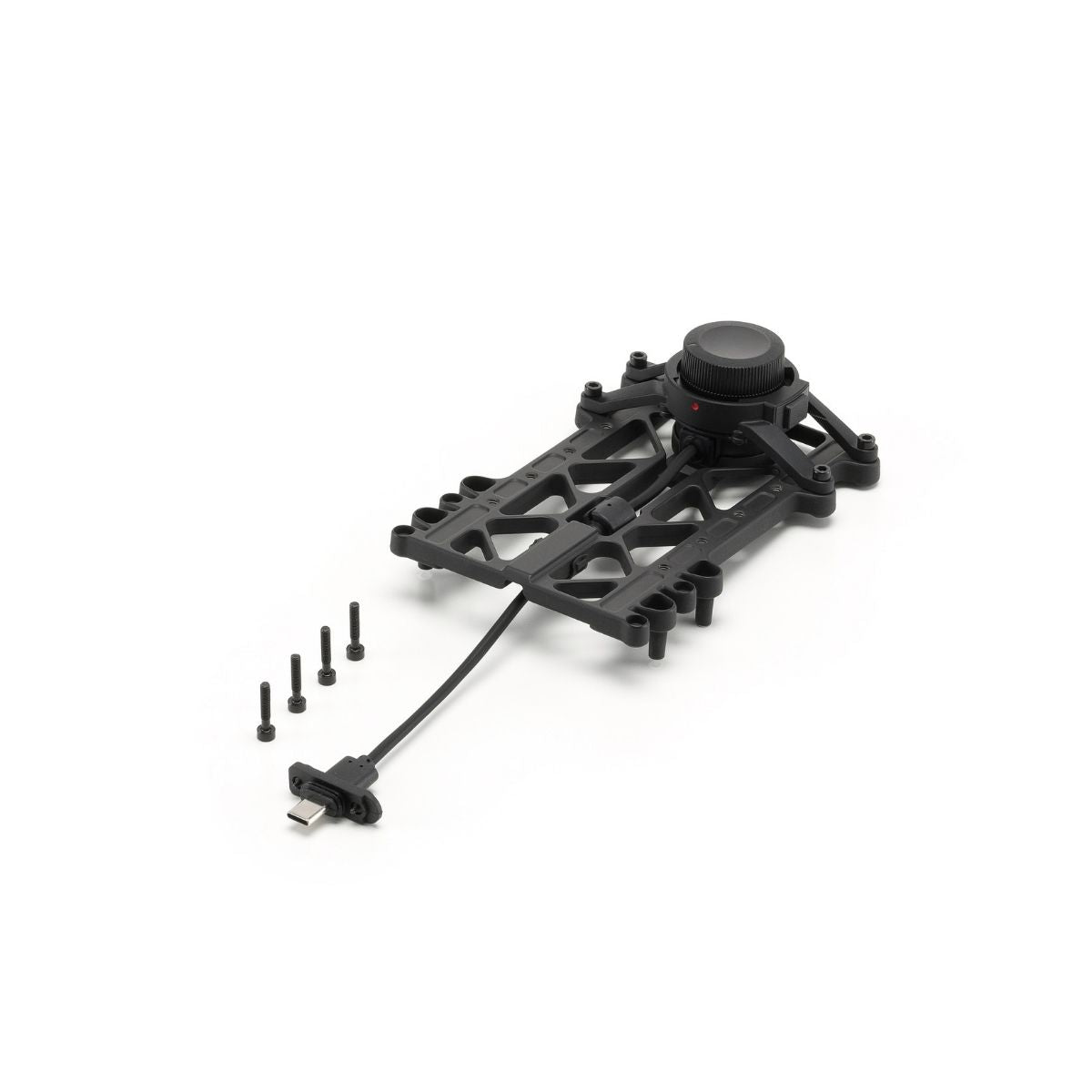

• DJI Matrice 400 Third Gimbal Connector

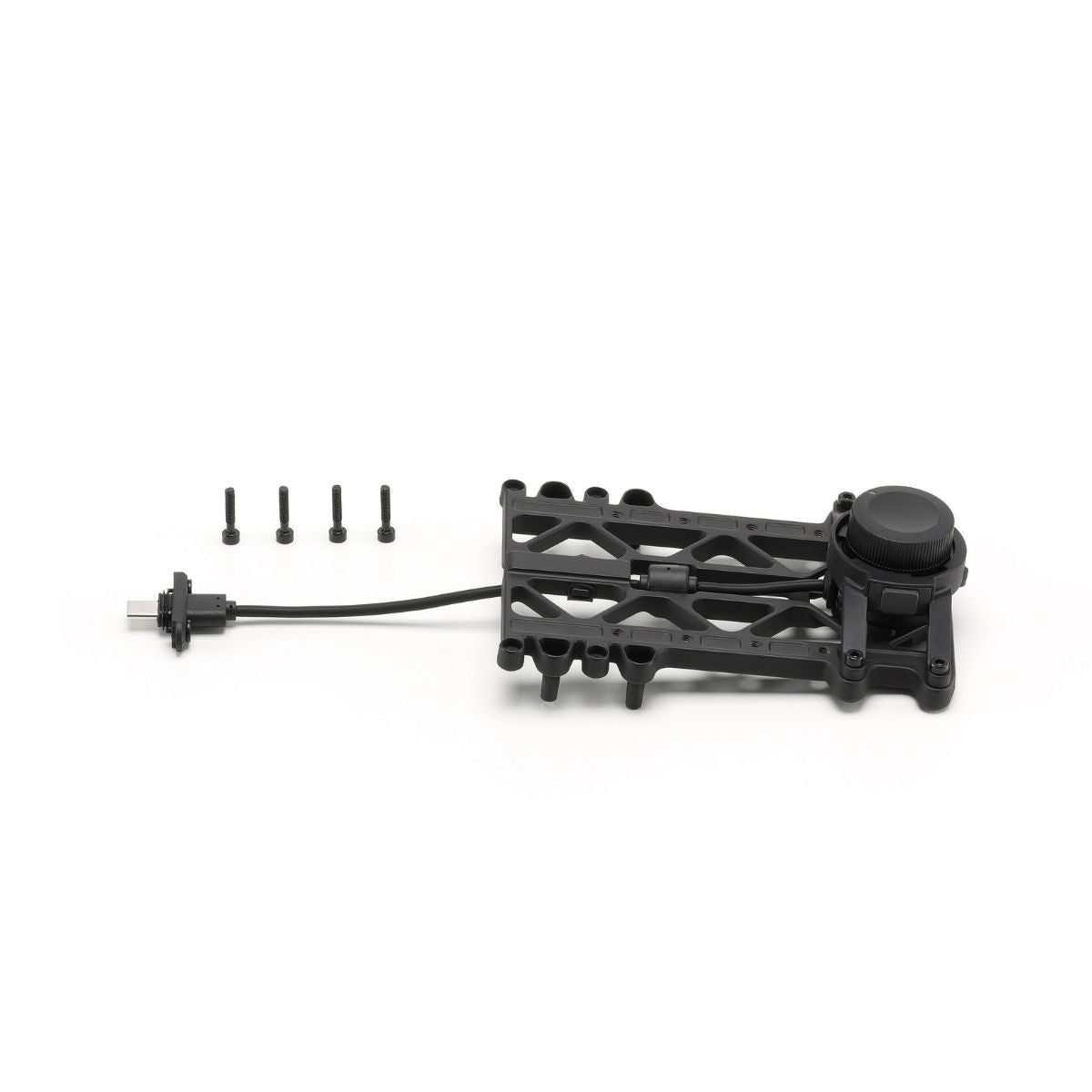

  • DJI Matrice 400 Third Gimbal Connector kit

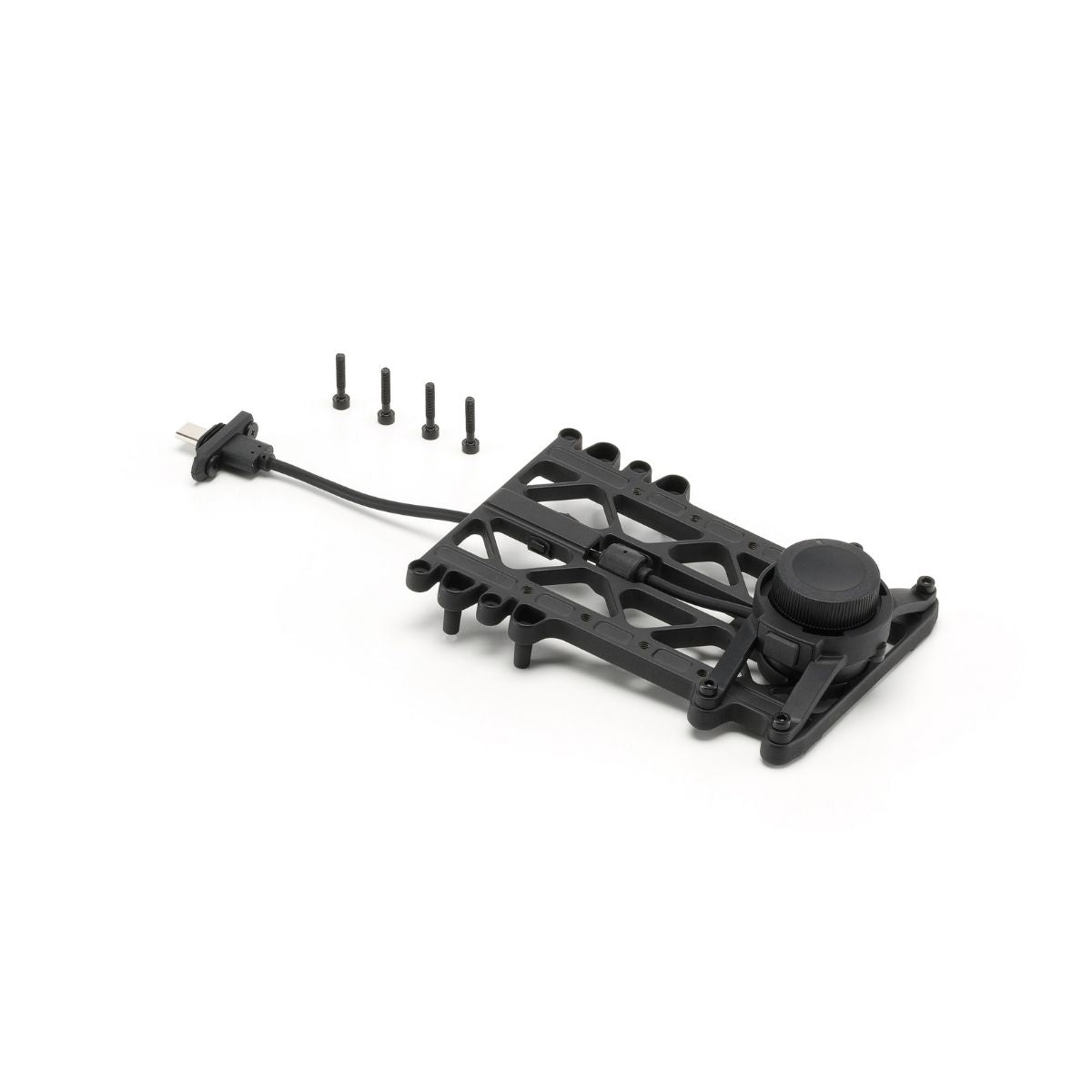

  • DJI Matrice 400 Third Gimbal Connector with screws

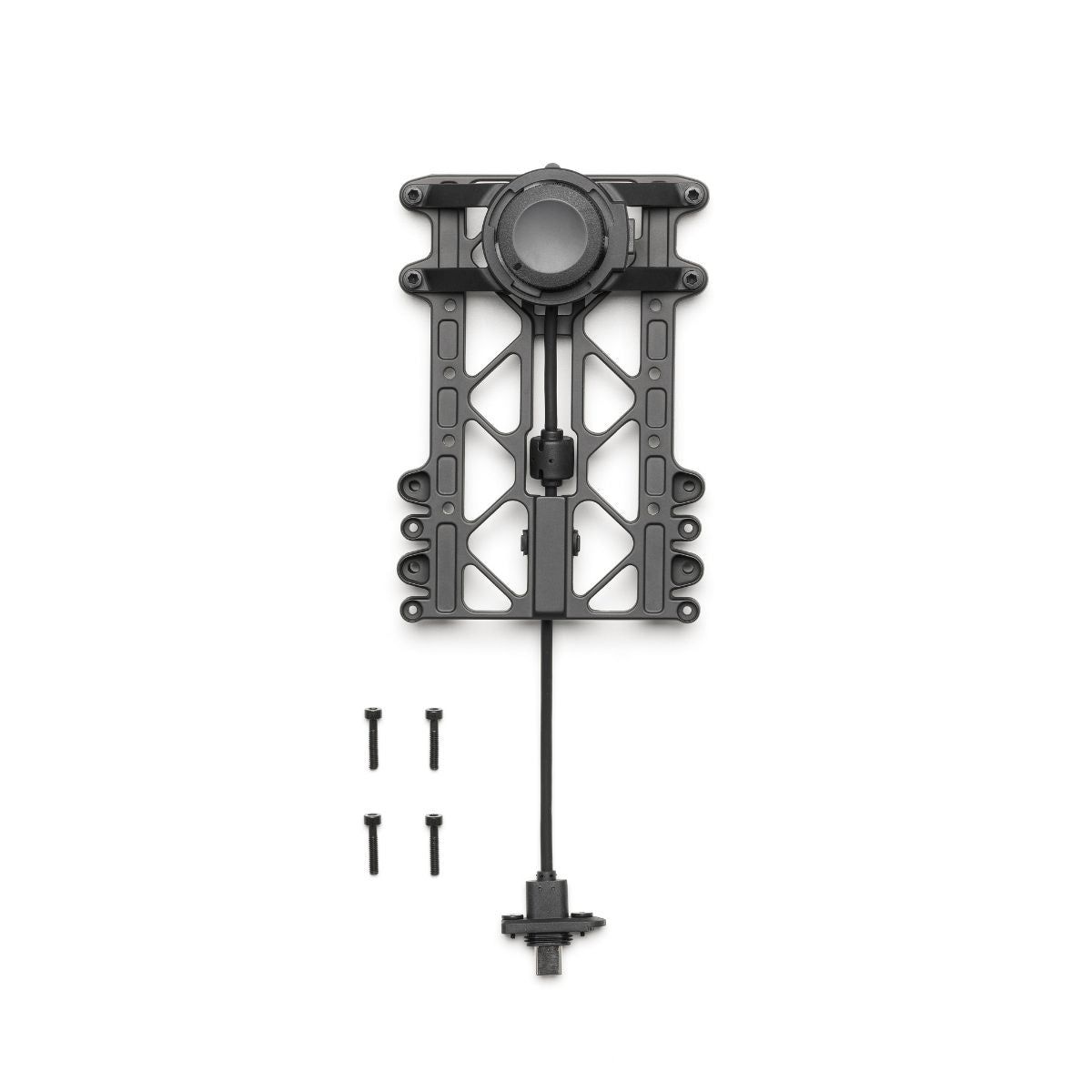

  • DJI Matrice 400 Third Gimbal Connector with 4 screws
1 4

DJI Matrice 400 Third Gimbal Connector

DJI Matrice 400 Third Gimbal Connector

$189.00
$189.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-M400-TGC

SKU S-DJI-M400-TGC MPN CP.EN.00000672.01 EAN 6937224123748 UPC 190021149229
  • Triple sensor expansion for advanced downward-facing multi-payload mission configurations.
  • High-capacity quick-release port supporting sensors up to 6.6 lbs (3 kg).
  • Maximum 13.2 lbs (6 kg) load capacity using screw-lock fastening.
  • Integrated gyroscopic stabilization ensures level and smooth aerial data capture.
  • Direct compatibility with E3 and E4 ports via E-Port V2.
  • Included M3 screw kit for secure and rigid airframe mounting.
  • Specialized design for search and rescue or complex industrial mapping.
  • Full electronic integration with DJI Enterprise flight and sensor software.
  • Weather-resistant interface depends on the IP rating of the mounted payload.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 400 Third Gimbal Connector: Enterprise Payload Expansion

The DJI Matrice 400 Third Gimbal Connector is a heavy-duty integration component designed to maximize the multi-sensor capabilities of the M400 platform. By utilizing the E3 or E4 ports of the E-Port V2, this connector allows operators to mount an additional downward-facing payload to the underside of the aircraft. It provides the structural and electronic interface necessary for high-capacity sensors, featuring built-in gyroscopic stabilization to maintain data integrity. This expansion is essential for complex industrial missions requiring simultaneous data capture from multiple specialized sensors, such as combined LiDAR, thermal, and high-resolution RGB mapping.

DJI Matrice 400 Third Gimbal Connector core features and advantages

  • Triple payload capacity: enables the simultaneous operation of three downward-facing stabilized sensors.
  • High-weight support: accommodates quick-release payloads up to 6.6 lbs (3 kg) for rapid swaps.
  • Secure fastening: supports heavy-duty payloads up to 13.2 lbs (6 kg) via screw-lock mounting.
  • Advanced stabilization: integrated gyroscopic systems keep the third payload level during flight.
  • Port integration: connects directly to the E3 or E4 ports of the E-Port V2 system.
  • Industrial protection: maintains environmental sealing based on the IP rating of the attached payload.
  • Precision hardware: includes four M3 screws for a rigid and vibration-resistant connection.
  • Versatile applications: supports search and rescue, complex surveying, and multi-angle industrial inspections.
  • Seamless ecosystem: designed for full electronic compatibility with DJI Enterprise flight control software.

The DJI Matrice 400 Third Gimbal Connector is the definitive solution for operators who require maximum sensor density in a single flight. It eliminates the need for multiple passes by allowing for a fully customized, three-sensor downward configuration. This component ensures that even the heaviest specialized sensors remain secure and stabilized throughout intensive field operations.

DSLRPros provides the technical expertise to help you configure your Matrice 400 for maximum operational efficiency. We ensure your payload lifecycle is supported with the correct hardware for complex, multi-sensor industrial missions. Expand your aerial data collection capabilities today by purchasing the DJI Matrice 400 Third Gimbal Connector from DSLRPros.

Load Capacity

  • 6 kg with screw-lock mounting
  • 3 kg with quick-release mounting

Mounting and Interface

  • Mounting position: underside (third gimbal/payload connector)
  • Interface: E-Port V2 (E3 or E4 port)
  • Industrial-grade secure locking mechanism
  • Install only while aircraft is powered off

Payload Support

  • Supports Zenmuse H30 series
  • Supports Zenmuse L2/L3
  • Supports Zenmuse P1
  • Supports compatible third-party payloads

Included Components

  • Third gimbal connector
  • M3 mounting screws

Compatibility

  • DJI Matrice 400
  • 1x DJI Matrice 400 Third Gimbal Connector
  • 4x M3 Screws
Can I mount an upward-facing gimbal using this connector?

The DJI Matrice 400 airframe design does not support any upward-facing gimbal configurations. This connector is strictly designed for mounting a third payload to the underside of the aircraft. It allows for advanced downward-facing sensor arrays but cannot be used on the top of the drone.

What is the difference between the quick-release and screw-lock capacities?

The quick-release mechanism is designed for convenience and supports payloads up to 6.6 lbs (3 kg). For heavier or more permanent sensor installations, the screw-lock fastening method must be used. This more rigid connection increases the maximum supported payload capacity to 13.2 lbs (6 kg).

Does this connector require a specific firmware version?

To ensure full integration and stabilization of the third gimbal, your Matrice 400 and E-Port V2 must be running the latest enterprise firmware. This allows the flight controller to recognize the additional payload and provide the necessary power and data communication. Always update your system before installing new hardware.

Should the drone be powered on during the installation process?

You must ensure the DJI Matrice 400 is completely powered off before installing or removing the third gimbal connector. Connecting hardware while the E-Port is active can lead to electrical shorts or communication errors within the E-Port V2 system. Safety protocols require a full power-down for all hardware changes.

Is the connector itself waterproof?

The waterproof rating of the third gimbal connector assembly is dependent on the payload you have attached. To maintain the industrial integrity of your M400, ensure that all mounted sensors and their connections meet the required IP ratings for your environment.
