DJI BS100 Intelligent Battery Station

DJI BS100 Intelligent Battery Station

$1,899.00
$1,899.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-BS100

SKU S-DJI-BS100 MPN CP.EN.00000683.01 EAN 6937224123687 UPC 190021149168
  • Fast Charging Mode recharges one TB100 battery in 45 minutes
  • Sequentially manages three TB100 and two WB37 batteries
  • Integrated wheels enable convenient on-site transport between locations
  • Ready-to-Fly mode charges batteries to 90% capacity quickly
  • Silent mode reduces cooling noise during nighttime urban charging
  • Automated heating prepares batteries for extreme cold environments
  • Supports 100–240 V universal global input power compatibility
  • Built-in USB-C port powers remote controller diagnostics devices

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI BS100 Intelligent Battery Station: Rapid All-In-One Power Management

The DJI BS100 Intelligent Battery Station is a high-capacity, one-stop solution for battery charging, storage, and transport engineered specifically for Matrice 400 enterprise drone fleets. Weighing 11.80 kg (approx. 26.01 lbs), this station provides simultaneous management for TB100, TB100C, and WB37 batteries, alongside dedicated USB-C charging for remote controllers and mobile devices. Designed for demanding field deployments, it features advanced thermal management and multiple charging modes to balance speed with operational noise, ensuring your flight assets remain ready for immediate takeoff.

System highlights and technical advantages

  • Versatile charging capacity: Manages three TB100 battery ports and two WB37 battery ports simultaneously.
  • Fast Charging Mode: Fully charges one TB100 battery in approximately 45 minutes at 220V.
  • Automated heating system: Self-warms batteries in temperatures below 5°C (41°F) for cold-weather use.
  • Intelligent power distribution: Prioritizes the battery with the highest remaining charge for maximum efficiency.
  • Ready-to-Fly Mode: Charges batteries to 90% in sequence for rapid emergency deployment.
  • Silent operation mode: Lowers noise levels to approximately 36 dB for unobtrusive charging.
  • High-speed USB-C: Delivers dedicated power for charging remote controllers and mobile devices.
  • Enhanced site mobility: Features new 360°-movement wheels to facilitate convenient transportation and transitions.

Intelligent thermal management and reliable protection

The BS100 is designed for industrial reliability, featuring sophisticated LED indicators and buzzers to communicate charging status and system errors. A specialized Standard Mode ensures long-term battery health by charging cells to 100% in sequence, while the integrated cooling system dissipates heat during high-power charging. Safety is prioritized through proper insulation and automatic error diagnosis via the DJI Pilot 2 app health management system.

Professional power efficiency for enterprise flight fleets

Enterprise operators benefit from the BS100’s ability to maximize uptime through sequence-based charging, ensuring that flight-ready power is available as quickly as possible. The station’s expansive input voltage range (100-240V) allows for global compatibility with various generator and grid power sources. Whether in standard industrial zones or remote sub-zero environments, the BS100 provides the logistical backbone required for continuous Matrice 400 aerial operations and data collection.

Workflow connectivity and platform integration

  • Full compatibility with TB100 Intelligent Flight and TB100C Tethered batteries.
  • Dedicated ports for WB37 Intelligent Batteries used in enterprise remote controllers.
  • Integrated USB-C port for remote controller firmware updates and diagnostics.
  • Real-time status monitoring via connection to the DJI Pilot 2 application.
  • Syncs with DJI Health Management System (HMS) for detailed error reporting.
  • Automated firmware synchronization for all connected batteries and the station.

Professional operational scenarios

  • Search and rescue: Maintaining Fast Charging Mode for continuous mission rotations.
  • Public safety: Using Ready-to-Fly Mode for 90% rapid battery preparation.
  • Industrial inspections: Sequential charging of multiple battery sets for full-day site assessments.
  • Cold weather operations: Automatic self-heating ensures battery readiness in climates down to -20°C.
  • Remote site surveys: Utilizing universal AC input for generator-powered field deployments.
  • Quiet zone surveillance: Engaging Silent Mode for low-noise operations inside work facilities.
  • Multi-device management: Powering remote controllers and mobile devices through the USB-C interface.
  • Fleet maintenance: Centralizing firmware updates and battery health checks via DJI Pilot 2.

Optimized for field deployment

Engineered for tough terrain, the BS100 Intelligent Battery Station combines high-wattage power output with a solid, durable build. The station's external housing protects sensitive internals during transport, while the internal metal terminals are designed for high-cycle insertion and removal. This robust design functions reliably in both freezing and hot conditions, ensuring that enterprise teams can maintain a reliable power supply regardless of environmental complexity.

Equip your team with a centralized charging solution that keeps your flight assets mission-ready at all times. The DJI BS100 is the industry standard for enterprise power management.

DSLRPros is your partner in drone solutions. Reach out to our team or order today to secure your charging station.

Intelligent Battery Station Specifications

  • Model: BS100
  • Net weight: 11.8 kg
  • Dimensions: 605 × 410 × 250 mm (L × W × H)
  • Supported batteries: TB100 Intelligent Flight Battery, TB100C Tethered Battery, WB37 Battery
  • Operating temperature: -20°C to 40°C (-4°F to 104°F)
  • Input: 100–240 V AC, 50–60 Hz, 10 A
  • Output (TB100 interface): 1185 W (100–110 V), 1474 W (110–180 V), 2184 W (180–240 V)
  • Output (WB37 interface): Approx. 52 W
  • USB-C output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A
  • Charging channels: Three TB100 batteries and two WB37 batteries
  • Charging modes: Ready-to-Fly Mode (90%), Standard Mode (100%), Fast Charging Mode, Silent Mode
  • Charging time (TB100/TB100C): 45 min (220 V fast), 70 min (110 V fast), 110 min (silent mode)
  • Test conditions: Measured at 25°C (77°F)

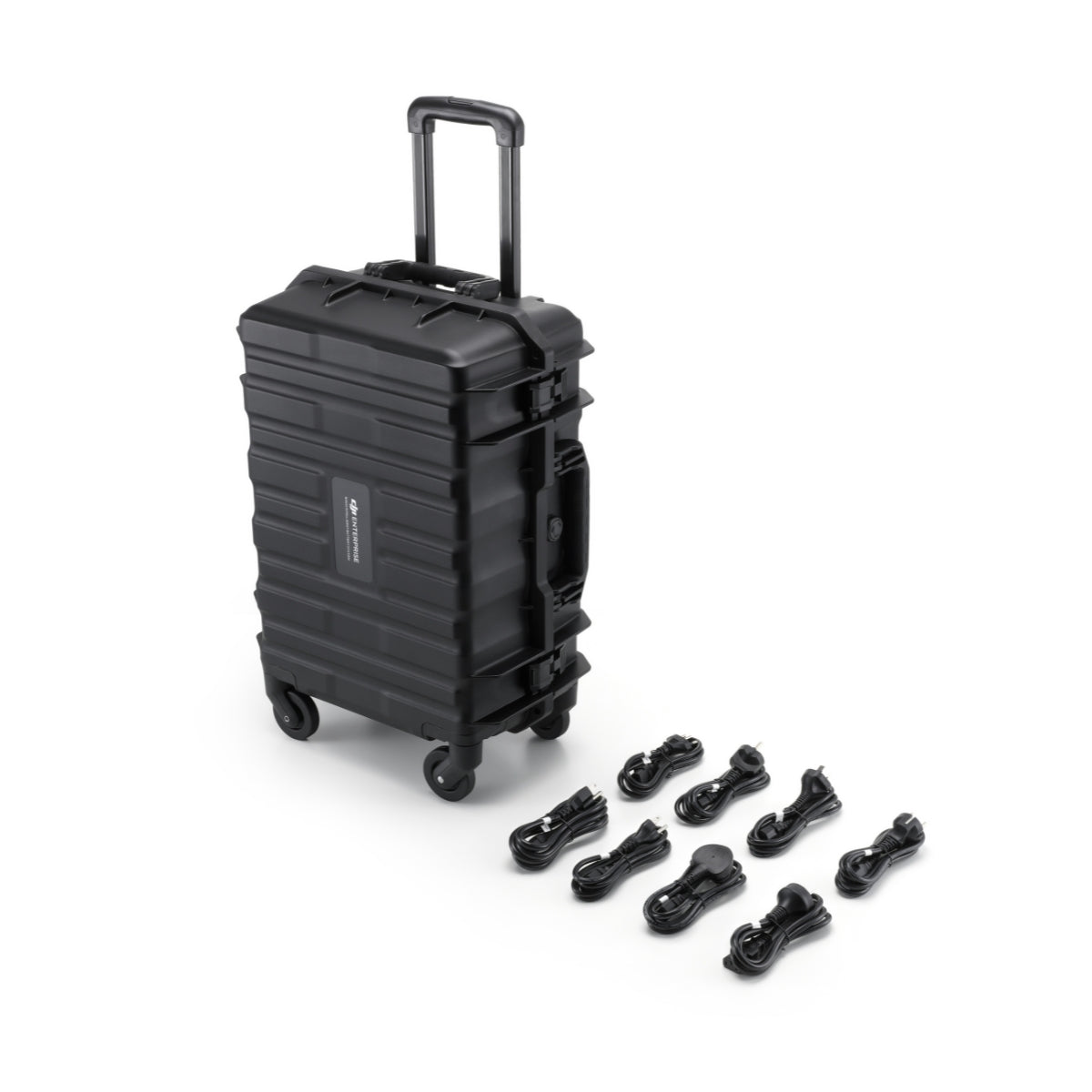

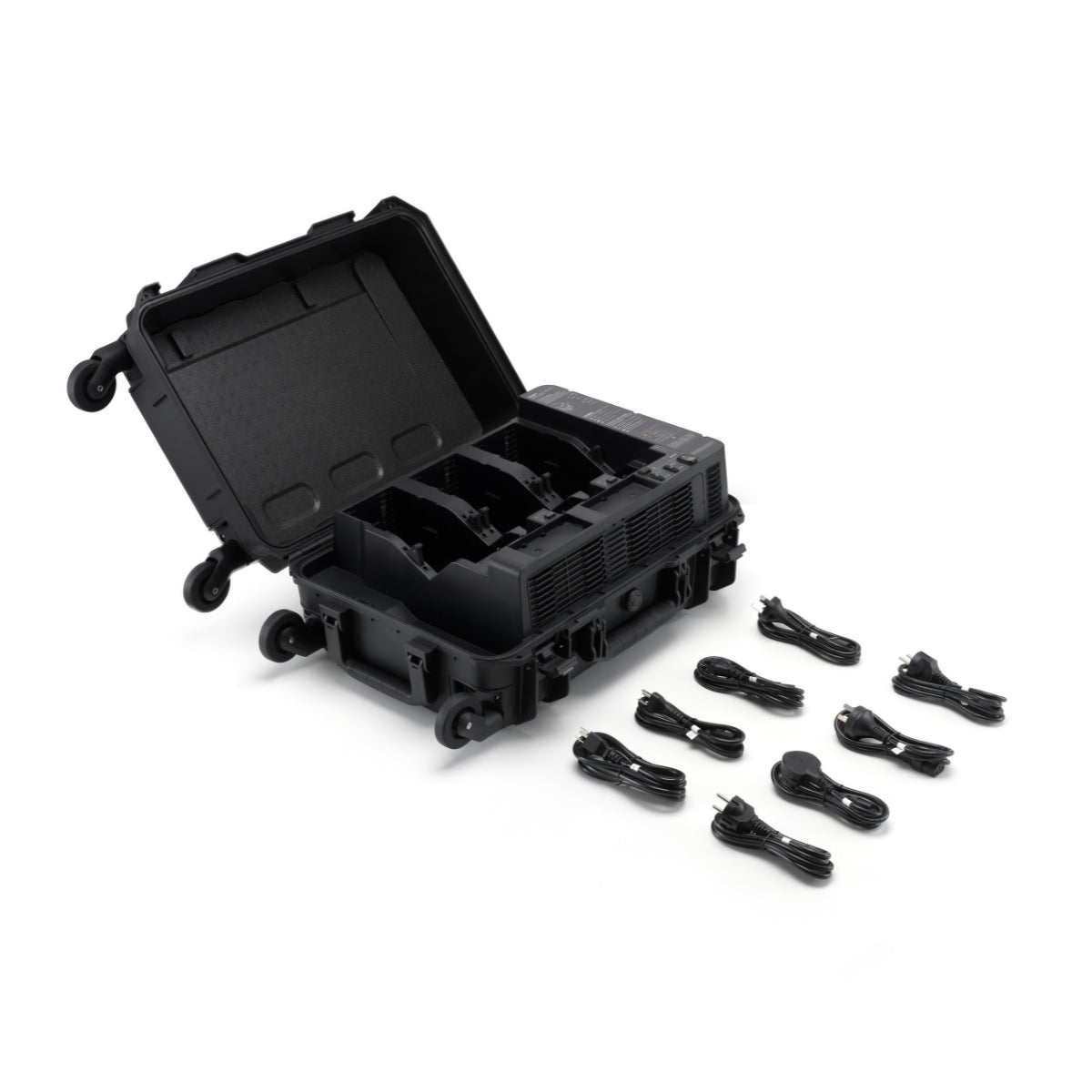

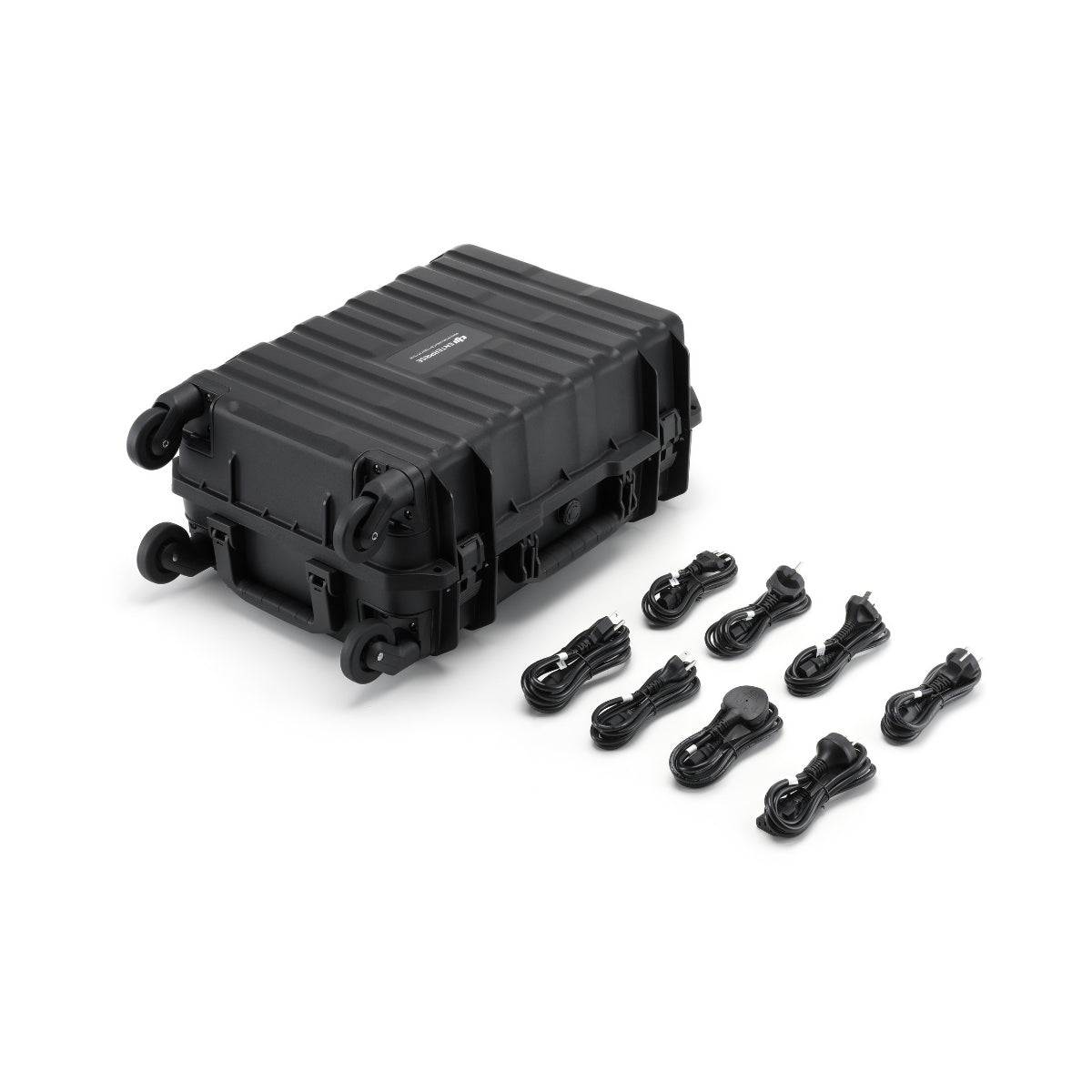

  • 1x BS100 Intelligent Battery Station
  • 6x AC Cable (Universal)
  • 1x AC Cable (Korea)
  • 1x AC Cable (China)
What is included in the box with the BS100 Intelligent Battery Station?

The package includes one BS100 Intelligent Battery Station, six universal AC cables, one AC cable for Korea, and one AC cable for China.

How long does it take to charge a TB100 battery from 0% to 100%?

In Fast Charging Mode using a 220V power source, the TB100 battery can be fully charged in approximately 45 minutes. On a 110V source, Fast Charging takes about 70 minutes.

Does the BS100 have a cooling or heating system for batteries?

Yes, the station features an automatic warming system for batteries below 5°C (41°F). It also includes internal cooling; however, you must not close the battery station while recharging to allow for heat dissipation.

Can the BS100 charge other devices besides flight batteries?

Yes, the station includes an integrated USB-C charging port that can charge remote controllers, mobile phones, or other USB-C compatible electronics.

What happens if there is a communication error with a battery port?

If a communication error occurs, the battery LED will blink red. You should reinsert the battery or try another port, and you can connect a remote controller to diagnose the error using DJI Pilot 2.
