DJI Matrice 400 Dual Gimbal Connector

DJI Matrice 400 Dual Gimbal Connector

$349.00
$349.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-M400-DGC

SKU S-DJI-M400-DGC MPN CP.EN.00000671.01 EAN 6937224123601 UPC 190021149083
  • Simultaneous dual-payload operation for comprehensive multi-sensor data collection in one flight.
  • Maximum weight capacity of 33.5 oz (950 g) for each gimbal position.
  • Parallel mounting rails maintain airframe balance and flight maneuverability during missions.
  • High-strength aluminum alloy construction ensures a durable and lightweight mounting interface.
  • Integrated power and data transmission supporting CAN, UART, PWM, and SBus.
  • Full compatibility with Zenmuse H30, L2, and P1 enterprise series payloads.
  • Supported DJI Payload SDK integration for specialized third-party sensor development.
  • Simplified installation process requiring the aircraft to be powered off for safety.
  • Maintenance warning for reduced damper lifespan when using payloads exceeding 950 g.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

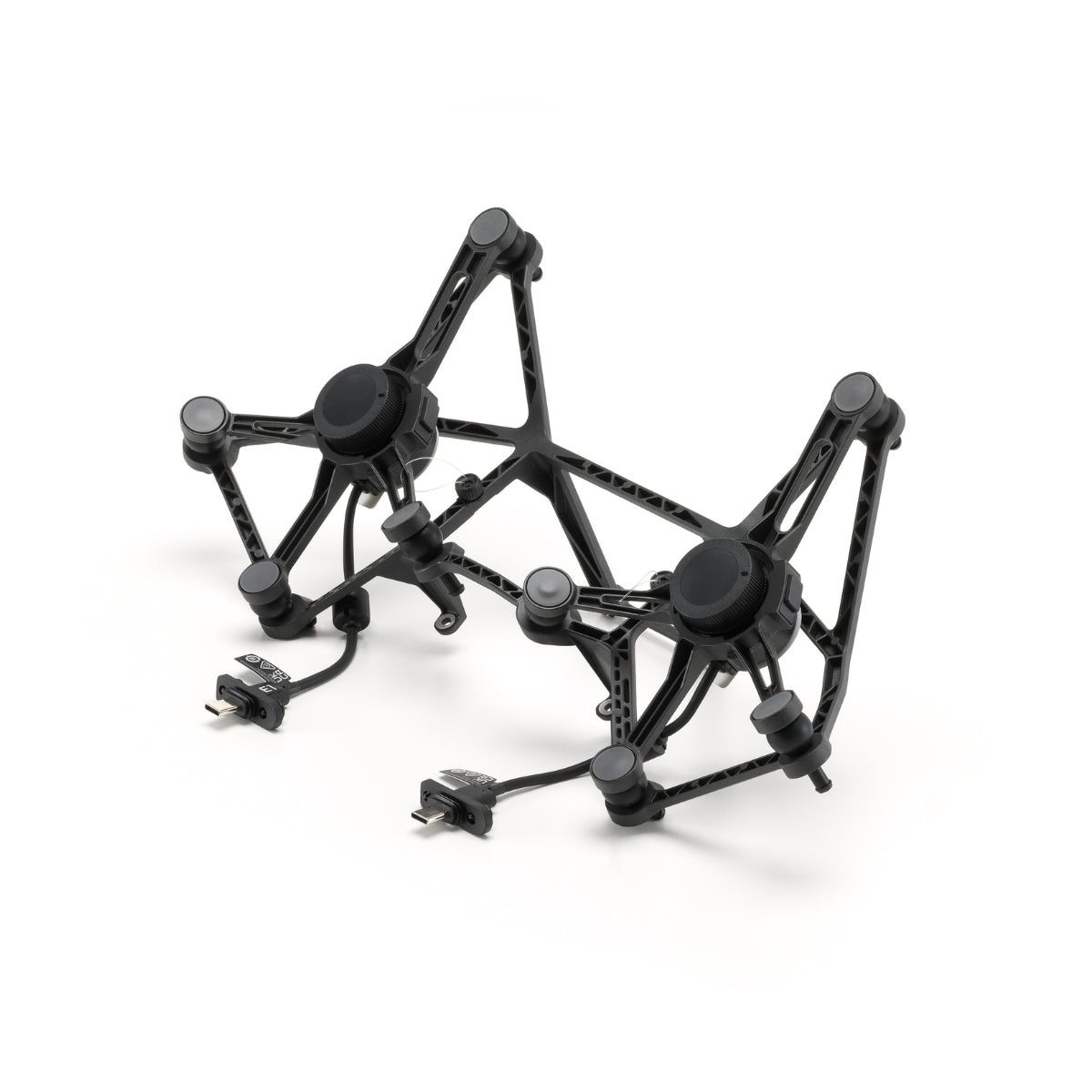

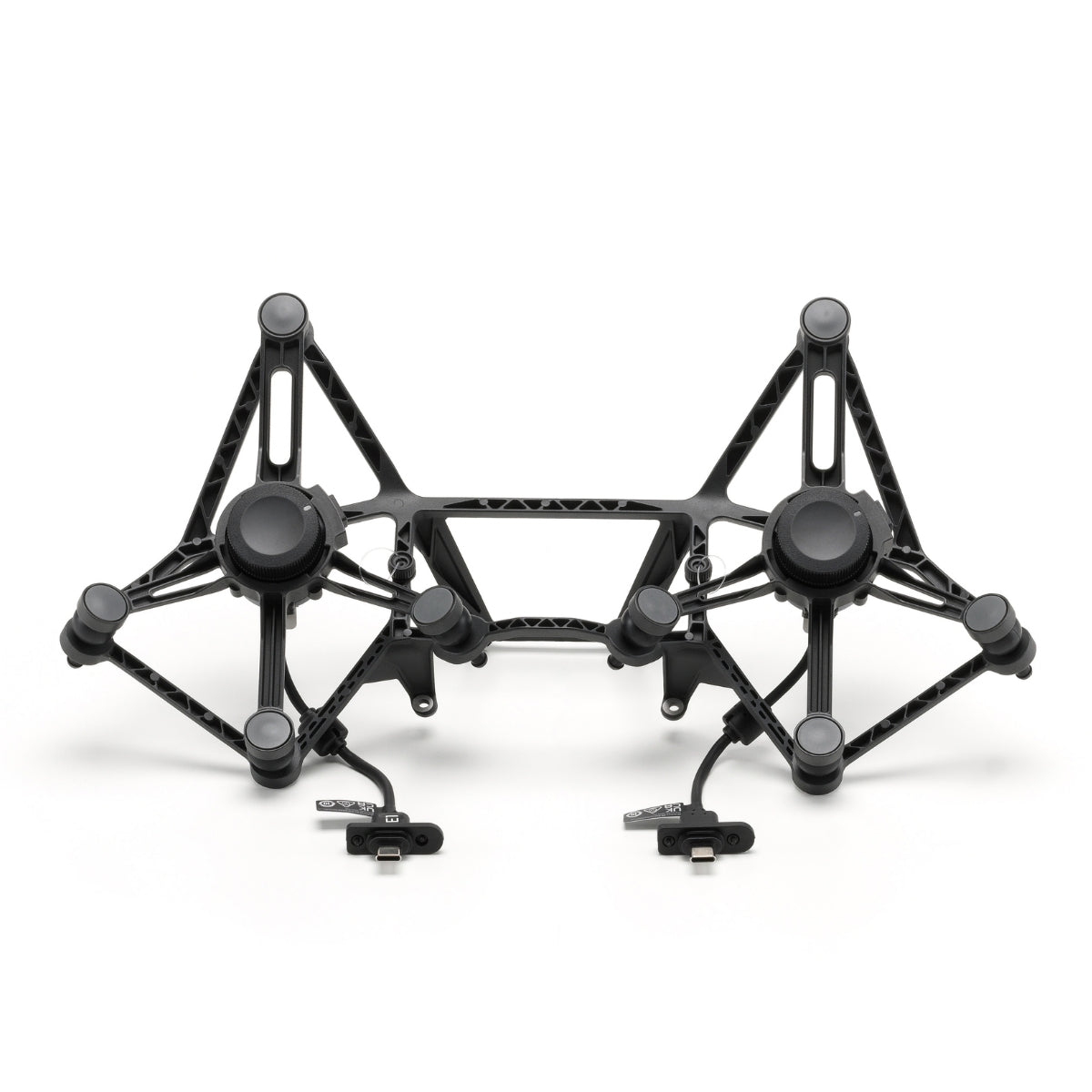

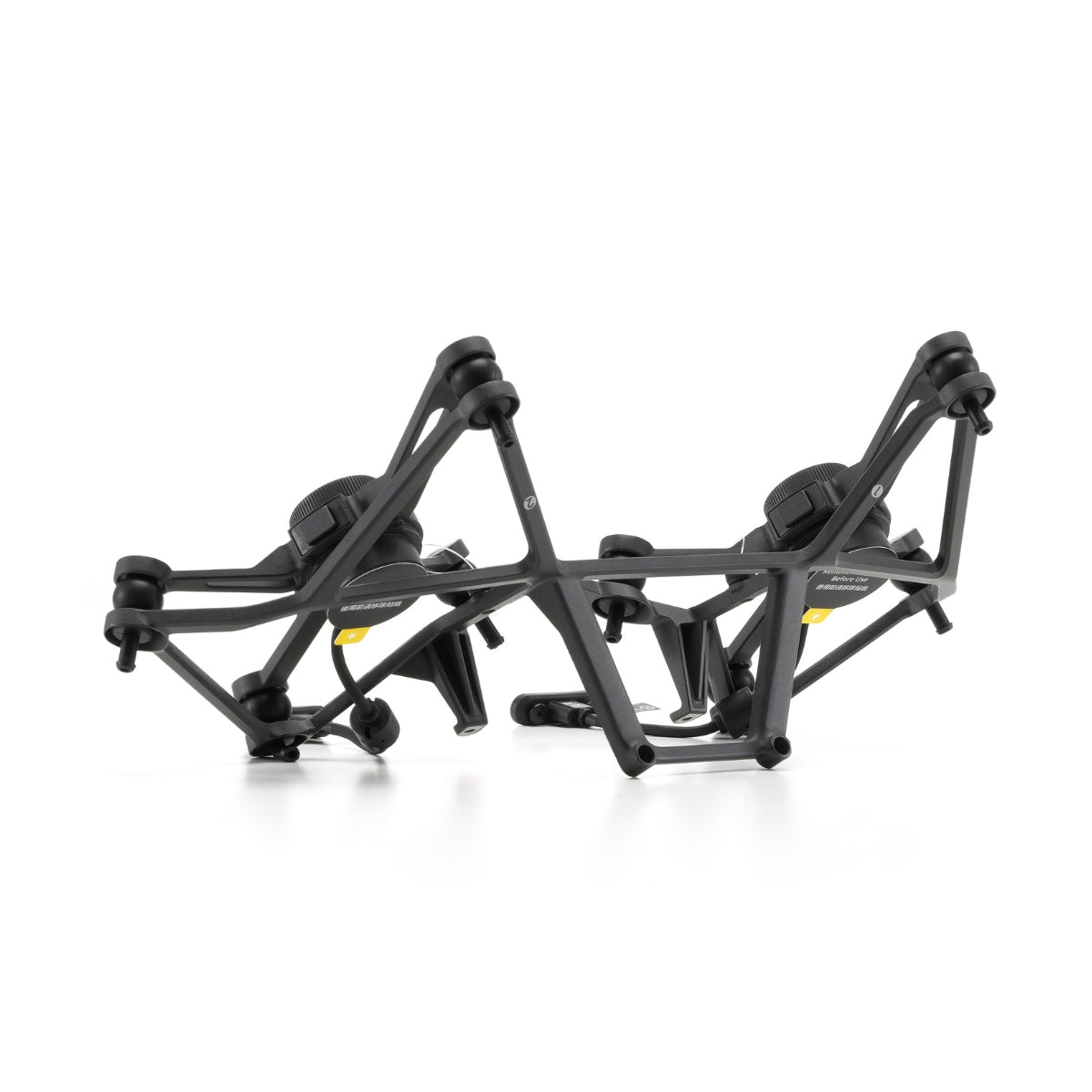

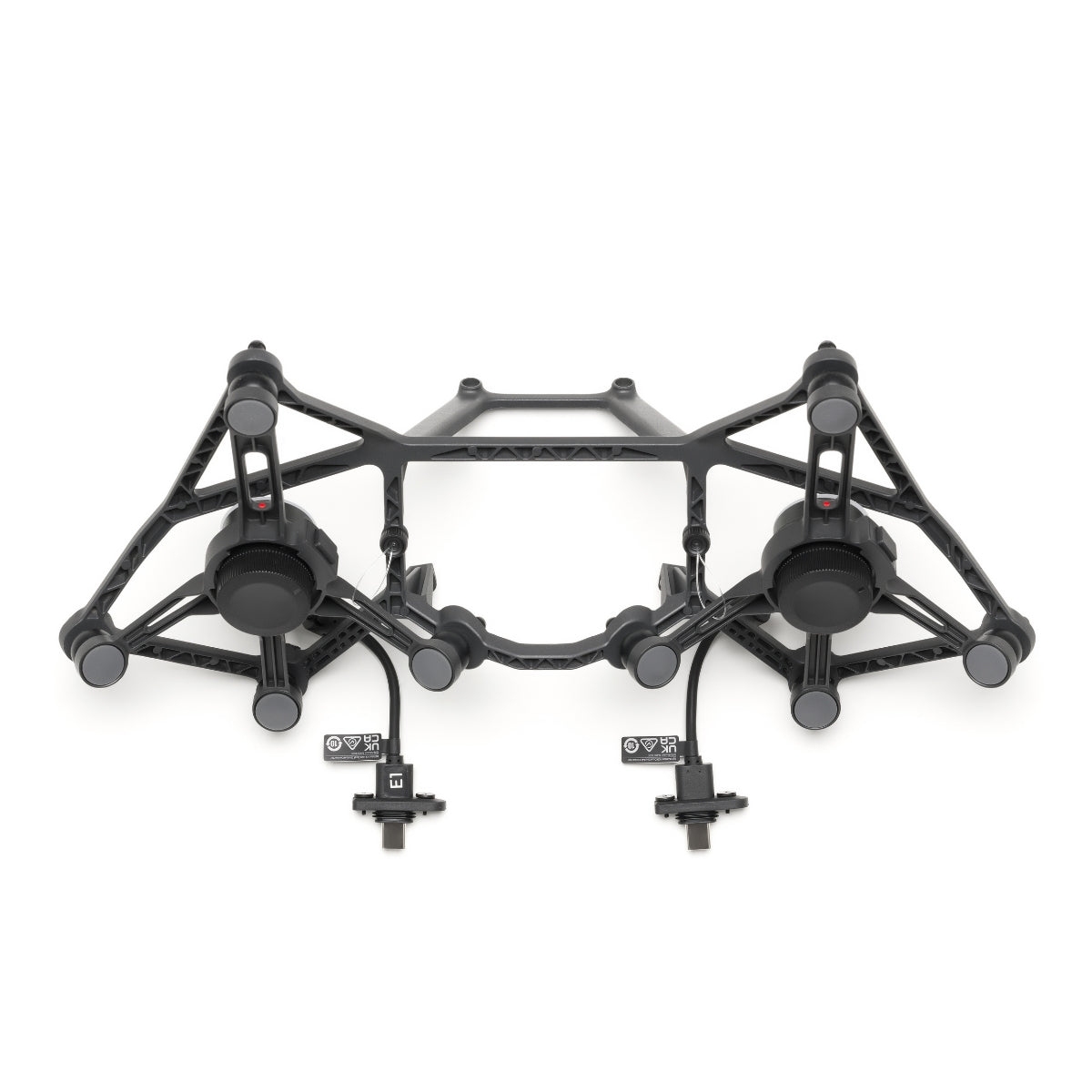

DJI Matrice 400 Dual Gimbal Connector: Professional Multi-Sensor Integration

The DJI Matrice 400 Dual Gimbal Connector is a high-strength integration module designed to transform the M400 into a comprehensive multi-sensor aerial platform. By interfacing with the E1 and E2 ports of the E-Port V2, this connector enables the simultaneous deployment of two downward-facing stabilized payloads. Constructed from premium aluminum alloy, it features parallel mounting rails that maintain the aircraft's center of gravity while supporting a wide array of optical, thermal, and LiDAR sensors. This accessory is indispensable for professionals in public safety and industrial inspection who must capture diverse data types during a single flight to maximize operational throughput.

DJI Matrice 400 Dual Gimbal Connector core features and advantages

  • Dual-payload support: enables simultaneous flight of two stabilized sensors for multi-stream data collection.
  • Balanced architecture: parallel mounting rails ensure optimal weight distribution and maintained flight stability.
  • High-capacity ports: supports a maximum weight of 33.5 oz (950 g) per gimbal position.
  • Universal interface: provides integrated power and communication via CAN, UART, PWM, and SBus.
  • SDK versatility: facilitates the integration of custom third-party sensors through the DJI Payload SDK.
  • Maintenance alerts: notifies users that payloads over 950 g reduce damper life to 400 hours.
  • Precision material: high-strength aluminum alloy construction provides a lightweight yet rigid sensor foundation.
  • Enterprise compatibility: specifically engineered for Zenmuse H20, H30, P1, and L2 series payloads and more.
  • Mission efficiency: captures complementary RGB and thermal data in one sortie to reduce costs.

The DJI Matrice 400 Dual Gimbal Connector is the primary solution for consolidating complex workflows into a single flight operation. It consistently solves the problem of needing multiple passes by allowing for perfectly synchronized data capture from two distinct sensors. This professional-grade connector delivers long-term reliability and flexibility for high-stakes missions where every second of flight time matters.

DSLRPros provides the specialized UAV lifecycle solutions required to help your department excel in the field. Our experienced team ensures your Matrice 400 is configured with the precise hardware needed for advanced public safety and industrial operations. Elevate your multi-sensor capabilities today by purchasing the DJI Matrice 400 Dual Gimbal Connector from DSLRPros.

  • Maximum Payload per Position: 950 g.
  • Mounting Ports: Connects to the E1 or E2 port of the aircraft's E-Port V2 system.
  • Weight: Approximately 160 g.
  • Ingress Protection: The waterproof rating depends entirely on the attached payload's rating.
  • 1x DJI Matrice 400 Dual Gimbal Connector
Which ports are used to connect the dual gimbal hardware?

The Dual Gimbal Connector interfaces directly with the E1 or E2 ports on the Matrice 400 E-Port V2 system. These ports provide the necessary power and high-speed data communication required for stabilized payloads. Proper seating in these ports is critical for maintaining sensor control and signal integrity during flight.

What is the weight limit for the sensors I can mount?

Each gimbal position on the dual connector is rated to support a maximum payload of 33.5 oz (950 g). While the connector can physically hold heavier items, exceeding this weight limit will reduce the lifespan of your gimbal dampers from 1,000 hours down to 400 hours. Always weigh your total sensor package before deployment.

Do I need to update my software to use this connector?

When using the latest DJI gimbals, such as the Zenmuse L3 series, you may be required to perform a firmware update. These updates are typically handled via the DJI Pilot 2 app to ensure full communication between the E-Port V2 and the new sensors. Check for updates before starting a mission.

Is the dual gimbal connector weather-resistant?

The environmental protection rating of the assembly is determined by the specific payloads you have attached to the connector. Users should refer to the IEC60529 standard for the IP ratings of their individual sensors. To maintain the aircraft’s integrity, ensure all connections are secure before flying in inclement weather.

Does this connector affect the drone's flight time or stability?

The connector itself is lightweight, weighing approximately 160 g, and uses parallel rails to keep the weight centered. While the total flight time will naturally decrease due to the weight of two payloads, the aircraft’s maneuverability and stability remain optimized. The Matrice 400 flight controller automatically adjusts for the added weight.
