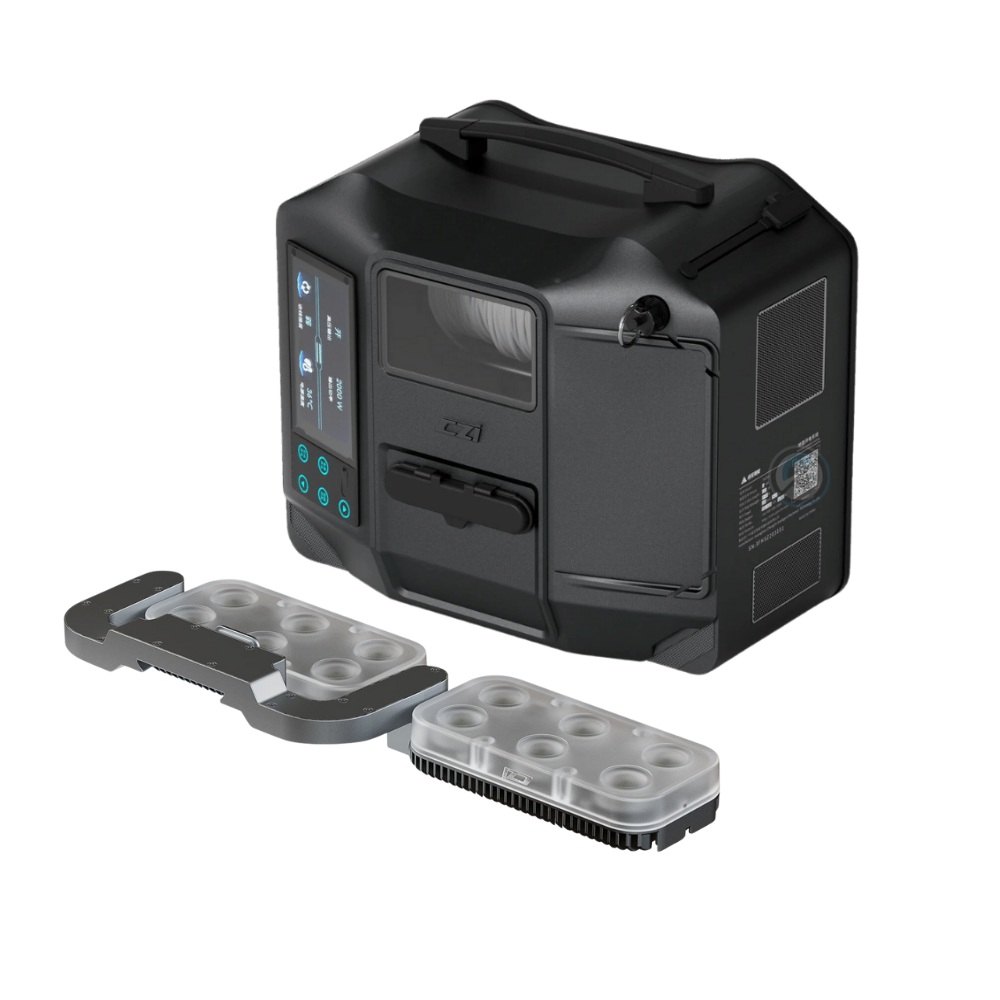

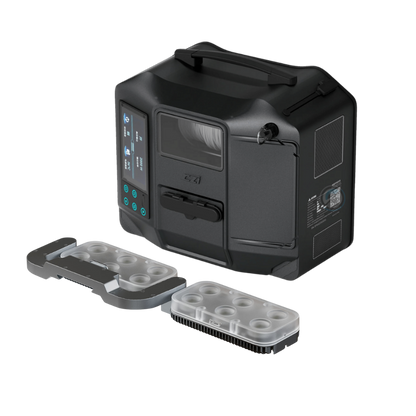

CZI TK3 Tethered Power System with ML200 Matrix Light Kit for DJI M350: Continuous Flight for Demanding Missions
Push your DJI Matrice 350 RTK to its operational limits with the CZI TK3 Tethered Power System. Designed for uninterrupted aerial missions, this advanced ground power unit delivers stable 400V DC through a high-performance nickel alloy cable, enabling up to 24 hours of continuous flight. Whether you're flying high-power payloads, the integrated ML200 Matrix Light, or critical sensors, the TK3 ensures your M350 stays powered in the toughest conditions. Also compatible with DJI M30/M30T and M300 drones for fleet-wide versatility.
Optimized for M350 Field Operations

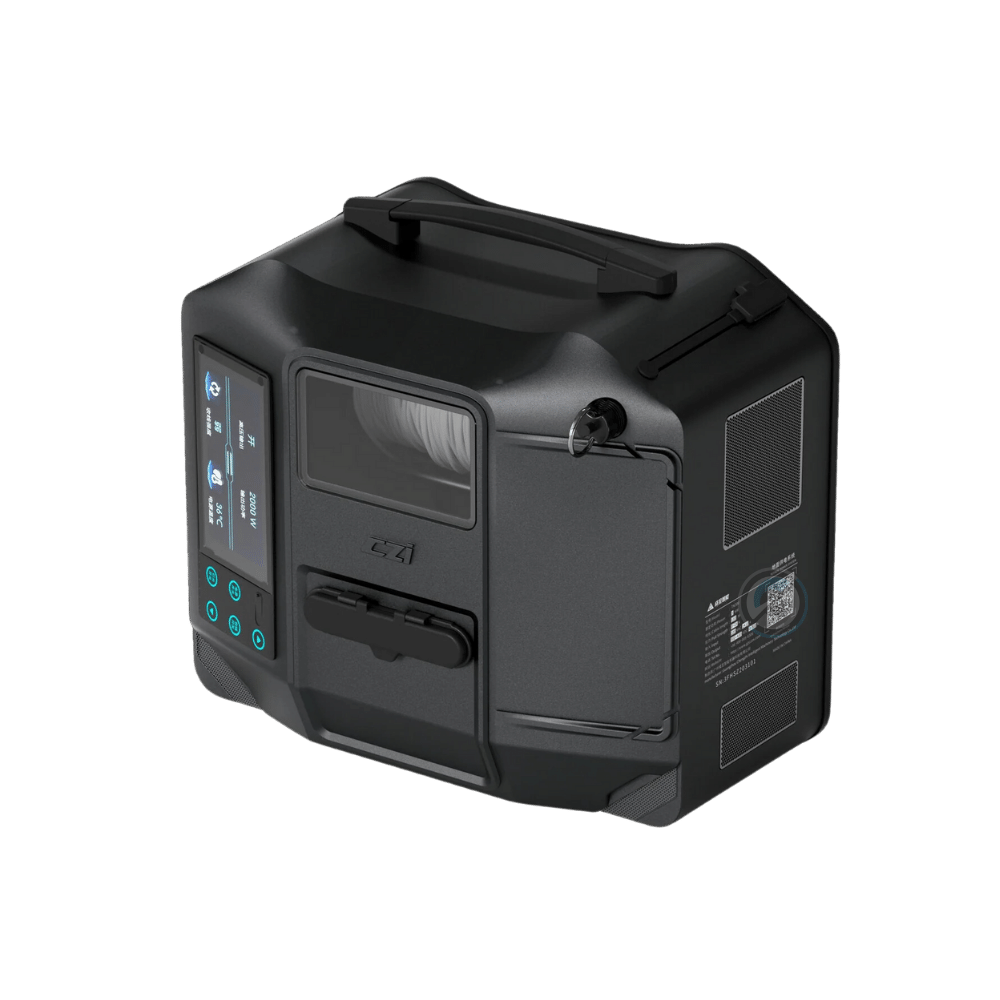

Weighing under 8kg, the TK3 is portable and quick to deploy, stored in an exclusive backpack for easy transport. Its quick-release tripod and detachable stand make setup efficient on any terrain. The 5-inch high-brightness display keeps you updated with power output, lighting control, and fault status, ensuring you maintain control throughout extended operations.
Reliable Power When It Matters Most
From disaster response to infrastructure inspections, the TK3 offers dependable high-voltage power delivery and built-in alarms for outages and system faults. Combined with the ML200 Matrix Light, you'll have powerful, consistent illumination for night missions or low-light conditions, keeping your M350 operational long after battery-powered drones have landed.
Key Features and Benefits
- 24-hour continuous flight for DJI Matrice 350 RTK

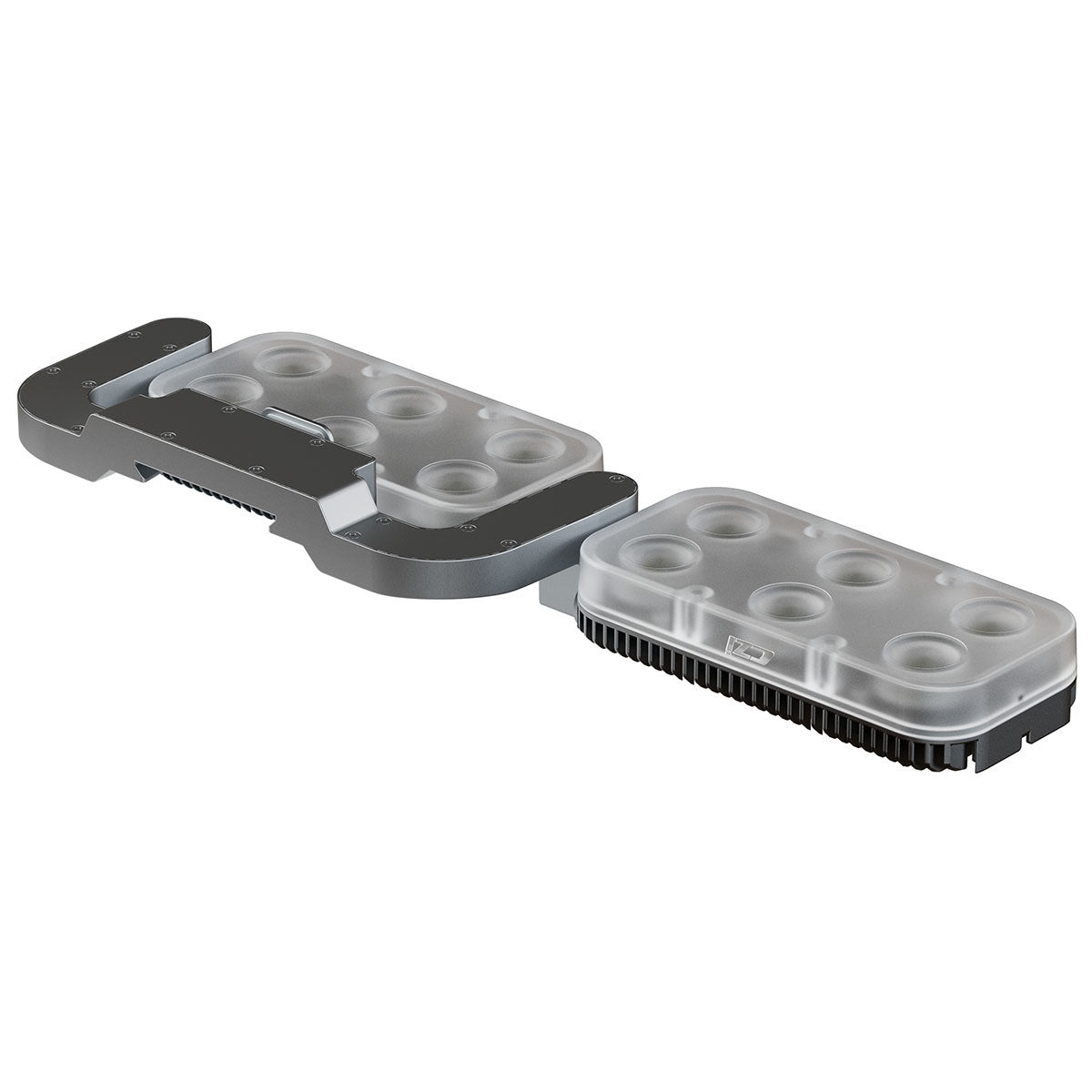

- ML200 Matrix Light for wide-area, high-intensity illumination
- High-performance 80m nickel alloy tether for safe, stable power delivery
- Lightweight (<8kg) and backpack-portable for field mobility
- Quick-release tripod for rapid deployment in any environment
- Built-in 5-inch display for power, light, and system diagnostics
- Power loss and fault alarms for operational safety
- Supports high-power mission payloads including cameras and searchlights
- Compatible with DJI M30/M30T and M300 as well
Applications and Use Cases
- Search and rescue: Maintain continuous aerial coverage during extended emergencies
- Disaster response: Illuminate and monitor large or hazardous areas
- Infrastructure inspection: Conduct uninterrupted, long-duration assessments
- Event and security monitoring: Provide constant aerial observation and lighting
- Mapping and surveying: Cover expansive areas without downtime
At DSLRPros, we specialize in delivering mission-ready UAV solutions built for real-world demands. As an authorized DJI Enterprise and CZI dealer, we ensure every TK3 unit is tested, configured, and ready for deployment.
Don't let battery limits dictate your mission. Equip your DJI M350 with the CZI TK3 today and fly with continuous power and illumination when it matters most.
Specifications
-
Overall Parameters
- Model: TK3
-
Ground Terminal
- Dimensional Size: 356 × 310 × 229mm
- Weight: 7.5kg ±5%
-
Power:
- ≥3000 watts (176VAC-264VAC input)
- ≥1500 watts (90VAC-175VAC input)
-
Cable:
- Cable length: 80 meters
- Cable diameter: less than 2.8mm
- Current carrying capacity: greater than 10A
- Weight: (12g ±1) g/meter
- Tensile strength: greater than 200N
- Input Voltage: 90-264 VAC
- Operating Frequency: 50/60 Hz
- Output Voltage: ≥400 VDC
- Working Environment Temperature: -20-40°C
-
TK3-M350 Sky End
- Dimensional Size: 166 × 91 × 69mm
- Weight: 566g ±5%
- Power: ≥3000W
- Input Voltage: 400V
- Output Voltage: >45V
- Output Current: ≥60A
In The Box
- 1× TK3 Ground Station
- 1× TK3-M30 Drone End
- 1× TK3-M350/M300 Drone End
- 2× ML200 Matrix Light
- 1× Ground Power Connection Cable
- 4× Detachable Stand
- 1× User Manual
- 1× CZI 1 Year Limited Warranty
