CZI TK3 Tethered Power System for DJI M350: 24-Hour Flight for Uninterrupted Operations
Take the endurance of your DJI Matrice 350 RTK to the next level with the CZI TK3 Tethered Power System. Engineered for continuous operations, the TK3 converts 220V AC power into 400V DC high-voltage power, transmitted through an 80-meter high-performance nickel alloy cable. This setup enables up to 24 hours of uninterrupted flight, ensuring your M350 remains airborne for extended missions. Also compatible with DJI M30 Series and M300 RTK drones for fleet-wide flexibility.
Optimized for M350 Performance
With its lightweight, compact design and under-8kg build, the TK3 is easy to transport in its dedicated backpack and deploy quickly using the quick-release tripod. The optimized weight balance ensures stable flight performance, while the 80m nickel alloy tether delivers safe, efficient power without adding unnecessary load to your M350.
Built for Critical, Long-Duration Missions
From infrastructure inspections to emergency response, the TK3 delivers reliable high-voltage power to support mission-critical payloads such as high-power gimbal searchlights and cameras. Its capability for 24-hour operation makes it indispensable for large-area surveillance, search and rescue, and continuous monitoring where battery swaps aren't an option.
Key Features and Benefits
- 24-hour continuous flight capability for DJI M350 RTK
- 80m nickel alloy tether for safe, stable power transmission
- Under-8kg system for portability and rapid deployment
- Optimized weight balance for stable, efficient flight
- Works with high-power gimbal searchlights and cameras
- Quick-release tripod for fast field setup
- Compatible with DJI M30 Series and M300 RTK as well
Applications and Use Cases
- Search and rescue: Keep your M350 airborne for continuous emergency coverage
- Disaster response: Illuminate and monitor large areas during critical events
- Infrastructure inspection: Eliminate downtime during extended assessments
- Event security: Maintain uninterrupted aerial surveillance for crowd management
- Mapping and surveying: Cover expansive zones in a single, continuous flight
At DSLRPros, we deliver more than hardware - we provide fully configured, mission-ready UAV solutions. As an authorized DJI Enterprise and CZI dealer, each TK3 is tested and prepared for field reliability.
Don't cut your M350 missions short. Equip your drone with the CZI TK3 today and achieve true all-day aerial endurance.
Specifications
-
Overall Parameters
- Model: TK3
-

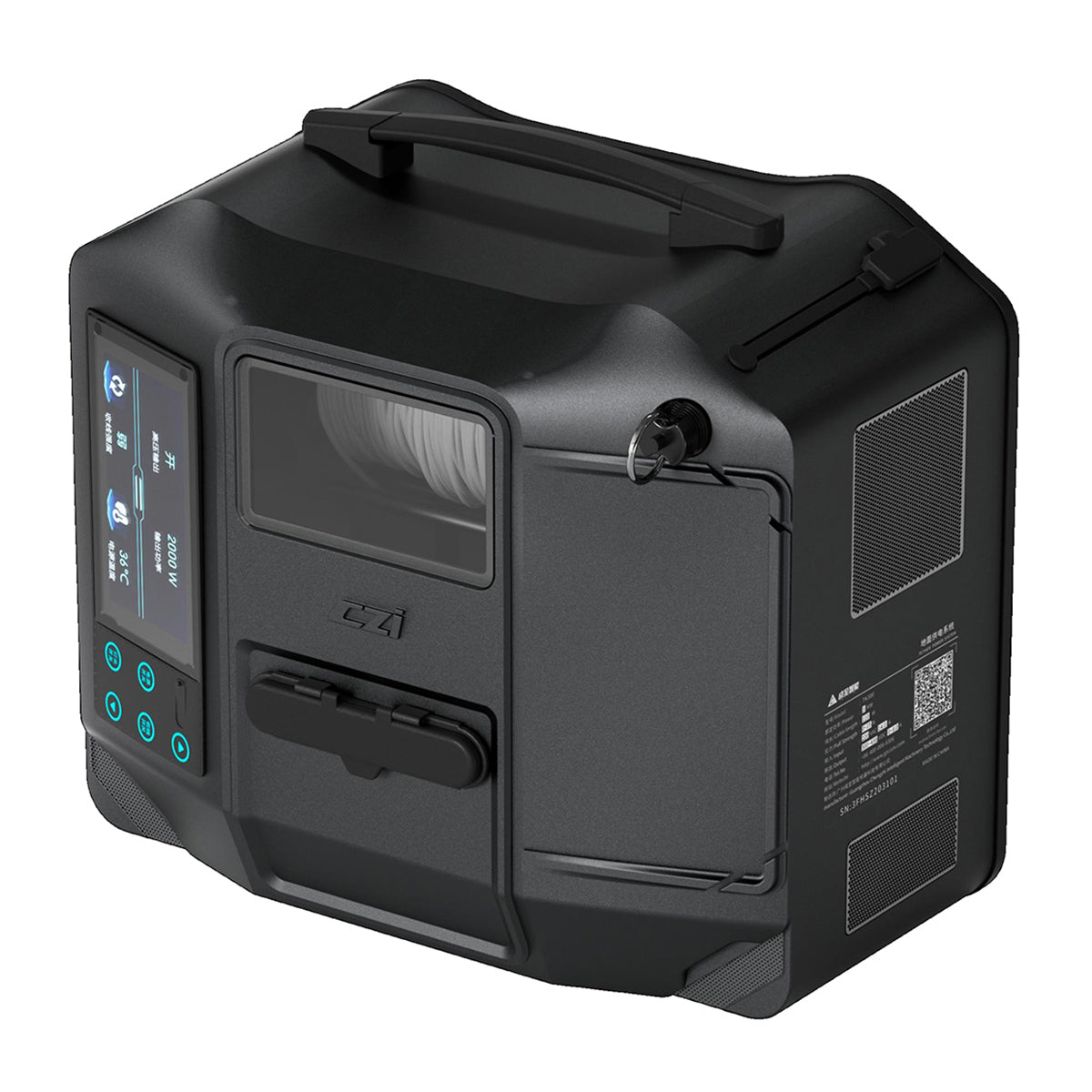

Ground Terminal
- Dimensional Size: 356 × 310 × 229mm
- Weight: 7.5kg ±5%
-
Power:
- ≥3000 watts (176VAC-264VAC input)
- ≥1500 watts (90VAC-175VAC input)
-
Cable:
- Cable length: 80 meters
- Cable diameter: less than 2.8mm
- Current carrying capacity: greater than 10A
- Weight: (12g ±1) g/meter
- Tensile strength: greater than 200N
- Input Voltage: 90-264 VAC
- Operating Frequency: 50/60 Hz
- Output Voltage: ≥400 VDC
- Working Environment Temperature: -20-40°C
-
TK3-M350 Sky End
- Dimensional Size: 166 × 91 × 69mm
- Weight: 566g ±5%
- Power: ≥3000W
- Input Voltage: 400V
- Output Voltage: >45V
- Output Current: ≥60A
In The Box
- 1× CZI TK3 Tethered Power System for DJI M350
- 1× TK3-M30 Drone End
- 1× TK3-M350/M300 Drone End
- 1× Ground Power Connection Cable
- 4× Detachable Stand
- 1× User Manual
- 1× CZI 1 Year Limited Warranty
