• Sony LR1 Agrowing Sextuple Lens
1 1

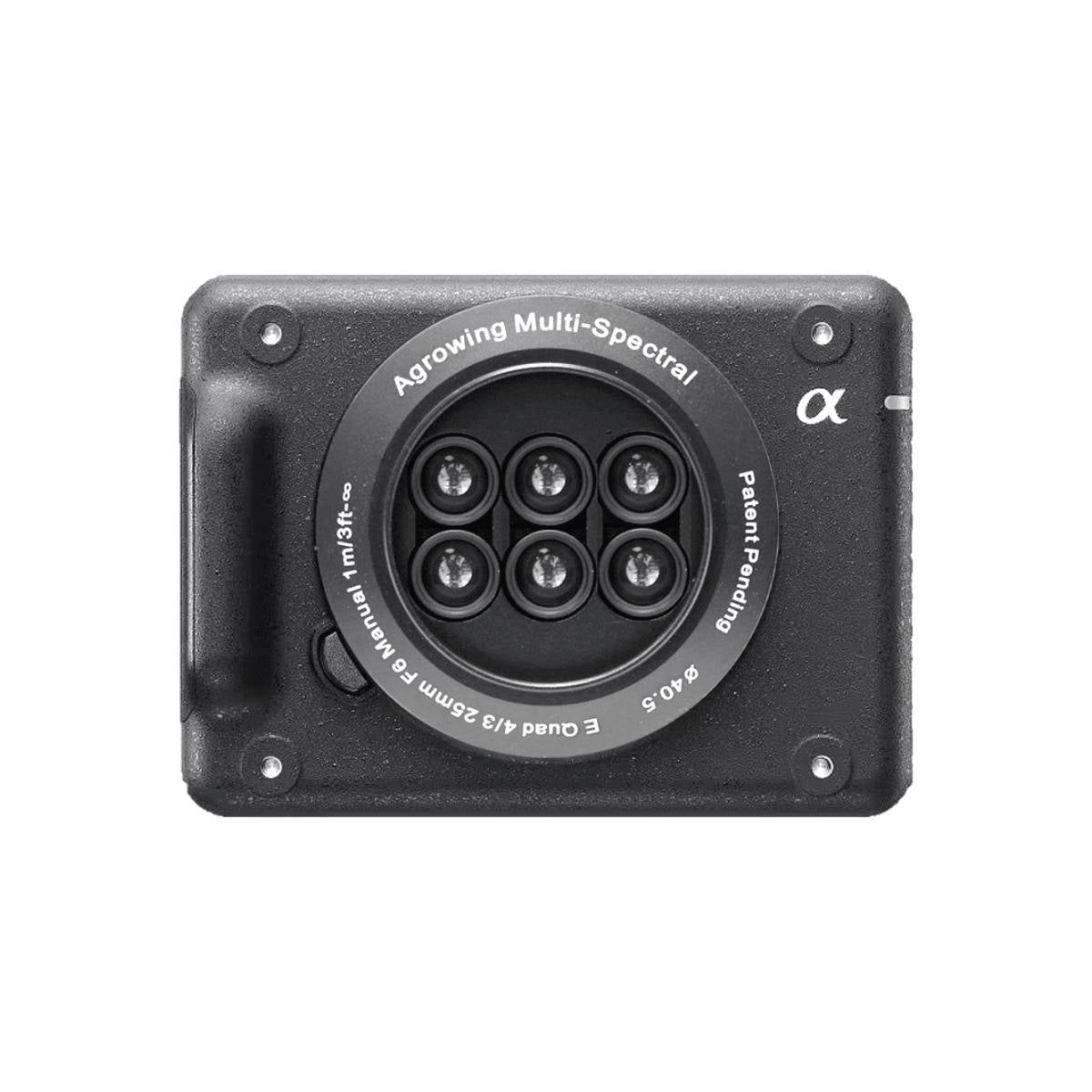

Sony LR1 Agrowing Sextuple Lens

Sony LR1 Agrowing Sextuple Lens

$19,500.00
$19,500.00
Sale Sold out
Shipping calculated at checkout.

S-WSP-SONY-LR1-AGROW-6X

SKU S-WSP-SONY-LR1-AGROW-6X MPN 2100.005.045
  • 14 spectral bands captured simultaneously from 405-850nm wavelengths
  • Each band delivers 7.2MP resolution for detailed crop analysis
  • Dual-purpose system switches to 61MP RGB mapping with included IR-Cut filter
  • Full-Frame E-Mount designed for modified Sony ILX-LR1 UAV integration
  • Effective focal length of 21.8mm supports consistent wide-area coverage
  • Manual focus range from 0.5m to infinity adapts to varied flight altitudes
  • Compact 424 gr total weight keeps drone payload within operational limits
  • Fixed F5.6 aperture ensures repeatable, calibrated exposure across all missions
  • Included IR-Cut 615nm filter enables high-resolution orthomosaic deliverables
  • Relative illumination of 60% maintains consistent light distribution across the frame
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Sony LR1 Agrowing Sextuple Lens: 14-Band Multispectral Capture With 61MP RGB Mapping

The Agrowing Lightweight Sextuple for the Sony ILX-LR1 is a sextuple lens single-mount multispectral camera system built for UAV deployment in precision agriculture, environmental research, and scientific remote sensing.

It captures 14 spectral bands simultaneously at 7.2MP per band across wavelengths from 405nm to 850nm, giving field operators dense, calibrated spectral data in a single pass. The system mounts directly to a modified Sony ILX-LR1 body via Full-Frame E-Mount.

Agrowing Sextuple Key Features and Operational Capabilities

  • Spectral range: 14 bands from 405nm to 850nm cover critical vegetation indices.
  • Per-band resolution: 7.2MP per multispectral band after demosaicing and alignment.
  • RGB mapping mode: 61MP full-frame capture enabled via clip-in IR-Cut 615nm filter.
  • Focal length: 21.8mm effective focal length delivers consistent wide-area ground coverage.
  • Field of view: 40.8-degree diagonal captures broad swaths in each flight pass.
  • Focus range: manual focus from 0.5m to infinity supports varied altitude operations.
  • F-Stop fixed: F5.6 aperture with fixed iris ensures repeatable exposure across flights.
  • Spectral bandwidth: 30nm-wide bands provide precise, narrow spectral isolation per channel.
  • Total system weight: 424 gr combined body and lens keeps payload within tight UAV limits.
  • E-Mount compatibility: Full-Frame E-Mount fits modified Sony ILX-LR1 for direct integration.

Dual-Purpose Multispectral and RGB Mapping

Beyond multispectral capture, the system doubles as a 61MP RGB mapping camera when paired with the included clip-in IR-Cut 615nm filter.

This dual-purpose capability means crews can execute both high-resolution orthomosaic missions and multispectral analysis missions with a single sensor platform, reducing payload complexity and field changeover time.

Designed for Efficient Remote Sensing Workflows

The Agrowing Sextuple addresses a core problem in aerial remote sensing: collecting high-fidelity multispectral and RGB data without carrying multiple sensors.

Its 14-band configuration covers the spectral range needed for NDVI, chlorophyll mapping, plant stress detection, and beyond, while the 61MP RGB mode handles orthomosaic deliverables in the same flight window.

For research teams and agricultural operators who need reliable, repeatable data across missions, this system removes the need to compromise between spectral depth and mapping resolution.

When you purchase through DSLRPros, you are buying from a team that understands how this sensor fits into a full UAV data workflow, from calibration through delivery. Order the Sony LR1 Agrowing Sextuple Lens today at DSLRPros and put verified spectral capability to work on your next mission.

  • Type: Sextuple lens single mount
  • Multi spectral chroma bands: 405; 430; 450; 490; 525; 550; 560; 570; 630; 650; 685; 710; 735; 850nm, 30nm wide, customized for best performance
  • Effective focal length: 21.8mm
  • Focus type and range: Manual, 0.5m to infinity
  • Total sensor weight including lens: 424gr (243 + 181)
  • Field of view: Diagonal 40.8, Horizontal 33.0, Vertical 25.0
  • TV distortion: less than 2%
  • Relative illumination: 60%
  • F-Stop: 5.6
  • Lens dimension (ØxL): 64.5 x 35mm
  • 1x Sony LR1 Agrowing Sextuple Lens
What is the Sony LR1 Agrowing Sextuple Lens and what is it used for?

The Agrowing Sextuple for the Sony ILX-LR1 is a sextuple lens single-mount multispectral camera system designed for UAV deployment. It captures 14 spectral bands simultaneously at 7.2MP per band, covering wavelengths from 405nm to 850nm. Primary applications include precision agriculture, vegetation stress analysis, environmental monitoring, and scientific remote sensing. The system also supports 61MP RGB mapping missions via an included clip-in IR-Cut 615nm filter.

What spectral bands does the Agrowing Sextuple capture?

The Agrowing Sextuple captures 14 spectral bands at 30nm bandwidth each. The band center wavelengths are 405, 430, 450, 490, 525, 550, 560, 570, 630, 650, 685, 710, 735, and 850nm. This range covers key indices including NDVI, red edge, and near-infrared bands used in vegetation health and plant stress analysis. Bands are customized for best performance across the full spectral range.

Is the Agrowing Sextuple compatible with the standard Sony ILX-LR1?

The Agrowing Sextuple is designed for a modified Sony ILX-LR1 body. It uses a Full-Frame E-Mount and is not intended for use with an unmodified consumer ILX-LR1. When fitted with the included clip-in IR-Cut 615nm filter, the system is also compatible with any Sony Full-Frame E-Mount compatible lens for standard RGB capture.

What is the total weight of the Agrowing Sextuple system on the Sony ILX-LR1?

The total sensor weight, including the lens and ILX-LR1 body, is 424 gr (243 gr body plus lens). This compact weight profile is designed to keep the payload within the operational limits of professional-grade UAV platforms commonly used in agricultural and research missions.

What is the field of view and focal length of the Agrowing Sextuple?

The Agrowing Sextuple has an effective focal length of 21.8mm and a field of view measuring 40.8 degrees diagonal, 33.0 degrees horizontal, and 25.0 degrees vertical. This wide-angle coverage supports efficient area mapping in fewer flight passes. The fixed F5.6 aperture and manual focus range from 0.5m to infinity provide consistent optical performance across varying flight altitudes.
