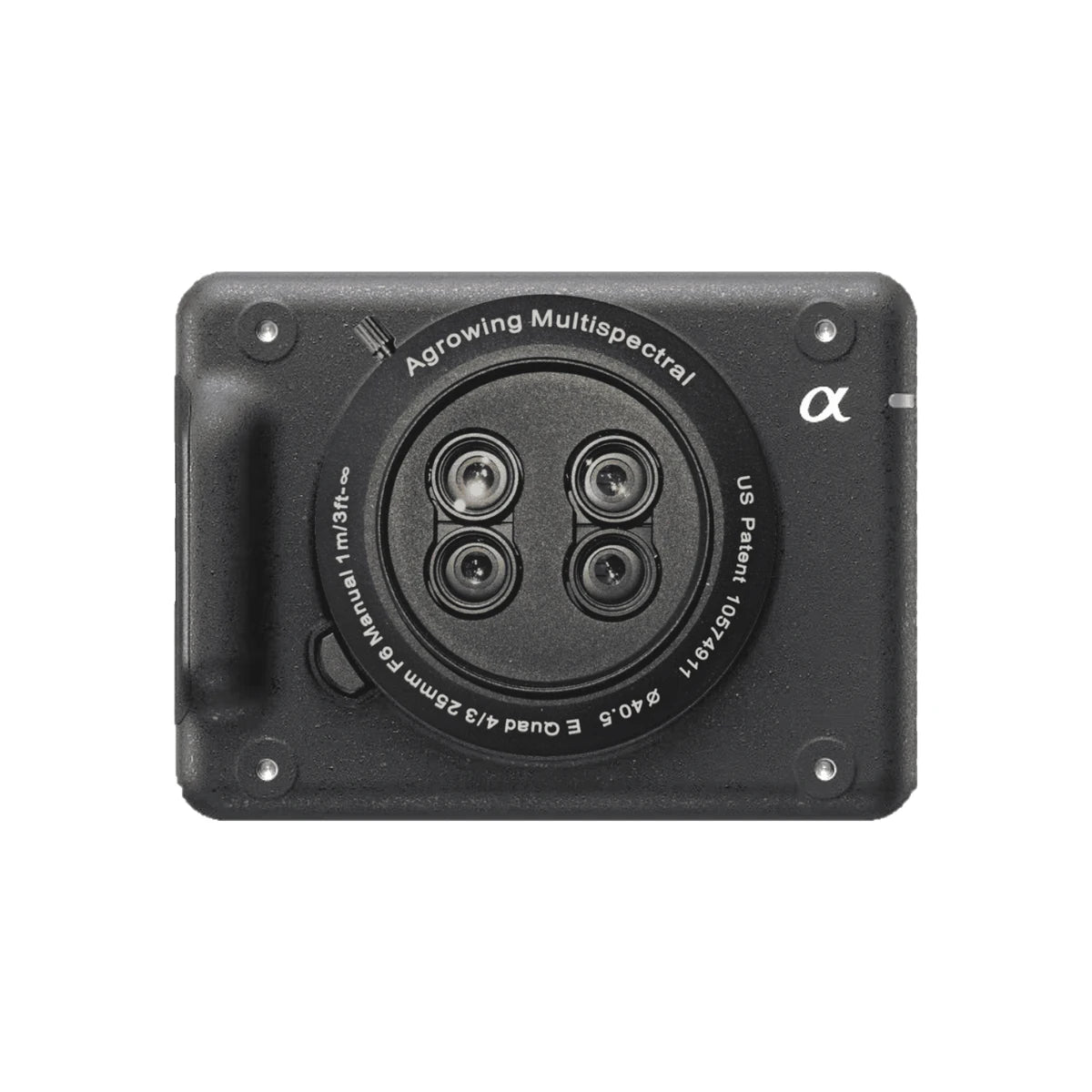

• WISPR Sony LR1 Agrowing Quad Lens, front view showing four lens elements
1 1

WISPR Sony LR1 Agrowing Quad Lens

WISPR Sony LR1 Agrowing Quad Lens

$16,250.00
$16,250.00
Sale Sold out
Shipping calculated at checkout.

S-WSP-SONY-LR1-AGROW-4X

SKU S-WSP-SONY-LR1-AGROW-4X MPN 2100.005.046
  • Captures 61 megapixel RGB or ten band multispectral imagery
  • Delivers 12 megapixel resolution per individual spectral band
  • Maintains under one percent TV distortion for mapping accuracy
  • Mounts using a standard Full-Frame E-Mount interface
  • Weighs 424 grams total including body and multispectral lens
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Agrowing ILX-LR1: 61MP RGB or 10-Band Multispectral Mapping in One Sensor

The Agrowing ILX-LR1 is a quad-lens mapping sensor built on a modified Sony ILX-LR1 camera body, offering 61MP RGB mapping or 10-band multispectral capture at 12MP per band from a single unit. With 9 bands plus wide RGB also available, this sensor gives operators flexibility to switch capture modes without changing hardware.

At 424 grams total, including a 243-gram body and 181-gram multispectral lens, the ILX-LR1 mounts via a Full-Frame E-Mount interface. A 25mm effective focal length and manual focus from 0.5 meters to infinity give operators consistent control over image capture across different mapping conditions.

Key Features and Benefits

  • Dual capture modes: switches between RGB mapping and multispectral bands
  • Ten band multispectral: captures 12MP resolution per individual band
  • Low distortion: maintains under 1 percent TV distortion accuracy
  • Full-Frame E-Mount: connects using a standard camera mounting interface
  • Manual focus control: adjusts from 0.5 meters to infinity precisely

Multispectral mapping accuracy depends on both resolution and band precision, and the ILX-LR1 is built to deliver both from a single sensor body. Its dual-mode design means one piece of hardware covers both standard RGB mapping and detailed spectral analysis work.

DSLRPros stocks the mapping sensors that give operators flexible capture options for precision data collection work. Our technicians can confirm integration details for your specific platform before you check out. Order the Agrowing ILX-LR1 from DSLRPros today.

  • Type: Quad lens single mount
  • Field of view: Diagonal 46.0Β°, Horizontal 40.7Β°, Vertical 27.60Β°
  • TV distortion: <1%
  • Multispectral chroma bands (30nm wide): 405nm, 430nm, 450nm, 550nm, 560nm, 570nm, 650nm, 685nm, 710nm, 850nm (customized for best performance)
  • Relative illumination: 68%
  • Effective focal length: 25mm
  • F-stop: 6.0
  • Focus type and range: Manual, 0.5m to infinity
  • Lens dimensions: Ø64.6 x 31.5mm
  • Total sensor weight (including lens): 424g (243g body + 181g multispectral lens)
  • Mount: Full-Frame E-Mount
  • Base sensor: Modified Sony ILX-LR1
  • 1x WISPR Sony LR1 Agrowing Quad Lens
What capture modes does this sensor support?

The Agrowing ILX-LR1 supports 61MP RGB mapping, 10-band multispectral capture at 12MP per band, or 9 bands plus wide RGB. This gives operators flexibility to switch between standard mapping and detailed spectral analysis using the same sensor.
