Sony LR1 (61MP) on Custom Gimbal 35mm Lens for SkyScout Series

Sony LR1 (61MP) on Custom Gimbal 35mm Lens for SkyScout Series

$8,500.00
$8,500.00
Sale Sold out
Shipping calculated at checkout.

S-WSP-SONY-LR1-35-SS

SKU S-WSP-SONY-LR1-35-SS MPN 2100.005.019
  • Full-frame 1.38-inch Exmor R CMOS sensor captures 61-megapixel aerial images
  • 9504 x 6336 resolution supports large-area survey and photogrammetry workflows
  • Sony FE Mount 35mm f/2.8 lens provides 62-degree field of view coverage
  • Dual shutter system spans mechanical 1/4000 to electronic 1/8000 of a second
  • ISO expandable to 102400 for reliable performance in low-light conditions
  • 4K video recording at up to 59.94fps in XAVC S and XAVC HS formats
  • Slow-motion 1080P video captured at up to 119.88fps for detailed analysis
  • 3-axis stabilized gimbal maintains angular vibration within plus or minus 0.02 degrees
  • Pan rotation range of plus or minus 320 degrees for flexible aerial positioning
  • Compatible with the WISPR SkyScout Series via quick-attach gimbal mount
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

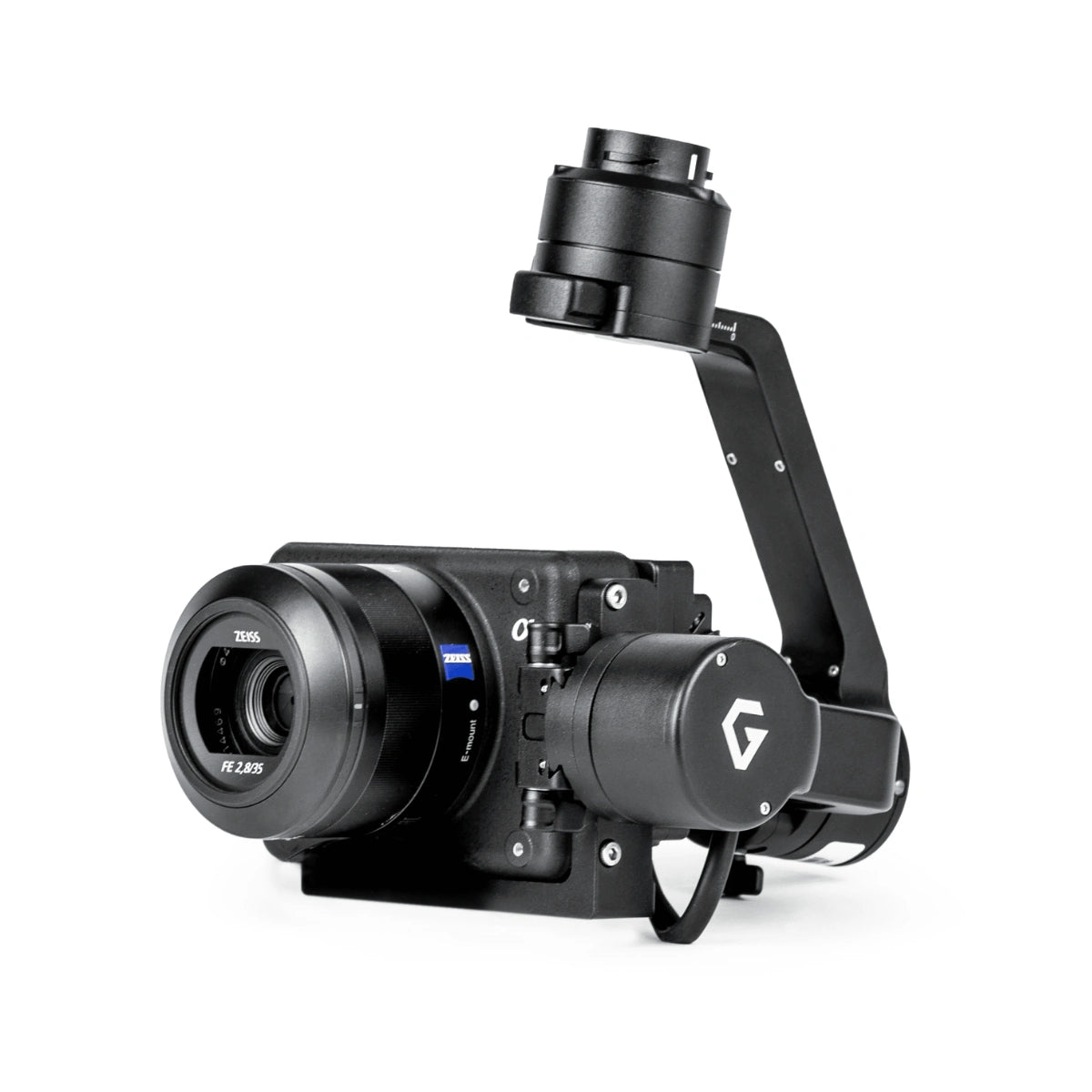

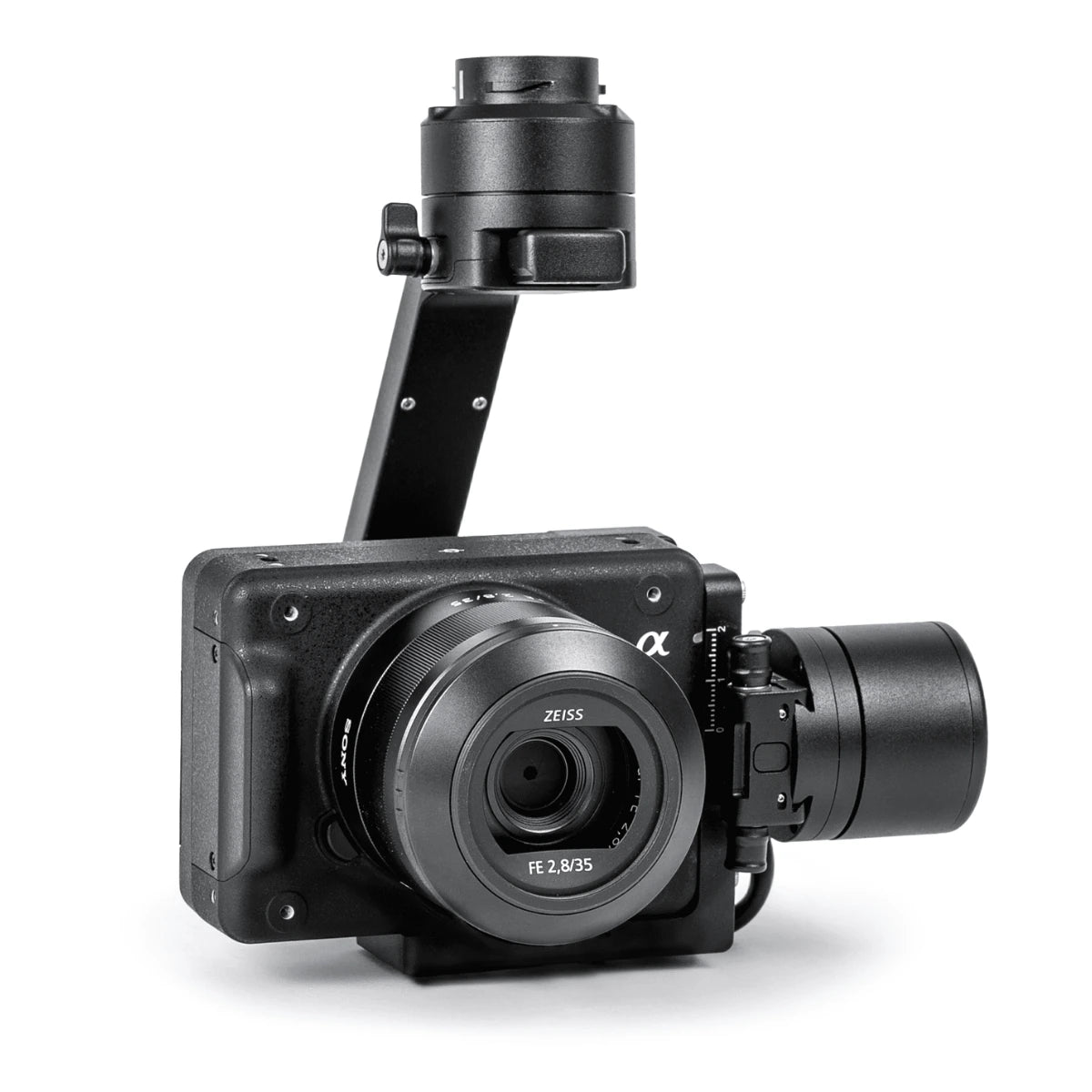

Sony ILX-LR1 61MP: Full-Frame 61-Megapixel Imaging Payload for the SkyScout Series

The Sony ILX-LR1 61MP is a professional gimbal-mounted camera payload built around Sony's full-frame Exmor R CMOS sensor, delivering 61-megapixel stills at 9504 x 6336 resolution for aerial photography, mapping, and high-detail inspection work.

Paired with a Sony FE Mount 35mm f/2.8 lens and a 62-degree field of view, it gives operators the image quality and coverage angle needed for demanding aerial data collection. Designed for integration with the WISPR SkyScout Series, the payload connects via a quick-attach gimbal mount for fast field deployment.

When resolution and dynamic range are mission-critical, the ILX-LR1 delivers. The full-frame sensor supports ISO sensitivity from 100 to 32000, expandable to ISO 102400, with exposure compensation of +/- 5.0 EV in selectable 1/3 or 1/2 EV steps. The mechanical shutter covers 1/4000 to 30 seconds while the electronic shutter extends to 1/8000, giving operators precise control across a wide range of lighting conditions. Video capture tops out at 4K at 59.94fps in XAVC S or XAVC HS formats, with 1080P available at up to 119.88fps for high-frame-rate applications.

Sony ILX-LR1 61MP Core Features and Advantages

  • Full-frame sensor: 1.38-inch Exmor R CMOS delivers 61-megapixel aerial image output.
  • High-resolution output: 9504 x 6336 pixel capture supports large-area survey deliverables.
  • 35mm f/2.8 lens: 62-degree FOV balances subject detail with effective ground coverage.
  • Dual shutter system: mechanical to 1/4000 and electronic to 1/8000 for varied conditions.
  • Wide ISO range: sensitivity from ISO 100 to 32000, expandable to 102400 for low light.
  • 4K video capture: records at up to 59.94fps in XAVC S and XAVC HS formats.
  • High-frame-rate video: 1080P recording at up to 119.88fps for slow-motion applications.
  • 3-axis stabilized gimbal: ±0.02° vibration tolerance maintains sharpness throughout flight.
  • Broad rotation range: pan control of ±320° supports flexible aerial camera positioning.
  • Operating range: functions reliably between 32°F and 122°F across field environments.

The Sony ILX-LR1 61MP exists for operators who cannot afford to compromise on image resolution or sensor performance. Its full-frame capture at 61 megapixels, combined with a stabilized 3-axis gimbal and dual shutter system, gives field teams the technical foundation to deliver survey-grade imagery and 4K video from a single deployable payload.

DSLRPros has the product knowledge and UAV support infrastructure to help you integrate the Sony ILX-LR1 61MP into your SkyScout Series workflow from day one. Whether you are adding a high-resolution payload to an existing fleet or configuring a new aerial imaging setup, our team is ready to help.

Order the Sony ILX-LR1 61MP at DSLRPros today.

Camera

  • Sensor: Exmor R CMOS sensor
  • Sensor size: 1.38" Full Frame
  • Sensor width: 1.41"
  • Sensor height: 0.94"
  • Photo resolution: 61 MP
  • Image size: 9504 × 6336
  • Photo formats: JPEG, RAW
  • Video resolution: 4K at 59.94 fps (max)
  • Video resolution: 1080p at 119.88 fps (max)
  • Video formats: XAVC S (MPEG-4 AVC/H.264), XAVC HS (MPEG-H HEVC/H.265)
  • Shutter type: Mechanical shutter / Electronic shutter
  • Shutter speed (mechanical): 1/4000 s to 30 s
  • Shutter speed (electronic): 1/8000 s to 30 s
  • Movie shutter speed: 1/8000 s to 1 s
  • Exposure settings: ±5.0 EV (1/3 EV and 1/2 EV steps selectable)
  • ISO sensitivity (stills): ISO 100–32000, expandable to ISO 50–102400
  • ISO sensitivity (movies): ISO 100–32000 equivalent
  • Auto ISO range: ISO 100–12800
  • PAL/NTSC: Supported

Camera Lens

  • Lens option: Sony FE Mount 35 mm f/2.8
  • Field of view (35 mm f/2.8): 62°
  • Field of view (30 mm f/2.8): 47°

Gimbal

  • Angular vibration range: ±0.02°
  • Maximum controlled rotation speed: Pan 180°/s, Tilt 180°/s, Roll 180°/s
  • Mechanical endpoint range: Pan ±326°, Tilt +50° to -140°, Roll +50° to -274°
  • Controlled rotation range: Pan ±320°, Tilt +40° to -120°, Roll ±40°
  • Operating temperature: 32°F to 122°F
  • 1x Sony LR1 (61MP) on Custom Gimbal 35mm Lens for SkyScout Series
What drone platform is the Sony ILX-LR1 61MP payload compatible with?

The Sony ILX-LR1 61MP is designed for use with the WISPR SkyScout Series. It connects via a quick-attach gimbal mount that interfaces directly with the SkyScout payload system, allowing for fast and secure installation without tools in the field.

What is the image resolution and format output of the Sony ILX-LR1 61MP?

The payload captures stills at 61 megapixels with an image size of 9504 x 6336 pixels. Output formats include JPEG and RAW. RAW capture is particularly useful for photogrammetry, survey, and inspection workflows where full uncompressed sensor data is required for accurate post-processing.

What shutter options does the Sony ILX-LR1 61MP support?

The payload includes both a mechanical shutter and an electronic shutter. The mechanical shutter covers a range of 1/4000 to 30 seconds, while the electronic shutter extends the range to 1/8000 to 30 seconds. For video, the shutter range is 1/8000 to 1 second. This flexibility allows operators to adapt to varied lighting environments without compromising image quality.

What video capabilities does the Sony ILX-LR1 61MP offer?

The payload records video at up to 4K at 59.94fps and 1080P at up to 119.88fps. Supported formats include XAVC S using MPEG-4 AVC/H.264 and XAVC HS using MPEG-H HEVC/H.265. Both PAL and NTSC are supported, making the payload suitable for operators in multiple regions.

What are the gimbal specifications for the Sony ILX-LR1 61MP payload?

The payload uses a 3-axis stabilized gimbal with an angular vibration range of ±0.02°. Controlled rotation ranges are ±320° on the pan axis, +40° to -120° on the tilt axis, and ±40° on the roll axis. Maximum controlled rotation speed is 180°/s across all three axes. The payload operates between 32°F and 122°F (0°C to 50°C).
