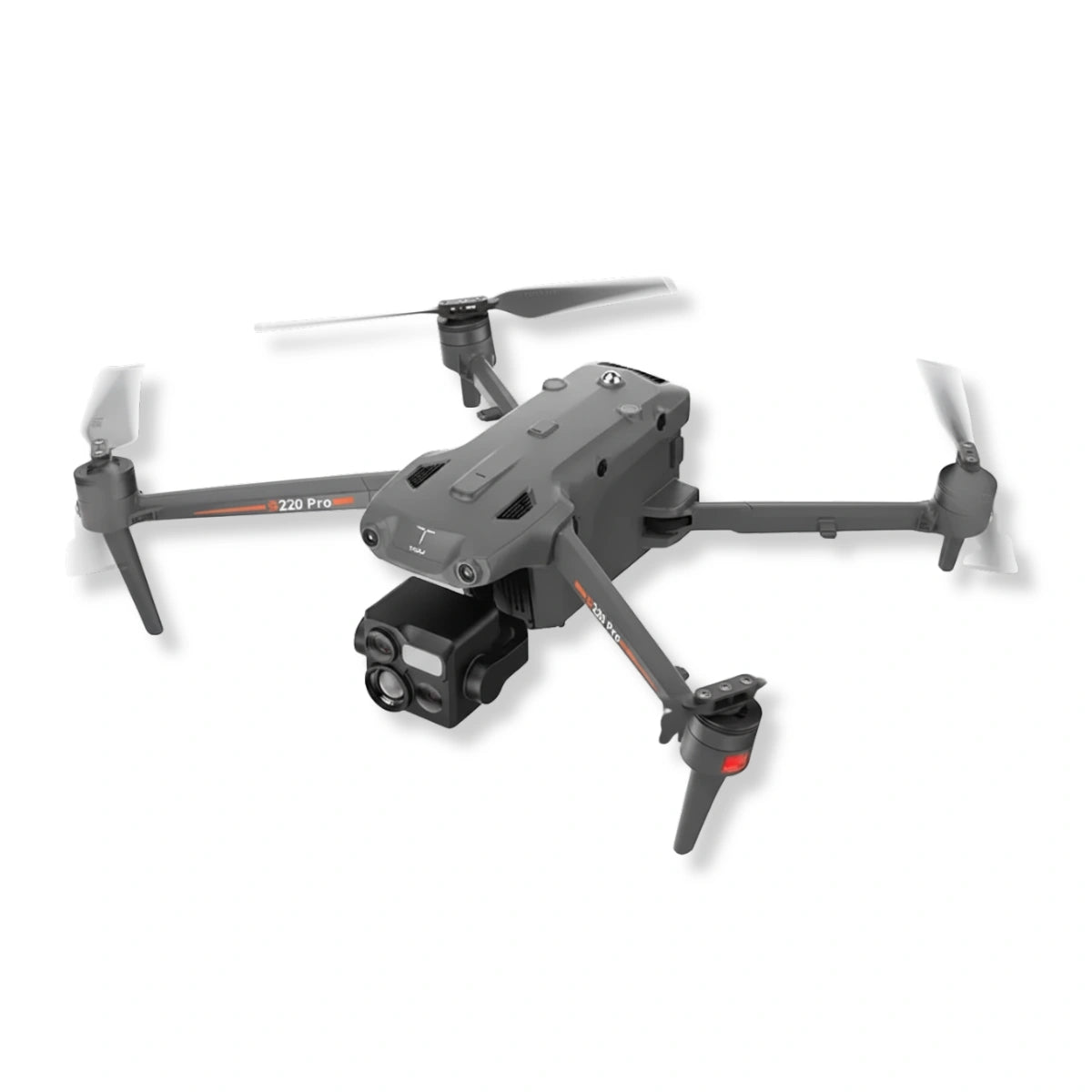

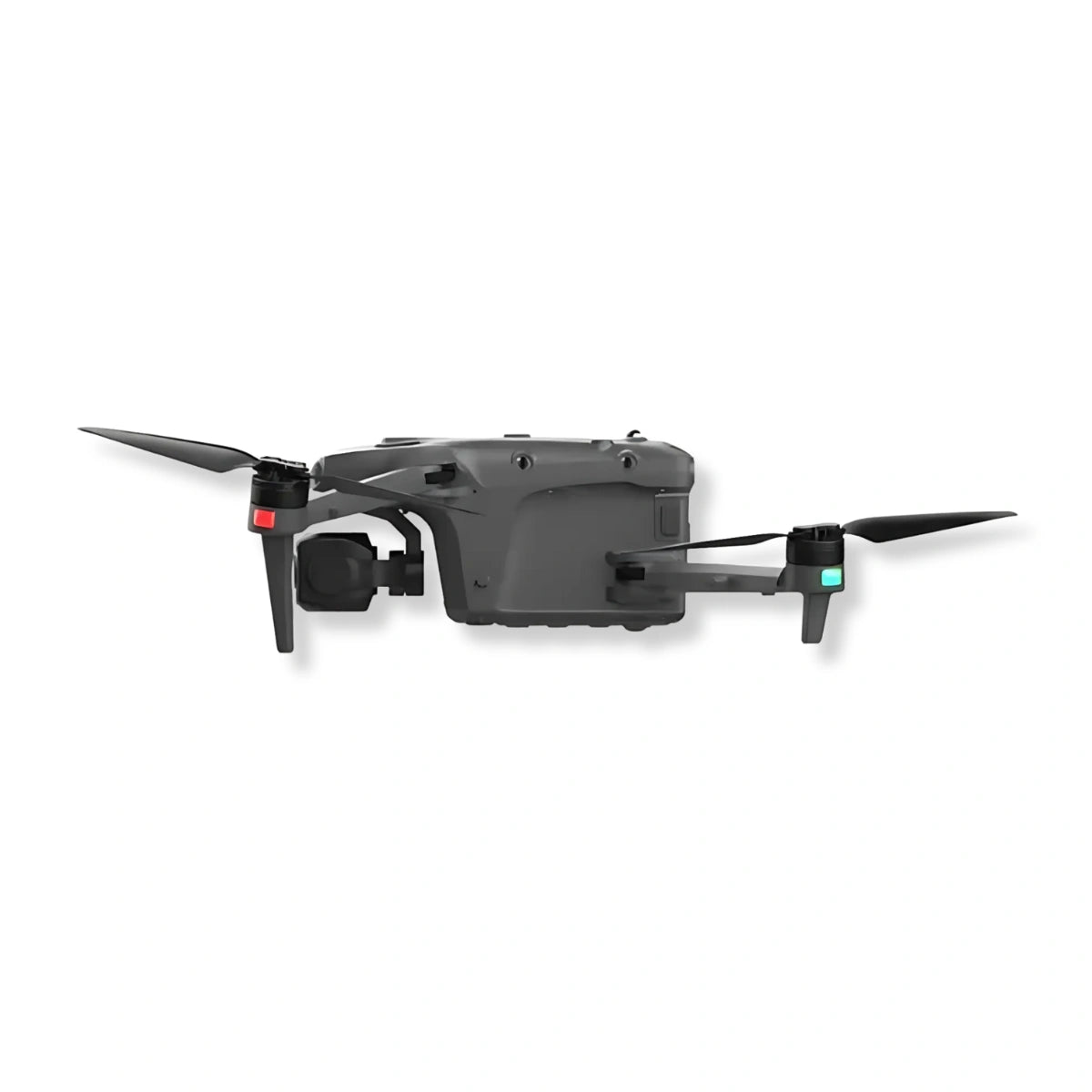

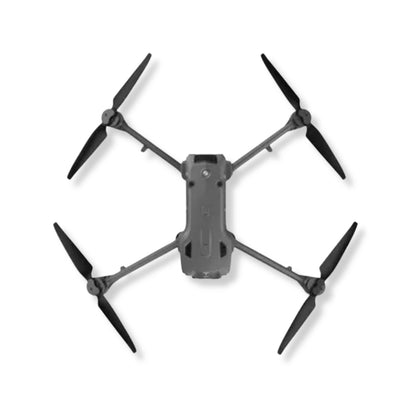

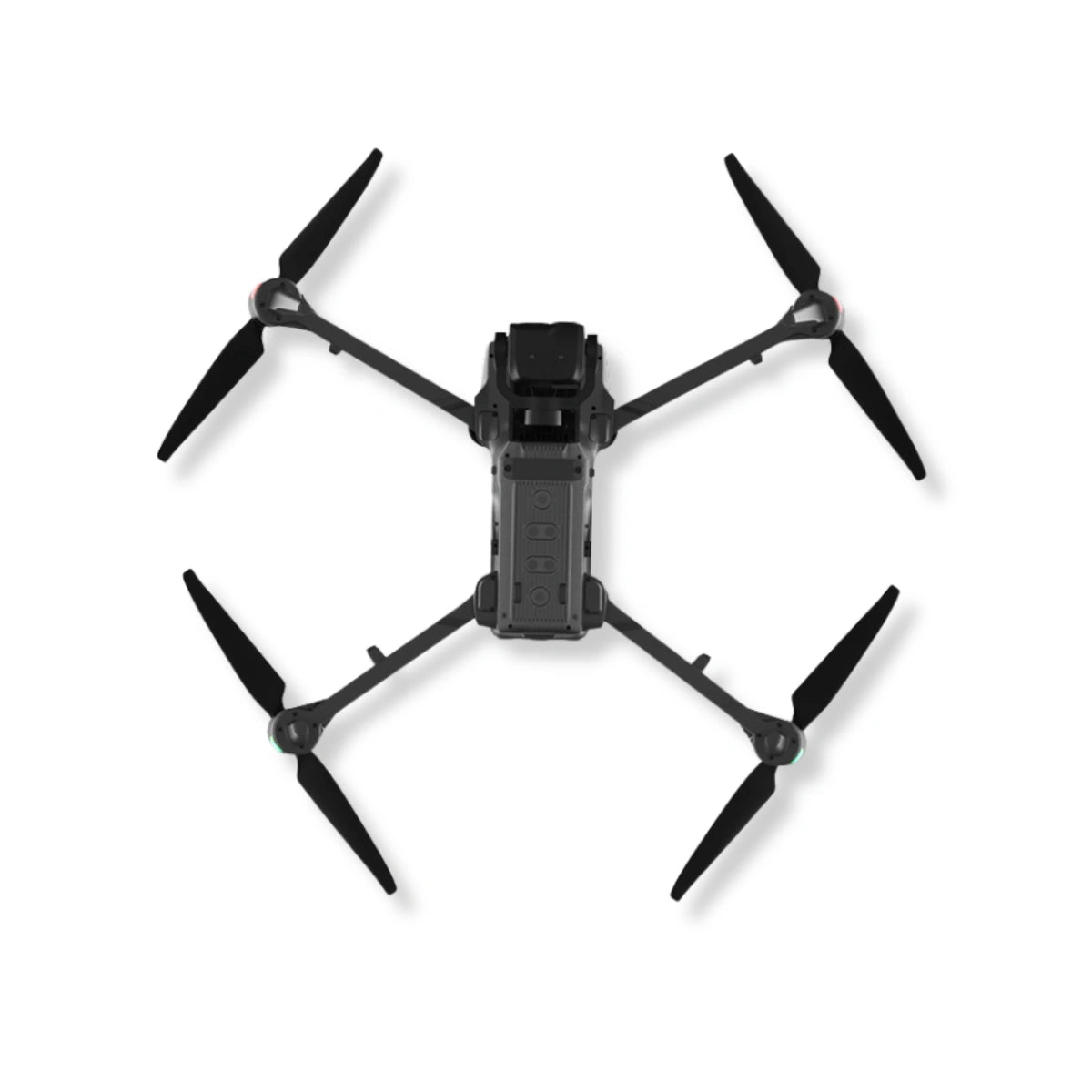

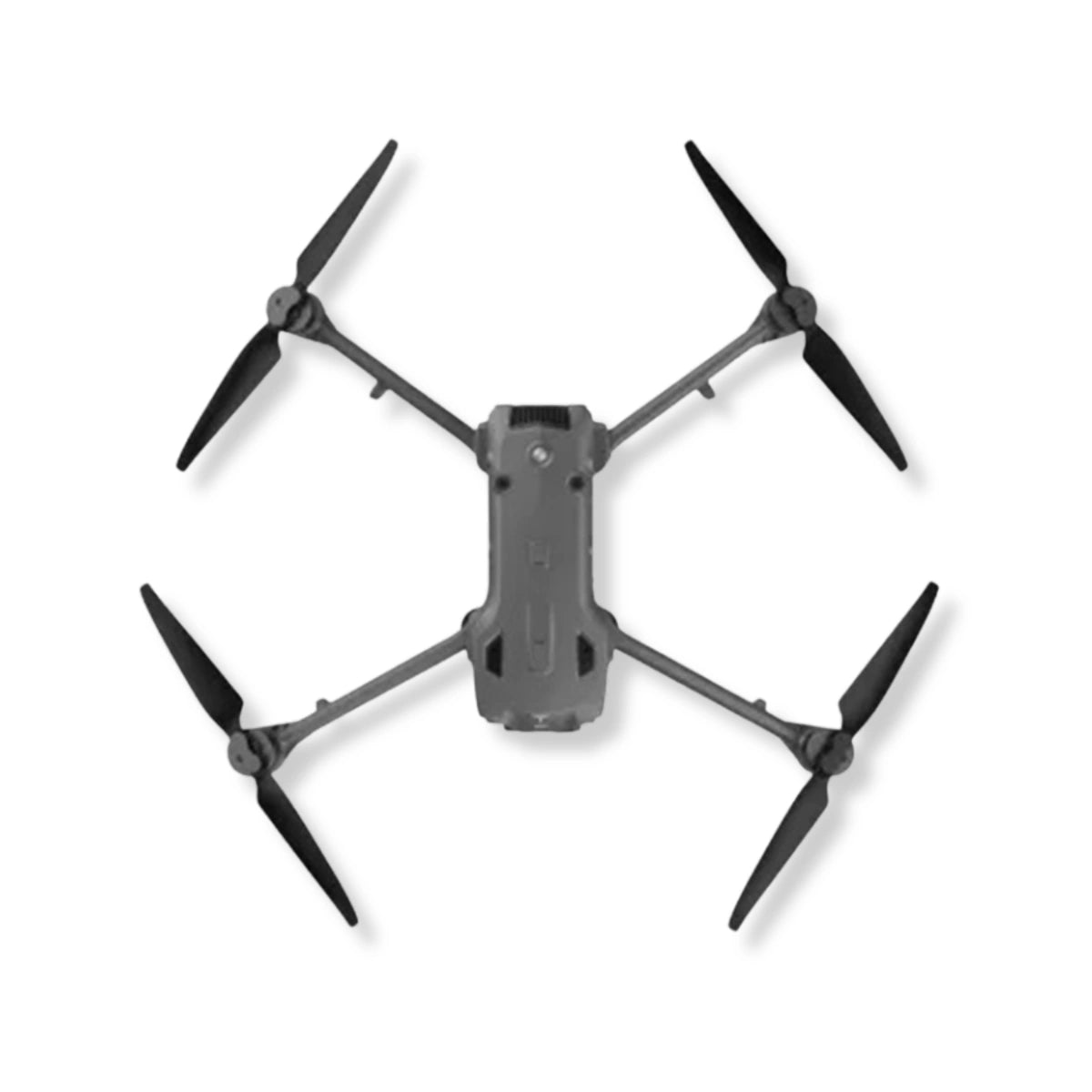

GDU S220 Pro 1K: Precision Thermal Imaging with Extended Flight
The GDU S220 Pro 1K is an industrial UAV engineered for advanced inspection, security, and rescue operations. Equipped with a quad-sensor gimbal-50 MP wide camera, 48 MP telephoto zoom, 1280×1024 thermal imager, and 10-1500 m laser rangefinder-this platform delivers high-fidelity imaging across all mission profiles.
Its 41-minute flight time, AI-powered recognition system, and 15 km FCC transmission range ensure critical data capture without interruption. Rugged IP43 protection and 720° obstacle sensing make it reliable in demanding conditions.
Multi-Sensor Payload for High-Value Missions
The integrated quad-sensor package reduces the need for multiple aircraft or payload swaps. Operators can capture thermal anomalies, perform visual inspections, and measure distances in real time from one flight.
With person detection up to 2 km and vehicle detection up to 6 km, the S220 Pro is tailored for large-scale operations such as utility corridor inspection, firefighting, and search and rescue. Its compact folding design and robust build make it both portable and field-ready.
Reliable Endurance and Operational Confidence
The included 8000 mAh S200 intelligent battery provides up to 41 minutes of flight, while RTK compatibility ensures centimeter-level positioning. AI recognition shortens decision-making by automating target identification, and direct satellite communication enables data relay even in remote areas without ground coverage.
Together, these features deliver unmatched mission assurance, reducing downtime and increasing field productivity.
Technical Highlights
- 1K thermal camera: 1280×1024 resolution for high-detail thermal imaging
- Multi-sensor payload: Wide, telephoto, thermal, and laser integrated in one gimbal
- Extended flight time: 41 minutes per battery for long-duration missions
- RTK compatibility: Centimeter-level accuracy with optional RTK module
- AI recognition: Detects people at 2 km and vehicles at 6 km
- Laser rangefinder: Accurate distance measurement from 10-1500 meters
- Rugged IP43 design: Weather-resistant and field-ready reliability
- 720° obstacle avoidance: All-direction sensing for safer operations
- Long-range transmission: 15 km (FCC) secure HD video/data link
- Compact foldable airframe: Easy transport and rapid deployment
Built For Multiple Tasks
- Public safety: Thermal detection and surveillance in law enforcement
- Search and rescue: Locate missing persons using long-range thermal sensors
- Firefighting support: Spot hotspots through smoke with 1K thermal clarity
- Utility inspection: Assess power lines, substations, and pipelines safely
- Infrastructure survey: Bridge, tunnel, and facility inspections with laser ranging
- Border and coastal security: Wide-area monitoring with 15 km link
- Disaster response: Operate where networks are unavailable using satellite comm
- Environmental monitoring: Track wildlife, forest fires, and land use changes
The GDU S220 PRO 1K delivers professional-grade imaging, endurance, and AI capability in a single aircraft. Built for critical missions, it ensures precision and confidence under any operational challenge.
At DSLRPros, we provide tailored support, training, and consultation to maximize your S220 PRO 1K investment. With nationwide instruction and after-purchase care, you'll fly with confidence. Shop the GDU S220 PRO 1K today.
Specifications
- Folded dimensions: 175 × 272 × 148 mm
- Unfolded dimensions: 613 × 699 × 160 mm
- Diagonal wheelbase: 486 mm
- Aircraft weight (with battery): 1860 g
- Max take-off weight: 2050 g
- Max flight time: 41 minutes
- Max ascent speed: 8 m/s
- Max descent speed: 6 m/s
- Max wind resistance: 12 m/s
- Max service ceiling: 6000 m
- Transmission range: 15 km (FCC), 8 km (CE/SRRC/MIC)
- Wide-angle camera: 50 MP, 1/0.98″ CMOS
- Telephoto camera: 48 MP, 1/2″ CMOS, 10× optical zoom, 160× hybrid zoom
- Thermal camera: 1280 × 1024 @ 30 fps
- Laser rangefinder: 10-1500 m
- AI recognition range: up to 2 km (people), 6 km (vehicles)
- Hover accuracy with RTK: ±1 cm + 1 ppm (horizontal), ±1.5 cm + 1 ppm (vertical)
- Ingress protection: IP43
- Obstacle avoidance: 720° (all-direction sensing)
- Intelligent flight battery: 8000 mAh (included S200 battery)
In The Box
- 1x Aircraft (with battery, propellers, gimbal, protector)
- 1x Remote controller
- 1x Power adapter
- 1x Single-cell charging hub
- 1x Charging cable
- 1x Spare propeller pair
- 1x Protective case
- 1x MicroSD card
- 1x Tools + manuals
