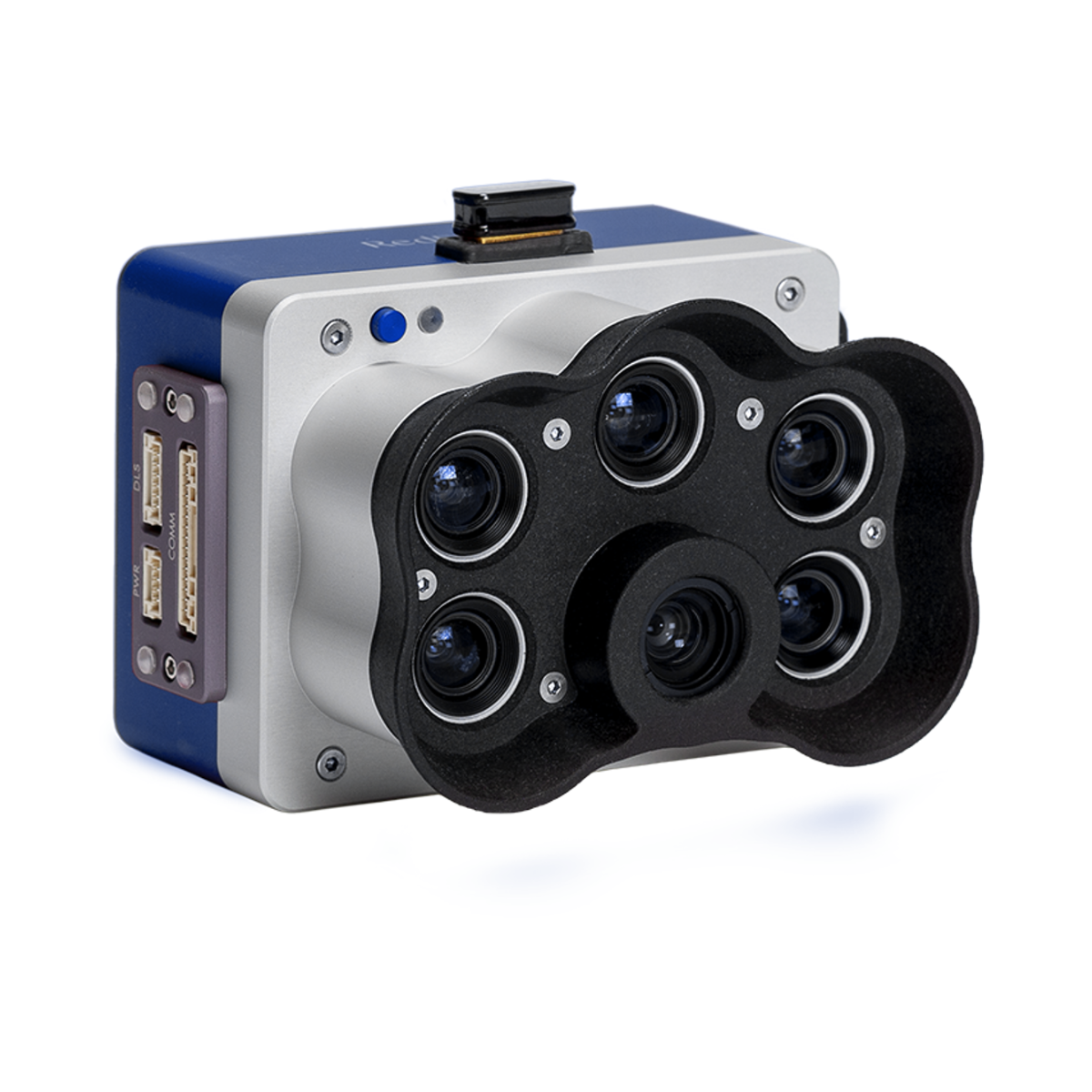

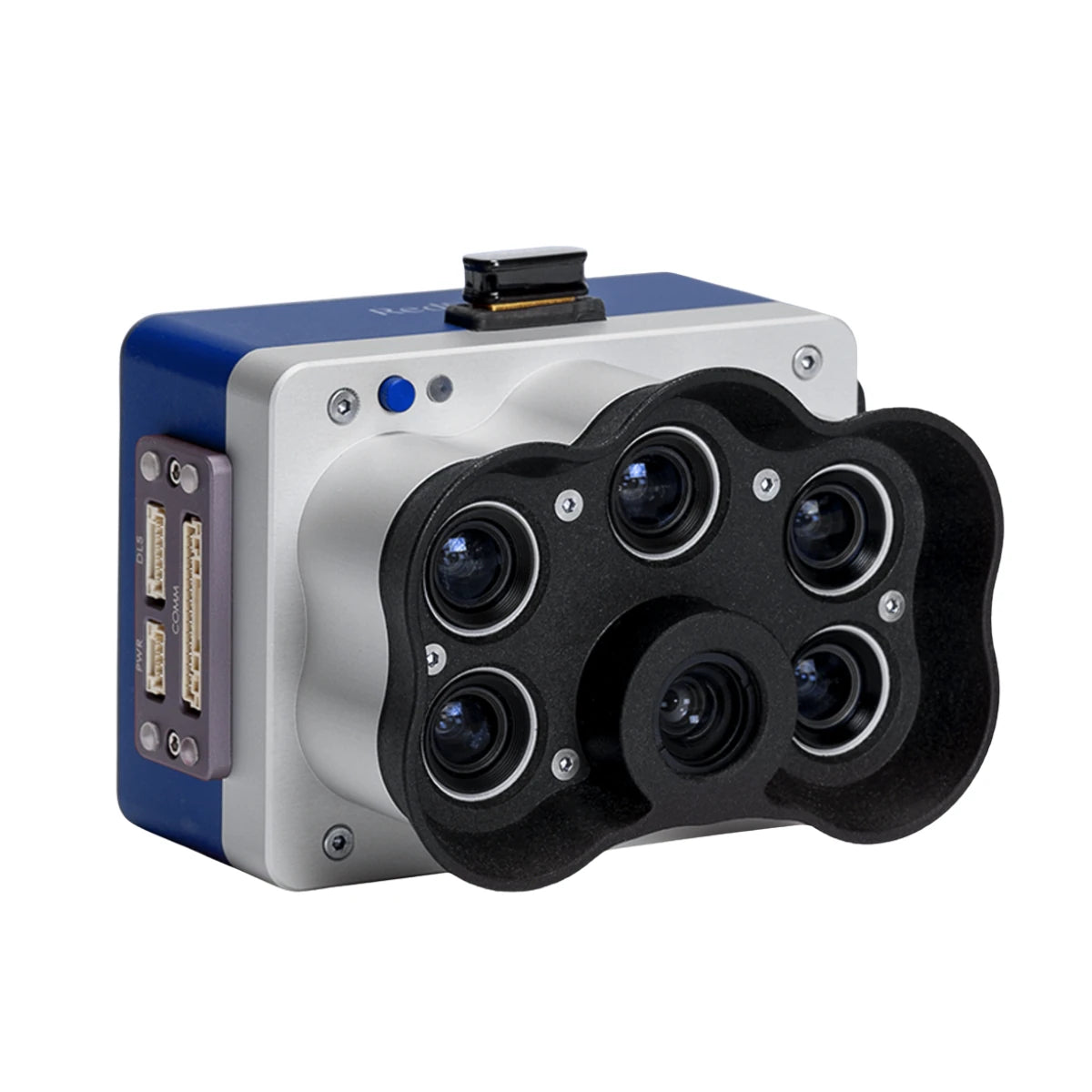

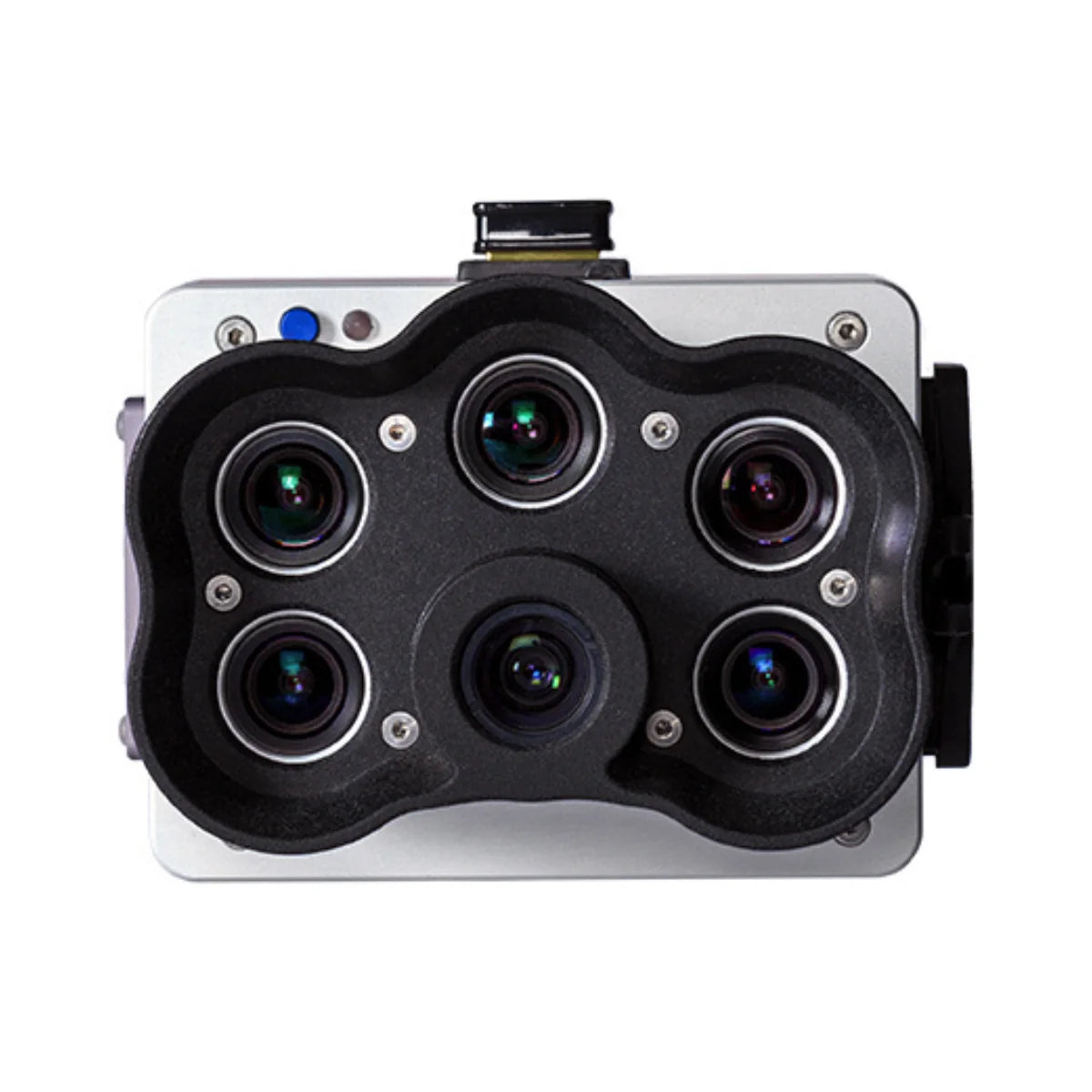

Micasense RedEdge-P Blue Multispectral Kit

MicaSense RedEdge-P Blue Multispectral Kit: coastal-optimized multispectral imaging with scalable band expansion

The MicaSense RedEdge-P Blue Multispectral Kit is designed for professionals conducting precision agriculture, environmental monitoring, and water-focused aerial analysis. As a standalone payload, it captures five coastal-optimized multispectral bands with synchronized global-shutter imaging and radiometric calibration. Its ocean-blue spectral coverage enables detailed analysis of shallow water environments, vegetation stress, and aquatic conditions.

Built on the modular RedEdge-P platform, the RedEdge-P Blue can also be expanded into dual or triple sensor configurations, allowing operators to scale spectral coverage as mission complexity increases while maintaining consistent data quality and workflow continuity.

Coastal blue imaging system highlights and expansion capability

• Standalone multispectral operation with coastal-optimized spectral bands
• Ocean blue wavelength improves shallow water and aquatic vegetation analysis
• Global shutter sensors ensure distortion-free multispectral capture
• Radiometric calibration supports repeatable quantitative measurements
• Modular design enables expansion into dual sensor configurations
• Dual systems support up to ten selectable multispectral bands
• Expandable into RedEdge-P Triple configuration with fifteen bands
• Synchronized multi-sensor capture maintains spatial and temporal alignment

High-resolution multispectral capture for analytical consistency

The RedEdge-P Blue captures multispectral imagery at 1456 × 1088 pixels per band, paired with a 2464 × 2056 pixel panchromatic sensor and a 5.1 MP RGB output aligned across all bands. At 120 m (≈400 ft) AGL, the system achieves a ground sample distance of 7.7 cm (3 in) per multispectral band and 3.98 cm (1.5 in) for the panchromatic band. When pan-sharpened during post-processing, spatial resolution can reach 2 cm (0.8 in) per pixel. Global shutter architecture ensures reliable data capture during motion-intensive survey operations.

Scalable spectral architecture from single to triple configurations

The RedEdge-P Blue Multispectral Kit operates independently as a coastal-focused multispectral sensor, but its modular architecture allows seamless expansion. When paired with a RedEdge-P or RedEdge-P Green sensor, the system forms a dual configuration supporting up to ten multispectral bands selected from a fifteen-band ecosystem.

When combined with both RedEdge-P and RedEdge-P Green sensors (sold separately), it becomes part of the RedEdge-P Triple configuration, enabling synchronized capture of all fifteen multispectral bands. This scalability supports advanced pigment analysis, stress detection, and research-grade spectral differentiation without changing core workflows.

Hardware integration and data workflow connectivity

• Compatible with DJI SkyPort-equipped enterprise aircraft (Matrice 300/Matrice 350)
• Supports single, dual, and triple sensor mounting configurations
• Integrated DLS 2 downwelling light sensor with GPS
• Includes calibrated reflectance panel for radiometric correction
• Supports Ethernet, serial, USB, and GPIO interfaces
• CFexpress card storage for high-speed raw DNG capture
• Hard carrying case included for transport and field protection

Operational applications across land and water environments

• Precision agriculture monitoring: crop vigor, chlorophyll efficiency, stress detection
• Water body analysis: algae blooms, sediment suspension, aquatic vegetation mapping
• Coastal and near-shore surveys: tidal zones, wetlands, shallow ecosystems
• Environmental monitoring: habitat health and ecosystem change tracking
• Vegetation research: species differentiation and invasive plant identification
• Forestry analysis: canopy condition and vegetation classification
• Conservation projects: biodiversity monitoring and restoration planning
• Research and academia: high-band-count multispectral data collection

Designed for enterprise-grade reliability and expansion

The RedEdge-P Blue Multispectral Kit is engineered for professional operations requiring data reliability, scalability, and long-term consistency. Radiometric calibration components, synchronized capture, and illumination compensation ensure comparable datasets across time and sensor configurations.

Its modular expansion path allows organizations to start with a single coastal-focused sensor and evolve into dual or triple configurations as analytical requirements grow, supporting advanced research, precision agriculture, and environmental monitoring programs.

The MicaSense RedEdge-P Blue Multispectral Kit delivers coastal-optimized spectral intelligence with a clear upgrade path to higher band counts. From standalone surveys to fully synchronized fifteen-band systems, it supports confident, data-driven decision-making across land and water environments.
