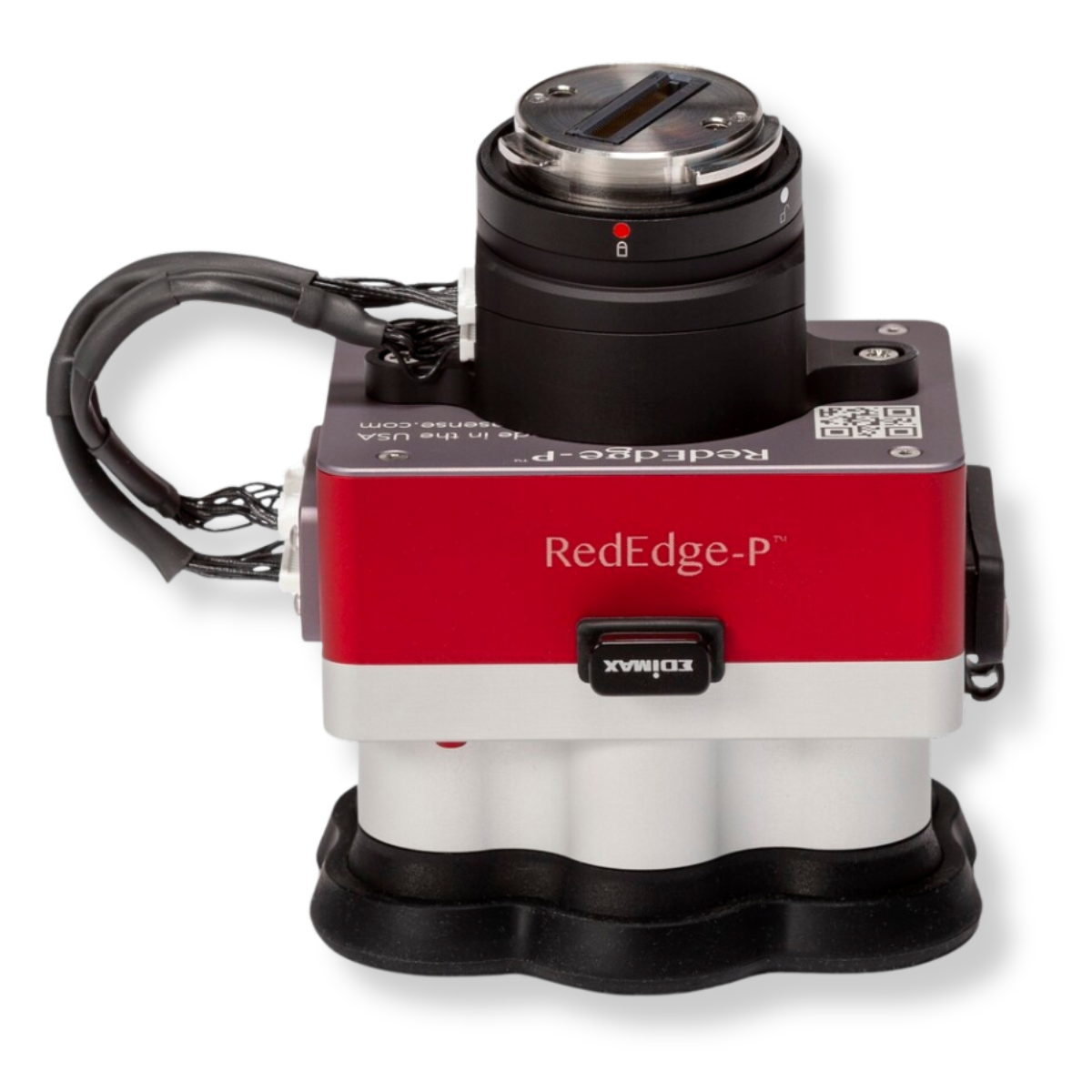

Micasense RedEdge-P with Skyport Kit

MicaSense RedEdge-P + Skyport Kit: High-Resolution Multispectral and Panchromatic Imaging

This bundle combines the MicaSense RedEdge-P sensor with the RedEdge-P Skyport Kit, giving you a plug-and-play multispectral imaging solution for DJI SkyPort platforms. Designed for precision agriculture, environmental monitoring, and research, RedEdge-P captures five discrete spectral bands plus a high-resolution panchromatic channel. Mounted with the Skyport Kit on drones like the Matrice 300 RTK or 350 RTK, it produces pan-sharpened outputs at 2 cm GSD (120 m) and multispectral data at ~5 cm GSD-all synchronized and radiometrically calibrated.

Advanced Multispectral Data with Pan-Sharpened Clarity

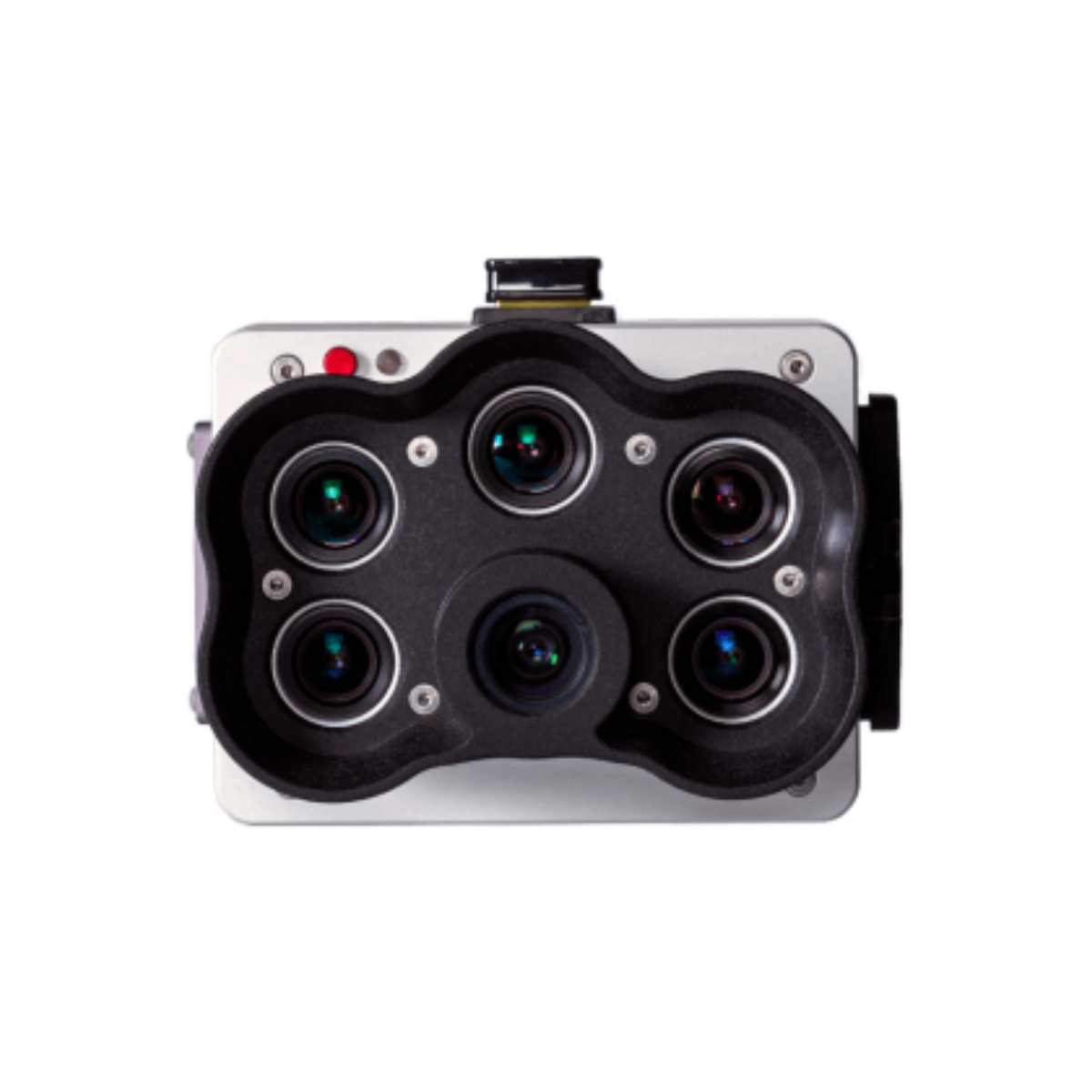

RedEdge-P improves upon the RedEdge series by integrating a dedicated panchromatic imager. This enables sharp, pan-sharpened multispectral outputs with twice the spatial resolution of its predecessors. With capture rates of up to two frames per second, the sensor supports fast survey missions while maintaining pixel-aligned data across bands. The Skyport Kit provides seamless electrical and mechanical integration with DJI enterprise drones, eliminating the need for custom mounts or wiring and ensuring reliable data transfer.

Reliable and Field-Ready Performance

Built for demanding agricultural and environmental missions, RedEdge-P offers IP4X dust protection, low power consumption (~5 W), and flexible interfaces including Serial, Ethernet, GPIO, and WiFi (via dongle). Storage via CFexpress cards enables rapid data handling. Included DLS 2 and CRP2 calibration tools guarantee reflectance consistency across conditions and time. Combined with the Skyport Kit, the bundle delivers a turnkey imaging system ready for immediate deployment on DJI enterprise platforms.

Key Features and Benefits

• Bundle includes RedEdge-P sensor and RedEdge-P Skyport Kit
• Multispectral capture: Blue, Green, Red, Red Edge, NIR
• Panchromatic channel: 2 cm GSD at 120 m for pan-sharpening
• Multispectral resolution: ~5 cm GSD per band at 120 m
• Pan-sharpened outputs: twice the spatial detail of RedEdge-M series
• Capture rate: up to 2 frames per second
• CFexpress storage: fast removable media for efficient data transfer
• Interfaces: Serial, Ethernet, GPIO, WiFi (dongle)
• Radiometric calibration: DLS 2 + CRP2 included
• IP4X dust protection for rugged field use

Applications and Use Cases

• Crop vigor analysis: NDVI and other vegetation indices
• Early stress detection: identify pests, disease, or nutrient deficiency
• Irrigation management: detect canopy water stress indicators
• Plant population counts: high-resolution mapping for agronomy models
• Yield prediction: combine multispectral indices with ground truth
• Phenotyping: capture fine trait details across research plots
• Environmental monitoring: vegetation health and habitat assessment
• Multi-season trials: radiometrically consistent, repeatable datasets

The RedEdge-P + Skyport Kit provides a powerful, DJI-native solution for advanced agricultural and environmental imaging. It combines the proven multispectral performance of MicaSense with high-resolution panchromatic outputs in one compact payload.

At DSLRPros, we provide more than just hardware-we deliver complete integration support, calibration training, and technical assistance. Request your quote today to configure the RedEdge-P + Skyport Kit with expert guidance from our payload specialists.

Specifications

• Weight
  • 745 g / 26.2 oz (includes two sensors, mounting hardware, DLS2, and cable)
• Dimensions
  • 13.2 × 8.8 × 9.67 cm (5.1 × 3.1 × 3.5 in)
• Sensor Resolution
  • RGB Sensor: 5.1 MP global shutter (2464 × 2056 pixels)
  • Multispectral Sensor: 1.6 MP per band (1456 × 1088 pixels)
• Ground Sample Distance (GSD) @ 120 m / ~400 ft AGL
  • Multispectral: 7.7 cm/pixel
  • Panchromatic: 3.98 cm/pixel
• Field of View (FOV)
  • Multispectral: 50° HFOV × 38° VFOV
  • Panchromatic: 44° HFOV × 38° VFOV
• Capture Rate
  • Up to 3 raw DNG images per second
• Storage Medium
  • High-speed CFexpress card
• Interfaces
  • Frame signals
  • Host virtual button
  • USB 2.0 (WiFi)
  • Serial
  • 10/100/1000 Ethernet
• Power Requirements
  • Input Voltage: 7.0 V - 25.2 V
  • Power Consumption:
    • Standby: 11 W
    • Average: 14 W
    • Peak: 20 W
• Environmental Protection
  • IP4X dust ingress rating
• Spectral Bands Available
  • Select 10 out of 15 bands, including:
    • Coastal Blue (444 nm)
    • Blue (475 nm)
    • Green (531 nm, 550 nm, 560 nm)
    • Yellow (570 nm)
    • Red (650 nm, 668 nm, 678 nm)
    • Red Edge (705 nm, 717 nm, 740 nm)
    • Near-Infrared (754 nm, 842 nm)

In The Box

• 1x Micasense RedEdge-P

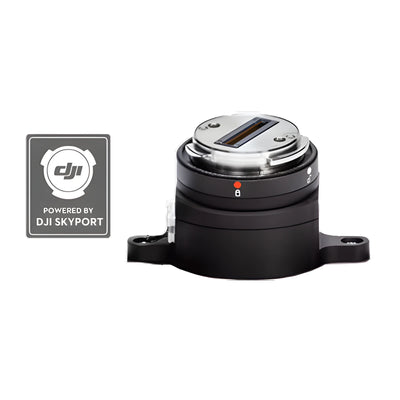

• 1x MicaSense Skyport Kit for RedEdge Series
