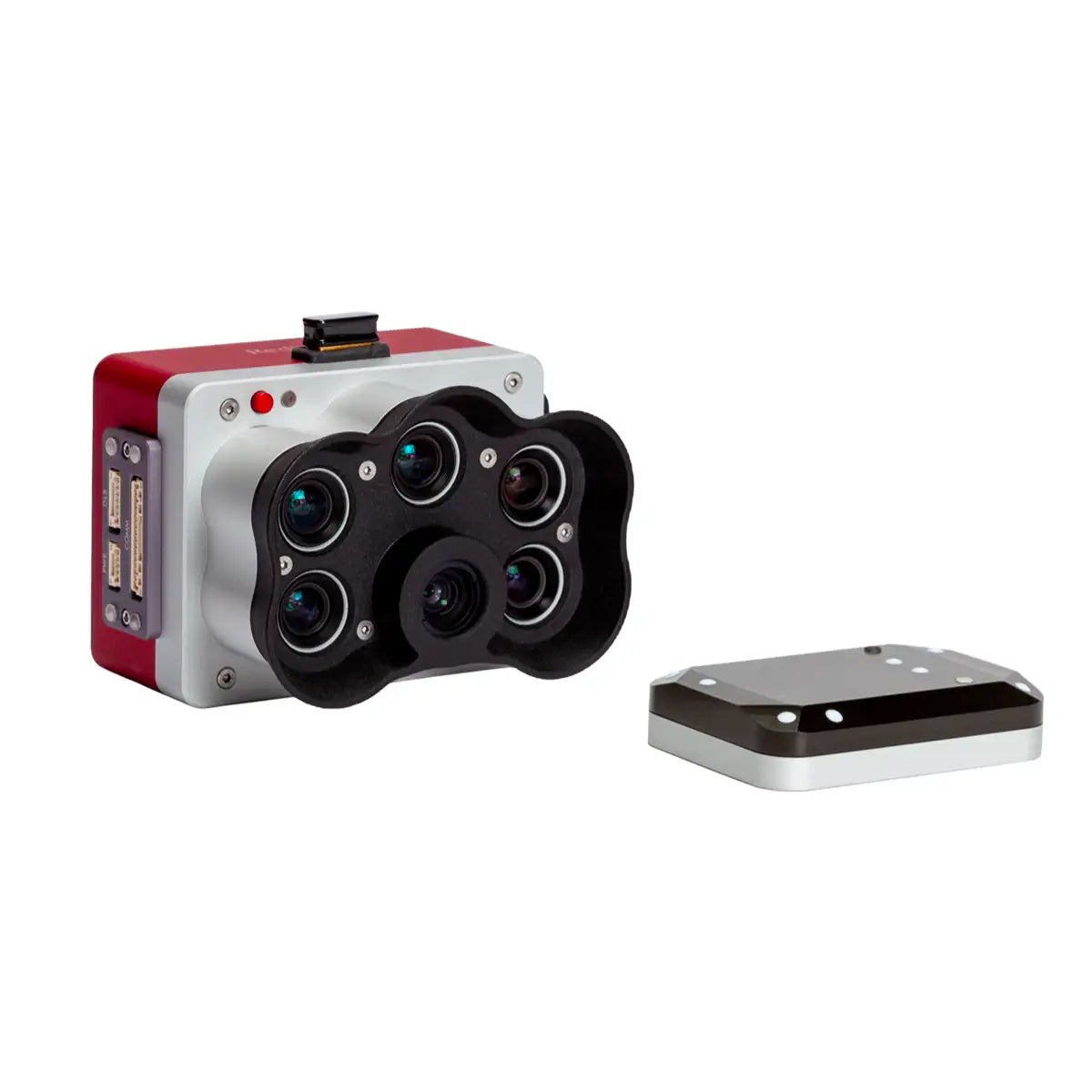

MicaSense RedEdge-P for SkyScout Series

MicaSense RedEdge-P for SkyScout Series

$12,385.00
$12,385.00
Sale Sold out
Shipping calculated at checkout.

S-WSP-MICA-REDGEP

  • Five spectral bands from blue through near-IR captured simultaneously per flight
  • Panchromatic band delivers pan-sharpened output of 2 cm / 0.8 in per pixel at 60 m
  • Global shutter across all bands ensures distortion-free pixel-aligned aerial imagery
  • DLS 2 light sensor provides continuous radiometric calibration throughout each flight
  • Calibrated reflectance panel establishes ground-based baseline for repeatable data quality
  • Up to 3 raw DNG captures per second for efficient large-area survey coverage
  • CFexpress removable storage enables fast multi-flight turnaround without a field computer
  • 5.1 MP panchromatic band achieves 3.98 cm GSD at 120 m / 400 ft AGL
  • Generates RGB, NDVI, NDRE, CIR, and additional vegetation index outputs
  • American-made by AgEagle, compatible with the WISPR SkyScout Series
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

MicaSense RedEdge-P: High-Resolution Panchromatic Multispectral Payload for Precision Agriculture and Vegetation Mapping on the SkyScout Series

The MicaSense RedEdge-P is a professional single-sensor multispectral payload built by AgEagle in the USA, designed for drone-based precision agriculture, plant health mapping, and vegetation analysis on the WISPR SkyScout Series.

It captures five spectral bands simultaneously across the blue through near-infrared spectrum, paired with a high-resolution panchromatic band that enables pan-sharpened output resolutions of 2 cm / 0.8 in per pixel at 60 m — twice the ground resolution of the industry-standard RedEdge-MX.

Purpose-built optics, narrowband scientific-grade filters, and a rigorous factory calibration process give field operators a repeatable, calibrated multispectral tool for season-long crop canopy analysis at all growth stages.

The RedEdge-P captures 1.6 MP per multispectral band at a ground sample distance of 7.7 cm per pixel at 120 m / 400 ft AGL, with the 5.1 MP panchromatic band achieving 3.98 cm per pixel at the same altitude. A global shutter aligned with all bands eliminates motion distortion during flight, while the included DLS 2 light sensor and calibrated reflectance panel provide consistent radiometric calibration across changing light conditions.

CFexpress storage supports up to 3 captures per second raw DNG, enabling faster flight speeds and reducing the time required to cover large survey areas without returning to the field computer between flights.

MicaSense RedEdge-P Core Features and Advantages

  • Panchromatic band: pan-sharpened output reaches 2 cm / 0.8 in per pixel at 60 m.
  • Five spectral bands: blue, green, red, red edge, and near-IR captured simultaneously per flight.
  • Global shutter: all bands capture simultaneously for distortion-free, pixel-aligned imagery.
  • DLS 2 light sensor: continuous ambient light monitoring ensures consistent radiometric data.
  • Calibrated reflectance panel: ground-based calibration baseline for repeatable data quality.
  • Fast capture rate: up to 3 raw DNG images per second supports efficient large-area coverage.
  • CFexpress storage: removable card enables immediate multi-flight turnaround in the field.
  • 5.1 MP panchromatic band: 3.98 cm GSD at 120 m / 400 ft AGL for high-detail mapping output.
  • Multiple index outputs: generates RGB, NDVI, NDRE, CIR, and other vegetation composites.
  • American-made: designed and built in the USA by AgEagle for professional field deployment.

The MicaSense RedEdge-P exists for operators who need a reliable, calibrated multispectral sensor that produces actionable vegetation data flight after flight without requiring a field computer between runs.

Its combination of five spectral bands, a high-resolution panchromatic channel, and CFexpress-based removable storage makes it a practical primary sensor for plant health mapping, disease identification, weed detection, phenotyping, and advanced crop scouting programs on the SkyScout Series.

DSLRPros stocks the MicaSense RedEdge-P for the WISPR SkyScout Series, including the full kit with DLS 2 light sensor, calibrated reflectance panel, CFexpress card reader, hard carrying case, and all supporting hardware.

Our team can help you determine whether the single RedEdge-P or the dual configuration best fits your program requirements. Order the MicaSense RedEdge-P at DSLRPros today.

General Specifications

  • Weight: 350 g (12.3 oz.) with RedEdge-P and DLS 2
  • Dimensions: 8.9 × 7.0 × 6.7 cm (3.5 × 2.8 × 2.6 in)
  • RGB output: 5.1 MP (global shutter, aligned with all bands)
  • Sensor resolution: 1456 × 1088 (1.6 MP per multispectral band)
  • Sensor resolution: 2464 × 2056 (5.1 MP panchromatic band)
  • Ground sample distance: 7.7 cm per pixel at 120 m AGL (multispectral)
  • Ground sample distance: 3.98 cm per pixel at 120 m AGL (panchromatic)
  • Field of view (multispectral): 50° HFOV × 38° VFOV
  • Field of view (panchromatic): 44° HFOV × 38° VFOV
  • External power: 7.0–25.2 V
  • Power input: 5.5 W standby, 7.0 W average, 10 W peak
  • IP rating: IP4X
  • Capture rate: Up to 3 raw DNG captures per second
  • Storage: CFexpress card

Spectral Bands

  • Blue: 475 nm center, 32 nm bandwidth
  • Green: 560 nm center, 27 nm bandwidth
  • Red: 668 nm center, 14 nm bandwidth
  • Red Edge: 717 nm center, 12 nm bandwidth
  • Near-IR: 842 nm center, 57 nm bandwidth

Interfaces

  • Three configurable GPIO ports (trigger input, PPS input, PPS output, top-of-frame signals)
  • Host virtual button
  • USB 2.0 port for Wi-Fi
  • Serial interface
  • 10/100/1000 Ethernet
  • CFexpress storage support

In the Box

  • RedEdge-P sensor
  • Lens cover
  • Calibrated reflectance panel
  • DLS 2 light sensor with integrated GPS
  • RedEdge-P and DLS 2 cables
  • Mounting screws
  • Hard carrying case
  • CFexpress card reader
  • 1x RedEdge-P sensor
  • 1x DLS 2 light sensor with embedded GPS
  • 1x CRP2 calibrated reflectance panel
  • 1x USB Wi-Fi dongle
  • 1x Lens cover
  • 1x Integration cables
  • 1x Assorted mounting hardware
  • 1x CFexpress card
  • 1x CFexpress card reader
  • 1x Hard carrying case
  • 1x Start guide
What spectral bands does the MicaSense RedEdge-P capture?

The RedEdge-P captures five multispectral bands: blue at 475nm, green at 560nm, red at 668nm, red edge at 717nm, and near-IR at 842nm, each with narrowband scientific-grade filters for enhanced spectral accuracy. A sixth panchromatic band spans the full visible and near-IR range, enabling pan-sharpened RGB and multispectral outputs at resolutions not achievable with standard multispectral sensors alone.

What resolution and ground sample distance does the RedEdge-P achieve?

Each multispectral band captures at 1456 x 1088 pixels, achieving a ground sample distance of 7.7 cm per pixel at 120 m / 400 ft AGL. The 5.1 MP panchromatic band achieves 3.98 cm per pixel at the same altitude. With pan-sharpening applied in post-processing, output resolution reaches 2 cm / 0.8 in per pixel at 60 m, which is twice the ground resolution of the RedEdge-MX.

What vegetation data outputs does the MicaSense RedEdge-P produce?

The RedEdge-P generates multiple index outputs including RGB composites, NDVI, NDRE, CIR, and additional vegetation indices and composites from its five spectral bands. These outputs support a wide range of precision agriculture and research applications including plant health mapping, fertilizer management, disease identification, phenotyping, plant counting, weed detection, species differentiation, and high-resolution 3D point cloud generation.

How does the CFexpress storage benefit field operations?

CFexpress is a professional-grade removable storage standard that supports up to 3 raw DNG captures per second across all bands simultaneously. The removable card means operators can swap storage between flights without connecting a cable to the sensor or bringing a field computer to the site, significantly reducing turnaround time between missions and making multi-flight survey days more efficient.

Is the MicaSense RedEdge-P suitable for agricultural analysis?

Yes. It is commonly used for crop health monitoring and vegetation analysis.
