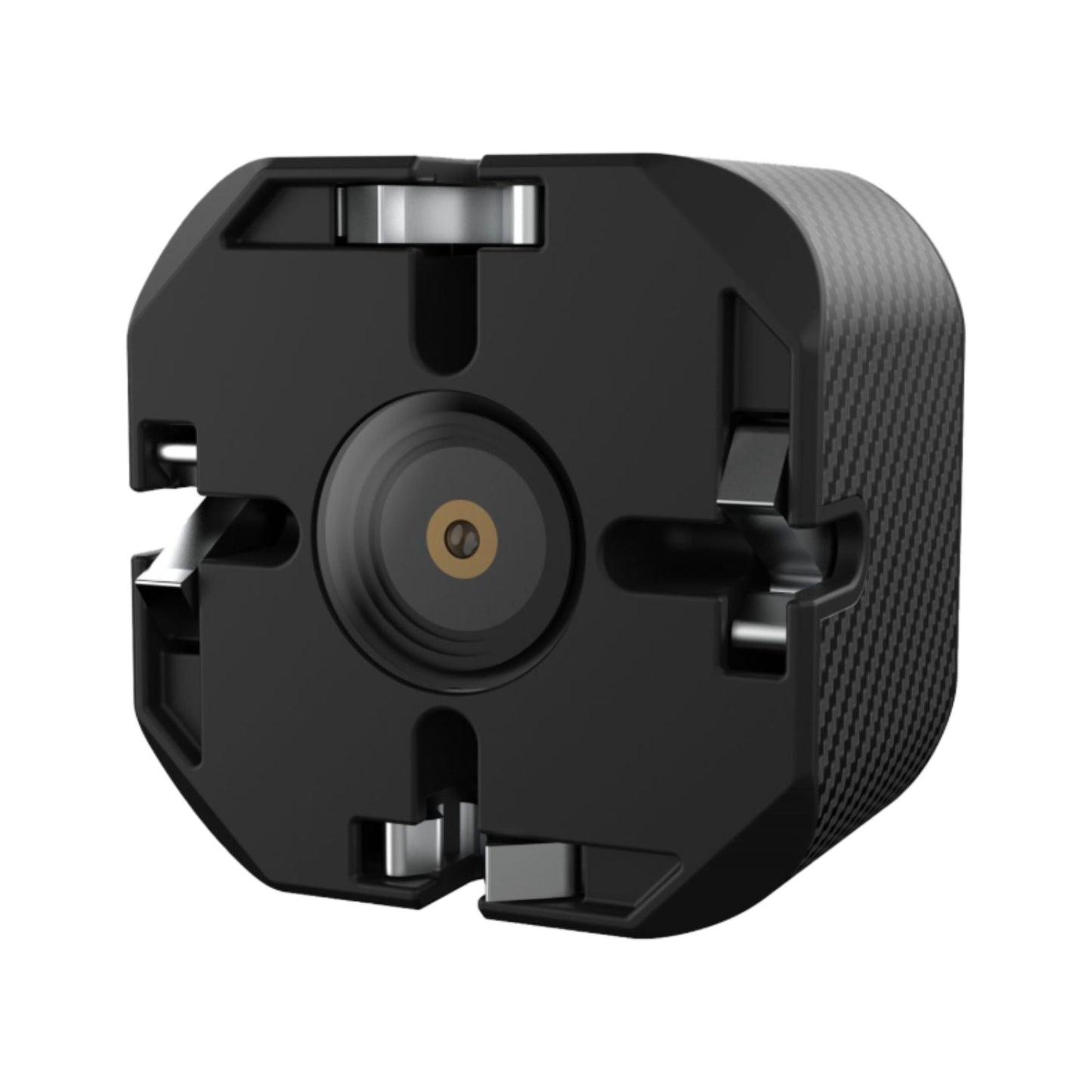

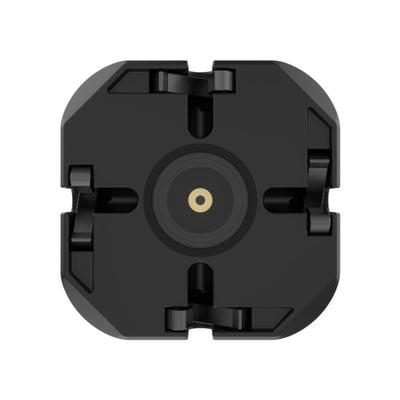

JZ PT4 Four Drop Kit for DJI Matrice 350 RTK & Matrice 300 RTK
JZ PT4 Four Drop Kit

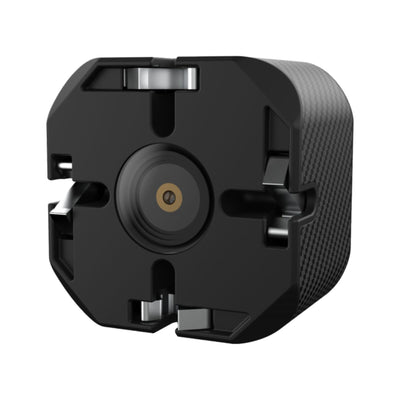

JZ PT4 four-drop device, bottom view showing the four release hooks

S-NB-JZ-PT4

JZ Drones PT4 Four Drop Kit for M350/M400

$999.00

Request Enterprise Price

Estimated delivery

Delivers in 1–5 business days after dispatch
Product Summary

The JZ Drones PT4 Four Drop Kit mounts via DJI SkyPort V2 to deliver controlled, multi-point payload releases on Matrice 300 RTK, 350 RTK, and 400 aircraft, supporting up to 3 kg per hook and 12 kg combined across four independent mounts. Real-time hook status and one-key or independent release are managed directly through DJI Pilot 2, while built-in laser-assisted aiming improves drop-zone accuracy for search and rescue, emergency logistics, and industrial delivery missions. At just 120 g and requiring no external power, it adds minimal impact to aircraft payload capacity.

Key Features
  • Lightweight 120 g design minimizes impact on aircraft performance
  • Four-hook system enables flexible multi-point payload deployment workflows
  • 3 kg per hook capacity supports varied payload delivery scenarios
  • 12 kg total payload capacity supports multi-item mission operations
  • Laser-assisted aiming improves targeting accuracy during payload release
  • SkyPort V2 interface ensures fast installation and secure integration
  • Real-time Pilot 2 monitoring enables precise release control per hook
  • Power-free mounting allows quick payload setup without system activation
  • Independent release control supports sequential or simultaneous payload drops
In the Box
  • 1x JZ PT4 Four-Drop Kit
  • 1x Protective Carrying Case
  • 4x Hooks
  • 4x Wire Rope
  • 1x Adapter Protection Cover
  • 1x Product Manual
  • 1x Warranty Card

Vendor: JZ Drones

MPN: JZ.DK.0004.01

Fulfilled by: DSLRPros

Pickup available at EUAS

Usually ready in 24 hours

All about the

JZ Drones PT4 Four Drop Kit for M350/M400

Product Details & Specifications

Description

JZ Drones PT4 Four Drop Kit: Lightweight Four-Stage Payload Release System for Controlled Multi-Drop Operations

The JZ Drones PT4 Four Drop Kit is a DJI PSDK-based aerial payload delivery system designed for controlled, multi-point deployment using DJI Matrice platforms, including the Matrice 300 RTK, Matrice 350 RTK, and Matrice 400. It mounts via the DJI SkyPort V2 interface and integrates directly with DJI Pilot 2, allowing operators to monitor payload status and trigger releases in real time.

The system supports up to four payloads with independent or simultaneous release, making it suitable for search and rescue, emergency logistics, and industrial operations. With a lightweight 120 g design, laser-assisted targeting, and no external power requirement, it enables efficient and repeatable aerial delivery missions.

Key Features and Benefits

  • Four-hook system: supports 4 independent mounts for multi-point payload deployment
  • Payload capacity: supports up to 3 kg (6.6 lbs) per hook
  • Total capacity: supports up to 12 kg (26.4 lbs) combined payload weight
  • SkyPort V2 interface: enables fast mounting with integrated power and data connection
  • Pilot 2 integration: displays real-time hook status and enables independent release
  • One-key release: deploys all payloads simultaneously for rapid mission execution
  • Lightweight design: weighs 120 g reducing impact on aircraft payload capacity
  • Laser-assisted aiming: built-in laser improves drop zone targeting accuracy
  • Power-free mounting: allows payload loading without powering aircraft or system

Applications and Use Cases

  • Search and rescue: delivers medical kits or flotation devices to individuals in distress
  • Fire response: deploys small suppression payloads into targeted fire zones safely
  • Emergency logistics: transports food and medicine to remote or isolated locations
  • Utility operations: supports line deployment or placement of lightweight equipment
  • Disaster response: enables rapid delivery of aid across affected environments
  • Industrial delivery: releases tools or materials during controlled onsite operations

The PT4 provides a lightweight and repeatable solution for multi-payload aerial delivery in operational environments. Its four-stage release system, real-time monitoring, and integrated targeting support accurate deployment while minimizing system complexity.

With DSLRPros, you gain access to field-proven UAV solutions backed by real-world operational expertise. Every system is validated for reliability and integration—order the PT4 Four Drop Kit from DSLRPros today.

Key Features
  • Lightweight 120 g design minimizes impact on aircraft performance
  • Four-hook system enables flexible multi-point payload deployment workflows
  • 3 kg per hook capacity supports varied payload delivery scenarios
  • 12 kg total payload capacity supports multi-item mission operations
  • Laser-assisted aiming improves targeting accuracy during payload release
  • SkyPort V2 interface ensures fast installation and secure integration
  • Real-time Pilot 2 monitoring enables precise release control per hook
  • Power-free mounting allows quick payload setup without system activation
  • Independent release control supports sequential or simultaneous payload drops
Specifications

General Specifications

  • Electrical interface: DJI SkyPort V2
  • Dimensions: 58 × 58 × 54 mm
  • Weight: 120 g
  • Rated power: 10 W
  • Protection rating: IP4X

Compatibility & Installation

  • Compatible aircraft: Matrice 400, Matrice 350 RTK, Matrice 300 RTK
  • Number of mounts: 4 independent hooks
  • Installation: gimbal interface quick release
  • Control system: DJI Pilot 2

Payload Capacity

  • Maximum single mount load: 3 kg (subject to aircraft limits)
  • Maximum total payload: 12 kg (subject to aircraft limits)

Drop Functionality

  • Independent or simultaneous multi-drop capability
  • No restriction on delivery sequence
  • Laser-assisted targeting
  • Single-point drop and one-button full release

Environmental Specifications

  • Operating temperature: -10 °C to 50 °C
  • Storage temperature: -20 °C to 60 °C
What's in the Box?
  • 1x JZ PT4 Four-Drop Kit
  • 1x Protective Carrying Case
  • 4x Hooks
  • 4x Wire Rope
  • 1x Adapter Protection Cover
  • 1x Product Manual
  • 1x Warranty Card
DSLRPRosCare Extended Warranty

DSLRPROS DJI Care is our exclusive extended warranty program, designed to give you peace of mind and extra protection for your drone investment.

  • Coverage Length: 13 months from the date your product ships
  • What’s Covered: Accidental damage from pilot error, collisions, drops, water exposure, signal interference, and internal malfunctions
  • What’s Not Covered: Intentional misuse, modifications, loss or theft, cosmetic wear, consumables (like propellers or batteries), or operation outside manufacturer guidelines
  • Replacements: One replacement during the coverage term. Replacement may be new or refurbished. If unavailable, we’ll provide a product of similar capability.
  • How to File a Claim: Notify support@dslrpros.com within 7 days of an incident. Ship the product using the label we provide.
  • Eligibility: Policy must be purchased before your product ships from DSLRPROS. Coverage applies only to the original purchaser.

Simple, clear protection—so you can focus on flying, not worrying.

Warranty Terms and Conditions

Frequently Asked Questions

More questions? Speak with an Expert.

What is the JZ Drones PT4 Four Drop Kit used for?

The JZ Drones PT4 Four Drop Kit is used for controlled aerial delivery of multiple payloads during a single flight. It enables operators to deploy items such as medical supplies, tools, or emergency equipment. This makes it suitable for search and rescue, industrial operations, and logistics missions.

How much weight can the JZ Drones PT4 Four Drop Kit carry?

Each hook supports up to 3 kg (6.6 lbs), with a total system capacity of 12 kg (26.4 lbs). This allows up to four payloads to be carried simultaneously. Actual payload limits depend on the drone’s maximum payload capacity.

Is the JZ Drones PT4 Four Drop Kit compatible with DJI Matrice 300, 350, and 400?

Yes, the PT4 Four Drop Kit is compatible with the Matrice 300 RTK, Matrice 350 RTK, and Matrice 400. It connects through the DJI SkyPort V2 interface and integrates with DJI Pilot 2. This ensures seamless operation across supported DJI enterprise drones.

Does the JZ Drones PT4 Four Drop Kit require its own power source?

No, the PT4 does not require an external battery. It draws power directly from the drone through the SkyPort interface. This simplifies setup and reduces overall system weight.

What does the laser on the JZ Drones PT4 Four Drop Kit do?

The built-in auxiliary laser helps operators identify the exact drop zone. It improves targeting accuracy before releasing payloads. This is especially useful in low-visibility or high-precision missions.
