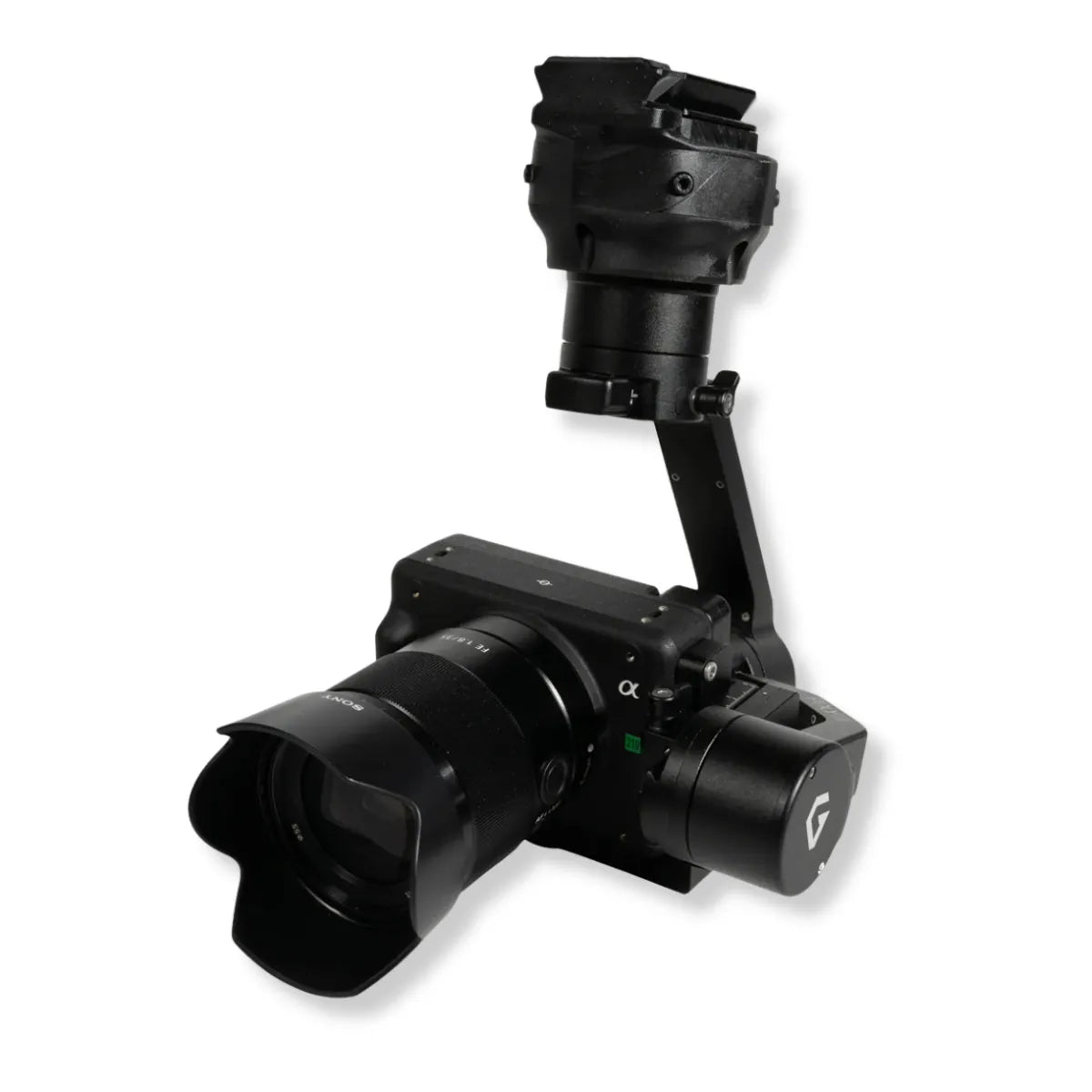

Inspired Flight Sony ILX-LR1 Payload for IF1200A

Sony ILX-LR1 Payload for IF1200A: Lightweight Full-Frame Aerial Camera

The Sony ILX-LR1 payload equips the Inspired Flight IF1200A with a 61MP full-frame sensor designed for mapping, surveying, and inspection. At just under 9 ounces, this compact camera reduces strain on flight endurance while delivering professional-grade imaging. Integrated through the IF1200 Dovetail Kit, the ILX-LR1 provides a balanced, rugged payload that supports interchangeable lenses and remote camera control. With high resolution, efficient processing, and low weight, it transforms the IF1200A into a precise aerial imaging platform.

Professional Imaging Optimized for Drone Integration

The ILX-LR1 features Sony's 61MP back-illuminated Exmor R sensor powered by the BIONZ XR processor. It captures UHD 4K60 video in H.265/264 XAVC and supports S-Log3 and S-Cinetone profiles for flexible workflows. With an E-mount system, operators can select from a wide range of lenses to fit mission requirements. At less than half the weight of typical Alpha cameras, it preserves endurance without sacrificing data quality, making it ideal for photogrammetry and detailed inspection.

Remote Operation and Field-Ready Design

Supporting Sony's Camera Remote SDK, the ILX-LR1 allows exposure, focus, ISO, and shutter adjustments during flight for optimal data capture. The compact body integrates practical features for field use, including a locking USB-C, micro-HDMI, SD slot, and a DC input for extended operation. Screw mounts on six surfaces ensure flexible installation, while a lock switch prevents accidental changes to settings. Power and recording indicator lights give pilots real-time status feedback, ensuring reliability during mission-critical flights.

Key Features and Benefits

• 61MP full-frame Exmor R sensor: high-resolution aerial imagery
• BIONZ XR processor: advanced processing with low noise output
• Under 9 oz weight: minimizes impact on flight endurance
• Interchangeable E-mount lenses: adapt optics to mission needs
• UHD 4K60 video: H.265/264 XAVC formats supported
• S-Log3 / S-Cinetone: flexible profiles for post-processing
• Remote SDK control: exposure, shutter, ISO, focus adjustments
• Locking USB-C & micro-HDMI ports: secure data connections
• SD slot & DC input: storage and extended power capability
• Six-surface screw mounts: versatile and stable installation

Applications and Use Cases

• Photogrammetry: generate detailed terrain and structure models
• Surveying: capture high-resolution geospatial datasets
• Infrastructure inspection: document bridges, railways, and facilities
• Utilities: inspect power lines, towers, and pipelines
• Environmental monitoring: vegetation, coastlines, and erosion studies
• Agriculture and forestry: canopy health and crop analysis
• Emergency response: rapid imagery in disaster scenarios
• Construction: recurring imaging for site progress tracking
• Urban planning: provide GIS-ready aerial datasets
• Forensics and reconstruction: secure aerial evidence collection

The Sony ILX-LR1 payload delivers exceptional imaging power in a compact, drone-optimized body. Integrated with the IF1200A, it ensures reliable, high-resolution capture for professional missions.

DSLRPros offers expert support, payload integration, and after-purchase care to help operators maximize system performance. Purchase the ILX-LR1 payload for IF1200A today and gain the imaging precision your missions demand.

Specifications

• Camera type: Interchangeable lens digital camera
• Lens mount: E-mount
• Sensor Type: 1.38 in full frame (1.41 x 0.94 in), Exmor R CMOS sensor
• Number of pixels (effective):
  • Still images: Approx. 61.0 megapixels max
  • Movies: Approx. 50.8 megapixels max.
  • *Number of effective pixels varies depending on attached lenses and camera settings.
• Number of pixels (total): Approx. 62.5 megapixels
• Image quality modes:
  • RAW
  • JPEG
  • HEIF (4:2:0 / 4:2:2)
  • RAW & JPEG
  • RAW & HEIF
• 14bit RAW: Yes
• Memory card slot: Slot for SD (UHS-I/II compliant) memory card
• Focus type: Fast Hybrid AF (phase-detection AF / contrast-detection AF)
• Focus point:
  • Still images: Max. 693 points (phase-detection AF)
  • Movies: Max. 693 points (phase-detection AF)
• Sensitivity range: EV-4 to EV20 (ISO100 equivalent with F2.0 lens attached)
• ISO sensitivity:
  • Still images: ISO 100 - 32000 (expandable to ISO 50 - 102400), AUTO (ISO 100 - 12800, selectable lower limit and upper limit)
  • Movies: ISO 100 - 32000 equivalent, AUTO (ISO 100 - 12800, selectable lower limit and upper limit)
• Shutter type: Mechanical shutter/Electronic shutter
• Shutter speed:
  • Still images (Mechanical shutter): 1/4000 to 30 s, Bulb
  • Still images (Electronic shutter): 1/8000 to 30 s
  • Movies: 1/8000 to 1 s
• Electronic Front Shutter Curtain: Yes
• Operating temperature: 2.080 - 40 ℃ / 32 - 104 °F

In The Box

• 1x Inspired Flight Sony ILX-LR1 Payload for IF1200A
