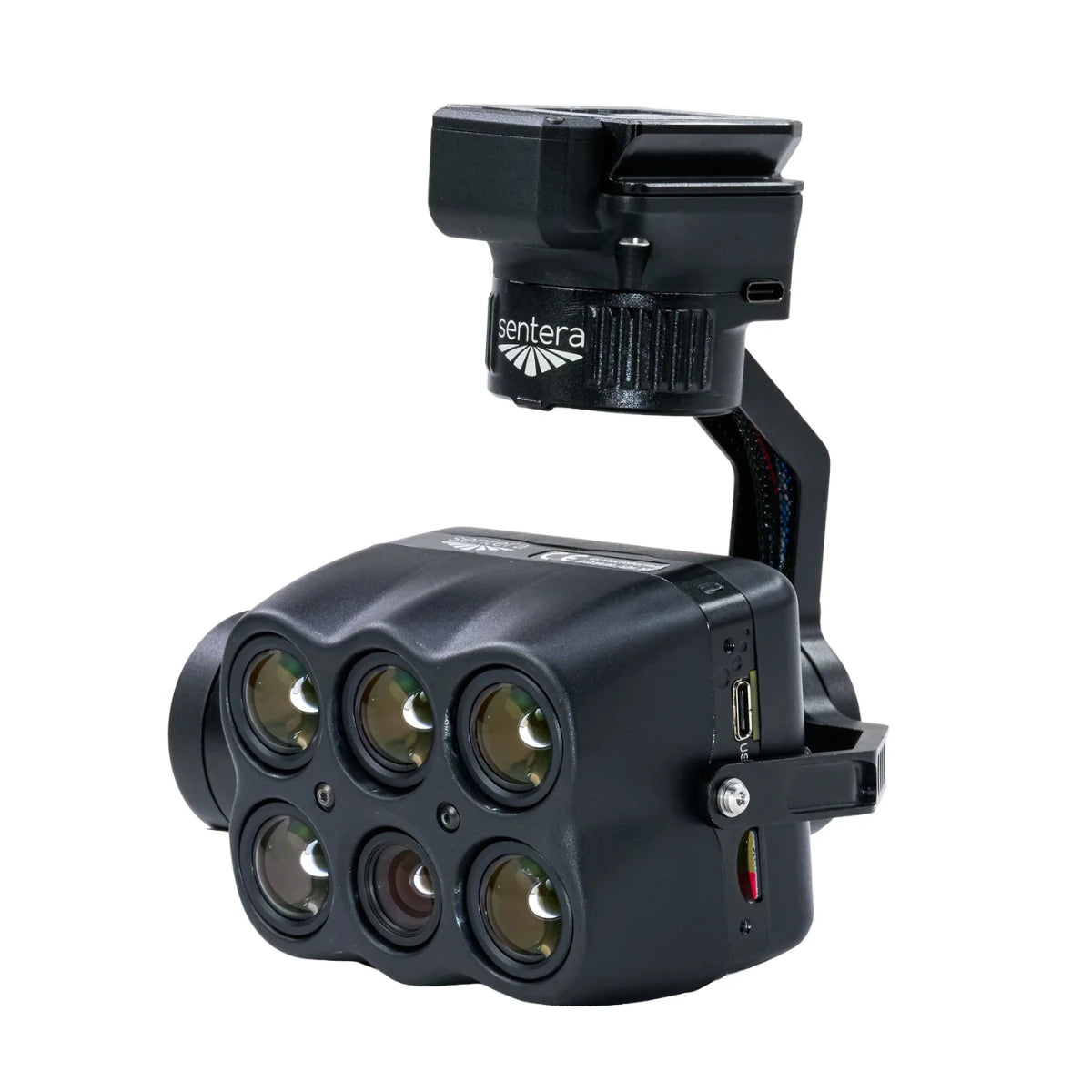

Inspired Flight IF800 Sentera 6X Multispectral Camera Payload

Sentera 6X Multispectral Camera Payload for IF800: Science-Grade Vegetation Data in One Flight

The Sentera 6X Multispectral Camera Payload for IF800 captures synchronized radiometric multispectral and high-resolution RGB imagery in a single flight, giving agronomists and researchers science-grade data without stacking multiple sensor passes.

Five 3.2 MP global shutter multispectral imagers cover blue, green, red, red edge, and near-infrared bands, paired with a 20 MP RGB imager on a stabilized Smart Dovetail gimbal built specifically for the IF800 platform. A 512 GB internal SSD and 5 FPS capture rate let operators cover large fields in a single mission without swapping storage mid-flight.

This configuration ships as a complete payload system, including the incident light sensor and calibrated reflectance panel needed for accurate results.

Key Features and Benefits

• Multispectral imaging: five bands capture blue, green, red, red edge, and NIR.
• High-res RGB: 20 MP imager delivers detailed visual context alongside spectral data.
• Single-flight capture: synchronized imagery eliminates the need for multiple sensor passes.
• Radiometric accuracy: incident light sensor corrects for changing conditions during flight.
• Calibrated reflectance: included panel supports precise field-based measurement calibration standards.
• Rapid capture rate: 5 FPS supports faster, longer flights over large fields.
• Ample storage: 512 GB internal SSD holds a full mission without swaps.
• Stabilized mounting: Smart Dovetail gimbal keeps imagery consistent during flight.
• Precise geotagging: time-of-capture data supports accurate image alignment and processing.
• Compliance ready: NDAA and Blue UAS compliant for government and enterprise use.

Getting radiometrically accurate data out of the box matters more than raw resolution when the deliverable is a crop health map or vegetation index. This sensor pairs its multispectral imagers with an incident light sensor and calibrated reflectance panel, plus pulse-per-second synchronization and time-of-capture geotagging, to correct for changing light conditions during a flight.

At 280 grams for the sensor alone and 515 grams mounted on the Smart Dovetail gimbal, the added weight stays manageable on the IF800 without compromising flight time. Data exports in open, standardized formats supported by most multispectral processing platforms, so field teams are not locked into a single analytics pipeline.

Consistency That Holds Up Across a Season

Vegetation health data is only as useful as its consistency across a growing season, and this sensor is built to hold that consistency flight after flight. Synchronized capture across all six channels means multispectral, RGB, and index outputs stay perfectly aligned without manual correction in post-processing.

The combination of a calibrated reflectance panel and incident light sensor keeps radiometric values accurate even as cloud cover or sun angle shifts mid-flight, a detail that matters when comparing imagery across multiple survey dates. Supported by open data formats, this payload integrates directly into the analytics workflow agronomists and researchers already use.

Compatibility and System Integration

• Smart Dovetail gimbal: integrated mount built specifically for the IF800 platform (included).
• Incident Light Sensor and GPS Module: calibration hardware for accurate captures (included).
• Calibrated Reflectance Panel: field reference tool for radiometric accuracy (included).
• External power supply and cabling: full connection kit for sensor operation (included).
• Inspired Flight IF800 aircraft: required host platform for this payload (sold separately).
• Multispectral processing software: most industry platforms support 6X data formats (sold separately).

Applications and Use Cases

• Crop health monitoring: multispectral bands identify stress before visible symptoms appear.
• Yield forecasting: seasonal imagery supports biomass and growth stage tracking.
• Weed pressure mapping: spectral data distinguishes crop canopy from weed encroachment.
• Stand count analysis: high-resolution RGB supports emergence and plant population counts.
• Environmental research: vegetation index data supports land management and conservation projects.
• Field trial evaluation: synchronized capture supports consistent comparison across research plots.

The Sentera 6X exists to give agronomists and researchers radiometrically accurate vegetation data without the workflow overhead of multiple sensor passes or manual calibration. Synchronized capture, calibrated reflectance, and open data formats mean this payload fits directly into the analytics pipeline teams already rely on.

DSLRPros configures Sentera 6X payloads for teams that need accurate calibration and mounting hardware dialed in for their specific IF800 platform. Our team can help confirm gimbal compatibility and processing software before your sensor arrives.

Order the Sentera 6X Multispectral Camera Payload for IF800 today at DSLRPros.
