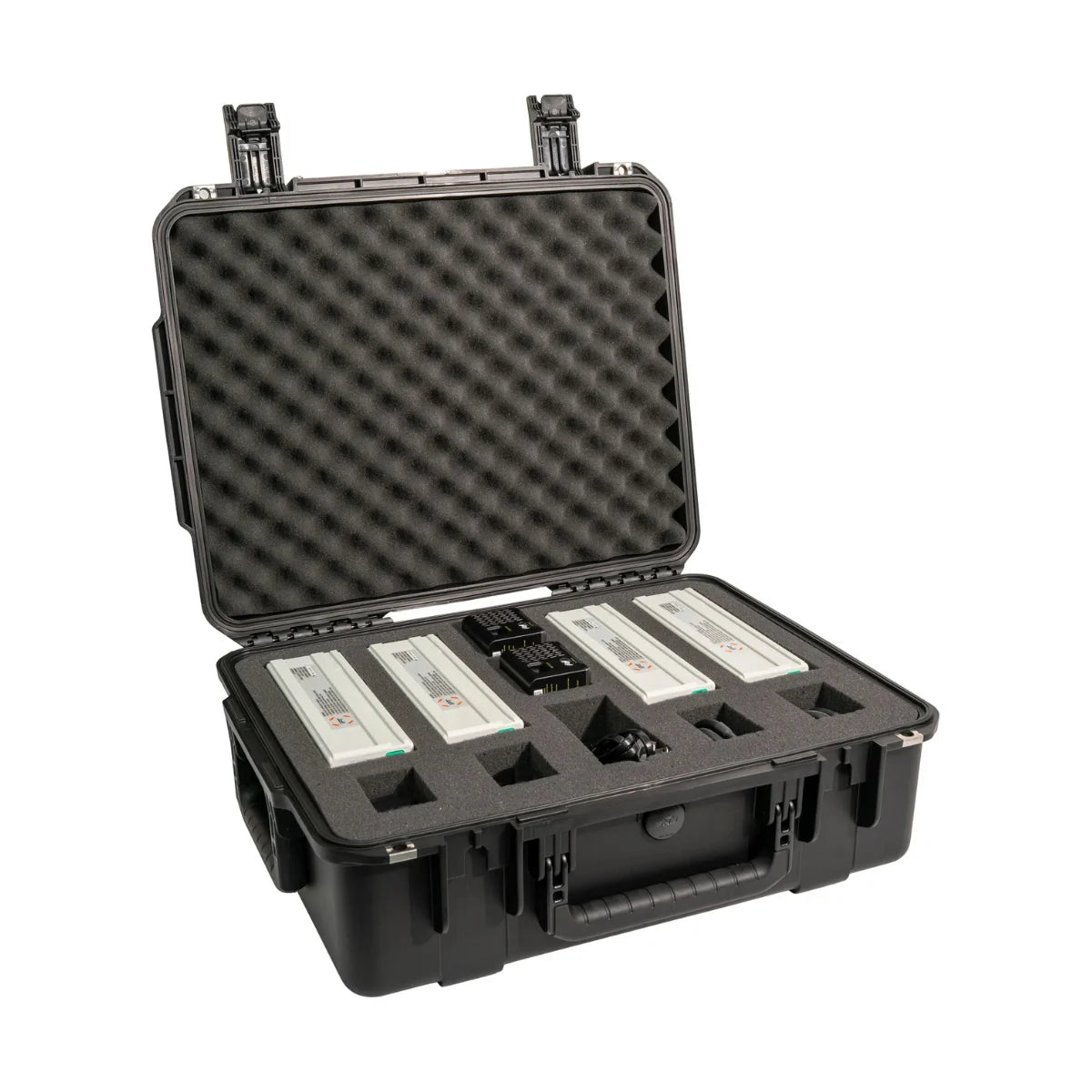

Inspired Flight IF800 Battery Kit

Inspired Flight IF800 Battery Kit

$4,000.00
$4,000.00
Sale Sold out
Shipping calculated at checkout.

S-IF-IF800-BATKIT

SKU S-IF-IF800-BATKIT MPN 102835
  • Includes 4 IB388 batteries for extended IF800 flight operations
  • 387.6 Wh per battery supports high-endurance UAV missions
  • Dual chargers enable parallel charging for reduced downtime
  • Hot-swappable batteries allow replacement without powering aircraft
  • Smart BMS protects against voltage, current, and temperature faults
  • NFC support enables quick battery diagnostics and monitoring
  • DroneCAN communication integrates directly with aircraft systems
  • Rugged transport case protects batteries during field deployment
  • Charging cables included for complete operational readiness
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Inspired Flight IF800 Battery Kit: Multi-Battery Power and Charging System for Extended IF800 Operations

The Inspired Flight IF800 Battery Kit is a complete power and charging solution designed to support extended flight operations on the IF800 platform. It includes four IB388 American-made high-voltage smart batteries (two full sets), along with two battery chargers and charging cables for continuous deployment workflows.

Each battery delivers 387.6 Wh with a 22.8 V nominal output using a 6S LiHv configuration and integrated BMS. With hot-swappable capability, DroneCAN communication, and NFC diagnostics, the system enables efficient battery rotation and reduced downtime during demanding UAV missions.

Key Features and Benefits

  • Four IB388 batteries: includes 4 high-voltage smart batteries (2 full sets)
  • 387.6 Wh per unit: delivers high-capacity energy for extended missions
  • Dual charger system: includes 2 chargers for parallel battery charging workflows
  • Continuous operations: supports battery rotation for uninterrupted flight cycles
  • Hot-swappable design: enables battery replacement without powering down aircraft
  • Smart BMS system: protects against overcharge, discharge, and temperature faults
  • NFC diagnostics: enables tap-based access to battery health and data
  • DroneCAN communication: integrates directly with IF800 aircraft system
  • Rugged case included: protects and organizes batteries during transport

Applications and Use Cases

  • Extended mapping missions: supports long-duration aerial survey operations
  • Inspection workflows: enables multiple consecutive flights with minimal downtime
  • Remote field operations: reduces dependency on immediate charging access
  • Training operations: supports continuous flight sessions with battery rotation
  • Multi-flight missions: enables efficient deployment across repeated sorties
  • Operational readiness: maintains consistent power availability in the field

The IF800 Battery Kit provides a scalable power solution for IF800 operations requiring sustained flight activity. Its combination of multiple battery sets and dual chargers supports efficient mission execution with minimal interruption.

With DSLRPros, you get integrated UAV power systems designed for real operational demands. Order the Inspired Flight IF800 Battery Kit from DSLRPros today.

Battery Specifications

  • Battery chemistry: Lithium polymer high-voltage (LiHv)
  • Configuration: 6S1P with internal BMS
  • Nominal energy: 387.6 Wh
  • Capacity: 17,000 mAh
  • Nominal voltage: 22.8 V
  • Max voltage (100%): 26.1 V
  • Minimum voltage (1% capacity): 21.6 V
  • Minimum safe voltage: 19.8 V

Charge and Discharge

  • Max continuous discharge: 40 A
  • Max burst discharge: 55 A
  • Max charge current: 17 A (1C)
  • Cut-off charge current: 18 A
  • Max charge voltage: 26.1 V (4.35 V/cell)
  • Overcharge cutoff voltage: 4.38 V/cell (BMS regulated)

Battery Management

  • Cell balancing: BMS controlled (<0.01 V variance)
  • Self-discharge: Reduces to 3.8 V/cell after 48 hours
  • Additional data access: Available via NFC
  • Aircraft communication: DroneCAN

Physical

  • Weight: 2.08 kg
  • Dimensions: 74 × 89 × 228 mm

Environmental

  • Operating temperature: -10°C to 45°C
  • Max internal temperature: 70°C
  • Storage temperature: 10°C to 30°C

Lifecycle

  • Life expectancy: 150–300 cycles
  • Long-term storage: Cycle once every 3 months

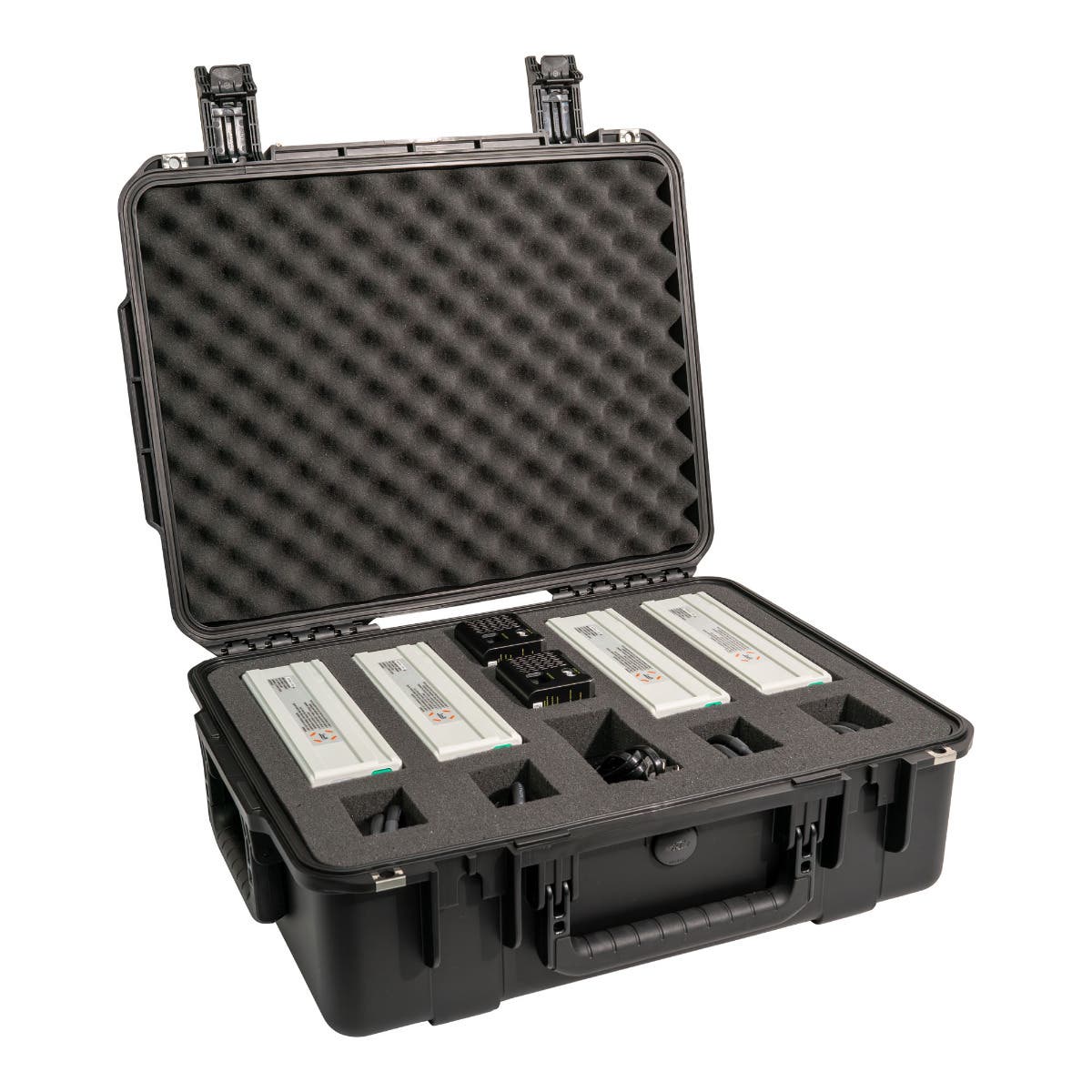

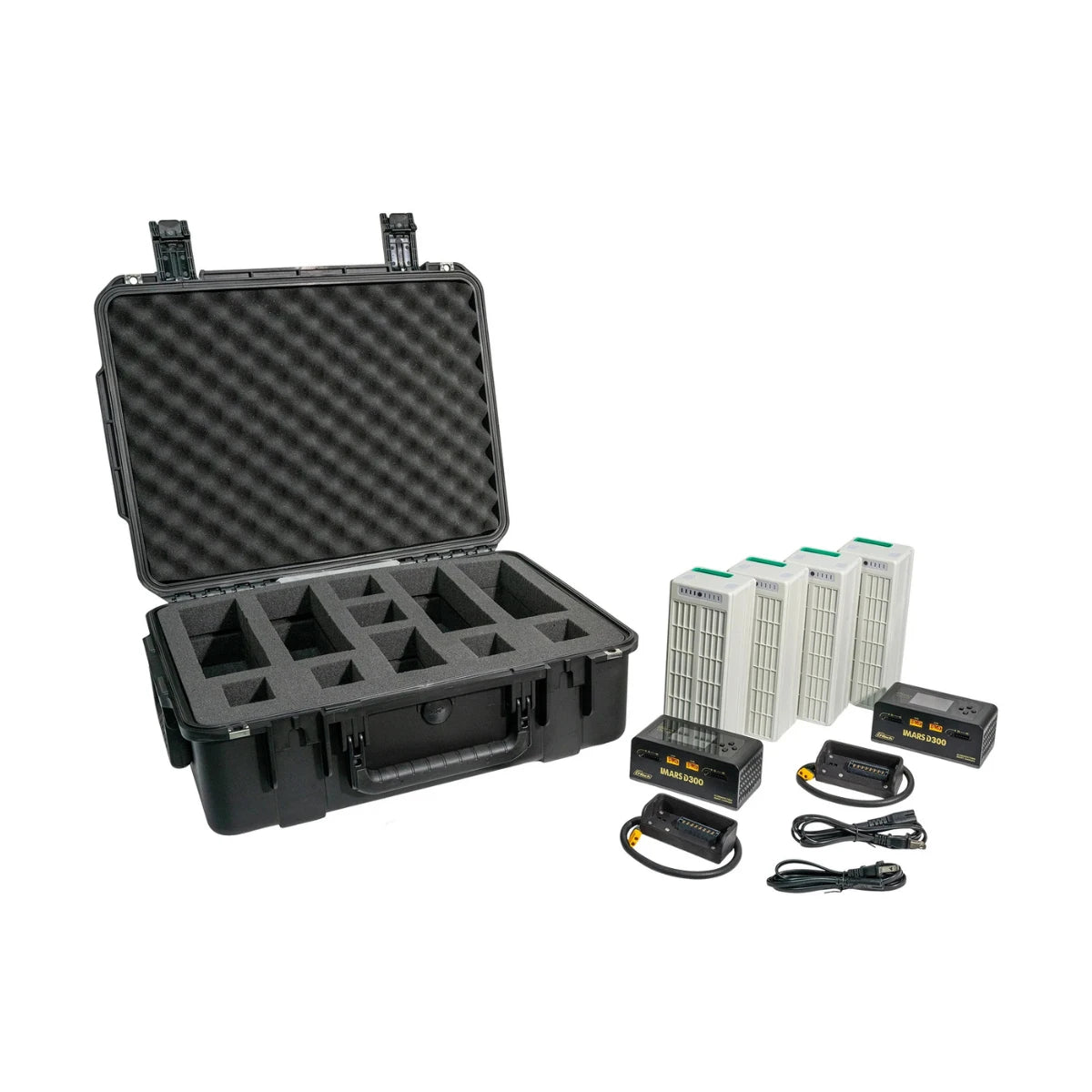

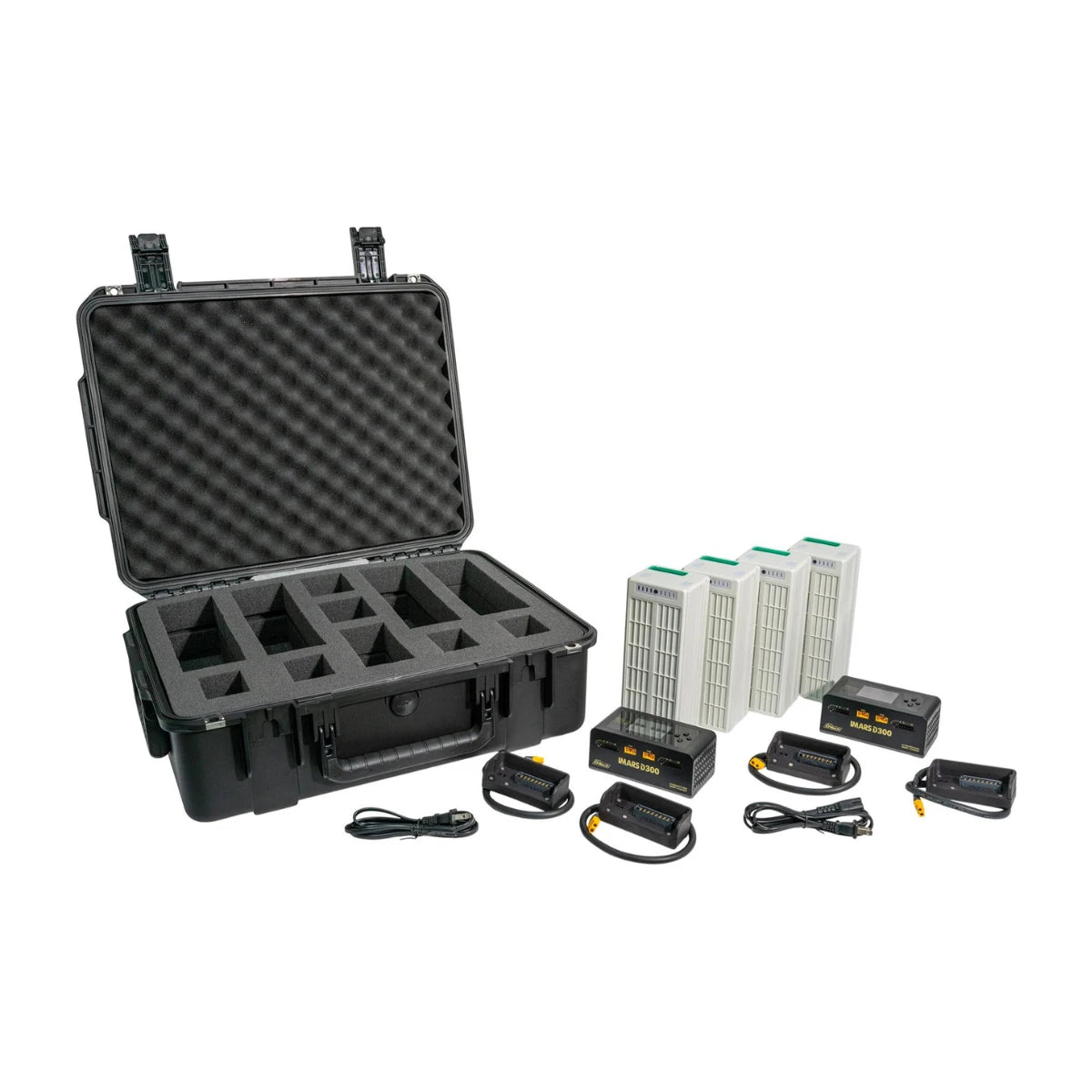

  • 4x Inspired Flight IB388 Smart Voltage Batteries
  • 2x Inspired Flight IF800 Battery Charger
  • 2x AC Power Cords
  • 2x IF800 Charging Cables
  • 1x Rugged Transport Case
What is included in the Inspired Flight IF800 Battery Kit?

The kit includes four IB388 smart batteries, two battery chargers, charging cables, and a rugged transport case. This provides two complete battery sets. It is designed for extended operations.

How does the Inspired Flight IF800 Battery Kit support extended missions?

It allows operators to rotate between battery sets while charging others simultaneously. This reduces downtime between flights. It supports continuous deployment workflows.

Are the batteries in the Inspired Flight IF800 Battery Kit hot-swappable?

Yes, the IB388 batteries support hot swapping. This allows replacement without powering down the aircraft. It improves operational efficiency.

What are the key specifications of the IB388 batteries in the kit?

Each battery provides 387.6 Wh, 17,000 mAh capacity, and 22.8 V nominal voltage. It uses a 6S LiHv configuration with integrated BMS. It also supports NFC and DroneCAN communication.

Does the Inspired Flight IF800 Battery Kit include everything needed for charging?

Yes, it includes two chargers and charging cables. This allows immediate charging capability. The aircraft is not included.
