Workswell WIRIS Enterprise Thermal Camera with Gremsy Pixy WE Gimbal: Radiometric Imaging to 1,500Β°C for the IF1200A

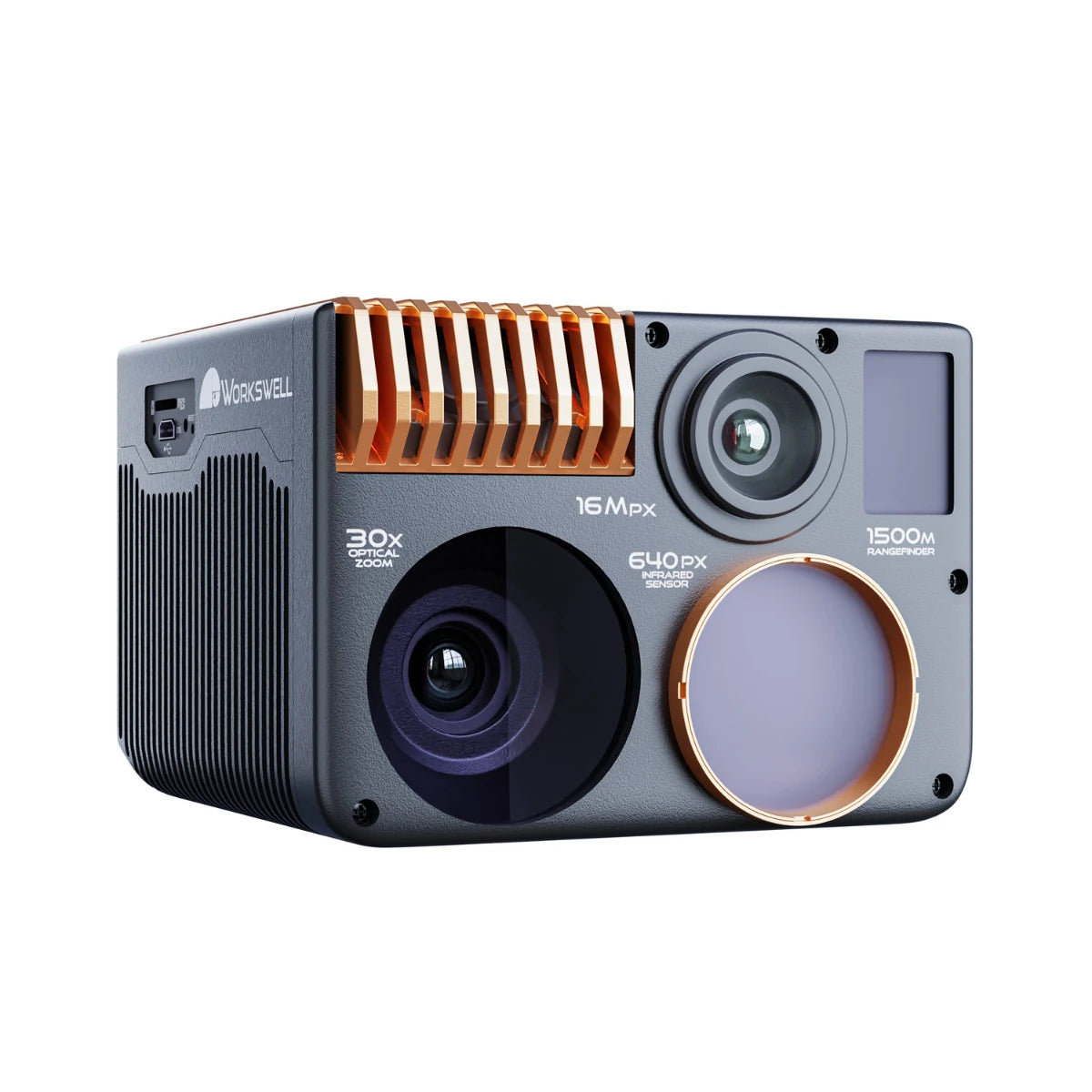

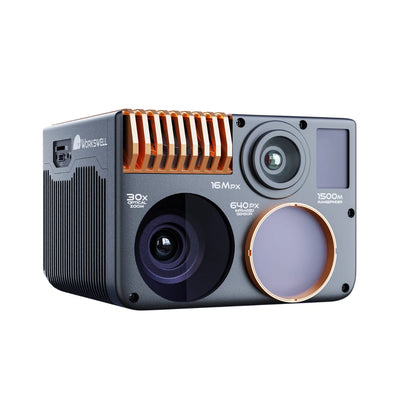

The Workswell WIRIS Enterprise Thermal Camera with Gremsy Pixy WE Gimbal is a multi-sensor payload built for the Inspired Flight IF1200A, combining a radiometric thermal camera, two RGB cameras, and a laser rangefinder on a single stabilized platform.
Every captured scene produces five separate images from the same flight pass: high-resolution thermal, high-resolution visible, a controller screenshot, an optical zoom frame, and a standard IR image, giving inspection teams a complete data set without repeat flyovers.
Key Features and Benefits
- Radiometric thermal camera: captures 640x512 imaging up to 1500 degrees Celsius
- Super resolution mode: enhances thermal images to 1.3 megapixel resolution
- 30x optical zoom: identifies distant targets without closing physical distance
- 16MP fixed camera: captures high resolution imagery for mapping documentation
- Laser rangefinder: measures target distance accurately up to 1500 meters
- Rugged IP66 rating: withstands dust, rain, and pressurized water jets

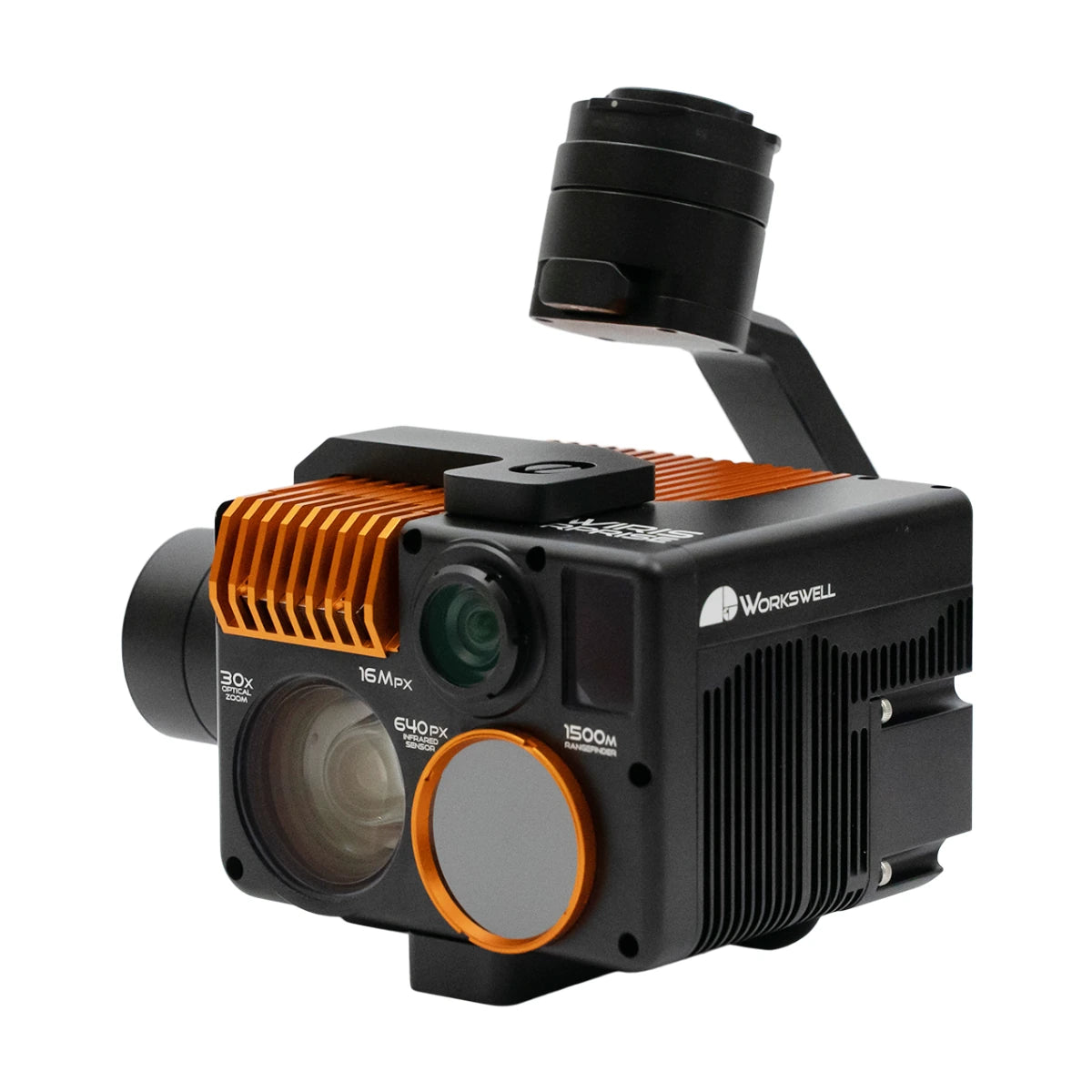

- Stabilized Pixy WE gimbal: keeps footage smooth during active flight
- WIRIS OS control: streams real time data during every flight
- Calibrated thermal lens: ensures accurate temperature readings for research work
- ThermoLab software included: analyzes thermal data with detailed reporting tools
The thermal sensor reads temperatures from -25Β°C up to 1,500Β°C depending on configuration, while the 30x optical zoom camera closes visual distance on a target without moving the aircraft closer.
A dedicated Gremsy Pixy WE gimbal keeps all three cameras stabilized during flight, and an IP66-rated housing lets the payload handle dust, rain, and pressurized water without added protective gear. Operators working thermal inspections, firefighting support, or environmental research get a single payload that covers detection, documentation, and precise measurement in one deployment.
Precision Data From Every Angle
Every flight with this payload generates radiometric thermal data, high-resolution visible imagery, and precise distance measurements simultaneously, eliminating the need for separate sensor passes. The 30x optical zoom camera lets inspectors confirm findings from a safe standoff distance, reducing exposure to hazardous equipment or unstable structures.
Calibrated lenses and a certified radiometric accuracy of Β±2Β°C mean temperature readings hold up under scrutiny for compliance documentation and trend analysis. Over repeated deployments, the IP66 housing and rugged case reduce the risk of costly downtime from field damage, protecting the long-term value of the investment.
Compatibility and System Integration
- IF1200A airframe: connects via MavLink through flight controller (sold separately)
- Gremsy Pixy WE gimbal: arrives fully integrated and mounted (included)
- Hard transport case: protects the full payload during travel (included)
- Rugged payload case: houses the camera for field storage (included)
- Micro SD card: provides additional storage for image capture (included)
- ThermoLab software license: enables full radiometric analysis on desktop (included)
- Gremsy T3V3 gimbal: offers an alternate mounting option (sold separately)
Applications and Use Cases
- Industrial inspection: identifies overheating equipment before failures cause costly downtime
- Firefighting support: locates hotspots and monitors fire behavior from altitude
- Security surveillance: detects intruders using thermal signatures during nighttime operations
- Search and rescue: locates missing persons through dense vegetation cover
- Geological survey: documents terrain features using high resolution mapping imagery
- Environmental research: monitors wildlife and ecosystems without disturbing natural habitats
Radiometric precision, optical reach, and distance measurement rarely come from a single payload, but this configuration gives inspection and research teams all three in one flight instead of three separate missions.
Rugged construction and calibrated sensors hold up to repeated field deployment while keeping data accurate enough for compliance and trend analysis. Operators get a complete imaging toolkit built specifically for the demands of professional aerial inspection work.
DSLRPros carries the payload configurations that make the IF1200A platform mission ready, backed by technicians who can confirm gimbal and license setup before your unit ships. Our team can also walk through MavLink registration and licensing requirements ahead of your first flight.
Order the Workswell WIRIS Enterprise with Gremsy Pixy WE Gimbal from DSLRPros today.
