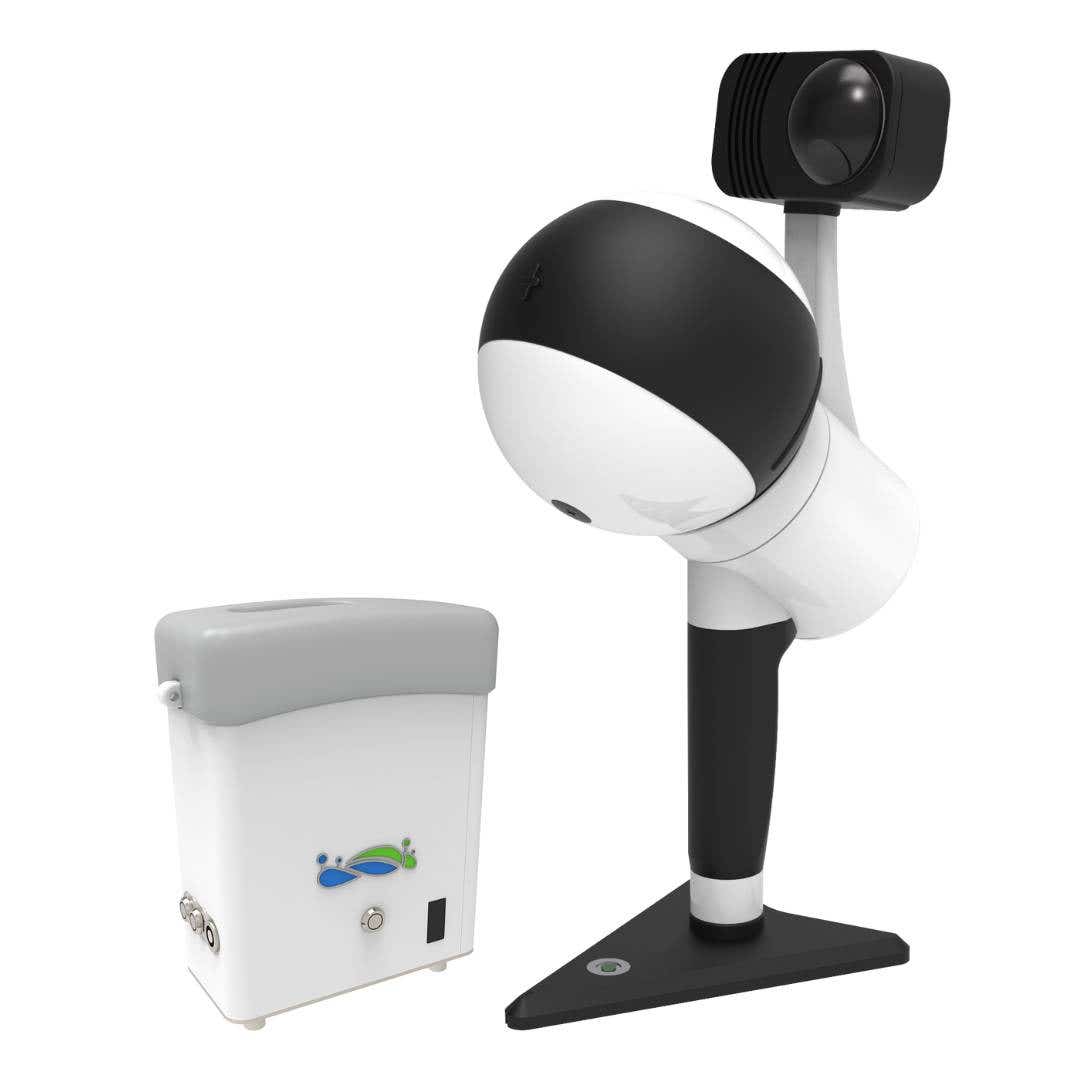

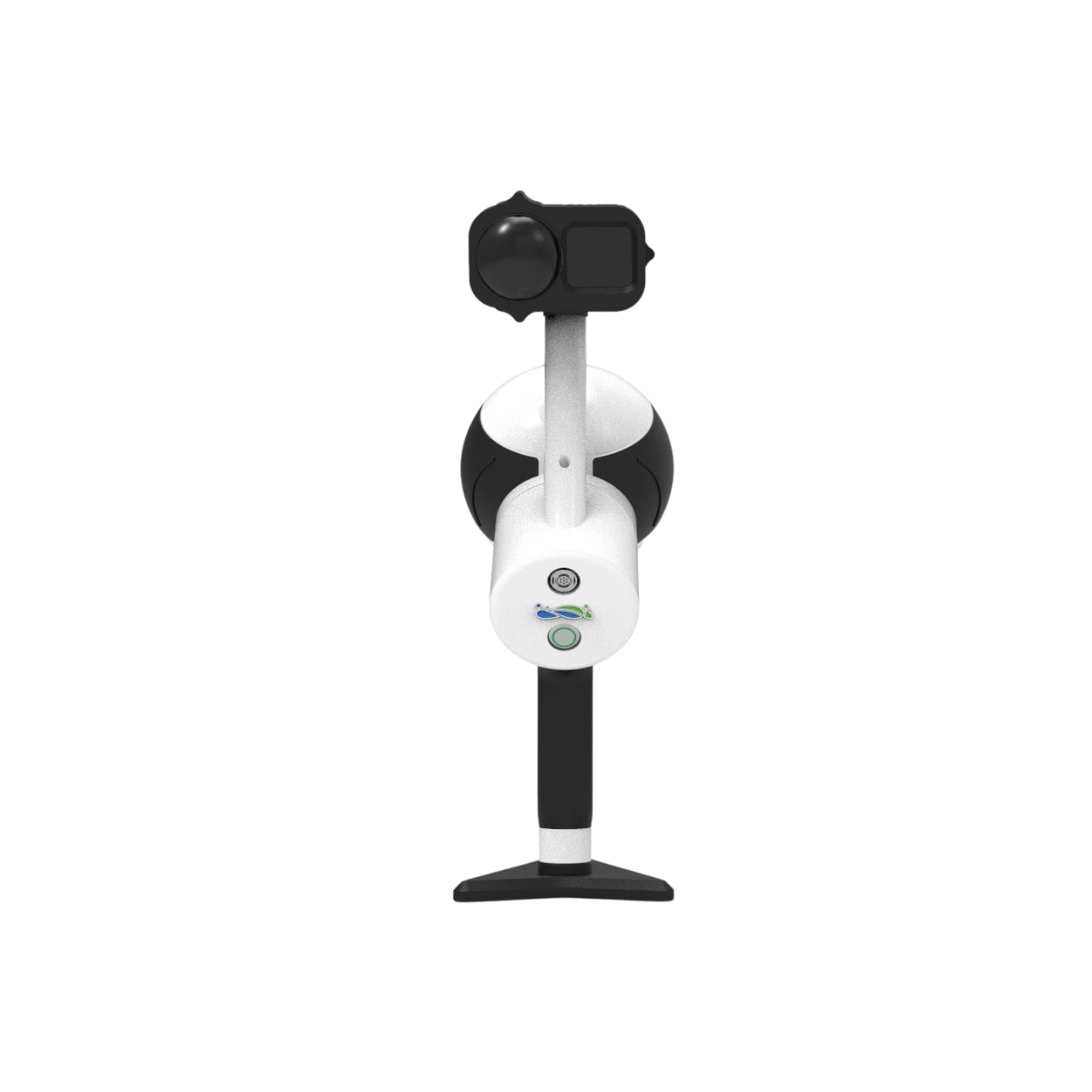

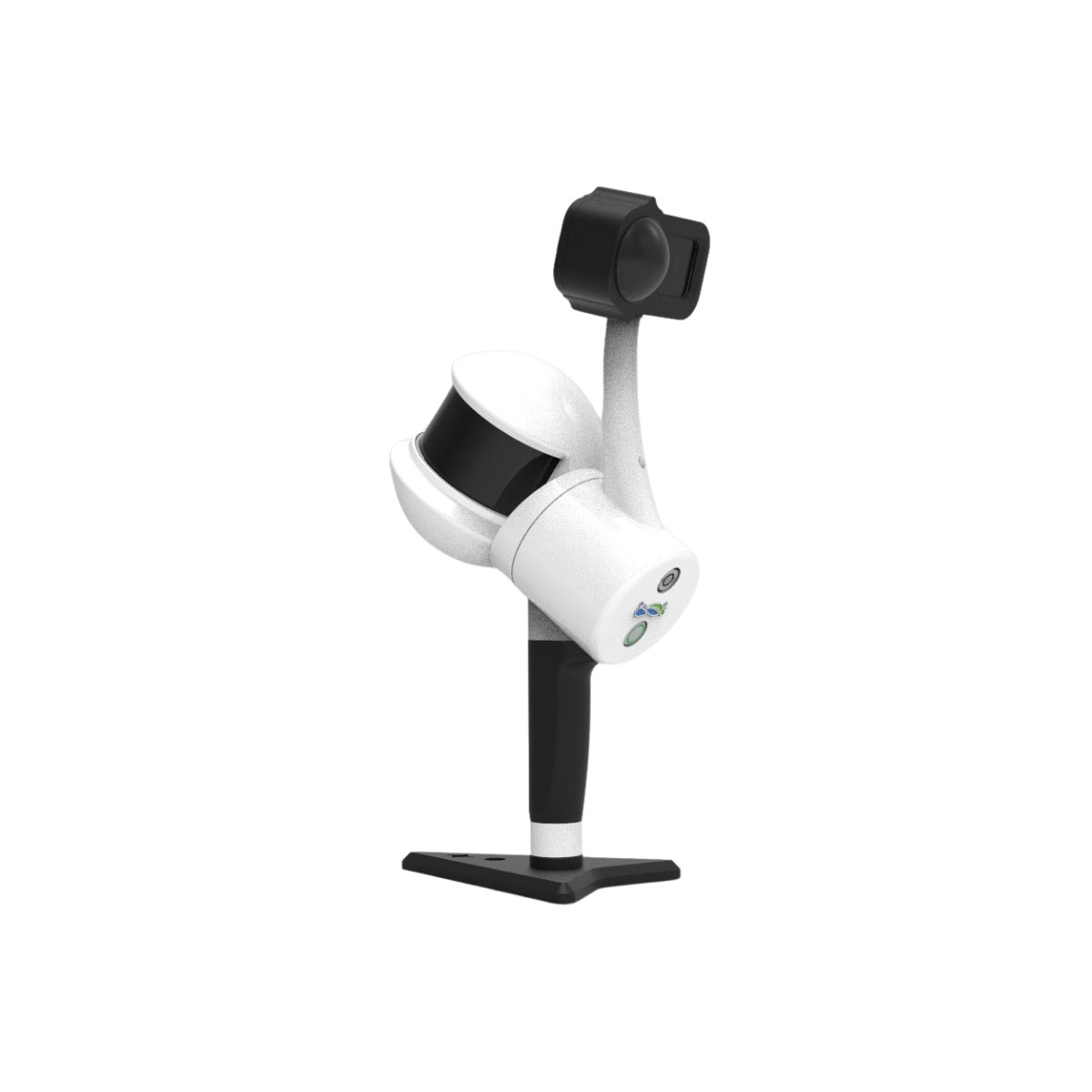

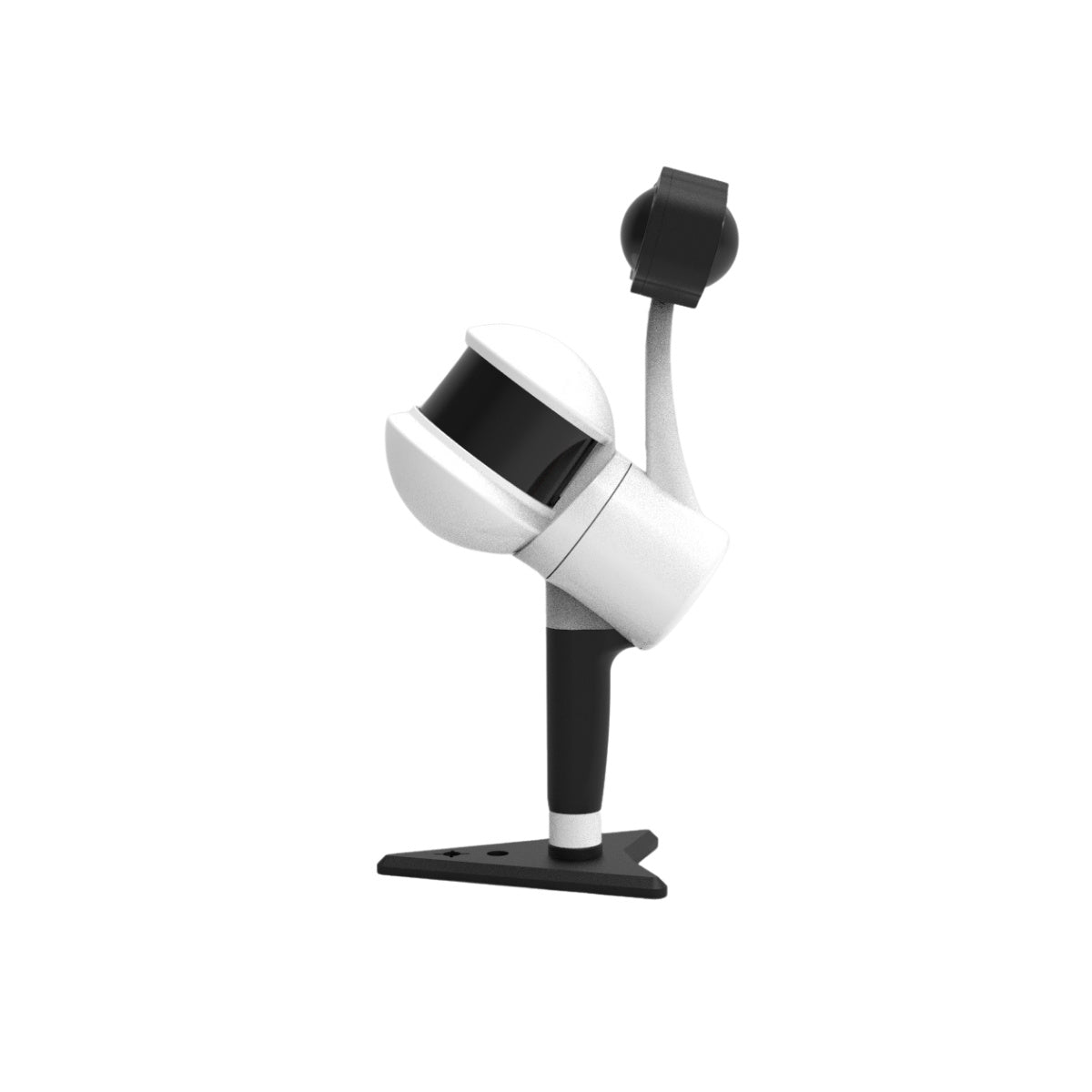

GreenValley LiGrip H300 Handheld Laser Scanning System

LiGrip H300 Rotating Handheld SLAM LiDAR System: 640,000 pts/s Portable LiDAR Mapping with 300 m Range and Multi-Mode SLAM

The GreenValley LiGrip H300 Rotating Handheld SLAM LiDAR System is a portable mapping platform designed for ground-based data capture across indoor and outdoor environments. It integrates a rotating LiDAR sensor, IMU, and 8K panoramic imaging system into a compact handheld unit weighing 1.26–1.58 kg (2.78–3.48 lbs), enabling flexible deployment without reliance on aerial platforms.

The system captures up to 640,000 points per second with a detection range of up to 300 m (984 ft). It supports SLAM, RTK-SLAM, and PPK-SLAM workflows, allowing consistent point cloud generation in GNSS-denied environments while achieving ≤5 cm absolute accuracy when correction workflows are applied.

Key Features and Benefits

• Scan rate: 640,000 points per second enables high-density LiDAR mapping workflows
• Detection range: 300 meter range supports large-area ground mapping operations efficiently
• Field of view: 360 by 280 degree coverage ensures complete spatial capture
• Positioning modes: Multi-mode SLAM supports GNSS and non-GNSS mapping workflows
• Relative accuracy: ≤1 cm accuracy supports precise measurement and modeling workflows
• Absolute accuracy: ≤5 cm achievable using RTK or PPK correction workflows
• Imaging system: Integrated 8K panoramic camera enables point cloud colorization workflows
• System weight: 1.26 to 1.58 kg supports extended handheld mapping operations
• Visualization: Real-time point cloud display enables immediate data validation workflows

Mobile SLAM Mapping Across GNSS and Non-GNSS Environments

The LiGrip H300 supports SLAM, RTK-SLAM, and PPK-SLAM workflows, enabling deployment across environments with varying GNSS availability. SLAM allows mapping in indoor and enclosed environments without satellite positioning, while RTK-SLAM and PPK-SLAM provide georeferenced outputs with ≤5 cm absolute accuracy when correction data is applied.

Real-time point cloud visualization enables operators to monitor coverage and trajectory during acquisition. This reduces rework and improves data consistency across mapping, inspection, and documentation workflows requiring accurate spatial data capture.

Compatibility and System Integration

• Deployment modes: Supports handheld, backpack, vehicle-mounted, and UAV-mounted configurations
• GNSS module: Optional RTK module enables GNSS-based positioning workflows (sold separately)
• Control software: Integrates with GreenValley APP for acquisition control and monitoring
• Processing software: Compatible with LiDAR360MLS for SLAM processing and refinement workflows
• Data outputs: Supports LAS, LAZ, E57, PCD, and LiData file formats
• GNSS support: Compatible with GPS, BDS, GLONASS, Galileo, and QZSS systems

Applications and Use Cases

• Topographic mapping: Captures terrain data across varied ground environments efficiently
• Infrastructure inspection: Documents structural geometry and asset conditions accurately
• Forestry analysis: Measures canopy structure, terrain elevation, and vegetation density
• Mining operations: Supports stockpile measurement and terrain modeling workflows
• Indoor mapping: Captures data in GNSS-denied environments such as buildings and tunnels
• Utility inspection: Captures ground-level data around complex infrastructure assets

The LiGrip H300 provides a portable LiDAR mapping solution for environments where mobility and accessibility are critical. Its SLAM-based positioning and optional GNSS correction workflows enable consistent data capture across varied operational conditions.

At DSLRPros, we support LiDAR deployment, workflow integration, and data processing across mapping operations. Consult our UAV specialists to configure the LiGrip H300 and purchase from DSLRPros with confidence.
