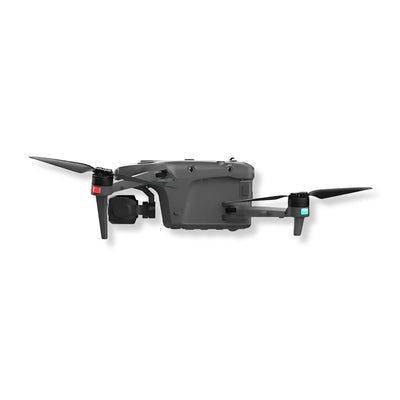

GDU S220 Pro 1K Version Public Safety Bundle

GDU S220 Pro 1K Version Public Safety Bundle

$10,850.00
$10,850.00
Sale Sold out
Shipping calculated at checkout.

B-GDU-S220T-PRO-PUB

  • Quad sensor system combines wide, zoom, thermal, and laser ranging
  • 1280 x 1024 thermal imaging enables detailed heat detection in operations
  • 10x optical and 160x hybrid zoom support long-range identification tasks
  • Laser rangefinder measures targets accurately up to 1500 meters distance
  • Up to 41 minutes flight time supports extended mission coverage
  • RTK positioning provides centimeter-level accuracy for precise navigation
  • Omnidirectional obstacle sensing improves safety in complex environments
  • Includes loudspeaker and spotlight for active public safety response
  • AI-assisted recognition enhances target tracking and operational efficiency
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

GDU S220 Pro 1K Version Public Safety Bundle (Quad Sensor): Long-Range Multi-Sensor Detection, Identification, and Response Platform

The GDU S220 Pro 1K Version Public Safety Bundle - Quad Sensor is a multi-sensor drone system built for real-world emergency response, surveillance, and search operations. It integrates a wide-angle camera, high-zoom telephoto camera, 1K thermal imager, and laser rangefinder into a single payload, allowing operators to detect, identify, and measure targets without changing sensors or repeating flights.

This bundle is configured for immediate field deployment with RTK positioning, loudspeaker, spotlight, and multiple batteries. With up to 41 minutes of flight time, 10× optical zoom, 160× hybrid zoom, and 1280 × 1024 thermal imaging, it provides the tools needed to operate effectively in low visibility, long-range, and high-pressure environments.

Key Features and Benefits

  • Quad sensor payload: Combines wide, zoom, thermal, and laser ranging capabilities.
  • High-resolution thermal imaging: 1280 × 1024 sensor enables detailed heat detection.
  • Long-range zoom system: 10× optical and 160× hybrid zoom capability.
  • Laser rangefinder integration: Measures distances from 10 to 1500 meters accurately.
  • Extended flight endurance: Up to 41 minutes supports prolonged mission coverage.
  • RTK positioning system: Delivers centimeter-level accuracy for precise navigation control.
  • Omnidirectional obstacle sensing: Enhances flight safety in complex operational environments.
  • Public safety payloads included: Loudspeaker and spotlight enable active field response.
  • AI recognition system: Supports automated target detection and tracking workflows.

Reliable Target Detection and Response in Complex Environments

Operational effectiveness depends on the ability to locate and assess targets quickly. The S220 Pro combines 48MP imaging, 1K thermal resolution at 1280 × 1024, and laser ranging up to 1500 m (4,921 ft) to provide layered situational awareness. With a maximum transmission distance of 15 km (9.32 miles) and 41-minute flight endurance, operators can maintain visual coverage across large areas. The integrated 21T onboard computing and up to 100T edge computing capability enable real-time AI-assisted recognition, reducing manual workload and improving response time during critical missions.

Compatibility and System Integration

  • Integrated quad-sensor payload: Combines visual, thermal, and ranging sensors in one system.
  • RTK module included: Enables high-precision positioning for mapping and inspection workflows.
  • PSDK interface support: Allows integration with additional payloads and accessories.
  • GDU Flight II software: Supports mission planning and autonomous flight operations.
  • UVER platform integration: Enables cloud data management and fleet monitoring workflows.
  • Multi-network connectivity: Supports Wi-Fi, Bluetooth, and network-based communication systems.
  • Remote controller integration: PYK-200 enables full aircraft and payload control operations.

Applications and Use Cases

  • Search and rescue missions: Locate individuals using thermal detection in low visibility.
  • Law enforcement surveillance: Monitor targets using long-range zoom and aerial positioning.
  • Disaster response operations: Assess damage and identify hazards in affected areas.
  • Fire and hotspot detection: Identify heat signatures using high-resolution thermal imaging.
  • Traffic and crowd monitoring: Provide aerial oversight in large-scale public environments.
  • Night operations support: Use spotlight and thermal imaging for low-light missions.

The GDU S220 Pro 1K Public Safety Bundle delivers a complete aerial response system that combines detection, identification, and measurement tools in a single platform. Its integrated payload and bundled accessories reduce setup time while improving mission capability in demanding environments.

At DSLRPros, we focus on deploying systems that perform reliably in the field. Our UAV specialists can help configure the S220 Pro bundle for your operational requirements and mission profiles. Order now or contact DSLRPros to equip your team with a ready-to-deploy aerial solution.

Aircraft

  • Maximum flight time: 41 minutes
  • Takeoff weight: 4.51 lbs (2.05 kg)
  • Max ascent speed: 8 m/s
  • Max descent speed: 6 m/s
  • Max wind speed resistance: 12 m/s
  • Max takeoff altitude: 6 km
  • Global navigation satellite system: Remote controller supports GPS + BeiDou
  • IP rating: IP43

Remote Controller

  • Model: PYK-200 remote controller
  • Operating temperature: -4°F to 122°F (-20°C to 50°C)
  • Max operating time (built-in battery): 1.5 hours (0–90%), 2.0 hours (0–100%)
  • Max operating time (external battery, optional): up to 3 hours (0–100%)

Camera System

  • Wide-angle video resolution: 7264 × 4086 @15 fps; 3840 × 2160 @30/60 fps; 1920 × 1080 @30 fps
  • Telephoto video resolution: 7264 × 4086 @15 fps; 3840 × 2160 @30/60 fps; 1920 × 1080 @30 fps
  • Thermal resolution: 1280 × 1024 @30 fps
  • Laser rangefinder: 10–1500 m
  • Remote controller video support: 4K/60 fps H.264 and H.265

Image Sensor

  • Wide-angle: 1/1.49" CMOS
  • Telephoto: 1/2" CMOS, 48 MP

Lens

  • Integrated wide-angle lens
  • Telephoto lens
  • Quad-sensor system with infrared lens and laser rangefinder

ISO Range

  • Wide-angle (video/manual): 100–25600
  • Wide-angle (photo/auto): 100–6400
  • Telephoto (video/auto): 100–11200
  • Telephoto (manual): 100–25600
  • Telephoto (photo/auto): 100–11200

Shutter Speed

  • Telephoto: 8 s to 1/8000 s

Media Formats

  • Photo format: JPEG
  • Video format: MP4

Gimbal

  • Stabilization: 3-axis mechanical gimbal (pitch, roll, pan)

Battery

  • Aircraft battery capacity: 8000 mAh
  • Remote controller battery (internal): 7000 mAh @ 7.2 V
  • Remote controller battery (external, optional): 7000 mAh @ 7.2 V
  • Nominal voltage: 14.76 V
  • Battery type: Lithium-ion
  • Battery quantity: 1

Dimensions

  • Drone (folded): 75 × 272 × 148 mm (2.95 × 10.70 × 5.82 in)
  • Drone (unfolded): 613 × 699 × 160 mm (24.13 × 27.51 × 6.29 in)
  • Remote controller: 262 × 139 × 103 mm (10.31 × 5.47 × 4.05 in)

Weight

  • Drone: 4.1 lbs (1.86 kg)
  • Remote controller (without external battery): 2.31 lbs (1.05 kg)
  • Remote controller (with external battery): 2.86 lbs (1.3 kg)

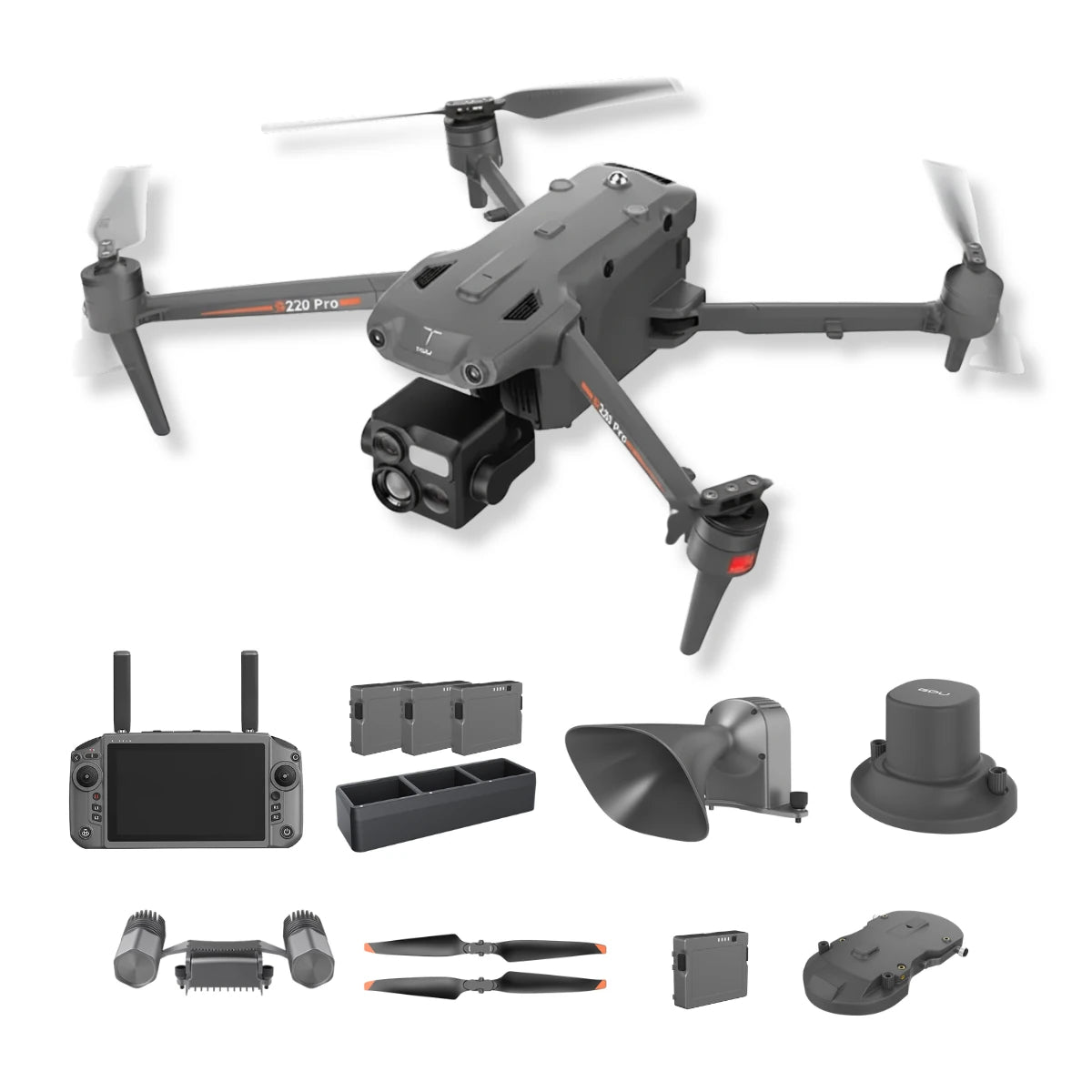

Core System:

  • 1x S220 Pro Series 1K Thermal Camera Drone
  • 1x PYK-200 Remote Controller
  • 1x Power Adapter
  • 1x Single-Cell Charging Hub
  • 1x Spare Aircraft Propeller (Pair)
  • 1x Charging Cable
  • 1x Protective Case
  • 1x Screwdriver

Public Safety Bundle Items:

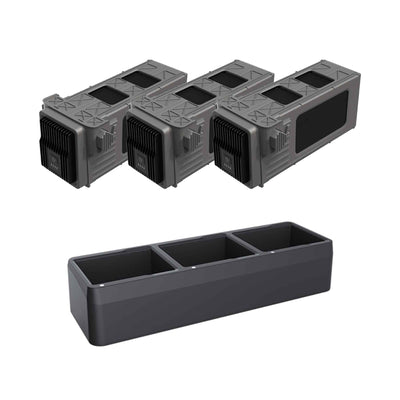

  • 1x GDU S200 3 Batteries + 3-Way Hub

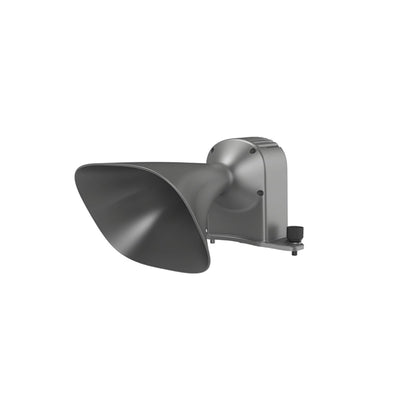

  • 1x GDU S200 Loudspeaker

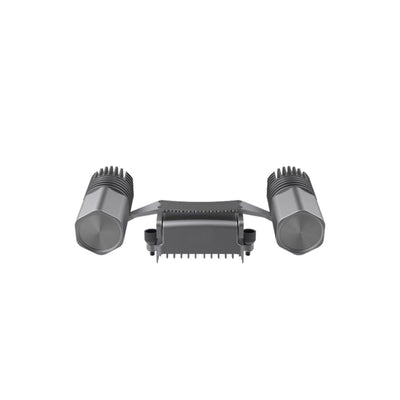

  • 1x GDU S200 Spotlight
  • 1x GDU S220 Propellers (1A1B Set)

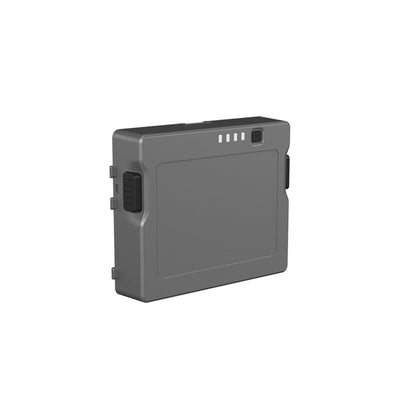

  • 1x GDU S200 Remote Controller Battery
  • 1x GDU S200 1-to-2 Splitter Box

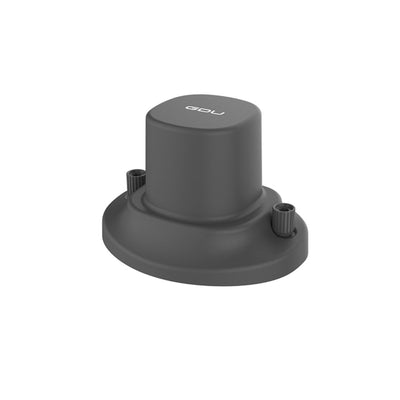

  • 1x GDU S200 RTK Module
  • 1x MicroSD Card
  • 1x User Manual
  • 1x GDU-Tech 1 Year Limited Warranty
What sensors are included in the GDU S220 Pro 1K Version Public Safety Bundle - Quad Sensor?

The system includes a wide-angle camera, a telephoto camera with zoom capability, a 1K thermal imager, and a laser rangefinder. These sensors operate together to provide visual, thermal, and distance data. This allows operators to detect and assess targets in a single flight.

How far can the GDU S220 Pro 1K Version Public Safety Bundle - Quad Sensor identify targets?

The drone features 10× optical zoom and up to 160× hybrid zoom for long-range viewing. It also includes a laser rangefinder with a range of 10 to 1500 meters (32.8 to 4,921 ft). This combination allows for both visual identification and distance measurement.

What is the flight time of the GDU S220 Pro 1K Version Public Safety Bundle - Quad Sensor?

The drone can fly for up to 41 minutes under optimal conditions. Actual flight time may vary depending on payload and environmental factors. This endurance supports extended missions without frequent battery changes.

Does the GDU S220 Pro 1K Version Public Safety Bundle - Quad Sensor include RTK positioning?

Yes, the bundle includes an RTK module for high-precision positioning. It provides centimeter-level accuracy for navigation and mapping. This is useful for missions that require precise location data.

What public safety tools are included in the GDU S220 Pro 1K Version Public Safety Bundle - Quad Sensor?

The bundle includes a loudspeaker and a spotlight. These tools allow operators to communicate with individuals and illuminate areas during operations. They are especially useful in search and rescue and nighttime missions.
