• Freefly Tattu TA3200 Dual-Channel Smart Charger (Alta X Gen2)
  • Freefly Tattu TA3200 Dual-Channel Smart Charger (Alta X Gen2)
1 2

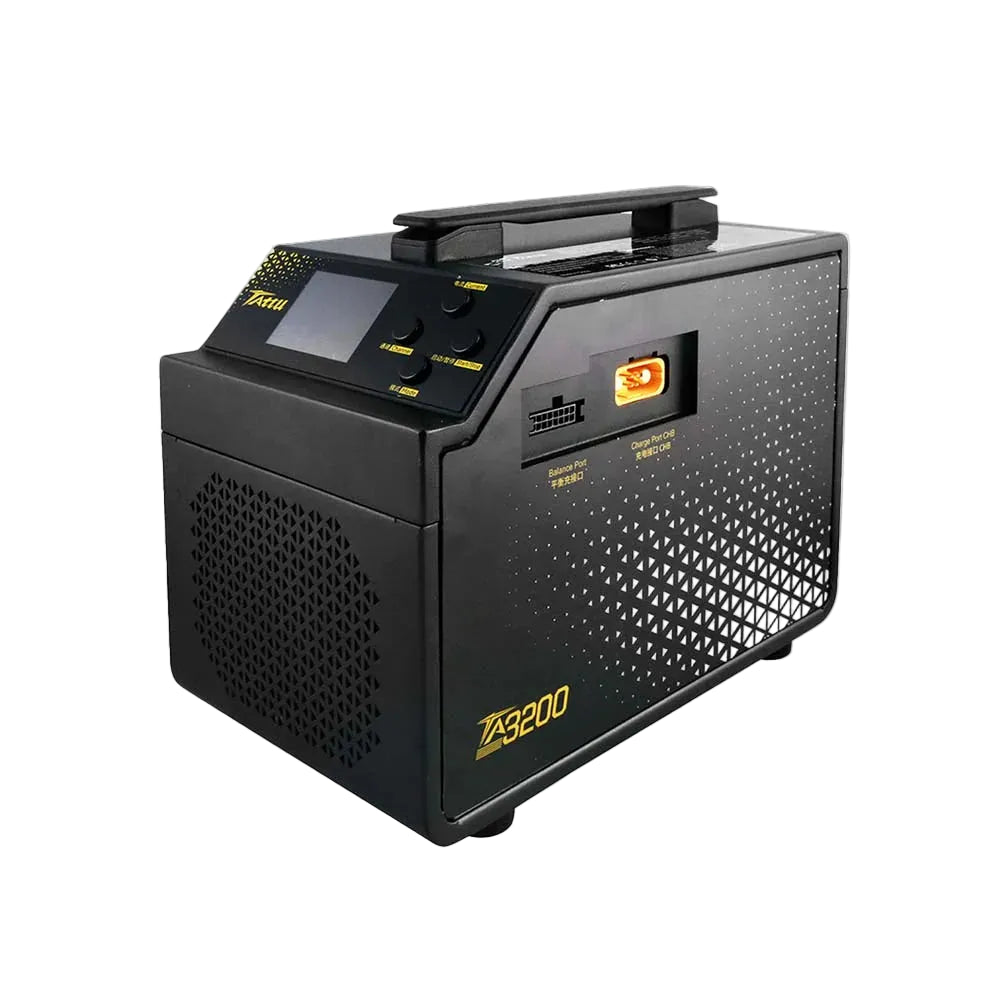

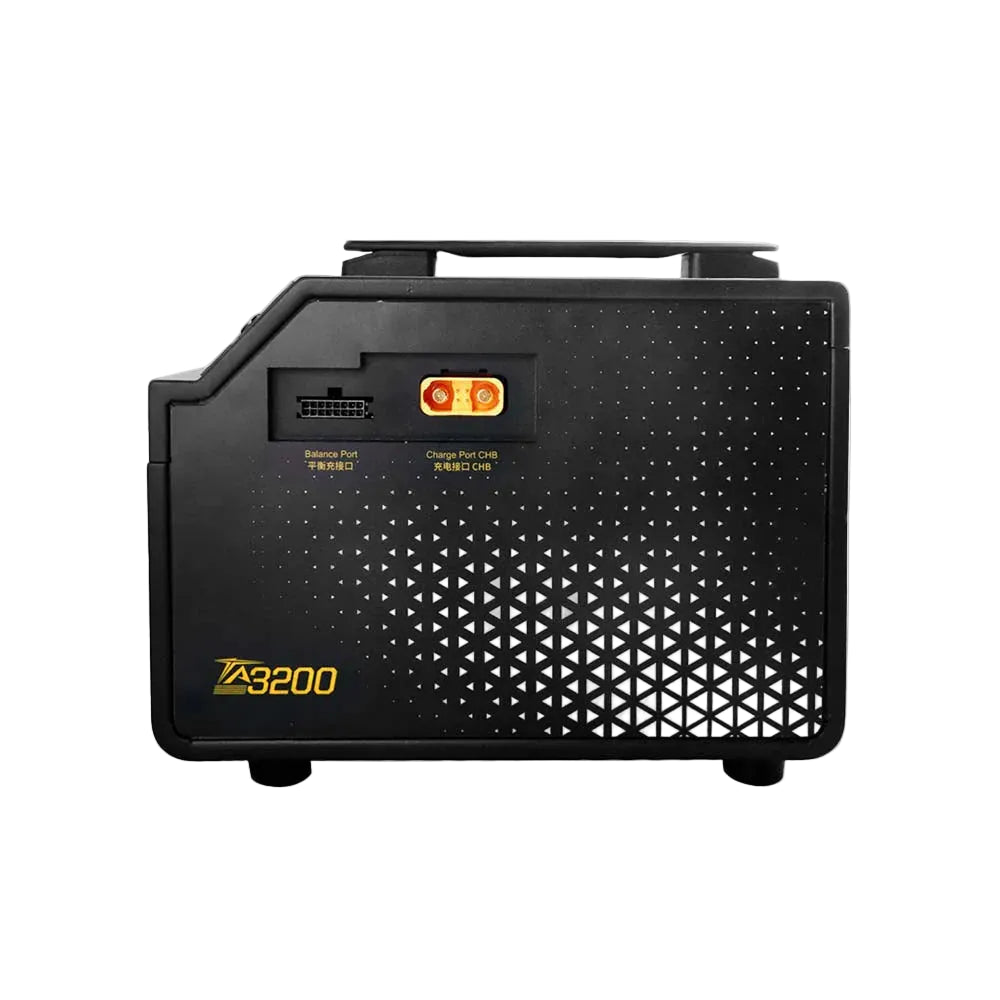

Freefly Tattu TA3200 Dual-Channel Smart Charger (Alta X Gen2)

Freefly Tattu TA3200 Dual-Channel Smart Charger (Alta X Gen2)

$795.00
$795.00
Sale Sold out
Shipping calculated at checkout.

S-FF-TATTU-CHARGER

SKU S-FF-TATTU-CHARGER MPN 910-00901 UPC 889551118194
  • Dual high-power channels charge two Alta X Gen2 batteries simultaneously
  • 3200W max output on 240V input split across both charging channels
  • Smart Tattu battery recognition eliminates manual current configuration on connection
  • Selectable Fast, Normal, and Discharge modes adapt to any workflow
  • Per-channel current adjustable to 10A, 15A, or 20A by input capacity
  • Automatic cell balancing across 6–14S LiPo packs maintains long-term health
  • Integrated power supply requires no external converter or separate power brick
  • Automatic 100V–240V switching operates on domestic and international power
  • Temperature monitoring and abnormal state alerts manage pack safety automatically
  • All cabling included to charge two Alta X Gen2 flight packs out of the box
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Freefly Tattu TA3200 Dual-Channel Smart Charger: High-Power Smart Charging for Alta X Gen2 Flight Batteries

The Freefly Tattu TA3200 Dual-Channel Smart Charger is purpose-built for Alta X Gen2 operators running Tattu flight batteries. With dual high-power channels delivering up to 3200W combined on 240V input or 1600W on 120V the TA3200 charges a pair of Alta X Gen2 12S flight batteries simultaneously, keeping turnaround time tight between mission cycles.

The integrated power supply and automatic voltage switching from 100V to 240V mean the charger operates on domestic or international power without requiring an external converter or separate power brick.

Smart communication with Tattu batteries drives the workflow. Once a battery is connected and the TATTU icon on the main interface turns yellow, the charger has recognized the pack and is ready to go no manual current setting required.

Select Fast, Normal, or Discharge mode with the left key, hold the right key to start, and the TA3200 handles balancing, temperature monitoring, and abnormal state alerts automatically. For operators cycling packs in the field or conditioning them for storage, the TA3200 covers every stage of battery management in a single unit.

Key Features and Benefits

  • Dual-channel charging: two independent high-power channels charge a pair of Alta X Gen2 batteries simultaneously.
  • Max charge output: 3200W combined on 240V input, 1600W combined on 120V input.
  • Smart battery recognition: CAN communication identifies Tattu packs instantly upon connection without manual configuration.
  • Selectable charge modes: Fast, Normal, and Discharge modes adapt to field or storage workflow requirements.
  • Selectable current: per-channel current adjustable to 10A, 15A, or 20A based on AC input capacity.
  • Cell balancing: automatic balancing across 6–14S LiPo packs maintains individual cell health over time.
  • Integrated power supply: no external power brick required — self-contained unit connects directly to AC mains.
  • Automatic voltage switching: 100V–240V auto-detection operates across domestic and international power standards.
  • Safety management: temperature monitoring and abnormal state alerts manage pack protection automatically.
  • Software updates: USB-A port supports firmware updates to keep charger performance current.

The TA3200 eliminates the friction points that slow down battery turnaround — manual configuration, separate power supplies, and single-channel bottlenecks. Smart Tattu battery recognition, dual high-power channels, and automatic safety management give field operators a charger that keeps Alta X Gen2 batteries ready without demanding attention between cycles. All necessary cabling and accessories to charge two Alta X Gen2 flight packs simultaneously are included.

DSLRPros carries the Freefly Tattu TA3200 Dual-Channel Smart Charger as part of its complete Alta X Gen2 ecosystem inventory. Order through DSLRPros and put the right charging infrastructure behind your Alta X Gen2 operation, backed by decades of UAS industry experience.

  • AC Input: 100V-240V 50/60Hz 15A
  • Charge power max - 3200W (with 240V input) / 1600W (with 120V input) split between both channels
  • Discharge power max - 70Wx2
  • Discharge current max: 3A
  • Charge current range per channel (10A, 15A, 20A)
  • LiPo battery cell count: 6-14S
  • Operating Temperature: 0-60℃ / 32-140°F
  • Upgrade connectivity - USB Micro
  • Size: 216 x 276 x 154 mm / 8.5 x 10.7 x 6.1"
  • Weight: 6 kg / 13 lbs
  • 1x Dual Channel 12S LiPo Charger
  • 1x Power Cable (110V US Style Plug)
How much charge power does the TA3200 deliver per channel?

The TA3200 delivers up to 3200W of total charge power when connected to a 240V input, split across both channels. On a 120V input, total output is 1600W, again split between the two channels. Per-channel charge current is selectable at 10A, 15A, or 20A depending on available AC input capacity, giving operators control over charge speed based on their power source.

How does the TA3200 interact with Tattu smart batteries?

When an Alta X Gen2 12S Tattu battery is connected to the TA3200, the charger communicates via CAN protocol and recognizes the pack automatically. A successful connection is confirmed by the TATTU icon appearing yellow on the main interface. Once recognized, no manual current setting is required — the operator selects a working mode using the left key (Fast, Normal, or Discharge), then holds the right key to initiate smart charging.

What charge and discharge modes does the TA3200 support?

The TA3200 supports Fast, Normal, and Discharge operating modes, selectable per channel based on workflow requirements. Fast and Normal modes handle standard charge cycles at different current levels, while Discharge mode supports controlled pack cycling and storage conditioning.

Storage mode allows operators to bring packs to an appropriate voltage for long-term storage, extending overall battery lifespan between active deployment periods.

Does the TA3200 work on international power?

Yes. The TA3200 features automatic voltage switching that covers 100V to 240V at 50 or 60Hz, making it compatible with power standards used across North America, Europe, Asia, and most other regions. No external voltage converter is required. A local plug adapter may be needed depending on the outlet configuration at your location.

What is included with the TA3200?

Freefly includes all necessary cabling and accessories to charge two Alta X Gen2 flight packs simultaneously out of the box. The charger also features a USB-A port for loading the latest software updates and a USB Micro port for firmware upgrade connectivity. No additional accessories are required to begin charging a pair of Alta X Gen2 12S Tattu batteries on arrival.
