All about the

DSLRPros Freefly Astro Max Public Safety Bundle (NDAA/Blue)

Product Details & Specifications

Description

Freefly Astro Max Public Safety Bundle (NDAA/Blue): Secure Aerial Intelligence for First Responders

The Freefly Astro Max Public Safety Bundle (NDAA/Blue) provides secure, real-time aerial intelligence for first responders and emergency agencies operating under strict compliance requirements. Built on the NDAA and DIU Blue-approved Astro Max platform, this configuration integrates high-resolution visual and thermal imaging with extended power and robust control hardware. The system combines the Astro Max NDAA/Blue aircraft, Sony ILX-LR1 61 MP camera, Sigma 24 mm f/3.5 lens, and Freefly LR1 Thermal Upgrade to deliver accurate, actionable data day or night—while meeting U.S. government procurement and data-security standards.

Dual-Imaging Capability for Critical Missions

The Astro Max NDAA/Blue enables operators to capture both high-definition RGB and radiometric thermal imagery for comprehensive scene awareness. The Sony ILX-LR1 camera provides 61-megapixel clarity for documentation and mapping, while the thermal module detects heat signatures through smoke, fog, and low-light environments. Designed for operational confidence, the aircraft features IP-rated durability, high-efficiency 2270 propellers, and RTK readiness for centimeter-level positioning accuracy. Its open-interface design supports flexible payload integration and secure, compliant performance for public-safety use.

Mission-Ready Power and Secure Control

This bundle is configured for extended deployments and reliable field operation. Four SL8-Air batteries and two SL8 Fast Chargers enable continuous sorties, while the SL8 Travel Case organizes power gear for quick turnaround. The Pilot Pro Controller with pre-installed Samsung Active Tab 3 and the Doodle Labs 2.4 GHz Blue radio deliver stable, encrypted communication links. Standard Remote ID comes pre-configured for FAA compliance, and authorized users may request an override through Freefly Support when exempt.

Key Features and Benefits

  • Fully NDAA and DIU Blue-approved aircraft, controller, and radio link
  • Dual-sensor system: 61 MP RGB + thermal imaging for full-spectrum awareness
  • Sony ILX-LR1 camera with Sigma 24 mm f/3.5 lens for detailed documentation
  • Freefly LR1 Thermal Upgrade detects heat sources in low-visibility conditions
  • Astro Max NDAA/Blue platform: compact, reliable, and open-interface design
  • RTK ready: supports centimeter-level positioning via user-supplied ground station
  • Four SL8-Air batteries and two SL8 Fast Chargers for sustained missions
  • 2270 high-efficiency propellers extend flight time by roughly 10 percent
  • Standard Remote ID preinstalled for FAA compliance (override available)
  • Spare Parts Kit and SL8 Travel Case for efficient field operations

Compatibility and Integration

  • Works with Freefly Pilot Pro Controller and Doodle Labs Blue radio link
  • Supports RTK GPS Ground Station through a user-supplied computer
  • Outputs geotagged RGB and thermal imagery compatible with analysis software
  • LTE modem functionality available in U.S. only
  • Uses Freefly SL8-Air batteries and SL8 Fast Chargers

Applications and Use Cases

  • Search and rescue: locate missing persons in low-visibility environments
  • Firefighting: detect hotspots and monitor perimeter activity
  • Law enforcement: provide secure aerial overwatch and evidence collection
  • Disaster response: map damage zones for rapid assessment and recovery
  • Emergency management: coordinate resources using real-time imagery
  • Infrastructure inspection: detect heat anomalies or damage remotely
  • Environmental monitoring: track wildfire impact and pollution sources
  • Night operations: maintain visual and thermal awareness after dark

Built for Secure Public-Safety Operations

The Astro Max Public Safety Bundle (NDAA/Blue) is designed for teams that demand secure, compliant, and high-fidelity aerial data in time-critical situations. Its fully NDAA and DIU Blue-approved hardware ensures procurement and data-handling confidence, while its dual-imaging payload and extended power suite enable mission continuity across day-to-night operations.

Backed by DSLRPros’ enterprise drone expertise and post-purchase technical support, this bundle gives public-safety professionals the tools to respond faster and decide smarter. Purchase the Freefly Astro Max Public Safety Bundle (NDAA/Blue) from DSLRPros today and equip your agency with a secure, mission-ready aerial system built for life-saving operations.

Key Features
  • Fully NDAA and DIU Blue-approved aircraft, controller, and radio
  • Dual RGB and thermal imaging for first-responder missions
  • Sony ILX-LR1 61 MP camera + Freefly LR1 Thermal Upgrade
  • Four SL8-Air batteries and two fast chargers for extended deployment
  • RTK ready for accurate incident mapping and documentation
  • 2270 propellers extend flight time by about 10 percent
  • Standard Remote ID enabled for FAA compliance (override available)
  • Spare Parts Kit and Travel Case for field readiness
  • Designed for firefighting, SAR, and emergency management missions
Specifications

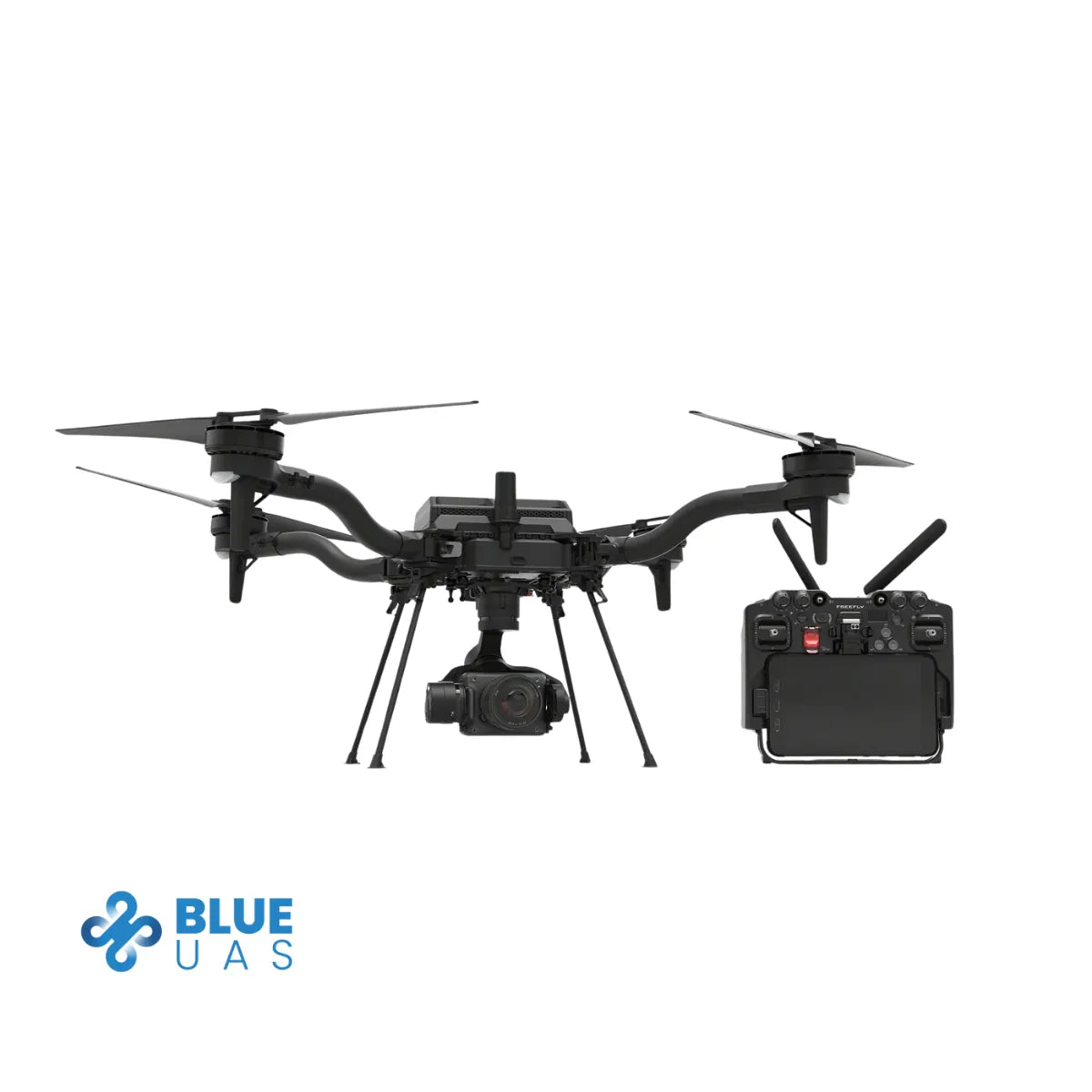

Astro Max (NDAA/Blue)

  • Up to 39 minutes max flight time
  • 28 minutes flight time with LR1 Payload
  • 18 minutes flight time with 3 kg max payload
  • 3 kg maximum payload capacity
  • Booms fold to half the aircraft's diameter
  • Standard Remote ID enabled; can be disabled with FAA waiver or exemption
  • Optional LTE connectivity (North America only)
  • Alternate payload attachments sold separately:
    Integrator Vibration Isolator (non-electronic), Freefly Smart Dovetail Kit (hard mount)
  • See Astro wiki for full technical specifications
  • Designed and assembled in the USA
  • NDAA and DIU Blue approved

Pilot Pro Controller

  • Freefly Pilot Pro controller with high-resolution rockers for gimbal precision
  • Modular design accepts a variety of radio transmitters
  • Ships with Doodle Labs RF, 2.4 GHz NDAA & DIU Blue radio
  • Internal battery supports external power input and hot-swapping
  • Emergency kill-switch included
  • Discrete physical buttons for all key user actions
  • Includes pre-installed 8" Samsung Galaxy Tab Active5 tablet
  • Realtime drone and gimbal speed limit controls
  • Includes custom padded neck strap

LR1 Payload

  • Freefly Mapping Gimbal with Sony ILX-LR1 camera (61 MP)
  • Sigma 24mm f/3.5 mapping lens (p/n 404965)
  • Full camera and gimbal control via Pilot Pro
  • Ships in dedicated travel case with space for extra lenses

Astro Compact Travel Case

  • Holds full Astro Max (NDAA/Blue) system for mapping or inspection
  • Includes Astro with 2 SL8 batteries (legs folded)
  • Fits Pilot Pro, LR1 Payload, 2 SL8 chargers, props, tools
  • Custom-cut foam tested for 1-meter drop protection
  • Submersible and dust-tight (MIL-STD 810G)
  • Airline checkable SKB Rolling Case (3i-2217-10)
  • Dimensions: 24.52" × 19.5" × 12.22" / 62.28 × 49.53 × 31.04 cm
  • Weight (no SL8s): 38.30 lbs / 17.37 kg
  • Weight (full kit with 2 SL8s): 42.80 lbs / 19.41 kg

SL8-Air Batteries

  • Two SL8-Air batteries required per flight
  • Voltage: 21.6 V (6S)
  • Capacity: 7.3 Ah / 157 Wh
  • Weight: 2.25 lbs each
  • Battery chemistry: Lithium-Ion
  • Auxiliary output: USB-C Power Delivery

SL8 Fast Charger

  • Charges one SL8-Air battery at a time
  • Charge time from 0% to 100%: ~90 minutes
  • Input: 100–240 VAC
  • Output: 200 Watts
  • Includes NEMA 1-15 (Type A) North America power cable
  • Power cable replaceable via IEC320 connector

SL8 Travel Case

  • Holds 8 SL8 batteries and 2 chargers
  • Can hold up to 14 SL8 batteries without chargers
  • Features lockable casters and stowaway handle
  • Waterproof and dust tight (MIL-STD 810H)
  • SKB case model: 3i-1914-8B-E

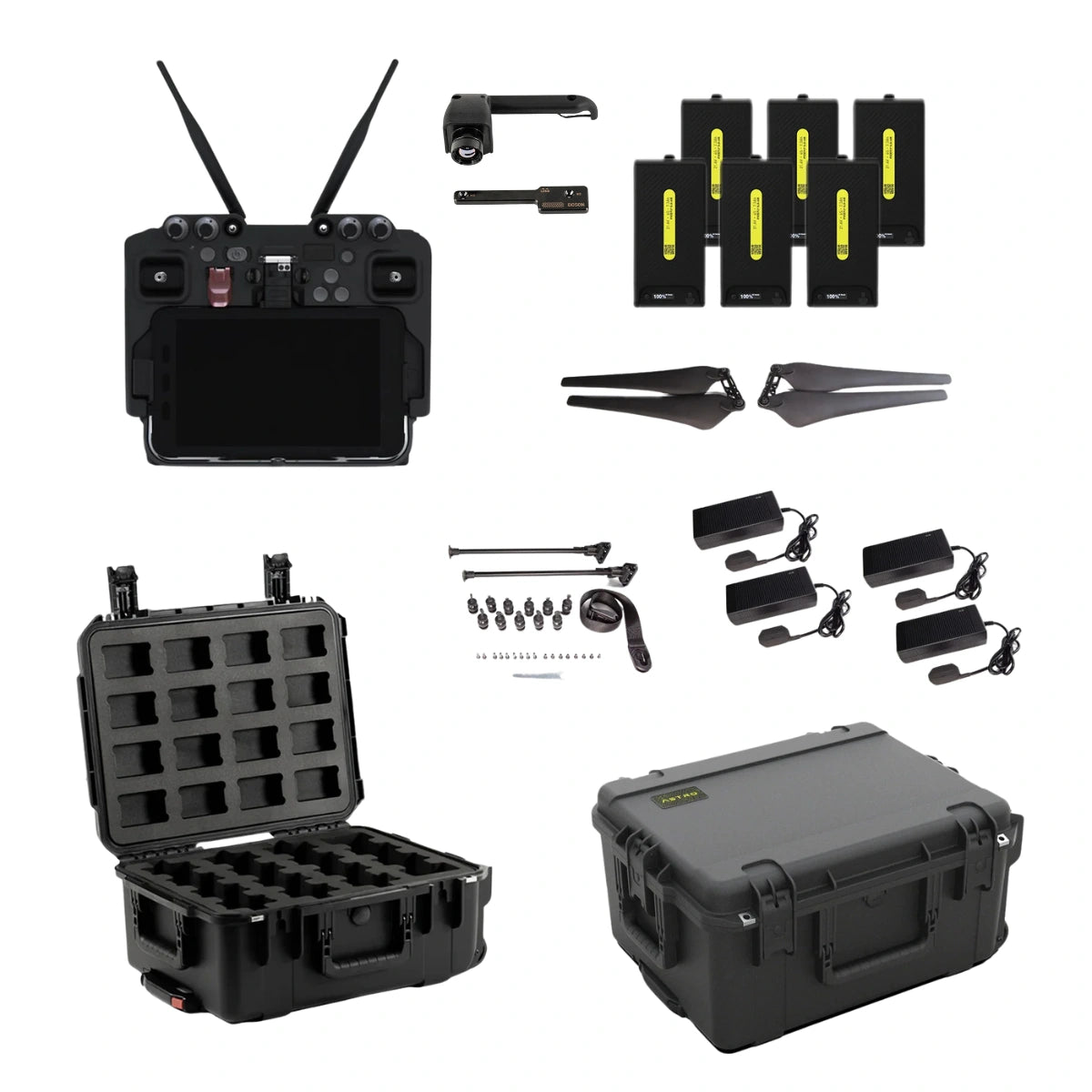

What's in the Box?

1x Freefly Astro Max Aircraft (NDAA/Blue)

  • 1x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*
  • 1x Astro compact travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • Spare parts:
  • 1x Extra Proptector
  • 4x Spare isolator balls
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x Samsung Active Tab (pre-configured and installed into controller)
  • 1x Doodle Labs
  • 1x Custom padded neck strap

1x Sony ILX-LR1 61 MP Camera

  • 1x Sony ILX-LR1 camera (pre-installed in gimbal)
  • 1x Sigma 24mm f3.5 mapping lens (p/n 404965)
  • 1x Travel case
  • 1x Freefly mapping gimbal
  • 1x USB-C thumb drive

1x Freefly LR1 Thermal Upgrade

  • 1x Counter-clockwise (CCW) Astro Max replacement propeller
  • 1x Clockwise (CW) Astro Max replacement propeller
  • 8x M3x6 SHCS

1x Freefly Astro Max Spare Propeller Set (2270 High Efficiency)

  • 1x Counter-clockwise (CCW) Astro Max replacement propeller
  • 1x Clockwise (CW) Astro Max replacement propeller
  • 8x M3x6 SHCS

1x Freefly Astro Spare Parts Kit

  • 1x Carrying strap
  • 1x Prop bolt wrench
  • 12x Vibration isolator balls
  • 2x Landing gear leg (with hinge)
  • Fastener assortment:
  • 8x M3x6 SHCS
  • 8x M3x6 SHCS
  • 2x M3x12 SHCS

2x Freefly Astro Max SL8 Fast Charger

  • 2x SL8 fast charger for Freefly Astro Max SL8 batteries
  • 2x Power cable (North America)

Other Inclusions

  • 1x Freefly Astro Max SL8 Travel Case
  • 4x Freefly Astro Max SL8-Air Battery
DSLRPRosCare Extended Warranty

DSLRPROS DJI Care is our exclusive extended warranty program, designed to give you peace of mind and extra protection for your drone investment.

  • Coverage Length: 13 months from the date your product ships
  • What’s Covered: Accidental damage from pilot error, collisions, drops, water exposure, signal interference, and internal malfunctions
  • What’s Not Covered: Intentional misuse, modifications, loss or theft, cosmetic wear, consumables (like propellers or batteries), or operation outside manufacturer guidelines
  • Replacements: One replacement during the coverage term. Replacement may be new or refurbished. If unavailable, we’ll provide a product of similar capability.
  • How to File a Claim: Notify support@dslrpros.com within 7 days of an incident. Ship the product using the label we provide.
  • Eligibility: Policy must be purchased before your product ships from DSLRPROS. Coverage applies only to the original purchaser.

Simple, clear protection—so you can focus on flying, not worrying.

Warranty Terms and Conditions

Frequently Asked Questions

More questions? Speak with an Expert.

Is this bundle fully NDAA and DIU Blue compliant?

Yes. The aircraft, Pilot Pro Controller, and Doodle Labs radio link are all NDAA and DIU Blue approved.

Does it include thermal capability?

Yes. The Freefly LR1 Thermal Upgrade adds radiometric LWIR thermal imaging alongside the Sony ILX-LR1 camera.

Does it support RTK mapping and positioning?

Yes. It is RTK-ready and works with a user-supplied ground-station computer (not included in this bundle) for centimeter-level accuracy.

Is Remote ID enabled from the factory?

Yes. It ships with Standard Remote ID preconfigured for FAA compliance, and Freefly can issue an override for exempt operators.

Who is this DSLRPros Freefly Astro Max Public Safety Bundle (NDAA/Blue) best suited for?

This system is ideal for fire departments, law enforcement, search-and-rescue, and emergency management agencies needing secure, reliable dual-sensor aerial coverage.
