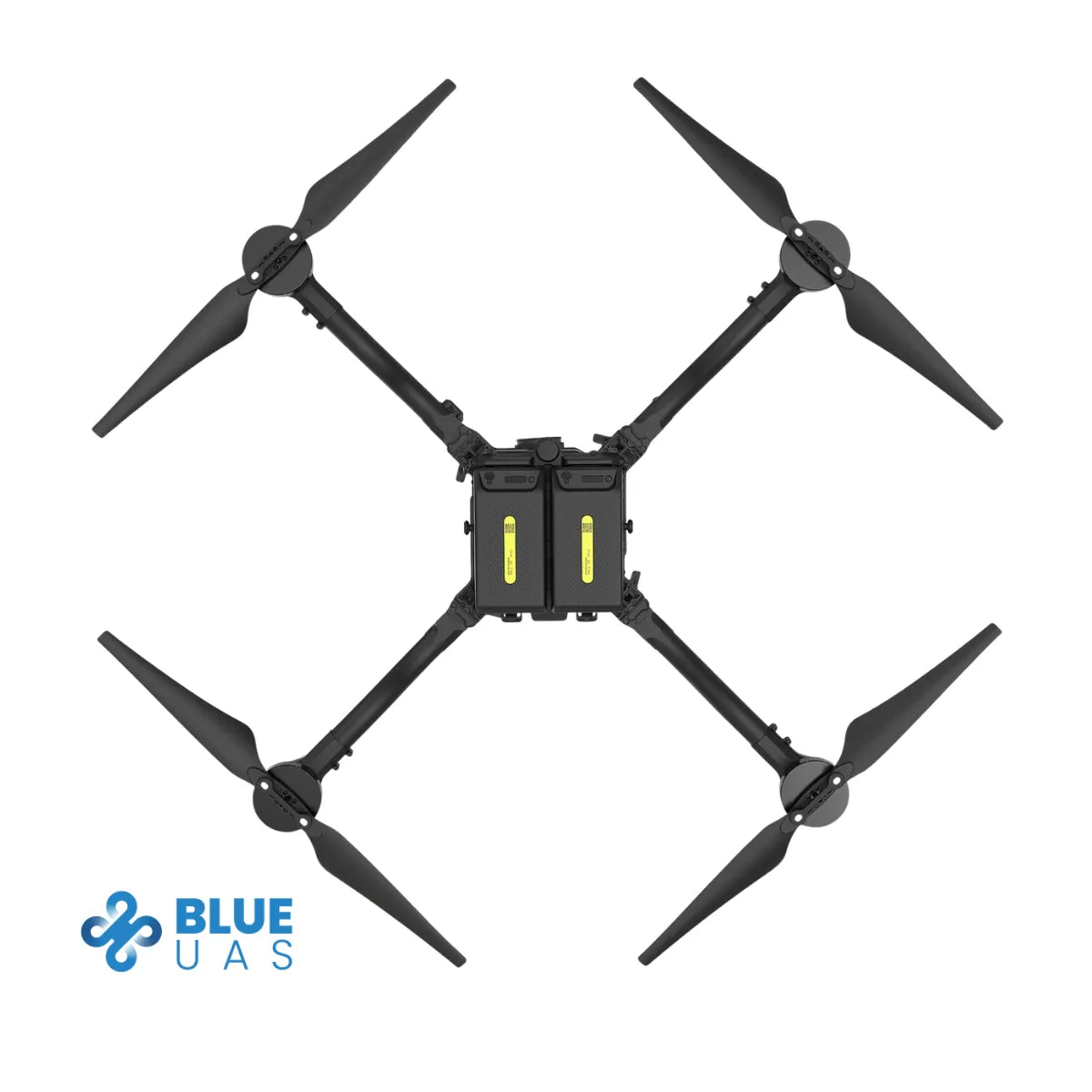

Freefly Astro Max Aircraft (NDAA/Blue)

Freefly Astro Max Aircraft (NDAA/Blue)

$26,000.00
$26,000.00
Sale Sold out
Shipping calculated at checkout.

S-FF-ASTRO-MAX-BLUE

SKU S-FF-ASTRO-MAX-BLUE MPN 950-00187
  • Blue UAS-listed drone built for secure, compliant government operations
  • Designed and assembled in the USA using NDAA-compliant components
  • 3 kg maximum payload supports LiDAR, thermal, and mapping systems
  • Up to 43 minutes of flight time with no payload installed
  • 7010 motors and 21-inch propellers deliver strong lift and stability
  • Dual SL8 Air batteries extend mission endurance and power reliability
  • Carbon-fiber foldable airframe enhances portability and field setup
  • Smart Dovetail quick-mount enables tool-free sensor replacement
  • RTK-ready GPS system ensures centimeter-level data accuracy
  • Pilot Pro controller provides secure flight telemetry and mission control
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

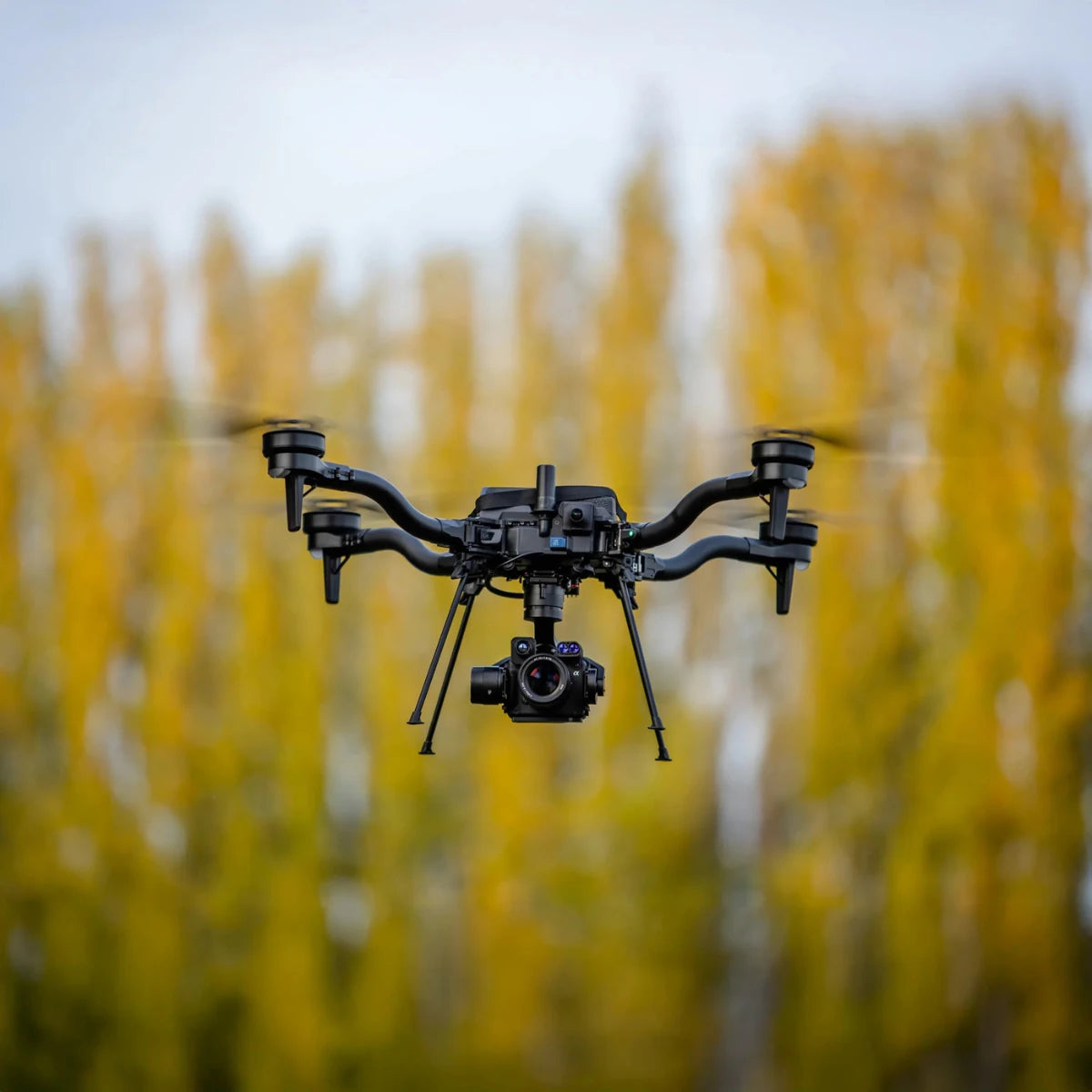

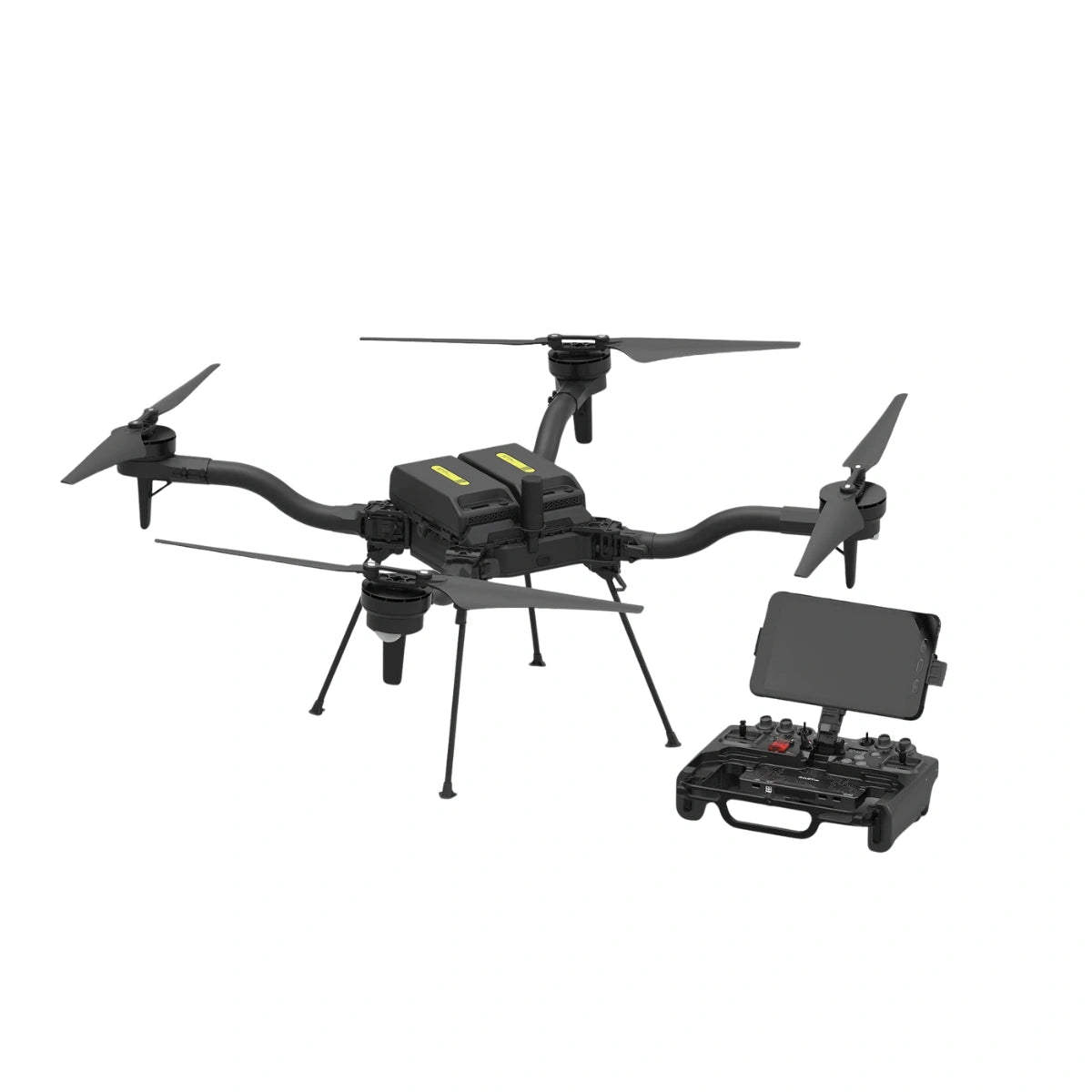

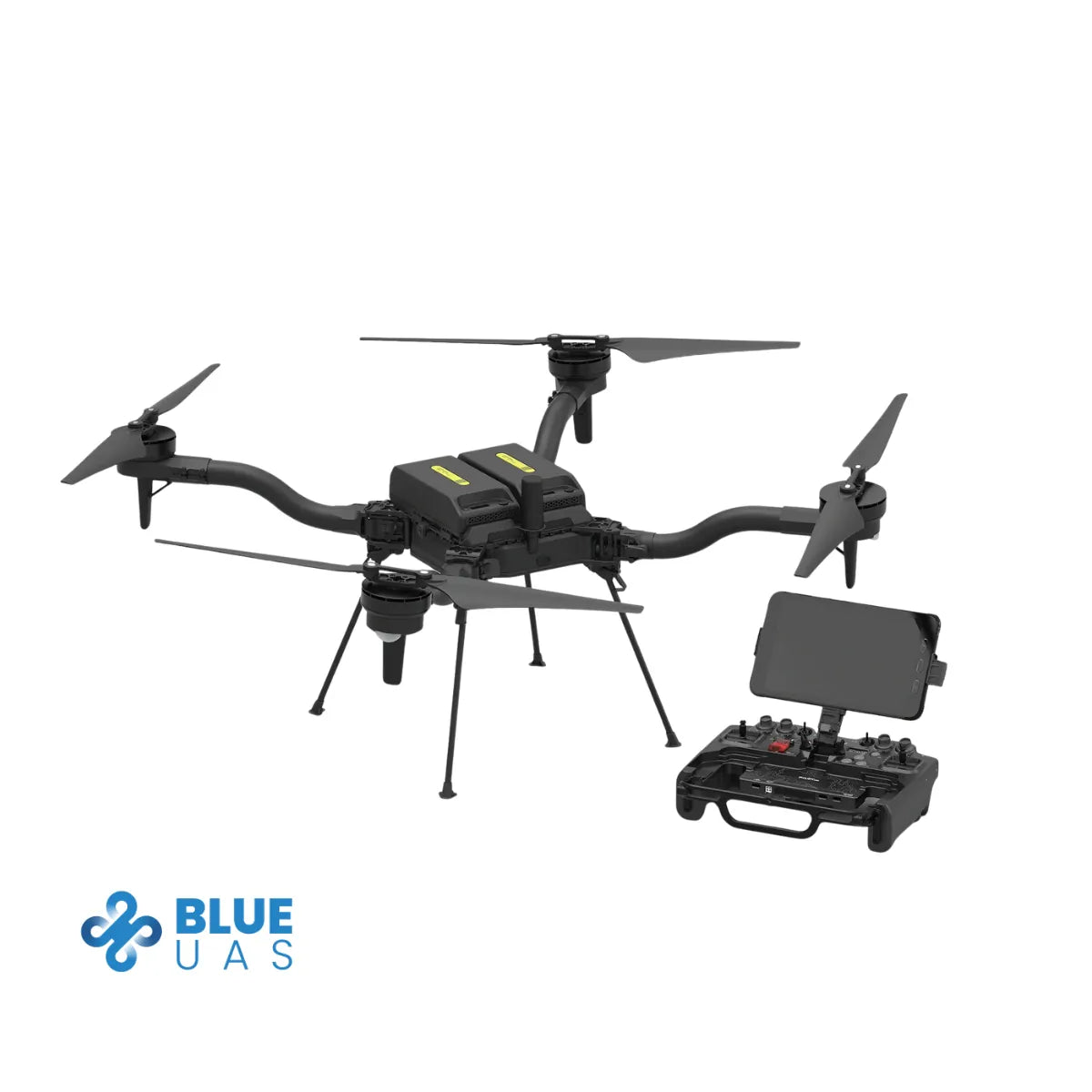

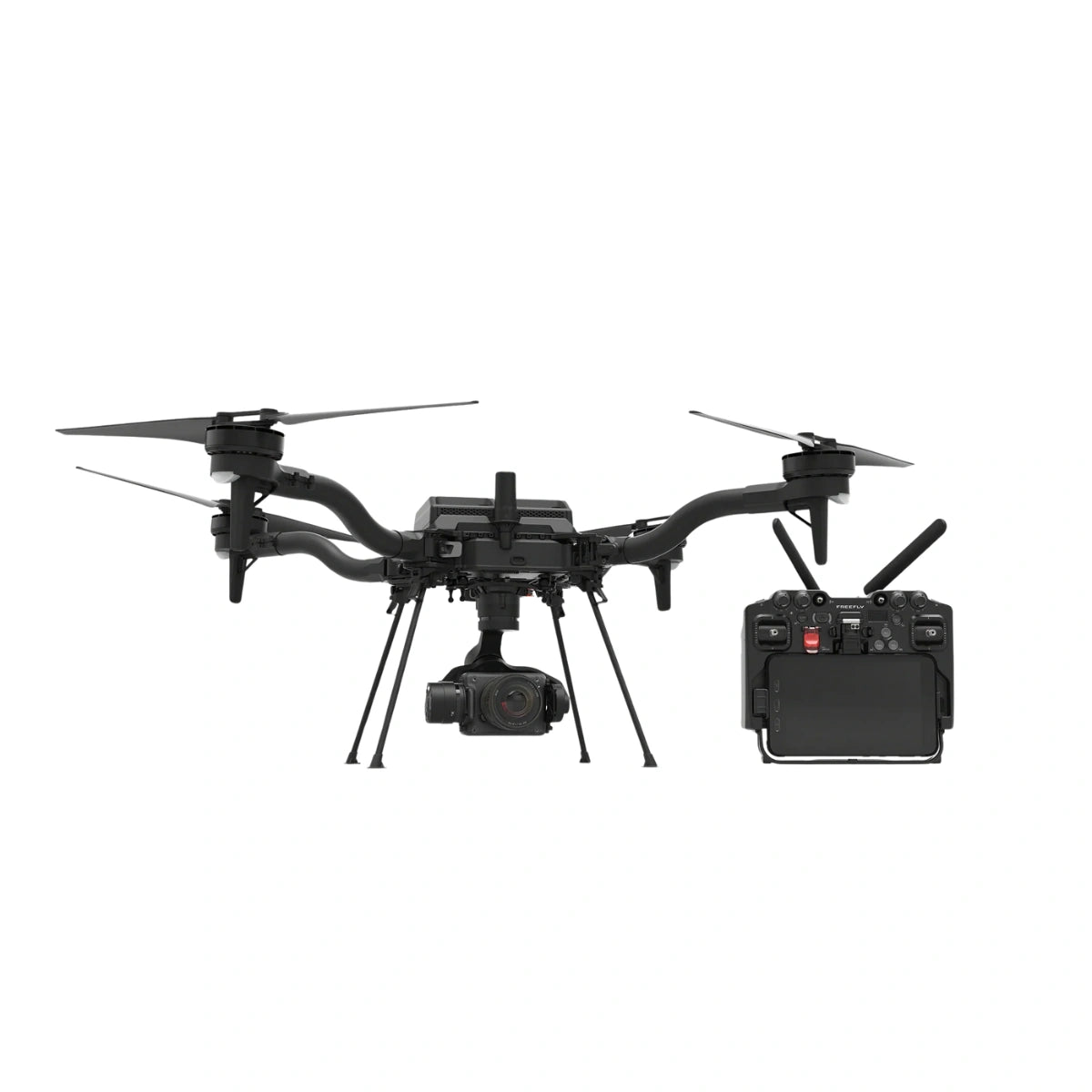

Freefly Astro Max Aircraft (NDAA/Blue): Secure, U.S.-assembled industrial drone platform for professional operations

The Freefly Astro Max (NDAA/Blue) is an industrial-grade drone platform designed and assembled in the United States using NDAA-compliant components. Built under the Department of Defense Blue UAS framework, it provides government and enterprise users with a secure, proven, and compliant aircraft for critical operations. With a 3 kg maximum payload and up to 43 minutes of flight time, the Astro Max (NDAA/Blue) delivers the performance and reliability expected from a U.S.-vetted aerial platform.

Built for compliance and mission confidence

The Astro Max (NDAA/Blue) integrates secure flight control electronics, NDAA-compliant components, and open firmware validated under the Blue UAS program. Equipped with 7010 motors and 21-inch propellers, it delivers high thrust and stability under heavy loads. Its carbon-fiber foldable design, Smart Dovetail payload interface, and dual SL8 Air battery system make it an adaptable and durable solution for teams conducting secure field operations or government-grade missions.

Advanced precision and professional versatility

Supporting professional payloads such as LiDAR, thermal, and mapping sensors, the Astro Max (NDAA/Blue) provides centimeter-level accuracy through RTK-ready positioning. The Pilot Pro controller delivers secure telemetry, precise control, and real-time mission data. With its open payload architecture and secure communication design, the Astro Max (NDAA/Blue) ensures mission flexibility and full compliance for operations that demand both capability and security.

Key Features and Benefits

  • NDAA/Blue UAS compliant: Meets DoD-approved sourcing and security standards
  • Designed and assembled in the USA: Built with NDAA-compliant components
  • 7010 motors with 21-inch propellers: Delivers powerful, stable lift
  • 3 kg maximum payload: Supports professional-grade sensors
  • Up to 43 minutes flight time: Long endurance without payload
  • Carbon-fiber foldable frame: Compact and durable for transport
  • Smart Dovetail quick-mount: Enables tool-free sensor changes
  • Dual SL8 Air battery system: Extends flight time and redundancy
  • RTK-ready GPS: Provides centimeter-level positioning accuracy
  • Pilot Pro controller: Secure operation with real-time telemetry

Applications and Use Cases

  • Government and defense operations: NDAA-compliant aerial data collection
  • Infrastructure inspection: Secure visual or thermal assessments
  • Public safety response: Rapid-deploy platform for mission awareness
  • LiDAR and mapping: Precision geospatial capture and 3D modeling
  • Utility and energy inspection: Safe monitoring of power assets and pipelines
  • Construction and site documentation: Regular aerial progress updates
  • Research and environmental monitoring: Reliable, secure data gathering
  • Industrial inspection: Repeatable, high-resolution aerial imaging

The Freefly Astro Max (NDAA/Blue) provides unmatched reliability and compliance for agencies and enterprises requiring secure, U.S.-assembled hardware. Its combination of Blue UAS certification, advanced payload support, and flight endurance makes it the go-to platform for professional and government use.

DSLRPros offers expert configuration, mission setup, and technical support for every Astro Max (NDAA/Blue). Contact us today to deploy a compliant and secure aerial solution for your operations.

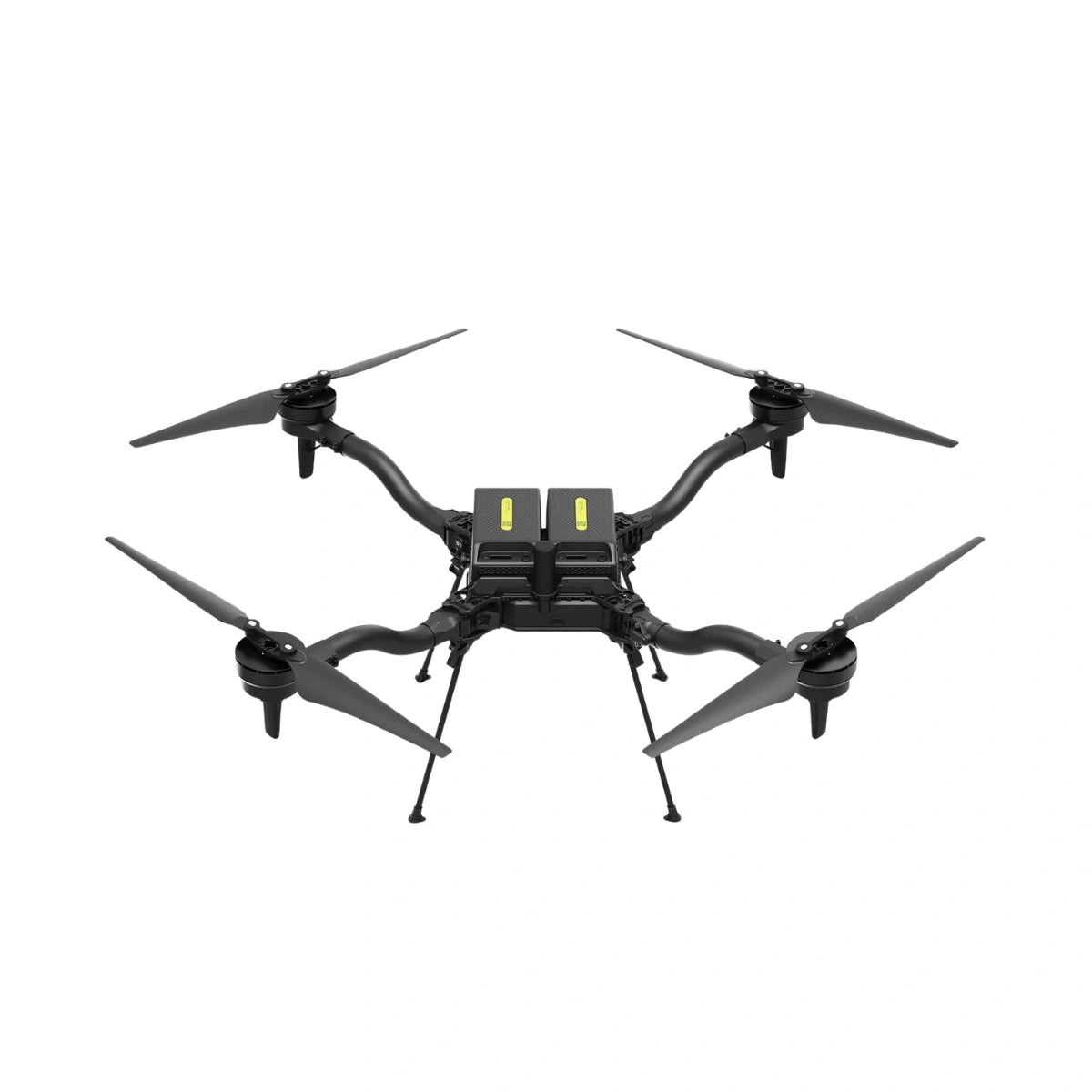

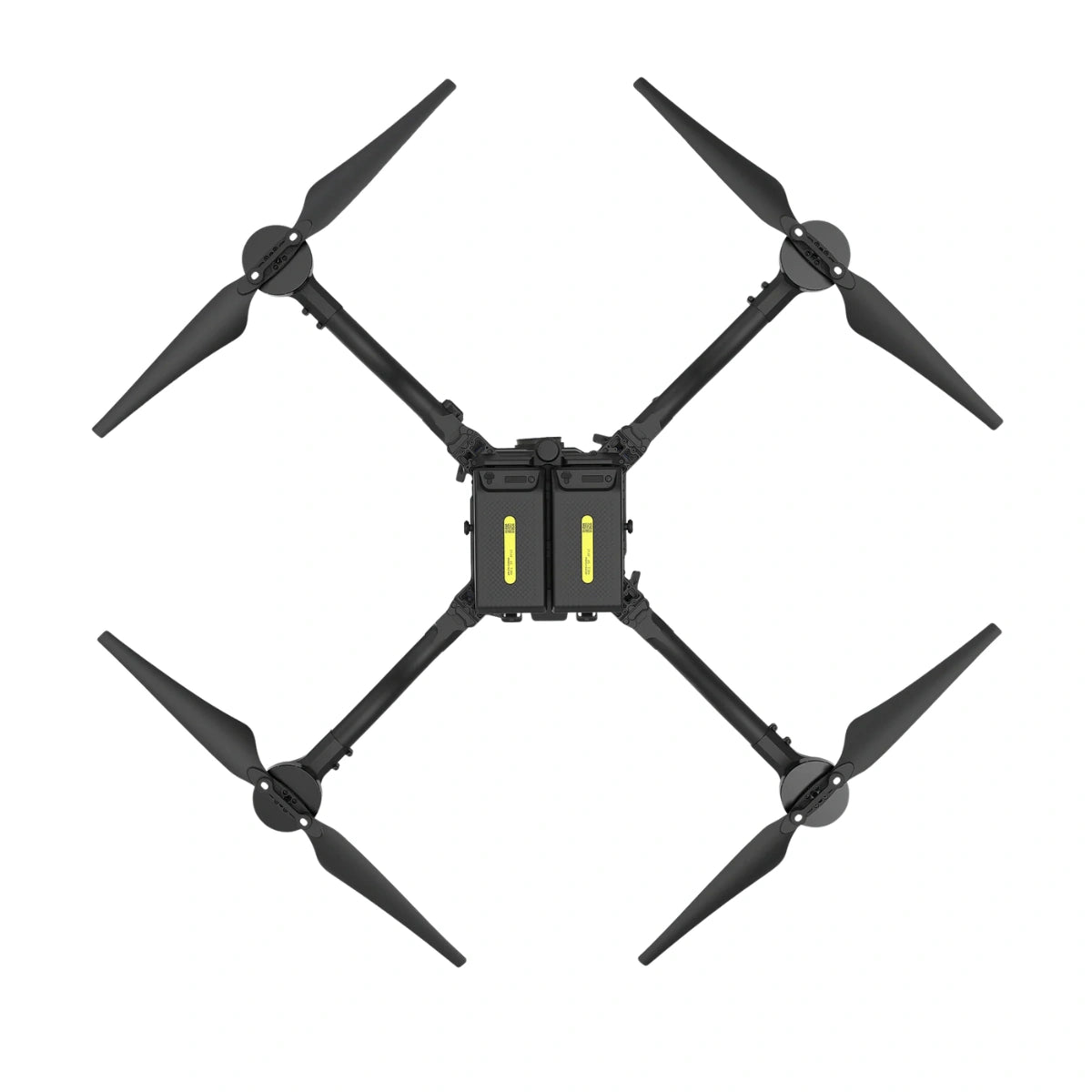

Astro Max

  • Up to 43 minutes flight time
  • 31 minutes with LR1 Payload
  • 20 minutes with max payload (3kg)
  • 3kg max payload
  • Booms fold up to ½ the diameter
  • Pre-installed Astro Isolator for quick-release powered payload attachment
  • Alternate payload attachments sold separately:

    Integrator Vibration Isolator (non-electronic)
    Freefly Smart Dovetail Kit (hard mount)
    Astro Max Isolator (50A & 70A options for payloads over 1.5 KG / 3.3 lbs)

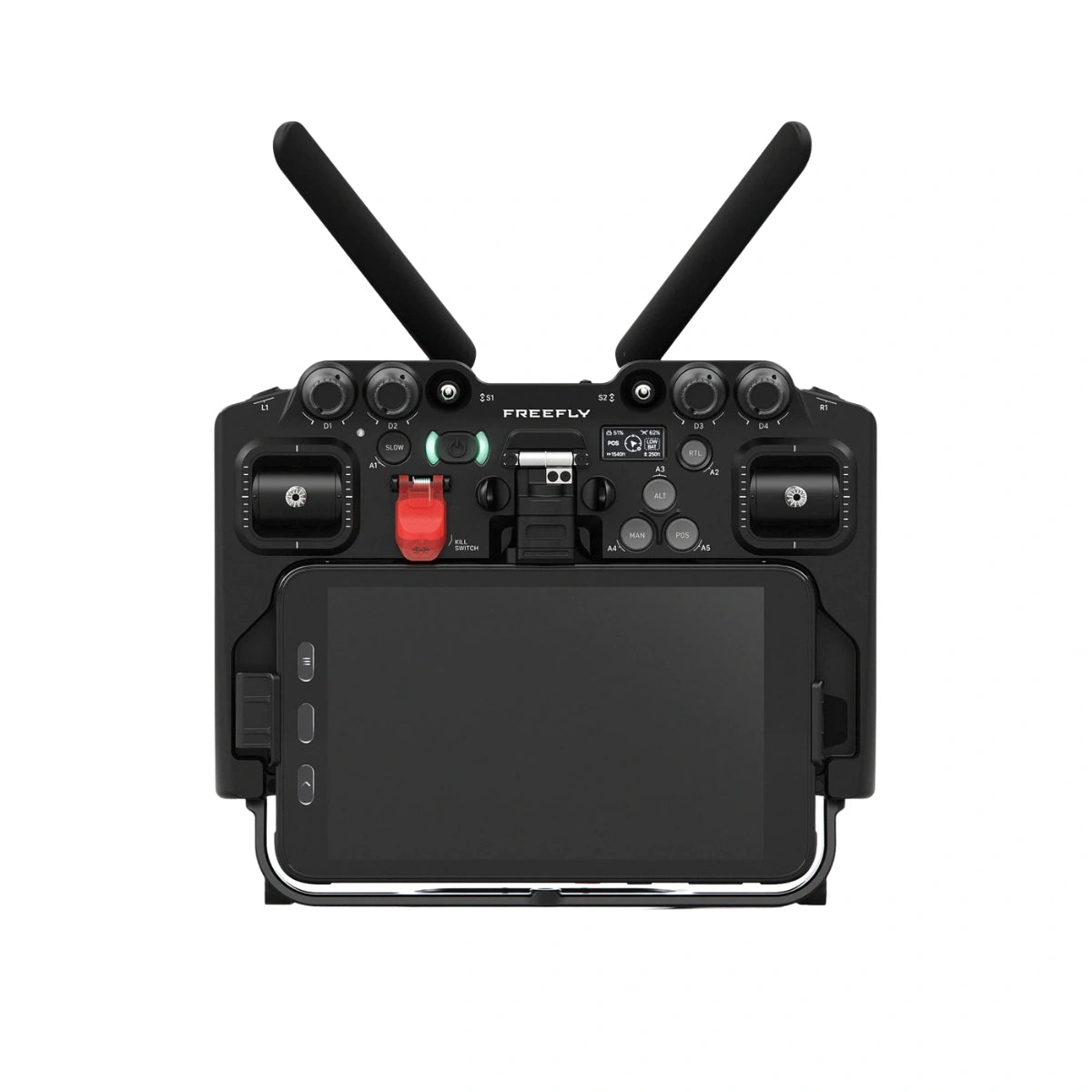

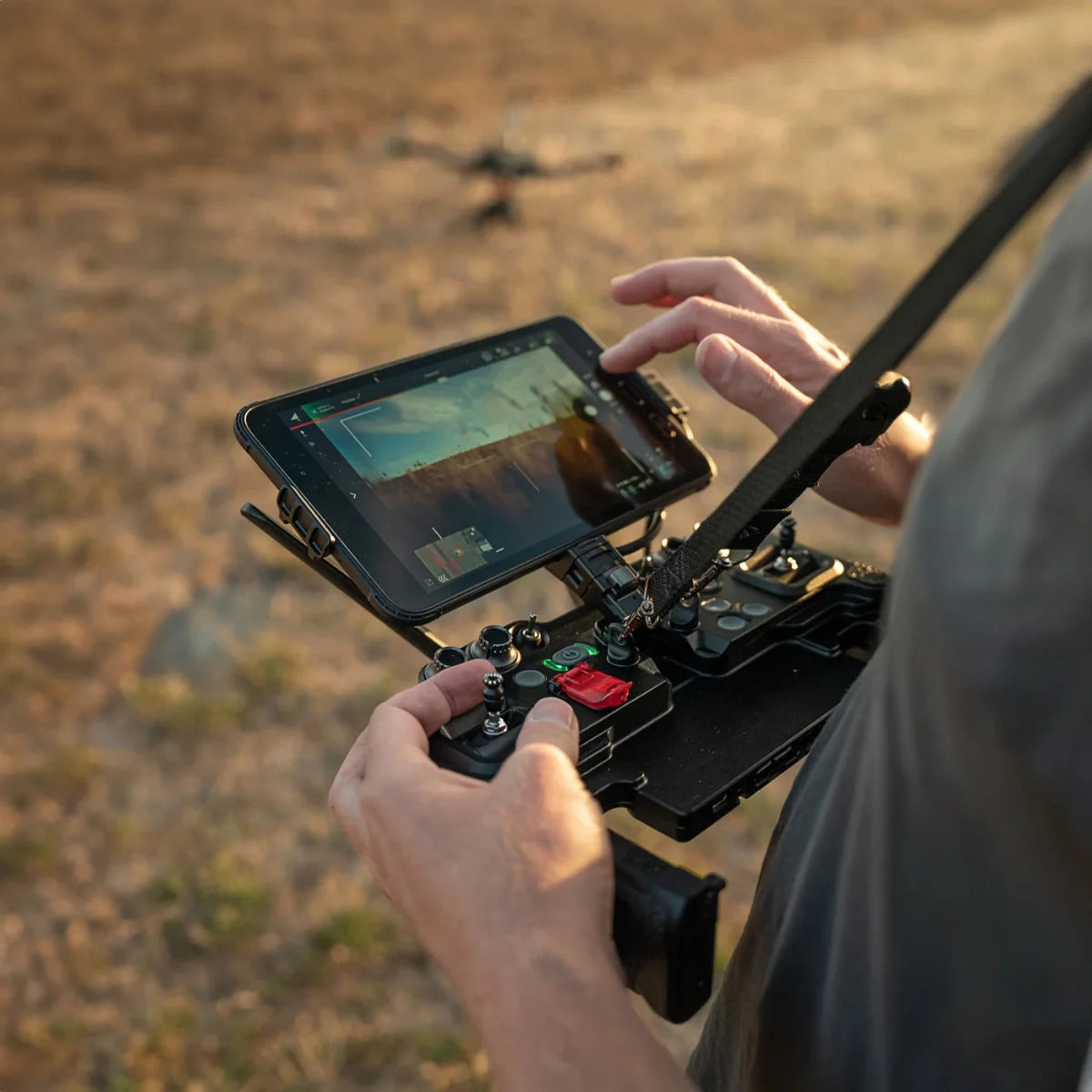

Pilot Pro Controller

  • High resolution rockers for precise camera / gimbal control
  • Configured with robust long-range radio hardware:

    Herelink 1.1 Radio (2.4 GHz)

  • Internal battery with external power inputs to support hot-swapping for maximum uptime
  • Emergency kill-switch
  • Discreet physical buttons for all key user actions
  • Includes custom configured, pre-installed 8" Samsung Galaxy Tablet Active5 tablet
  • Realtime drone and gimbal speed limits
  • Custom padded neck strap

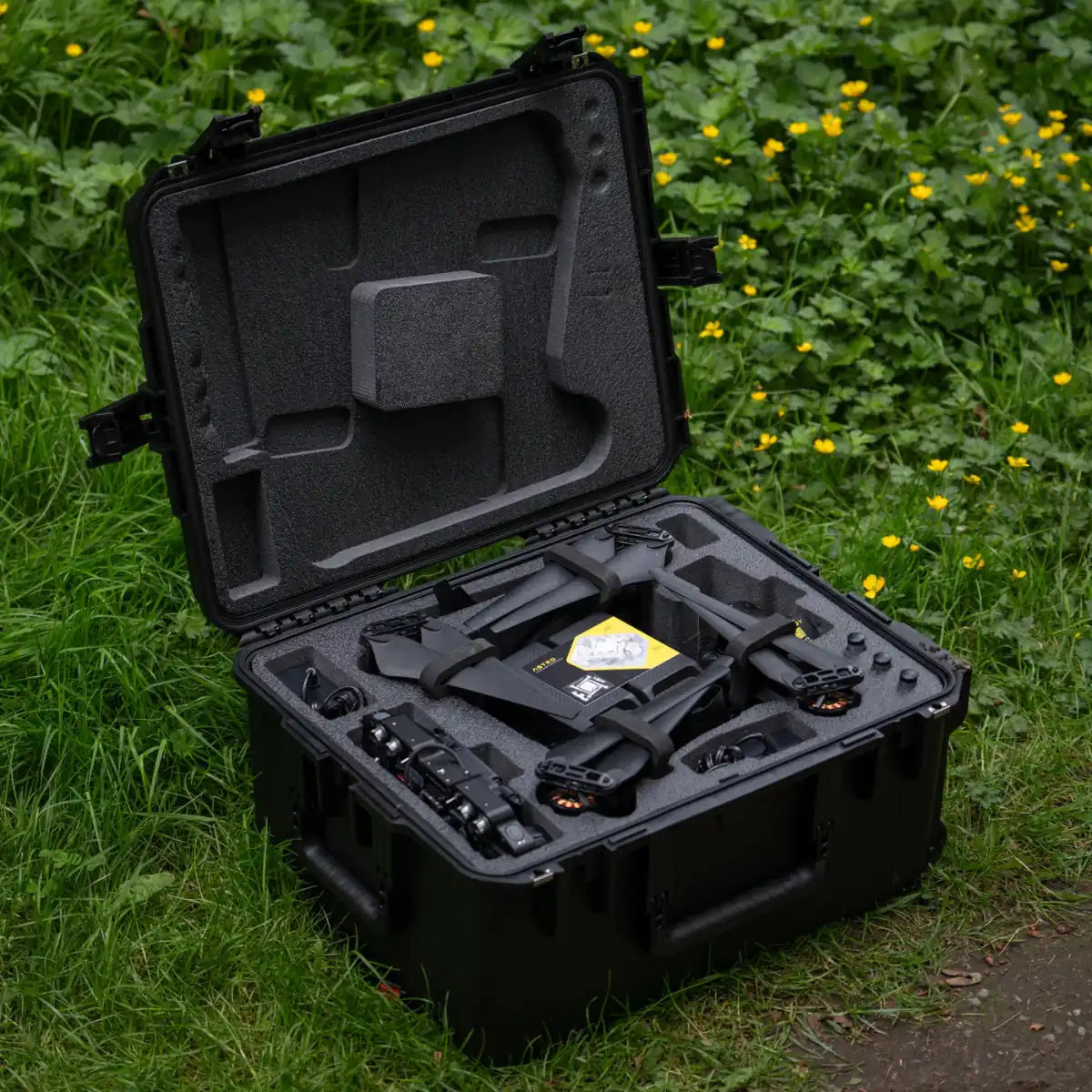

Astro Compact Travel Case

  • Holds everything needed to fly Astro
  • Astro with 2 SL8 batteries* installed and legs folded
  • Pilot Pro radio controller
  • LR1 Payload (sold separately)
  • Pair of SL8 Chargers
  • Set of spare props (1 each CW & CCW)
  • Basic tools
  • Custom cut foam, tested to protect against drops from 1 meter
  • Submersible and dust tight (MIL-STD 810G)
  • Airline checkable
  • SKB Rolling Case - 3i-2217-10

Case Dimensions

  • 24.52" x 19.5" x 12.22" / 62.28 x 49.53 x 31.04 cm

Weight of Astro in Case

  • As shipped/checked (no SL8s): 36.16 lbs / 16.40 kg
  • Full kit (with two SL8s*): 40.66 lbs / 18.44 kg

Batteries

  • SL8-Air Batteries*
  • Astro uses two SL8-Air batteries per flight
  • Voltage: 21.6 V (6S)
  • Capacity: 7.3 Ah, 157 Wh
  • Weight: 2.25 lbs
  • Chemistry: Lithium-Ion
  • Auxiliary output: USB-C Power Delivery

Chargers

  • SL8 Fast Charger*
  • One charger charges one Freefly SL8-Air battery at a time
  • Approximate charge time for one SL8-Air battery, from 0%: 90 mins
  • Input: 100 / 240 VAC
  • Output: 200 Watts
  • Supplied with North America power cable (NEMA 1-15 ungrounded, Type A)
  • Power cable is replaceable (IEC320 connector)
  • Designed and Assembled in USA

*Batteries and chargers needed for flight not included, sold separately.

  • 1x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*
  • 1x Astro compact travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • Spare parts:
  • 1x Extra Proptector
  • 4x Spare isolator balls
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x Samsung Active Tab (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF (2.4 GHz)
  • 1x Custom padded neck strap
What makes the Freefly Astro Max (NDAA/Blue) different from the standard Astro Max?

The NDAA/Blue version uses U.S.-built components and secure firmware approved under the DoD Blue UAS Framework.

Is the Astro Max (NDAA/Blue) fully NDAA-compliant?

Yes. All critical electronics and sourcing meet NDAA and Blue UAS requirements for government use.

What is the maximum payload capacity of the Astro Max (NDAA/Blue)?

It can carry up to 3 kg (6.6 lb) of payload.

How long can the Astro Max (NDAA/Blue) fly?

It achieves up to 43 minutes of flight time with no payload.

What batteries does the Astro Max (NDAA/Blue) use?

It uses dual Freefly SL8 Air smart batteries for extended endurance and redundancy.

Is the Astro Max (NDAA/Blue) Blue UAS listed?

Yes. It is officially listed under the DoD Blue UAS Framework for secure operations.

Is the Astro Max (NDAA/Blue) made in the USA?

It is designed and assembled in the United States using NDAA-compliant parts.
