Freefly Alta X Gen2 12S Flight Battery (AS150U)

Freefly Alta X Gen2 12S Flight Battery (AS150U)

$725.00
$725.00
Sale Sold out
Shipping calculated at checkout.

S-FF-ALTA-GEN2-BATT

SKU S-FF-ALTA-GEN2-BATT MPN 910-00898
  • Purpose-built 16Ah LiPo matched to Freefly Alta X Gen2 specifications

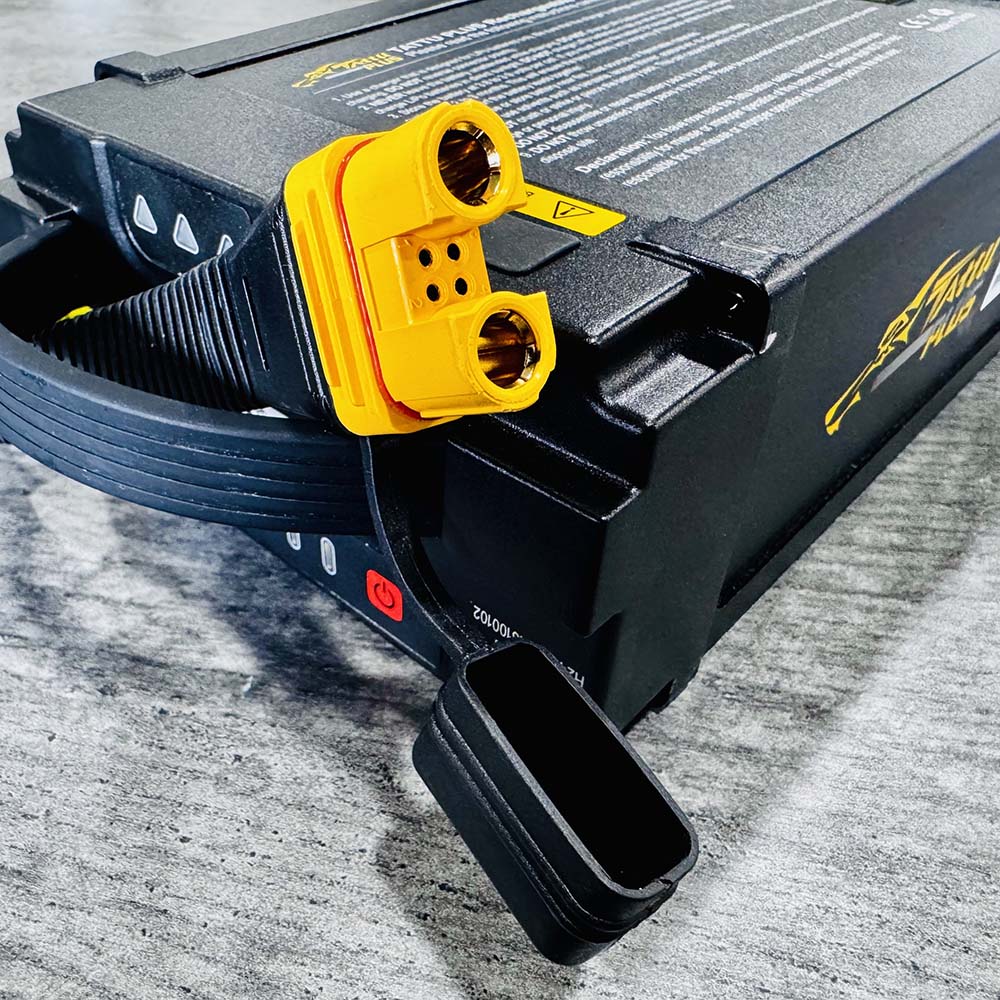

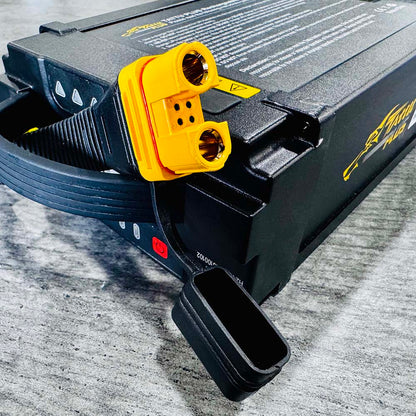

  • AS150U anti-spark connector links directly without adapters or leads
  • CAN communication protocol delivers real-time battery data to aircraft
  • Discharge rated at 15C continuous and 30C burst for demanding missions
  • Fuel gauge and current detection support accurate pre-mission pack assessment
  • Ultra-low power consumption minimizes parasitic drain during battery standby
  • Bluetooth excluded by design for DoD and DIU compliance requirements
  • Sold as single battery; one pair required per Alta X Gen2 flight
  • Compatible with Tattu TA3200 for automatic balancing and charge monitoring
  • Available at DSLRPros as part of the complete Alta X Gen2 ecosystem
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

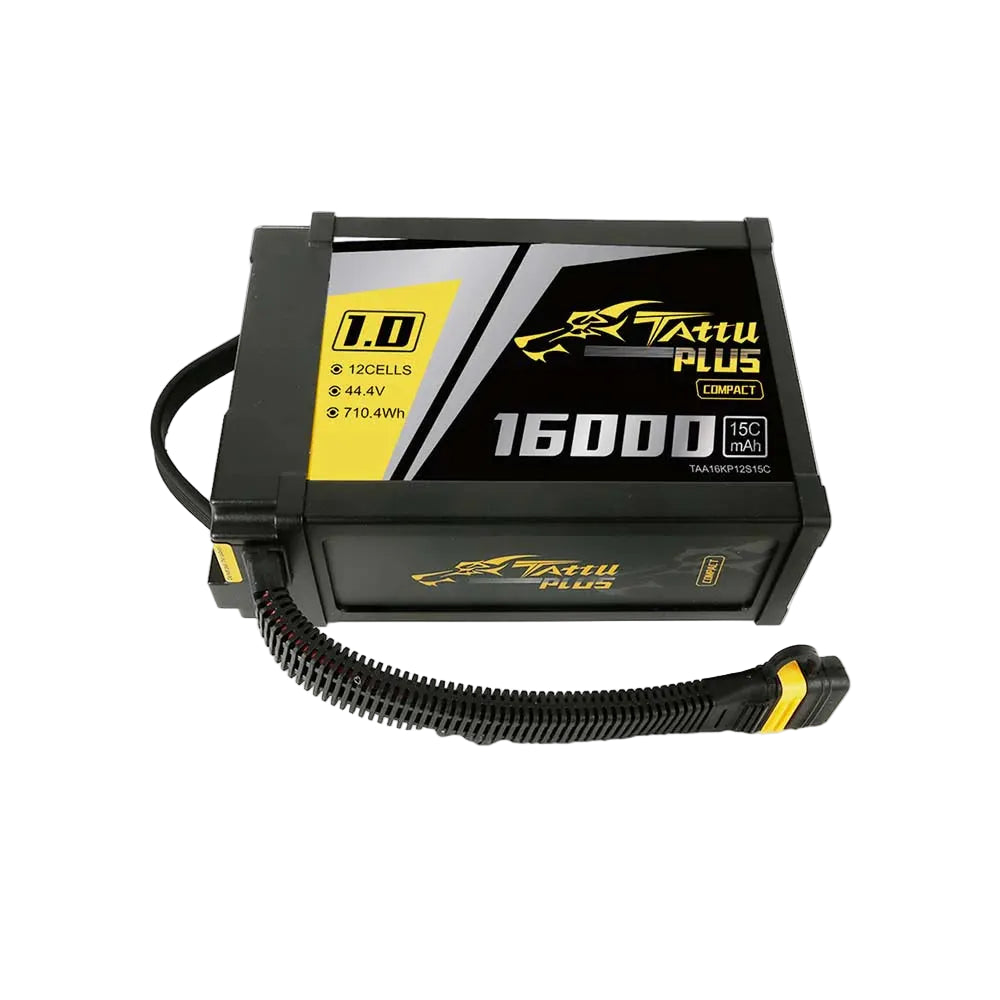

Freefly Alta X Gen2 12S Flight Battery (AS150U): Purpose-Built LiPo Power for Alta X Gen2 Operations

The Freefly Alta X Gen2 12S Flight Battery is the manufacturer-matched power source for the Alta X Gen2, built custom by Tattu to Freefly's exact specifications. At 16Ah and 44.4V with an AS150U anti-spark connector, each battery is engineered for direct integration with the Alta X Gen2 platform — no adapters, no balance leads, no workarounds.

Field operators running the Alta X Gen2 on demanding payload missions need a battery that connects cleanly, communicates reliably, and holds up under high-discharge conditions. This is that battery.

Each Alta X Gen2 flight requires a pair of these batteries. Freefly sells them individually so operators can scale their kit to match mission frequency and turnaround requirements.

Pair them with the Tattu TA3200 Dual-Channel Smart Charger for automatic balancing, discharge protection, charge-status alerts, and full battery history visibility giving crews the data needed to make confident decisions on pack rotation and flight readiness before every mission.

Key Features and Benefits

  • Purpose-built power: custom-built by Tattu to Freefly's specifications for the Alta X Gen2 platform.
  • High-capacity output: 16Ah at 44.4V delivers sustained power for demanding payload operations.
  • Anti-spark connector: AS150U connector enables safe, direct connection to the Alta X Gen2 power system.
  • Discharge performance: 15C continuous and 30C burst discharge support high-demand flight profiles.
  • CAN communication: protocol enables real-time battery data exchange with the Alta X Gen2 system.
  • Fuel gauge: onboard charge indicator gives operators immediate visibility into remaining battery capacity.
  • Current detection: built-in monitoring tracks power draw for accurate flight performance assessment.
  • Ultra-low power consumption: minimizes parasitic drain during standby to preserve usable capacity.
  • Communication protection: built-in safeguards protect CAN data integrity during flight operations.
  • DoD/DIU compliant: Bluetooth intentionally excluded for compatibility with defense and government applications.

Alta X Gen2 missions depend on power that performs consistently under load and communicates accurately with the aircraft. The Alta X Gen2 12S Flight Battery delivers both high-discharge LiPo chemistry, a direct-connect AS150U interface, and CAN-based smart battery communication that feeds the data operators need to manage packs confidently across a full mission day. Flight times will vary based on payload and conditions; refer to the Alta X Flight Manual for payload-specific estimates.

DSLRPros carries the Freefly Alta X Gen2 12S Flight Battery as part of its complete Alta X Gen2 ecosystem inventory, backed by decades of UAS industry experience.

Build your battery kit to match your operational tempo and order through DSLRPros with confidence in genuine Freefly components and professional support.

Features

  • Compact and lightweight design
  • Communication protection
  • Fuel gauge
  • Current detection
  • Ultra-low power consumption

Specifications

  • Battery type: Lithium polymer
  • Capacity: 16 Ah
  • Voltage: 44.4 V
  • Connector: AS150U anti-spark
  • Communication protocol: CAN
  • Max continuous discharge: 15C
  • Max burst discharge: 30C
  • Max charge voltage: 4.2 V per cell
  • Minimum discharge voltage: 3.0 V per cell
  • Bluetooth enabled: No
  • Dimensions: 217 × 150 × 80 mm
  • Weight: 4.25 kg / 9.37 lbs per battery
  • Weight: 8.5 kg / 18.74 lbs per pair

Compliance Note

  • These batteries are custom-built by TATTU without Bluetooth for DoD/DIU application compliance.
  • 1x Freefly Alta X Gen2 12S Flight Battery (AS150U)
How many batteries does the Alta X Gen2 require per flight?

The Alta X Gen2 requires one pair of 12S batteries per flight. Freefly sells these batteries individually so operators can purchase the exact quantity needed to match their mission schedule and turnaround requirements.

For operators running multiple consecutive flights, scaling the battery kit accordingly and pairing with the Tattu TA3200 Dual-Channel Smart Charger is the recommended approach.

What charger is compatible with the Alta X Gen2 12S Flight Battery?

The recommended charger is the Tattu TA3200 Dual-Channel Smart Charger. The Alta X Gen2 12S Flight Battery connects directly to the TA3200 via the AS150U connector without adapters or balance leads.

When used with the TA3200, operators get automatic balancing, discharge protection, charge-status alerts, built-in safety warnings, and battery history and performance data displayed for informed pack management decisions.

Why does this battery not have Bluetooth?

These batteries are custom-built by Tattu for Freefly without Bluetooth, specifically to maintain compatibility with DoD and DIU applications. The CAN communication protocol handles real-time data exchange between the battery and the Alta X Gen2 aircraft system.

Operators in defense, public safety, or government programs can deploy the Alta X Gen2 with confidence that the battery configuration meets applicable compliance requirements.

What maintenance do these batteries require during storage?

LiPo batteries require occasional maintenance during storage to preserve cell health and long-term capacity. Freefly recommends reviewing their Alta X support resources for storage maintenance procedures specific to these packs.

Following proper storage protocols — including maintaining appropriate cell voltage during extended non-use periods — extends battery lifespan and ensures reliable performance when returned to service.
