DSLRPros Matrice 400 Energy and Utility Inspection Package: Detection Across Power, Solar, and Wind Assets

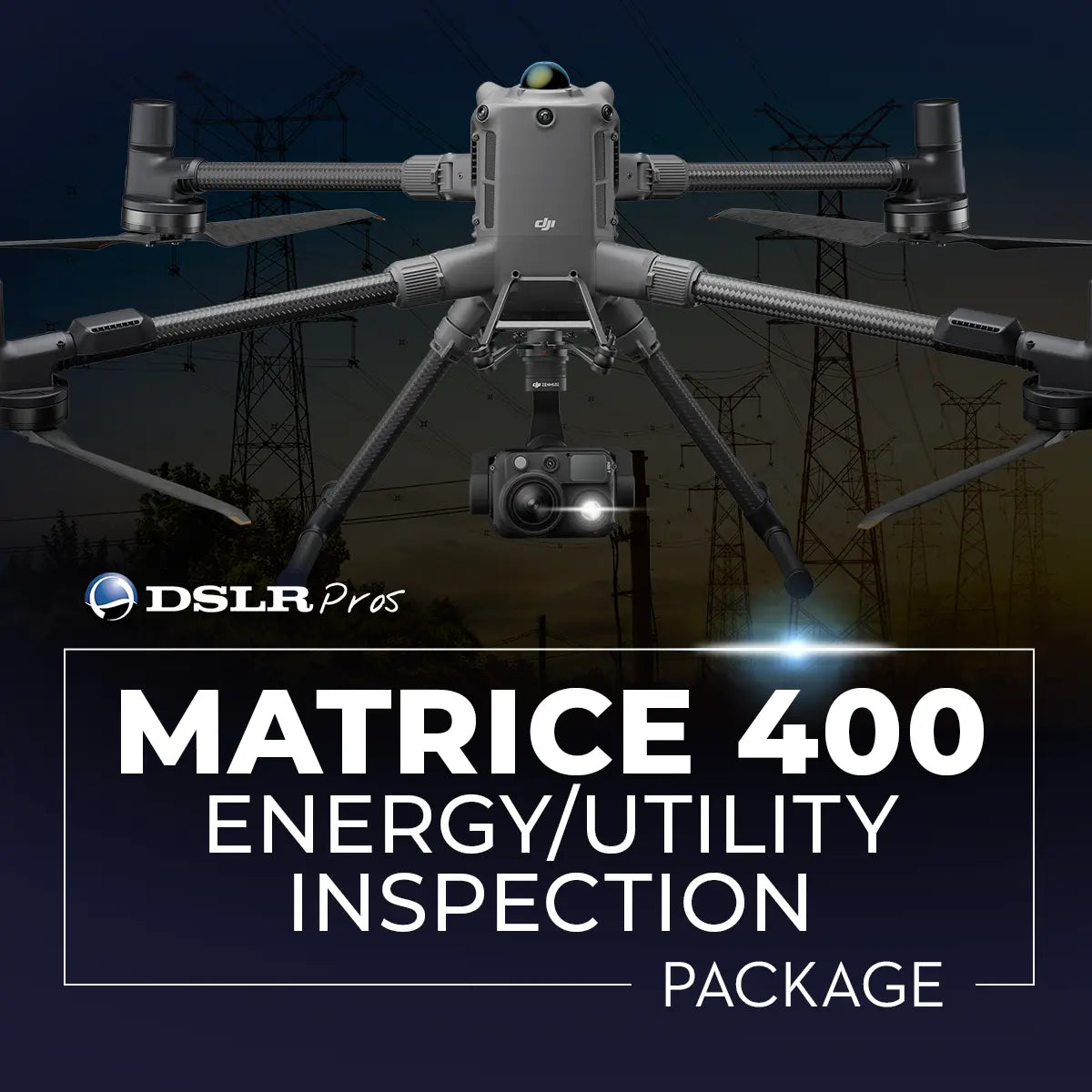

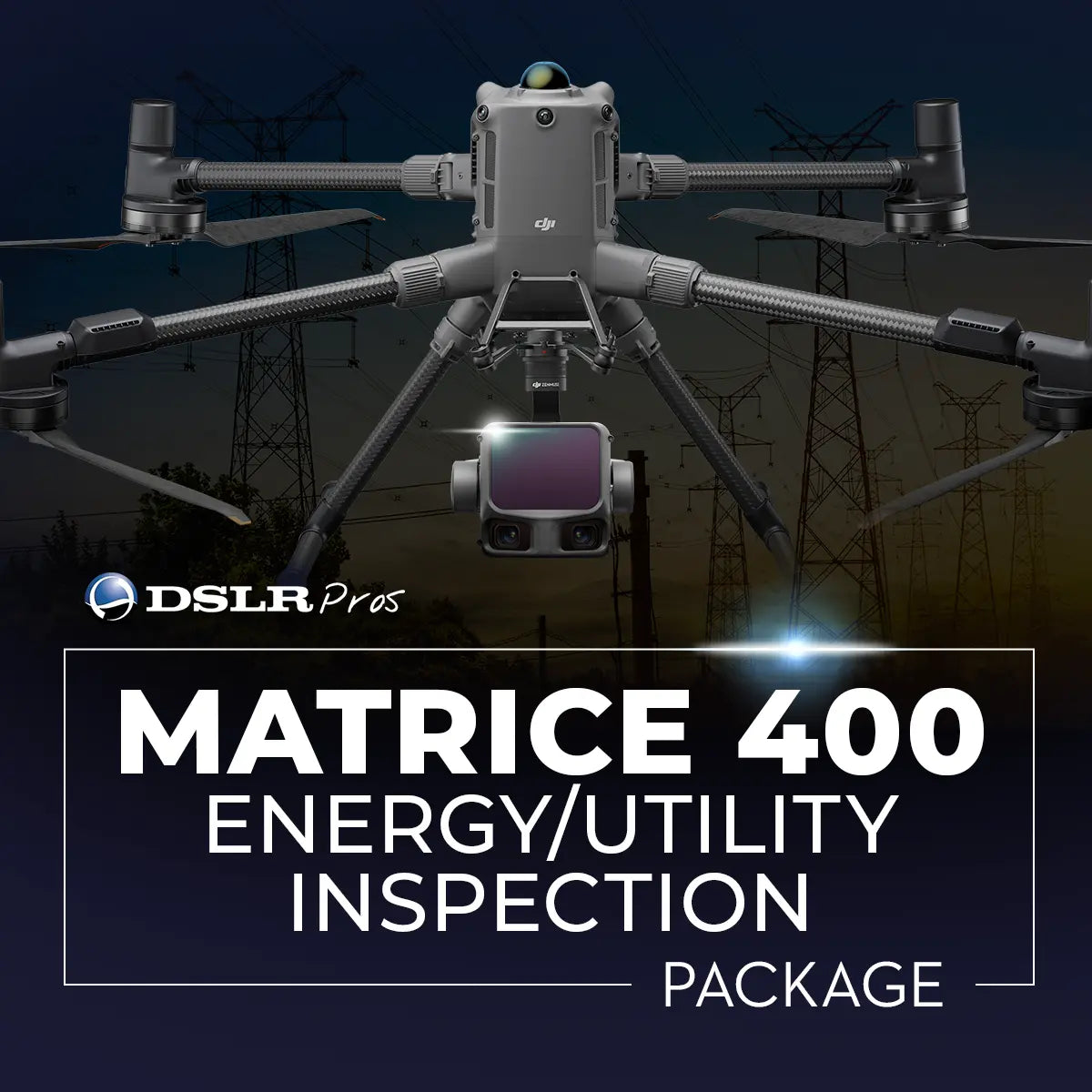

The DSLRPros Matrice 400 Energy and Utility Inspection Package pairs DJI's enterprise flagship airframe with the Zenmuse H30T multi-sensor payload and the field power hardware needed to keep both working through a full inspection day.
Assembled by DSLRPros for transmission, distribution, substation, solar, and wind crews, the package covers the aircraft, the imaging payload, two TB100 Intelligent Flight Batteries, and the BS100 Intelligent Battery Station. Every component ships from a single source, matched and tested together, so crews are not chasing power hardware separately after the aircraft arrives.
Crews working live corridors need conductor detail and heat signature from a safe stand-off distance, then need to repeat that pass across miles of line without returning to the truck.
Key Features and Benefits
- Extended endurance: 59 minutes of forward flight carrying the H30T payload.
- Radiometric thermal: uncooled sensor detects heat differentials down to 50 mK.
- Hybrid zoom: 34x optical magnification inspects conductors from safe stand-off distances.
- Power line sensing: mmWave radar penetrates rain, fog, and snow.
- Rotating LiDAR: 360-degree coverage generates 520,000 points per second continuously.
- Laser rangefinder: targets measured to 9,842 feet (3,000 m) accurately.
- Dual batteries: two TB100 packs enable hot-swap turnarounds between sorties.
- Field charging: BS100 station recharges each TB100 in 70 minutes.
- RTK positioning: centimeter-level horizontal accuracy without deploying ground control points.
- Cold weather ready: batteries self-heat for charging in sub-freezing conditions.
The Matrice 400 flies 59 minutes carrying the H30T, detects overhead power lines through rain and fog using six-direction mmWave radar, and holds a three-channel live feed at ranges up to 24.9 miles (40 km).Β
The H30T resolves component detail through 34x optical zoom and reads thermal differentials at 1280 x 1024 resolution, with a laser rangefinder for precise target localization.
Endurance That Survives a Full Corridor Patrol
Two TB100 packs and a three-bay station change the arithmetic of an inspection day. One battery flies while the other charges, and the Matrice 400 capacitor system permits hot swaps, so the aircraft returns to altitude in minutes rather than sitting idle for over an hour.
Across a season of corridor patrols, that duty cycle difference converts directly into fewer truck rolls and more spans documented per crew day. The BS100 also warms packs below 41 degrees Fahrenheit (5 degrees Celsius), protecting winter schedules that would otherwise stall waiting on cold batteries.
Compatibility and System Integration
- Zenmuse H30T (included): mounts to the Matrice 400 via DJI SkyPort.
- TB100 batteries (included): two packs, both compatible with the BS100 station.
- Remote controller (included): DJI RC Plus 2 with sub2G SDR module.
- Flight software (included): DJI Pilot 2 controls the aircraft and payload.
- D-RTK stations (sold separately): D-RTK 3 or D-RTK 2 supply corrections.
- microSD cards (sold separately): U3, Class 10, or V30 rating required.
- Analysis software (sold separately): DJI Terra, FlightHub 2, Thermal Analysis Tool.
- Additional payloads (sold separately): Zenmuse L2, L3, P1, S1, V1.
Applications and Use Cases
- Transmission line patrol: 34x zoom inspects insulators and hardware from stand-off.
- Substation thermography: radiometric imaging flags overheating connections before failure occurs.
- Solar farm scanning: thermal differentials expose underperforming cells across large arrays.
- Wind turbine survey: zoom optics document blade cracks, erosion, and lightning damage.
- Storm damage assessment: 59-minute endurance covers wide outage areas per sortie.
- Night patrol work: NIR light and Night Scene mode maintain visibility.
- Vegetation encroachment checks: laser rangefinder measures clearance between canopy and conductors.
- Pipeline corridor inspection: 24.9-mile (40 km) transmission range supports linear assets.
Utility inspection programs stall on logistics more often than on capability. This package closes the two gaps that most often ground a new enterprise platform, incomplete power hardware and a payload that cannot resolve the fault, by delivering the aircraft, the multi-sensor camera, and a working charge cycle as one tested configuration.
Every kit DSLRPros builds is designed, assembled, and individually tested for quality assurance in the United States, and the Matrice 400 is eligible for DSLRPros Care Plus extended warranty coverage. Crews get one point of contact for the airframe, the payload, and the power system instead of three separate vendors.
