DJI Zenmuse V1 Speaker

DJI Zenmuse V1 Speaker

$1,221.00
$1,221.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-ZV1

SKU S-DJI-ZV1 MPN CP.EN.00000649.01
  • Powerful sound output generates 129 decibels at one meter distance.
  • Clear audio broadcasts reach ground targets up to 700 meters away.
  • Real-time broadcasting via Pilot 2 is supported exclusively on Matrice 400.
  • Advanced text to speech functionality supports multiple international language options.
  • Directional audio pickup on RC Plus effectively filters out environmental noise.
  • Single axis gimbal provides controllable tilt for precise directional acoustic broadcasting.
  • Rugged IP54 rating ensures reliable operation in dusty or damp environments.
  • Lightweight design weighs only 1.52 pounds for multi-payload configuration flexibility.
  • Intelligent volume adjustment utilizes automatic gain control for clear audio levels.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Zenmuse V1: High-Performance Aerial Communication System

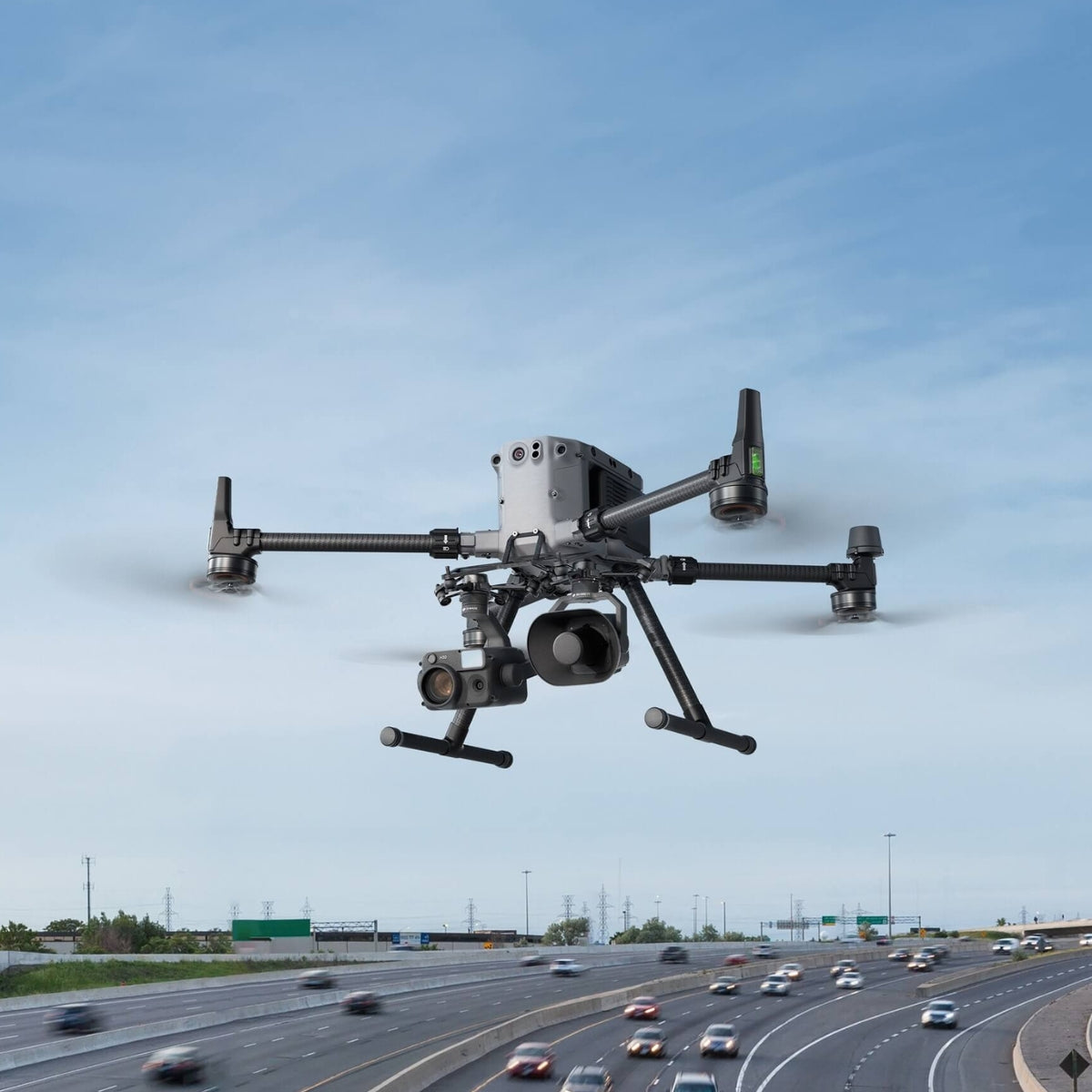

The Zenmuse V1 is the first dedicated speaker payload designed for DJI multi-payload drone platforms like the Matrice 400 and Matrice 350 RTK. This system delivers critical audio messaging with a maximum loudness of 129 decibels and an effective range of 2,296 feet (700 meters). It is engineered for professionals in public safety and emergency rescue who require reliable long-distance communication. With four distinct broadcast modes and a rugged IP54-rated housing, the V1 provides a versatile solution for managing crowds, coordinating ground teams, or conducting airborne negotiations in challenging environments.

Zenmuse V1 core features and advantages

  • 129 decibel output: Powerful volume reaches levels comparable to a jet takeoff.
  • 700m broadcast range: Effective communication distance extends up to 2,296 feet away.
  • Real-time broadcasting: Transmit audio instantly through the Pilot 2 mobile app.
  • Text-to-speech mode: Convert written text into spoken multi-language audio messages instantly.
  • Anti-howling algorithm: Internal processing ensures professional clarity during live voice transmissions.
  • Synchronized tilt control: Aligns speaker angle with camera view for targeted broadcasting.
  • IP54 ingress protection: Durable housing resists dust and water in outdoor operations.
  • Lightweight 1.52lb build: Compact design fits within standard Matrice aircraft carrying cases.

Advanced audio processing for professional field operations

The Zenmuse V1 provides high-intensity sound output while maintaining absolute technical precision. By utilizing directional recording technology on the DJI RC Plus, operators can capture voices clearly while the noise canceling system removes environmental interference. This ensures that the messages broadcasted from the air are intelligible even in noisy industrial or urban areas. Furthermore, the intelligent volume adjustment feature automatically normalizes audio levels when paired with the Matrice 400. This maintains a consistent sound profile across different recording sources, allowing the operator to focus on mission objectives rather than manual volume tuning.

Hardware, Software, and SDK compatibility

  • Matrice 400: Supports 700 meter range and real time broadcasting features.
  • Matrice 350 RTK: Fully compatible for 500 meter range audio transmission missions.
  • Matrice 300 RTK: Requires DJI RC Plus for full speaker payload functionality.
  • DJI Pilot 2: Provides full interface for TTS and audio file management.
  • DJI SkyPort: Quick release mounting system for rapid field payload deployment.
  • RC Plus: Features directional audio pickup for clearer live mission recording.

Mission applications

  • Search and rescue: Delivering life saving instructions to subjects in remote areas.
  • Crowd management: Providing clear directions during large scale public safety events.
  • Tactical negotiations: Facilitating two way communication during high stakes law enforcement scenes.
  • Industrial notification: Broadcasting safety alerts to workers in high noise environments.
  • Disaster response: Coordinating ground teams when standard cellular networks are unavailable.
  • Wildlife deterrence: Using specialized audio files to move animals from hazardous zones.

Built for professional operations

The Zenmuse V1 is optimized for operational readiness by offering a lightweight 690 gram (1.52 lbs) design that preserves aircraft flight endurance. Because it supports gimbal synchronization, it can be paired with thermal or visual cameras to ensure that the speaker always follows the camera's field of view. This creates a unified sensor and communication suite that reduces pilot workload during intense operations. The payload is further enhanced by its ability to import and loop local audio files, which allows for standardized safety messages to be deployed across a fleet with consistent volume and clarity.

The Zenmuse V1 serves as a critical asset for aerial teams that must communicate clearly over long distances. Its combination of high-decibel output and intelligent audio algorithms ensures that every message reaches the intended audience. By solving the challenge of long-range acoustic transmission, the V1 remains a reliable tool for professional enterprise operations.

With decades of experience in the UAS industry, DSLRPros delivers more than drones—we provide comprehensive UAV lifecycle solutions tailored to your needs. Our team ensures that your communication payloads are fully integrated and optimized for your specific public safety or industrial workflows. Enhance your team’s communication capabilities with the Zenmuse V1 and our industry-leading technical support at DSLRPros.

Zenmuse V1 Specifications

  • Product name: Zenmuse V1
  • Weight: 690 ±10 g
  • Dimensions: 134 × 119 × 140 mm (L × W × H)
  • Rated power: 30 W
  • Supported aircraft: Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
  • Shell temperature: <50°C (122°F)
  • Ingress protection rating: IP54
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)

Gimbal System

  • Stabilization: Single-axis (tilt)
  • Angular vibration range: ±0.01° (hover), ±0.02° (flight)
  • Mounting: Detachable DJI SKYPORT
  • Mechanical range: Tilt -125° to +25°
  • Controllable range (Matrice 400 downward ports): -120° to -5°
  • Controllable range (Matrice 400 third underside port): -60° to 0°
  • Controllable range (M300/M350 downward ports): -120° to -5°
  • Controllable range (M300/M350 upward port): -5° to +120°
  • Operation modes: Follow, Free, Re-center

Audio Performance

  • Impedance: 4 Ω
  • Nominal power: 25 W
  • Effective broadcast distance: 700 m (Matrice 400), 500 m (M300/M350)
  • Max sound pressure level: 129 dB @1 m (M400), 127 dB @1 m (M300/M350)
  • Effective bandwidth: 800 Hz – 8 kHz

Broadcast & Playback Functions

  • Recording and playback supported
  • Real-time broadcasting: Matrice 400 only
  • Text-to-speech languages (M400): Chinese, English, Spanish, Korean, Japanese, French
  • Text-to-speech languages (M300/M350): Chinese, English
  • Audio file formats: MP3, AAC, WAV
  • Simultaneous file transfer and playback supported on Matrice 400
  • Playback control: Record, stop, loop, volume adjustment
  • Custom controller button recording trigger supported
  • Gimbal synchronization with other payloads supported

Intelligent Features & Protection

  • Automatic gain control adjusts recording volume (Matrice 400)
  • Directional audio pickup with environmental noise reduction
  • Speaker temperature, overcurrent, and power protection
  • Directional broadcasting visualization via DJI Pilot 2 AR projection
  • 1x Zenmuse V1 Loudspeaker Payload
  • 1x Gimbal Port Protection Cap
  • 1x Storage Box
  • 1x Manuals
What is the maximum distance for the Zenmuse V1 broadcast?

The Zenmuse V1 achieves an effective broadcast distance of up to 700 meters when used with the Matrice 400 aircraft. For the Matrice 350 RTK and Matrice 300 RTK platforms, the effective range is approximately 500 meters. These distances allow for clear communication while maintaining a safe operating altitude during missions.

Does this speaker support multiple languages for text to speech?

When paired with the Matrice 400, the Zenmuse V1 supports text to speech in English, Chinese, Spanish, Korean, Japanese, and French. Users of the Matrice 350 RTK and Matrice 300 RTK can utilize English and Chinese for their broadcasts. This allows for flexible communication in diverse operational environments.

Can I use the Zenmuse V1 in the rain?

The Zenmuse V1 features an IP54 protection rating according to IEC60529 standards under controlled laboratory conditions. This provides resistance against dust and water splashes, making it suitable for professional use in varied weather. However, the rating may decrease over time due to standard wear and tear during operations.

How does the pilot know where the speaker is pointing?

The DJI Pilot 2 application includes an AR projection feature that visually indicates the current orientation of the speaker. This helps the operator align the acoustic output with the intended target on the ground. By using the app interface, pilots can adjust the tilt gimbal for maximum efficiency.

Is there protection against the speaker overheating?

The Zenmuse V1 is equipped with specialized protection mechanisms for temperature, overcurrent, and power. These safeguards are designed to prevent internal damage and increase the overall reliability of the payload. If the system detects an abnormality, these protections will engage to ensure the equipment remains safe.
