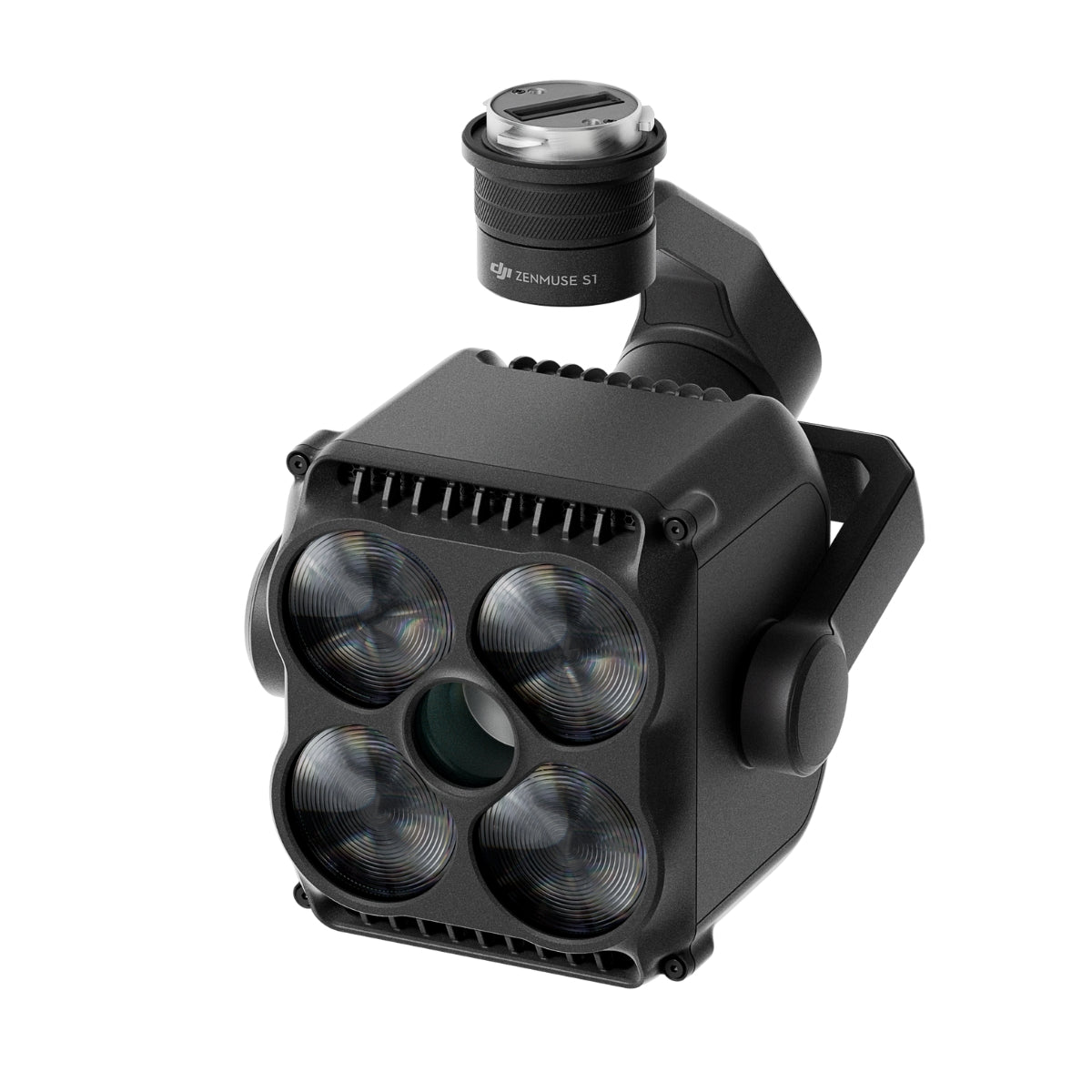

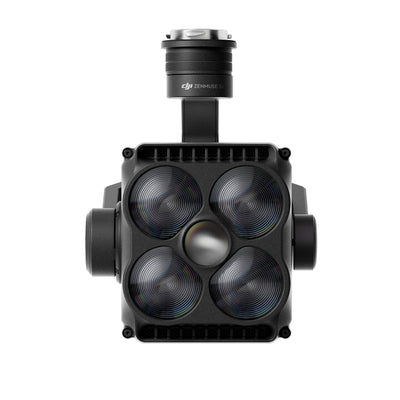

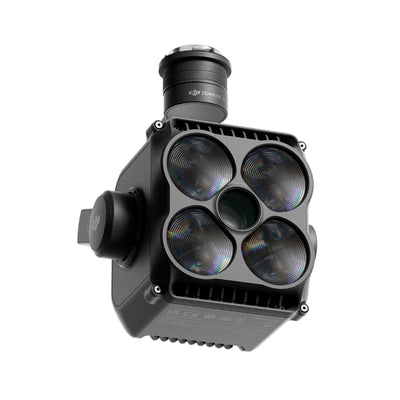

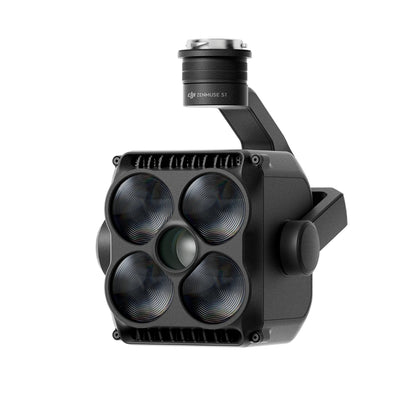

DJI Zenmuse S1 Spotlight

DJI Zenmuse S1 Spotlight

$1,719.00
$1,719.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-ZS1

SKU S-DJI-ZS1 MPN CP.EN.00000650.01
  • Advanced LEP technology provides 40 lux central illuminance at 100m.
  • Powerful lighting reaches observation distances of up to 500 meters.
  • Ultra-efficient 24 W power consumption helps maintain aircraft flight time.
  • Lightweight 0.76 kg design allows for flexible multi-payload mounting.
  • IP54 rating ensures reliable performance in dust and water conditions.
  • Intelligent beam alignment syncs spotlight with camera view in real-time.
  • Four distinct modes include low, high, both on, and strobe.
  • Safety features include automatic dimming and low surface contact temperature.
  • Fully compatible with Matrice 400, 350 RTK, and 300 RTK.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Zenmuse S1: High-Intensity Laser Phosphor Aerial Spotlight

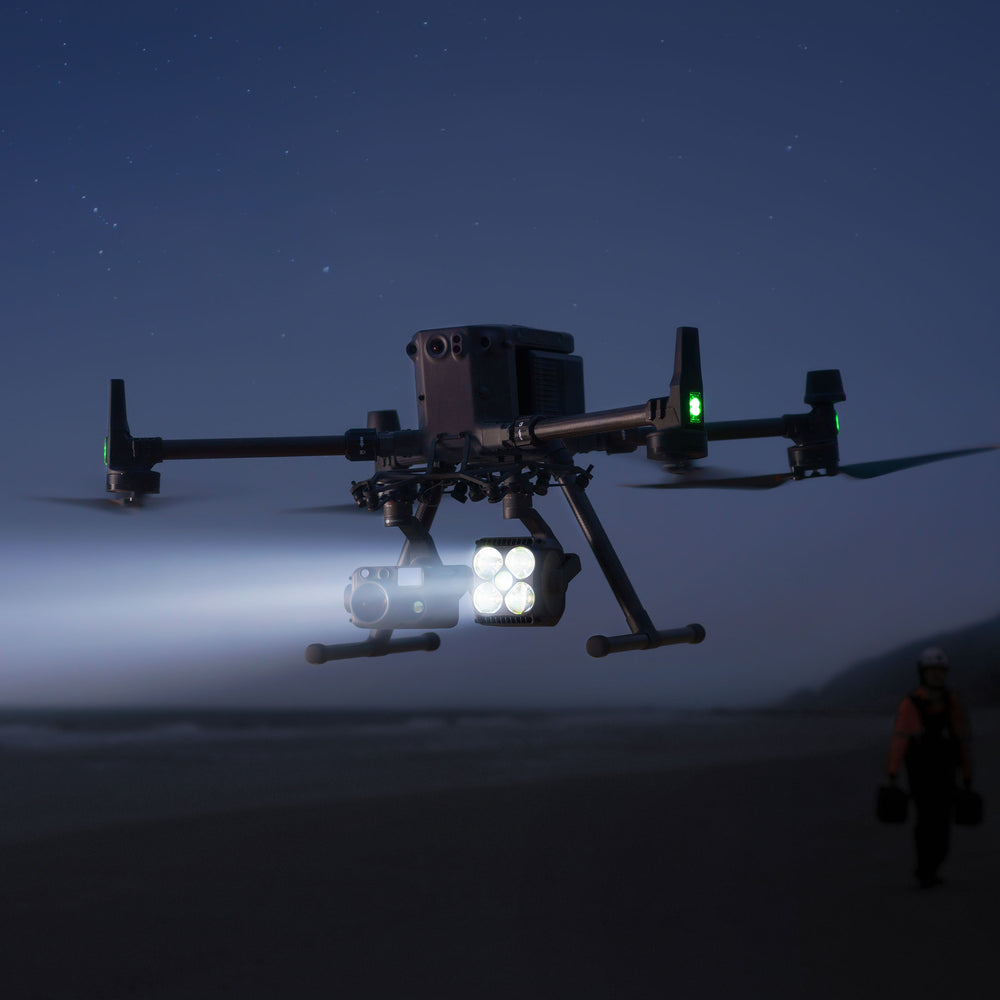

The Zenmuse S1 is DJI's premier spotlight payload engineered specifically for professional multi-payload drone platforms including the Matrice 400 and Matrice 350 RTK. Utilizing advanced Laser Excited Phosphor technology, this 0.76 kg (1.68 lbs) unit delivers a powerful 40 lux central illuminance at a 100-meter (328 ft) distance. Designed for high-stakes nighttime operations, it provides critical visibility for search and rescue, law enforcement, and industrial inspections. With an IP54 rating and specialized lighting modes, the S1 ensures that darkness never compromises the safety or efficiency of enterprise aerial missions.

Zenmuse S1 core features and advantages

  • LEP technology: Advanced laser phosphorus light source ensures superior long-range penetration.
  • 500m illumination: Maximum observation distance reaches up to 500 meters (1,640 ft).
  • 40 lux brightness: High-intensity central illuminance provides clear detail in total darkness.
  • Energy efficient: Consumes only 24 W in high beam mode for flight.
  • Four lighting modes: Versatile low, high, both on, and strobe lighting options.
  • Intelligent alignment: Automatically calibrates optical center with camera view in real time.
  • IP54 protection: Dust and water resistance enables operation in challenging weather environments.
  • Lightweight build: Compact 0.76 kg design fits easily into enterprise carrying cases.

Professional nighttime performance for critical enterprise operations

The Zenmuse S1 delivers exceptional performance by combining high-intensity illumination with intelligent power management. Its Laser Excited Phosphor technology allows for a concentrated 4° high beam that can pierce the night up to 300 meters (984 ft), perfectly complementing high-zoom camera payloads. When both beams are engaged, operators gain maximum situational awareness with a 500-meter (1,640 ft) reach. The system is designed to minimize power load on the aircraft, ensuring that mission critical flight times are maintained while providing the necessary light to identify targets or inspect infrastructure.

Platform and software integration

  • DJI Matrice 400: Supports dual S1 mounting and intelligent beam alignment.
  • Matrice 350 RTK: Quick-release installation on any available gimbal connector port.
  • Matrice 300 RTK: Fully compatible with enterprise-grade firmware and hardware interfaces.
  • Zenmuse H30 Series: Synchronized control for real-time camera and light alignment.
  • DJI FlightHub 2: Enables remote video viewing and spotlight control for teams.
  • Mobile SDK: Supports rapid integration into custom developed mobile applications.
  • Payload SDK: Compatible with Manifold 3 for advanced specialized mission requirements.

Operational use cases

  • Search and rescue: Illuminating large ground areas to locate missing persons quickly.
  • Public safety: Providing continuous visual overwatch during nighttime law enforcement patrols.
  • Emergency signaling: Utilizing high-frequency strobe mode to alert or draw attention.
  • Infrastructure inspection: Lighting utility towers for detailed structural assessments in darkness.
  • Disaster response: Coordinating ground and air operations through DJI FlightHub 2.
  • Site security: Enhancing perimeter monitoring of industrial facilities during night shifts.

Optimized for operational readiness

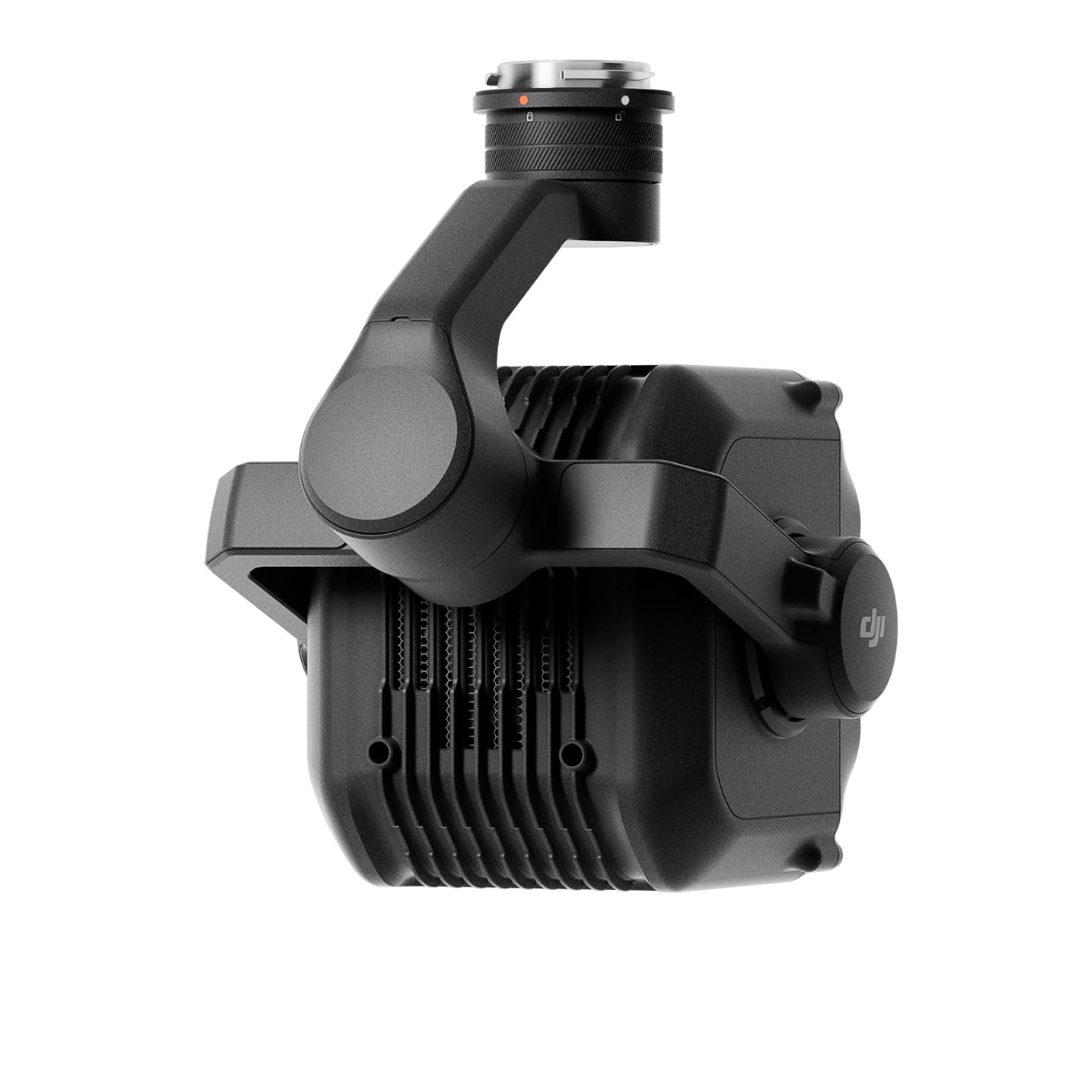

The Zenmuse S1 is built for professional system integration, allowing it to function as a seamless extension of the drone platform. Because it can be mounted on any gimbal connector, it provides pilots with total flexibility for complex multi-payload configurations. The inclusion of intelligent protection mechanisms for temperature and overcurrent ensures the payload remains reliable over hundreds of hours of flight. Furthermore, the burn protection casing maintains a surface temperature below 50° C (122° F), prioritizing the safety of operators during rapid equipment swaps or post-flight handling in the field.

The Zenmuse S1 provides a robust illumination solution for aerial professionals who must operate with total confidence in low-light environments. By integrating high-output LEP technology with intelligent gimbal synchronization, it ensures that every night mission is conducted with maximum visibility. This payload consistently solves the problem of target identification and situational awareness during critical nighttime enterprise operations.

With decades of experience in the UAS industry, DSLRPros delivers more than drones—we provide comprehensive UAV lifecycle solutions tailored to your needs. Our technical experts ensure your Zenmuse S1 is perfectly configured for your specific public safety or industrial inspection workflows. Discover how DSLRPros can transform your operations with cutting-edge drone solutions by purchasing your S1 directly from DSLRPros.

Zenmuse S1 Specifications

  • Product name: Zenmuse S1
  • Weight: 760 ±10 g
  • Dimensions: 125 × 152 × 171 mm (L × W × H)
  • Rated power: 120 W (Matrice 400), 68 W (Matrice 300 RTK / Matrice 350 RTK)
  • Supported aircraft: Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
  • Eye safety class: IEC 62471 Risk Group 1
  • Shell temperature: <50°C (122°F)
  • Ingress protection rating: IP54
  • Operating temperature: -20°C to 40°C (-4°F to 104°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)

Gimbal System

  • Stabilization: 3-axis (tilt, roll, pan)
  • Angular vibration range: ±0.01° (hover), ±0.02° (flight)
  • Mounting: Detachable DJI SKYPORT
  • Mechanical range: Tilt -129° to +73°, Roll ±55.8°, Pan ±327°
  • Controllable range: Tilt -120° to +60°, Pan ±320°
  • Operation modes: Follow, Free, Re-center

Illumination Performance

  • Maximum central illuminance: 40 lux @100 m (Matrice 400), 35 lux @100 m (M300/M350)
  • Low beam illuminance: 20 lux @100 m (M400), 13 lux @100 m (M300/M350)
  • High beam illuminance: 30 lux @100 m
  • Effective illumination angle: 15° ±1° (low/both), 4° ±0.5° (high)
  • Color temperature: 6500K (low), 7500K (high)
  • Dimming mode: Analog dimming
  • Effective illumination distance: Up to 500 m

Lighting Control & Modes

  • Lighting control: On/off and brightness adjustment
  • Strobe mode: 5 Hz
  • Lighting modes: Low beam, High beam, Both On
  • Remote controller buttons: Customizable lighting control
  • Gimbal synchronization: Supports synchronized control with other payloads

Protection & Intelligent Functions

  • Eye protection: Brightness automatically limited to 40% when not in flight
  • Payload protection: Temperature, overcurrent, and power protection
  • Dual spotlight sync: Two Zenmuse S1 units can be controlled simultaneously (Matrice 400)
  • Intelligent beam alignment: Automatically aligns with Zenmuse H30 Series camera view
  • 1x Zenmuse S1 Spotlight Payload
  • 1x Gimbal Port Protection Cap
  • 1x Storage Box
  • 1x Lens Protection Rubber Cap
  • 1x Lens Cleaning Cloth
  • 1x Manuals
Which drone platforms are compatible with the Zenmuse S1?

The Zenmuse S1 is specifically designed for the DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK platforms. It can be mounted on any available gimbal connector, allowing for upward or downward configurations. This compatibility ensures that the spotlight can be integrated into most enterprise-level drone fleets seamlessly.

How does the intelligent beam alignment work?

When used with the Zenmuse H30 series on the Matrice 400, the S1 uses software algorithms for gimbal synchronization. This process automatically calibrates the optical center of the spotlight in real time to match the camera's view. This prevents light deviation and ensures the target remains perfectly illuminated during tracking.

Is the Zenmuse S1 safe to handle after a long flight?

The Zenmuse S1 is designed with burn protection features that include a specialized plastic casing. The contact surface temperature of this casing is engineered to stay below 50° C (122° F) even during prolonged use. This allows operators to safely detach or adjust the payload immediately after landing without risk.

What is the benefit of the Both On lighting mode?

Both On mode engages the low beam and high beam simultaneously to provide maximum situational awareness for the pilot. It maintains the wide 15-degree field of view from the low beam while extending light reach to 500 meters. This combination is ideal for comprehensive area searches where both width and depth are required.

Can the Zenmuse S1 be used in rainy or dusty environments?

Yes, the payload has an IP54 rating, which provides protection against dust and water splashes from any direction. It is also rated for operating temperatures between -20° to 40° C (-4° to 104° F). These specifications make it suitable for various outdoor environments, though it should not be used in heavy downpours.
