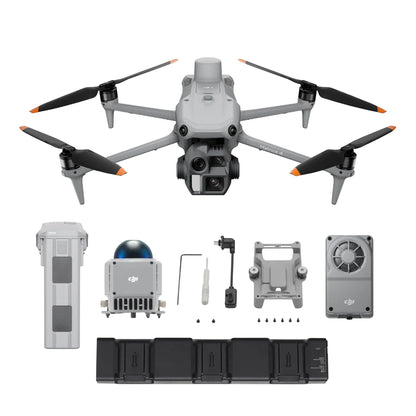

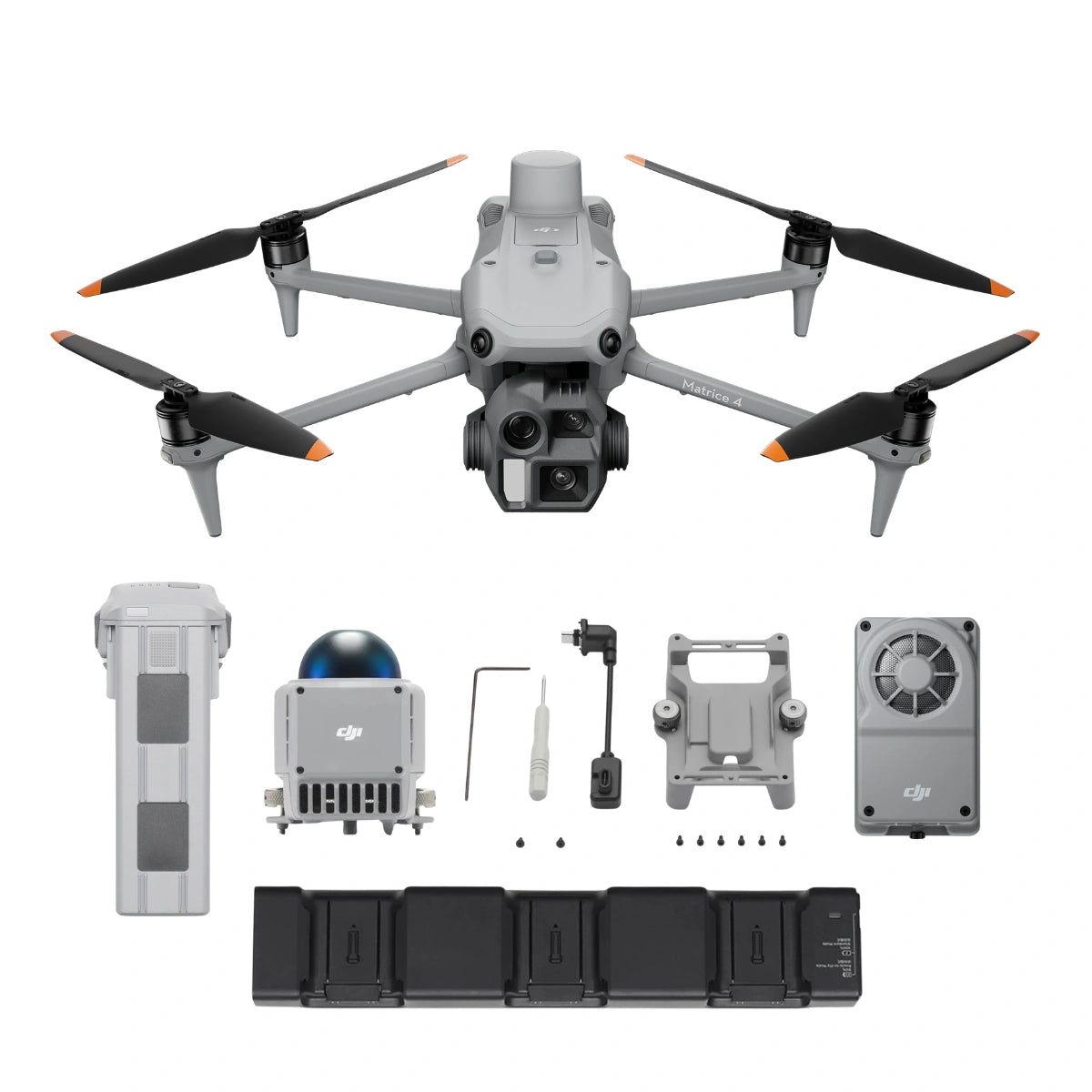

DJI Matrice 4T + Manifold 3 Bundle

DJI Matrice 4T + Manifold 3 Bundle

$12,045.00
$12,045.00
Sale Sold out
Shipping calculated at checkout.

B-NB-M4T-MF3

SKU B-NB-M4T-MF3 MPN CP.EN.00000546.01 EAN 6941565994172 UPC 190021119307
  • Onboard Manifold 3 computer delivers 100 TOPS of AI processing
  • LiDAR and radar fusion detects wires as thin as 12mm
  • Real-time inference runs detection models directly during flight operations
  • Second battery extends field-day flight scheduling for demanding missions
  • Fast 200W hub charges batteries sequentially for rapid mission turnaround
  • Expanded 256GB storage supports data-heavy onboard computing workloads reliably
  • Passive cooling maintains stable thermal performance without moving mechanical parts
  • Weatherproof IP55 rating covers both computer and sensing module hardware
  • Custom SDK support enables direct payload and flight data access
  • Close-range obstacle detection extends up to 100 meters in range

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4T + Manifold 3 Bundle: Onboard AI Computing for Advanced Field Missions

The DJI Matrice 4T + Manifold 3 Bundle equips the standard M4T Universal Edition with the onboard computing and sensing hardware field teams need for advanced autonomous workflows. This configuration adds a DJI Manifold 3 onboard computer with its dedicated accessory kit, a DJI Obstacle Sensing Module, a 200W Charging Hub, and a second Matrice 4 Series Battery to the base aircraft kit. Manifold 3 delivers up to 100 TOPS of onboard AI processing through an NVIDIA Jetson Orin NX platform, while the Obstacle Sensing Module fuses LiDAR and millimeter-wave radar to detect obstacles as thin as 12 mm wires.

Technicians running data-heavy missions know that raw sensor capture is only half the job; processing it fast enough to act on matters just as much. This bundle brings that processing onboard, letting Manifold 3 run AI inference, payload data handling, and custom applications directly on the aircraft instead of waiting for ground-based post-processing. The Obstacle Sensing Module adds a second layer of protection for close-range, cluttered-environment flying, while the extra battery and 200W Charging Hub extend how long a crew can stay in the field. The 200W Charging Hub requires the DJI 240W Portable Charger or DJI Power 1000, both sold separately.

Key Features and Benefits

  • Onboard AI: Manifold 3 delivers 100 TOPS of in-flight computing power.
  • Enhanced sensing: LiDAR and radar fusion detects wires as thin as 12mm.
  • Fast processing: NVIDIA Jetson Orin NX runs inference directly on the aircraft.
  • Extended power: second battery supports longer field days between recharges.
  • Sequential fast charge: 200W hub processes three batteries in priority order.
  • Expanded storage: 256GB SSD and 16GB RAM handle demanding onboard workloads.
  • Custom SDK support: Onboard SDK v5.0 and Payload SDK v3.6 enable development.
  • Close-range safety: sensing module detects obstacles up to 100 meters out.
  • Passive cooling: Manifold 3 maintains stable thermal performance without moving parts.
  • Field-rated durability: sensing module and onboard computer are both rated IP55.

Processing Power Built for the Field

Running AI models, LiDAR processing, or custom applications in the field means moving compute power off the ground station and onto the aircraft itself. Manifold 3 makes that possible, running detection, classification, or spatial modeling workflows in real time while the aircraft is still airborne. Combined with the Obstacle Sensing Module's LiDAR and radar fusion, this configuration gives technicians both the processing power and the sensing precision needed for close-quarters industrial work. Application installation runs through DJI Pilot 2, so field updates do not require command-line tools or a separate development environment on site.

Compatibility and System Integration

  • DJI Manifold 3: onboard computer installed via Matrice 4 Series E-Port (included).
  • Manifold 3 Accessory Kit: mounting hardware for onboard computer installation (included).
  • Obstacle Sensing Module: LiDAR and radar unit with adapter bracket (included).
  • 200W Charging Hub: three-bay sequential charger for Matrice 4 batteries (included).
  • DJI 240W Portable Charger: required to power the charging hub (sold separately).
  • Matrice 4 Series Battery: two total units included in this bundle (included).
  • DJI Pilot 2: manages Manifold 3 application installs and updates (included software).

Applications and Use Cases

  • Onboard AI inference: run detection models directly during flight operations.
  • Powerline and substation inspection: sensing module detects thin wires reliably.
  • Confined-space industrial work: LiDAR and radar fusion supports close-range flying.
  • Real-time data processing: Manifold 3 reduces reliance on ground-based post-processing.
  • Extended field missions: second battery and 200W hub support longer deployments.
  • LiDAR point cloud handling: process spatial data directly onboard the aircraft.
  • Custom application development: PSDK V3 enables direct sensor and payload access.

The Matrice 4T exists to bring integrated sensing and imaging into a single deployable platform, and this bundle extends that capability with real onboard processing and obstacle awareness. Manifold 3, the sensing module, extra battery, and fast charging turn the aircraft into a more self-sufficient field computing platform.

DSLRPros configures Manifold 3 installations for technicians who need onboard AI processing working correctly the first time. Our team can help confirm your 240W charger pairing and SDK setup before your Manifold 3 arrives. Order the DJI Matrice 4T + Manifold 3 Bundle today at DSLRPros.

Aircraft

  • Takeoff Weight (with propellers):Β 1219 g* - *The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
  • Takeoff Weight (with Low-Noise propellers):Β 1229 g* - *The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
  • Max Takeoff Weight:Β Standard Propellers: 1420 g, Low-Noise Propellers: 1430 g
  • Dimensions:Β Folded: 260.6Γ—113.7Γ—138.4 mm (LΓ—WΓ—H), Unfolded: 307.0Γ—387.5Γ—149.5 mm (LΓ—WΓ—H), Maximum dimensions excluding propellers.
  • Max Payload:Β 200 g
  • Propeller Size:Β 10.8 in
  • Diagonal Wheelbase:Β 438.8 mm
  • Max Ascent Speed:Β 10 m/s
  • Maximum Ascent Speed With Accessories:Β 6 m/s
  • Max Descent Speed:Β 8 m/s
  • Max Descent Speed With Accessories:Β 6 m/s
  • Max Horizontal Speed (at sea level, no wind):Β 21 m/s, 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways. No faster than 19 m/s with Sport mode in EU regions.
  • Max Altitude:Β 6000 m
  • Max Operating Altitude with Payload:Β 4000 m
  • Max Flight Time (without wind):Β 49 min (standard propellers), 46 min (low-noise propellers). Measured with the aircraft flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
  • Max Hover Time (without wind):Β 42 min (standard propellers), 39 min (low-noise propellers). Measured with the aircraft flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
  • Max Flight Distance (no wind):Β 35 km (standard propellers), 32 km (low-noise propellers). Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.
  • Max Wind Speed Resistance:Β 12 m/s** Max wind speed resistance during takeoff and landing.
  • Max Pitch Angle:Β 35Β°
  • Operating Temperature:Β -10℃ to 40℃ (14Β°F to 104Β°F)
  • GNSS:Β GPS + Galileo + BeiDou + GLONASS** GLONASS is supported only when the RTK module is enabled.
  • Hovering Accuracy Range (windless or breezy):Β Β±0.1 m (with Vision System); Β±0.5 m (with GNSS); Β±0.1 m (with RTK)
  • RTK GNSS Accuracy:Β RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
  • Internal Storage:Β N/A
  • Ports:Β E-Port interface Γ— 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported). E-Port Lite interface Γ— 1: supports USB connection to DJI tuning software and some third-party PSDK devices. Accessories or expansion modules must be installed before powering on.
  • Propeller Model:Β 1157F (standard propellers), 1154F (low noise propeller)
  • Beacon:Β Built into the aircraft

Camera

  • Image Sensor:Β DJI Matrice 4T Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP, DJI Matrice 4E Wide: 4/3-inch CMOS, Effective Pixels: 20 MP, Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP, Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
  • Lens:Β DJI Matrice 4T FOV: 82Β°, Equivalent Focal Length: 24 mm, Aperture: f/1.7, Focus: 1 m to ∞, DJI Matrice 4E FOV: 84Β°, Equivalent Focal Length: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞, Medium Tele Camera FOV: 35Β°, Equivalent Focal Length: 70 mm, Aperture: f/2.8, Focus: 3 m to ∞, Tele camera FOV: 15Β°, Equivalent Focal Length: 168 mm, Aperture: f/2.8, Focus: 3 m to ∞
  • ISO Range:Β Normal Mode: ISO 100 to ISO 25600, Night Scene Mode: Matrice 4T: Wide Camera: ISO 100 to ISO 409600, Medium Tele Camera: ISO 100 to ISO 409600, Tele Camera: ISO 100 to ISO 819200, Matrice 4E: Wide Camera: ISO 100 to ISO 204800, Medium Tele Camera: ISO 100 to ISO 409600, Tele Camera: ISO 100 to ISO 409600
  • Shutter Speed:Β DJI Matrice 4T 2-1/8000 s, DJI Matrice 4E Wide: Electronic Shutter: 2-1/8000 s, Mechanical Shutter: 2-1/2000 s, Medium Telephoto: 2-1/8000 s, Telephoto: 2-1/8000 s
  • Max Photo Size:Β DJI Matrice 4T Wide: 8064 Γ— 6048, Medium Telephoto: 8064 Γ— 6048, Telephoto: 8192 Γ— 6144, DJI Matrice 4E Wide: 5280 Γ— 3956, Medium Telephoto: 8064 Γ— 6048, Telephoto: 8192 Γ— 6144
  • Minimum Photo Interval:Β DJI Matrice 4T: 0.7 s, DJI Matrice 4E: 0.5 s
  • Still Photography Modes:Β DJI Matrice 4T: Wide: Single: 12 MP/48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, Panorama: 12 MP (raw image), 100 MP (stitched image), Medium Tele Camera: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, Telephoto: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12MP, DJI Matrice 4E: Single: 20 MP, Interval: 20 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, JPEG + RAW: 2/3/5/7/10/15/20/30/60 s, Smart Shooting: 20 MP, Panorama: 20 MP (raw image), 100 MP (stitched image), Medium Tele Camera: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12 MP, Telephoto: Single: 12 MP and 48 MP, Interval: 12 MP/48 MP, JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Shooting: 12 MP
  • Video Codec and Resolution:Β Video Coding Format: H.264/H.265, Coding Strategy: CBR, VBR, Resolution: 4K: 3840 Γ— 2160@30fps, FHD: 1920 Γ— 1080@30fps
  • Max Video Bitrate:Β H.264: 60Mbps, H.265: 40Mbps
  • Supported File System:Β exFAT
  • Photo Format:Β DJI Matrice 4T: JPEG, DJI Matrice 4E: Wide: JPEG/DNG (RAW), Medium Tele Camera: JPEG, Telephoto: JPEG
  • Video Format:Β MP4 (MPEG-4 AVC/H.264)
  • Digital Zoom:Β Telephoto: 16x (112x hybrid zoom)

NIR Auxiliary Light

  • Infrared Illumination:Β DJI Matrice 4T: FOV: 5.7°±0.3Β°

Laser Module

  • Laser Rangefinding:Β Measurement Range: 1800 m (1 Hz) @20% reflectivity target* Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1Οƒ Other Distances: Β±(0.2+0.0015D) (D represents the measurement distance in meters) * Performance degradation may occur in rainy or foggy conditions

Infrared Thermal Camera

  • Thermal Imager:Β DJI Matrice 4T: uncooled vanadium oxide (VOx) DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
  • Resolution:Β DJI Matrice 4T: 640 Γ— 512
  • Pixel Pitch:Β DJI Matrice 4T: 12 ΞΌm
  • Frame Rate:Β DJI Matrice 4T: 30 Hz
  • Lens:Β DJI Matrice 4T DFOV: 45°±0.3Β°, DJI Matrice 4T equivalent focal length: 53 mm, DJI Matrice 4T Aperture: f/1.0, DJI Matrice 4T Focus: 5 m to ∞
  • Sensitivity:Β DJI Matrice 4T: ≀50mk@F1.0
  • Temperature Measurement Method:Β DJI Matrice 4T: Spot Meter, Area Measurement
  • Temperature Measurement Range:Β DJI Matrice 4T: High Gain Mode: -20℃ to 150℃ (-4Β°F to 302Β°F), Low Gain Mode: 0℃ to 550℃ (32Β°F to 1022Β°F)
  • Palette:Β DJI Matrice 4T: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
  • Photo Format:Β DJI Matrice 4T: JPEG (8bit), R-JPEG (16bit)
  • Video Resolution:Β DJI Matrice 4T: 1280 Γ— 1024@30fps (Super Resolution enabled, Night Mode not activated), Other conditions: 640 Γ— 512@30fps
  • Video Bitrate:Β DJI Matrice 4T: 6.5Mbps (H.264 640 Γ— 512@30fps), 5Mbps (H.265 640 Γ— 512@30fps), 12Mbps (H.264 1280 Γ— 1024@30fps), 8Mbps (H.265 1280 Γ— 1024@30fps)
  • Video Format:Β DJI Matrice 4T: MP4
  • Still Photography Modes:Β DJI Matrice 4T: Single: 1280 Γ— 1024/640 Γ— 512, Interval: 1280 Γ— 1024/640 Γ— 512, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
  • Photo Resolution:Β DJI Matrice 4T: Infrared: 1280 Γ— 1024 (Super Resolution on), 640 Γ— 512 (Super Resolution off)
  • Digital Zoom:Β DJI Matrice 4T: 28x
  • Infrared Wavelength:Β DJI Matrice 4T: 8um to 14um
  • Infrared Temperature Measurement Accuracy:Β DJI Matrice 4T: High Gain: Β±2℃ or Β±2%, whichever is greater, DJI Matrice 4T: Low Gain: Β±5℃ or Β±3%, whichever is greater

Gimbal

  • Stabilization System:Β DJI Matrice 4T: 3-axis (tilt, roll, pan), DJI Matrice 4E: 3-axis (tilt, roll, pan)
  • Mechanical Range:Β DJI Matrice 4T Gimbal Mechanical Limits: Tilt: -140Β° to 113Β°, Roll: -52Β° to 52Β°, Pan: -65Β° to 65Β°, Soft Limits: Tilt: -90Β° to 35Β°, Roll: -47Β° to 47Β°, Pan: -60Β° to 60Β°, DJI Matrice 4E Gimbal Mechanical Limits: Tilt: -140Β° to 50Β°, Roll: -52Β° to 52Β°, Pan: -65Β° to 65Β°, Soft Limits: Tilt: -90Β° to 35Β°, Roll: -47Β° to 47Β°, Pan: -60Β° to 60Β°
  • Controllable Rotation Range:Β DJI Matrice 4T: Pan: Β±-90Β° to 35Β°, Pan: Not controllable, DJI Matrice 4E: Tilt: -90Β° to 35Β°, Pan: Not controllable
  • Max Control Speed (tilt):Β 100Β°/s
  • Angular Vibration Range:Β Β±0.007Β°
  • Yaw Axis:Β Manual operation is uncontrollable. The MSDK interface program is controllable.
  • Ingress Protection Rating:Β No Standard Protection Level
  • Operating Temperature:Β Standard: -10Β°C to 40Β°C (14Β°F to 104Β°F)

Sensing

  • Sensing Type:Β Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
  • Forward:Β Binocular Measurement Range: 0.4-22.5 m, Measurement Range: 0.4-200 m, Obstacle Avoidance Speed: Flight Speed ≀21 m/s, FOV: 90Β° (horizontal), 135Β° (vertical)
  • Backward:Β Measurement Range: 0.4-22.5 m, Measurement Range: 0.4-200 m, Obstacle Avoidance Speed: Flight Speed ≀21 m/s, Field of View (FOV): 90Β° (horizontal), 135Β° (vertical)
  • Lateral:Β Measurement Range: 0.5-32 m, Measurement Range: 0.5-200 m, Obstacle Avoidance Speed: Flight Speed ≀21 m/s, FOV: 90Β° (horizontal), 90Β° (vertical)
  • Downward:Β Measurement Range: 0.3-18.8 m, Obstacle Avoidance Speed: Flight Speed ≀10 m/s, The FOV to the front and rear is 160Β° and 160Β° to the right and left.
  • Operating Environment:Β Forward, Backward, Left, Right, and Upward: Delicate texture on the surface, adequate light. Downward: The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). * Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.

Video Transmission

  • Video Transmission System:Β O4 Enterprise
  • Live View Quality:Β Remote Controller: 1080p/30fps
  • Operating Frequency:Β 2.400-2.4835 GHz, 5.725-5.850 GHz, 5.150-5.250 GHz (CE), Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Transmitter Power (EIRP):Β 2.4 GHz: ≀33 dBm (FCC), ≀20 dBm (CE/SRRC/MIC), 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC), <14 dBm (CE), 5.15-5.25: <23 dBm (FCC/CE)
  • Max Transmission Distance (unobstructed, free of interference):Β 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC). Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
  • Max Transmission Distance (with interference):Β Strong Interference - City Centers (approx. 1.5-5 km), Medium Interference - Suburban Areas (approx. 5-15 km), Micro interference: Suburbs/Seasides (approx. 15-25 km). * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
  • Max Download Speed:Β 20 MB/s. The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
  • Latency (depending on environmental conditions and mobile device):Β 130 ms. Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.
  • Antenna:Β 8 antennas, 2T4R
  • Others:Β Cellular Dongle Compartment

Memory Card

  • Supported SD Cards:Β U3/Class10/V30 or above is required, or use a memory card from the recommended list.
  • Recommended microSD Cards:Β Lexar 1066x 64GB U3 A2 V30 microSDXC, Lexar 1066x 128GB U3 A2 V30 microSDXC, Lexar 1066x 256GB U3 A2 V30 microSDXC, Lexar 1066x 512GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC, Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

Intelligent Flight Battery

  • Capacity:Β 6741 mAh
  • Standard Voltage:Β 14.76 V
  • Max Charging Voltage:Β 17.0 V
  • Cell Type:Β Li-ion 4S
  • Energy:Β 99.5 Wh
  • Weight:Β 401 g
  • Recharging Temperature:Β 5Β°C to 40Β°C (41Β°F to 104Β°F)
  • Discharge Rate:Β 4C
  • Max Charging Power:Β 1.8C
  • Supports low-temperature charging:Β Not supported
  • Cycle Count:Β 200

Power Adapter (100W)

  • Input:Β 100-240 V (AC), 50-60 Hz, 2.5 A
  • Output:Β Max. 100 W (total). When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
  • Rated Power:Β 100 W

Charging Hub

  • Input:Β USB-C: 5-20 V, max 5 A
  • Output:Β Battery Interface: 11.2 V to 17 V
  • Rated Power:Β 100 W
  • Recharging Type:Β 4 batteries charging in sequence. Support Standard Mode (100% SOC) and Standby Mode (90% SOC)
  • Compatible Battery:Β DJI Matrice 4E/T Series Intelligent Flight Battery
  • Charging Temperature:Β 5Β° to 40Β°C (41Β°F to 104Β°F)

DJI RC Plus 2 Enterprise

  • Video Transmission System:Β O4 Enterprise
  • Max Transmission Distance (unobstructed, free of interference):Β 25 km (FCC), 12 km (CE), 12 km (SRRC), 12 km (MIC). Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
  • Operating Band of Image Transmission:Β 2.4000-2.4835 GHz, 5.725 - 5.850 GHz, 5.1GHz (receive only). Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Antenna:Β 2T4R, built-in multi-beam high-gain antenna
  • Video Transmission Transmitter Power (EIRP):Β 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.1 GHz: <23 dBm (CE), 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
  • 4G Transmission:Β DJI Cellular Dongle 2
  • Wi-Fi Protocol:Β Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax, Support 2 Γ— 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 Γ— 2 + 2 Γ— 2 11ax DBS)
  • Wi-Fi Operating Band:Β 2.4000-2.4835 GHz, 5.150-5.250 GHz. 5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
  • Wi-Fi Transmitter Power (EIRP):Β 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.1 GHz: <23 dBm (FCC), 5.8 GHz <23 dBm (FCC/SRRC), <14 dBm (CE)
  • Bluetooth Protocol:Β Bluetooth 5.2
  • Bluetooth Operating Frequency:Β 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP):Β <10 dBm
  • Screen Resolution:Β 1920 Γ— 1200
  • Screen Size:Β 7.02 inches
  • Screen Frame Rate:Β 60 fps
  • Brightness:Β 1400 nits
  • Touchscreen Control:Β 10 Points Multi-touch
  • Built-in Battery:Β 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
  • External Battery:Β Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
  • Recharging Type:Β Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.
  • Storage Capacity:Β ROM 128 G + expandable storage via microSD card
  • Charging Time:Β 2 hrs for internal battery or internal and external battery. When remote controller is powered off and using a standard DJI charger.
  • Internal Battery Runtime:Β 3.8 hrs
  • External Battery Runtime:Β 3.2 hrs
  • Output Port:Β HDMI 1.4
  • Indicators:Β Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.
  • Speaker:Β Supports buzzer
  • Audio:Β Array MIC
  • Operating Temperature:Β -20Β° to 50Β° C (-4Β°F to 122Β°F)
  • Storage Temperature:Β Within one month: -30Β° to 45Β° C (-22Β°F to 113Β°F), One to three months: -30Β° to 35Β° C (-22Β°F to 95Β°F), Three months to one year: -30Β° to 30Β° C (-22Β°F to 86Β°F)
  • Recharging Temperature:Β 5Β° to 40Β° C (41Β°F to 104Β°F)
  • Supported Aircraft Models:Β Support for Matrice 4T/4E

AL1 Spotlight

  • Weight:Β 99 g (including bracket), Approx. 91 g (excluding bracket)
  • Dimensions:Β 95Γ—164Γ—30 mm (LΓ—WΓ—H, including bracket), 79Γ—164Γ—28 mm (LΓ—WΓ—H, without bracket)
  • Max. Power:Β 32 W
  • Illuminance:Β 4.3Β±0.2 lux @ 100 meters, 17Β±0.2 lux @ 50 meters. The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25Β°C.
  • Effective Illumination Angle:Β 23Β° (10% relative illumination)
  • Effective Illumination Area:Β 1,300 square meters @ 100 meters (10% relative illumination, Normal Mode), 2,200 square meters @ 100 meters (10% central illuminance, Wide FOV Mode)
  • Operating Mode:Β Supports always-on and strobe modes.
  • Gimbal Structural Design Range:Β Tilt: -140Β° to 50Β°
  • Controllable Range:Β Tilt: -90Β° to 35Β°
  • Max Control Speed (tilt):Β 120Β°/s
  • Gimbal Alignment Accuracy:Β Β±0.1Β°
  • Operating Temperature:Β -20Β°C to 50Β°C (-4Β°F to 122Β°F)
  • Mounting:Β Quick-release hand-tightened screws

AS1 Speaker

  • Weight:Β 92.5 g (including bracket), Approx. 90 g (excluding bracket)
  • Dimensions:Β 73Γ—70Γ—52 mm (LΓ—WΓ—H, including bracket), 73Γ—70Γ—47 mm (LΓ—WΓ—H, without bracket)
  • Max. Power:Β 15 W
  • Max. Volume:Β At 1 meter, it can reach 114 decibels (114dB@1m). Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
  • Effective Broadcast Distance:Β 300 m. Data measured in a laboratory environment at 25℃. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
  • Broadcast Mode:Β Real-time broadcasting (supports echo suppression*), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech*** Need to upgrade to the latest firmware. ** Currently only supports Chinese and English.
  • Operating Temperature:Β -20Β°C to 50Β°C (-4Β°F to 122Β°F)
  • Mounting:Β Quick-release hand-tightened screws

DJI Matrice 4T Universal Edition inclusions:

  • 1x DJI Matrice 4T
  • 1x DJI Matrice 4 Series Battery
  • 1x DJI RC Plus 2 Enterprise
  • 1x DJI 100W USB-C Power Adapter
  • 1x DJI Matrice 4 Series Charging Hub
  • 1x microSD Card
  • 1x DJI Matrice 4T Gimbal Protector
  • 1x DJI Cellular Dongle 2 Pry Bar
  • 3x DJI Matrice 4 Series Propellers
  • 1x 100W Power Adaptor AC Cable
  • 1x USB-C to USB-C Data Cable
  • 1x USB-A to USB-C Data Cable
  • 1x DJI Matrice 4 Series Storage Case
  • 1x DJI Matrice 4 Series Storage Case Shoulder Strap

Bundle Inclusions:

  • 1x DJI Manifold 3
  • 1x DJI Manifold 3 Accessory Kit (Matrice 4 Series)
  • 1x DJI Obstacle Sensing Module (Matrice 4 Series)
  • 1x DJI Matrice 4 Series Charging Hub (200W)
  • 1x DJI Matrice 4 Series Battery
What does the Manifold 3 add to the Matrice 4T?

Manifold 3 is an onboard computer that delivers up to 100 TOPS of AI processing power directly on the aircraft, running on an NVIDIA Jetson Orin NX platform. It enables real-time AI inference, payload data processing, and custom application execution without relying on ground-based post-processing. Applications install and update through DJI Pilot 2, so field crews don't need command-line tools to manage it.

Do I need any additional hardware to install the Manifold 3?

Yes. This bundle includes the DJI Manifold 3 Accessory Kit, which provides the connector, coaxial cable, mounting screws, and installation tools required to properly mount and connect Manifold 3 to the Matrice 4T. Proper installation, including fully tightened cable screws, helps maintain the aircraft's water resistance and prevents disconnection from vibration during flight.

What does the Obstacle Sensing Module detect?

The Obstacle Sensing Module combines rotating LiDAR and five-direction millimeter-wave radar to detect obstacles, including thin structures such as 12 mm power grid wires, at ranges up to 100 meters. It's designed for close-range and confined industrial environments where standard optical sensing may struggle. The module mounts through a dedicated sensing expansion port using the included Matrice 4 Series adapter bracket.

Does this bundle include what I need to power the 200W Charging Hub?

No. The 200W Charging Hub requires the DJI 240W Portable Charger or DJI Power 1000 to operate, and neither is included in this bundle. The 100W USB-C Power Adapter that ships with the base M4T kit is not compatible with the 200W hub. We recommend ordering a 240W charger or Power 1000 separately to use this hub.

How many batteries come with this bundle?

This bundle includes two DJI Matrice 4 Series Batteries total: one ships standard with the M4T Universal Edition kit, and one additional battery is added as part of this configuration. Each battery delivers 99.5 Wh of energy and supports up to 49 minutes of flight time under optimal conditions. Having two batteries lets crews rotate power through a longer field session.
