DJI Matrice 4D with Controller, D-RTK 3 Kit, Battery, and PIX4Dmapper Yearly

DJI Matrice 4D with Controller, D-RTK 3 Kit, Battery, and PIX4Dmapper Yearly: Mechanical-Shutter Mapping Drone Ready to Fly

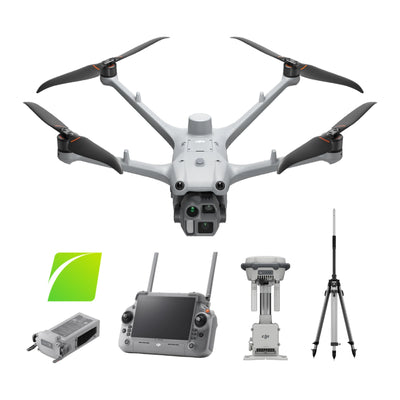

The DJI Matrice 4D with Controller, D-RTK 3 Kit, Battery, and PIX4Dmapper Yearly is a complete survey drone package built around the Matrice 4D, whose 20 MP 4/3 wide camera has a mechanical shutter for mapping work. Alongside the aircraft come the RC Plus 2 Enhanced Controller, one battery, the D-RTK 3 positioning kit (station, survey pole, and tripod), and a one-year PIX4Dmapper rental. The aircraft adds a medium tele lens and a tele lens at 48 MP each, a laser rangefinder, and built-in RTK, and it works standalone with no Dock 3 required.

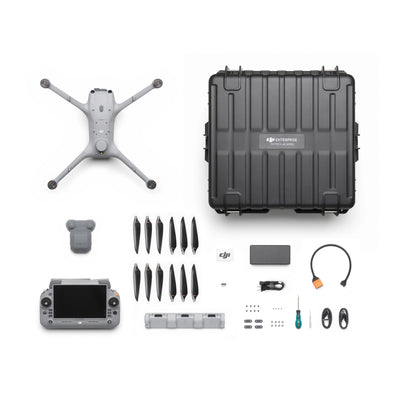

A 240W charging hub, a 240W power adapter, and a storage case ship with the standalone unit, and a free strap for the carrying case is added while supplies last. The D-RTK 3 serves as a base station feeding RTK corrections to the aircraft, or as a rover logging ground control points, and PIX4Dmapper processes the results into orthomosaics and point clouds on a Windows 10/11 computer. DJI Care Enterprise is left out of the package, and DSLRPros Care Plus can be purchased separately.

Key Features and Benefits

• Mechanical Shutter: Wide camera captures mapping stills using a mechanical shutter
• Triple Camera Setup: 20 MP wide plus two 48 MP tele lenses
• Range Finding: Laser rangefinder measures out to 5,906 ft (1,800 m)
• Endurance: Up to 54 minutes of flight with no wind
• Built-In RTK: No add-on module is needed for RTK positioning
• Field Protection: IP55 rating guards against dust and water jets
• Sensing: Binocular vision all around plus a downward infrared sensor
• Base and Rover: D-RTK 3 serves as a base station or rover
• Included Software: One year of PIX4Dmapper for orthomosaics and point clouds
• Charging Setup: 240W hub and adapter come with the aircraft

Dimensions, Speed, and Operating Limits

Without propellers, the aircraft measures 14.9×16.4×8.4 in (377.7×416.2×212.5 mm). It weighs 4.08 lb (1,850 g) with battery and propellers mounted, against a maximum takeoff weight of 4.61 lb (2,090 g). Normal mode flies forward at up to 33.6 mph (15 m/s), while Sport mode reaches 47 mph (21 m/s). DJI specifies wind tolerance of 26.8 mph (12 m/s) alongside a flight distance of 26.7 mi (43 km) and takeoff altitude up to 21,325 ft (6,500 m). The O4+ Enterprise link extends to 15.5 mi (25 km) in FCC regions, with an operating window of -4°F to 122°F (-20°C to 50°C).

Compatibility and System Integration

• 1 Matrice 4D drone with 1 RC Plus 2 Enhanced Controller (included)
• 1 Matrice 4D Series battery with 6,768 mAh capacity (included)
• 1 charging hub and 1 power adapter, both rated 240W (included)
• 1 D-RTK 3 station with 4 spare OcuSync directional antennas (included)
• 1 survey pole and 1 tripod, self-locking and dual-lock designs (included)
• 1 storage case made for Matrice 4D Series transport (included)
• 1 carrying case strap as a free promotional bonus (included)
• 1 PIX4Dmapper yearly rental for Windows 10/11 64-bit computers (included)

Applications and Use Cases

• Construction site progress mapping and earthwork volume tracking for contractors
• Cadastral and boundary survey support with ground control from the rover
• Highway and rail corridor documentation using wide camera mapping passes
• Mine pit and quarry surface modeling for stockpile volume reporting
• Utility and tower site documentation with tele camera detail captures
• Emergency response mapping when crews must deploy without a dock

A survey crew that buys these parts one at a time often ends up waiting on a missing tripod, charger, or software license. Here the pole, tripod, adapter, and case all arrive with the aircraft, so the first job can be planned around a single delivery. DJI Care Enterprise is not part of this package.

Ordering through DSLRPros puts the aircraft, ground station, charging gear, and software on one invoice for survey and mapping teams. Pair it with DSLRPros Care Plus, bought before the order ships, for accidental damage protection. Order this kit from DSLRPros today.
