• DJI Matrice 400 Gimbal Damper set
  • DJI Matrice 400 Gimbal Damper set of 5
  • DJI Matrice 400 Gimbal Damper 5-pc set
1 3

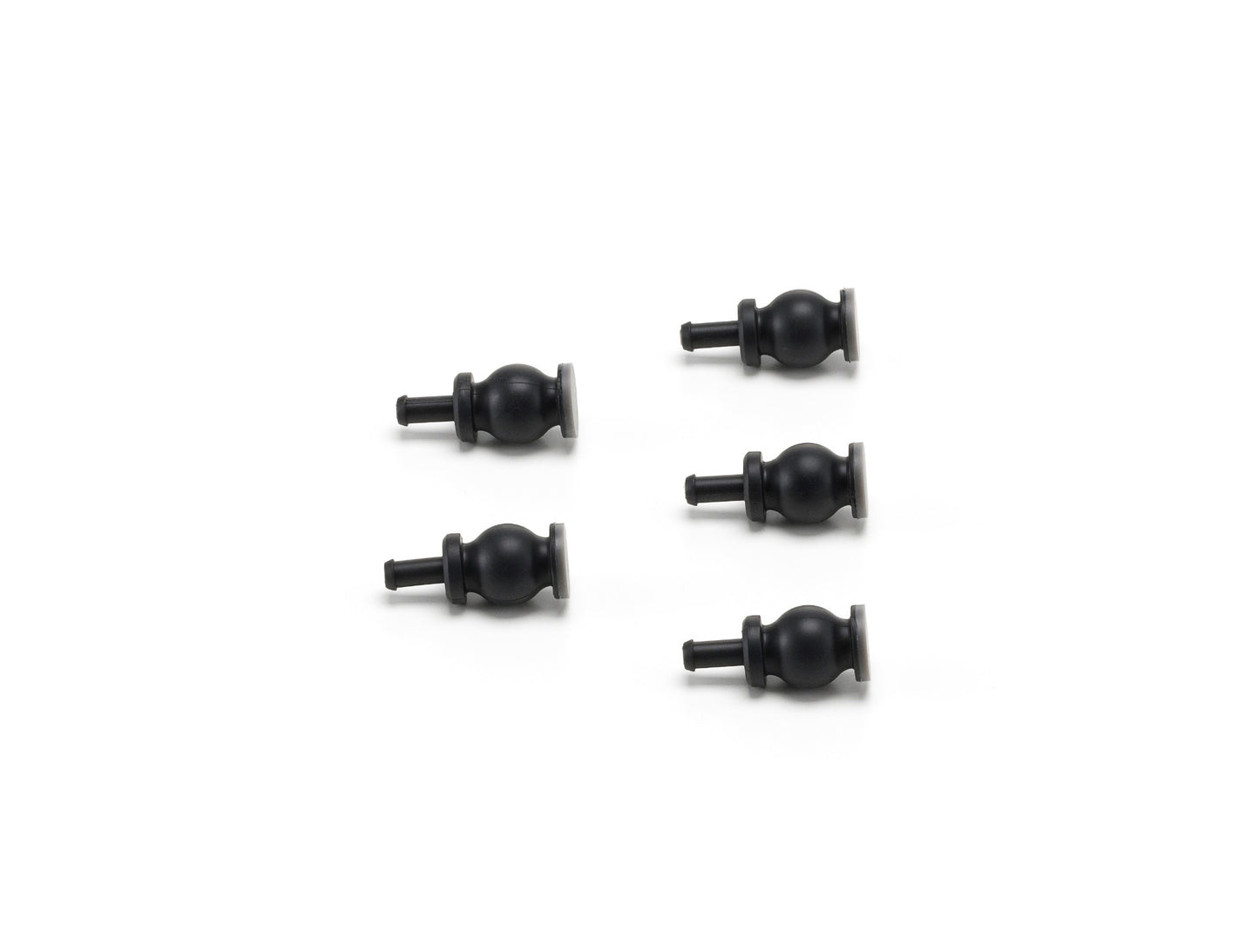

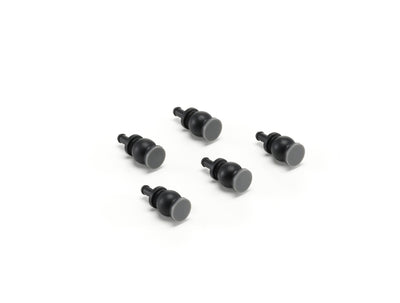

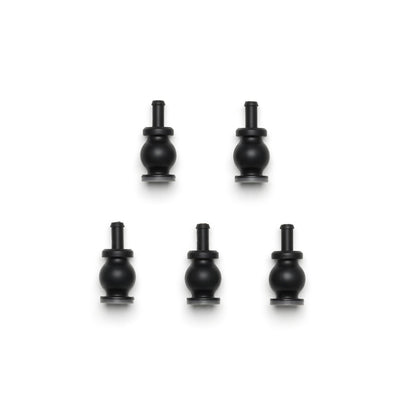

DJI Matrice 400 Gimbal Damper

DJI Matrice 400 Gimbal Damper

$24.00
$24.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-M400-GD

SKU S-DJI-M400-GD MPN CP.EN.00000676.01 UPC 190021149113
  • Vibration reduction via frequency-tuned silicone for maximum sensor stability.
  • Support for single downward payloads up to 3.09 lbs (1,400 g).
  • Dual gimbal compatibility supporting 2.09 lbs (950 g) per position.
  • Standard service life of 1,000 hours for typical mission payloads.
  • Specialized heavy-duty rating for intensive 400-hour high-payload flight operations.
  • Universal integration with M400 series single and dual connector modules.
  • Lightweight polymer construction ensures no degradation to total flight time.
  • Prevention of image distortion and high-frequency mechanical interference during flight.
  • Simplified installation process including five replacement dampers per retail package.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 400 Gimbal Damper: Precision Vibration Reduction

The DJI Matrice 400 Gimbal Damper is an essential precision-engineered component designed to isolate sensitive payloads from airframe vibrations. Specifically tuned for the Matrice 400 series, these dampers utilize high-elasticity silicone to absorb mechanical oscillations and shocks during intensive flight operations. By providing a stable interface between the aircraft and the sensor, they ensure the capture of sharp, distortion-free data necessary for professional mapping and inspection. These dampers are critical for operators who require consistent sensor accuracy and extended equipment longevity in demanding industrial environments.

DJI Matrice 400 Gimbal Damper core features and advantages

  • Vibration absorption: frequency-tuned silicone effectively eliminates mechanical oscillations and high-frequency noise.
  • Single gimbal capacity: supports downward payloads weighing up to 3.09 lbs (1,400 g).
  • Dual gimbal configuration: each mounting position supports payloads up to 2.09 lbs (950 g).
  • Extended service life: offers 1,000 hours of operation for payloads under 950 g.
  • Heavy payload rating: maintains 400 hours of service life for payloads exceeding 950 g.
  • Comprehensive compatibility: integrates with single, dual, and third gimbal connector mounting hardware.
  • Industrial durability: constructed from lightweight polymers designed to withstand extreme operational temperatures.
  • Optimized data quality: prevents the jello effect in video and improves photogrammetry accuracy.
  • Maintenance efficiency: features a tool-less installation design for rapid field replacement and service.

The DJI Matrice 400 Gimbal Damper is a vital structural link that ensures mission success by maintaining payload stability in turbulent conditions. It consistently solves the problem of mechanical interference, allowing for the highest level of precision in aerial data collection. This component delivers long-term reliability for professionals who cannot afford compromised imagery during critical infrastructure inspections.

DSLRPros understands that mission continuity depends on the smallest high-performance parts in your UAV lifecycle. Our technical team ensures you have the exact components required to keep your Matrice 400 fleet operational and precise. Secure your industrial data quality by purchasing the DJI Matrice 400 Gimbal Damper from DSLRPros.

Load and Capacity

  • Single downward gimbal: supports up to 1,400 g (approx. 3.1 lbs)
  • Dual downward gimbal: each position supports up to 950 g (approx. 2.1 lbs)
  • Zenmuse L3 connector: supports up to 2,100 g

Lifespan and Durability

  • Standard payload (≤ 950 g): rated for 1,000 hours
  • Heavy payload (> 950 g): rated for approximately 400 hours
  • Operating temperature: −20°C to 50°C (−4°F to 122°F)

Physical Specifications

  • Material: upgraded silicone with silicone-filled core for low-frequency damping
  • Package size: 190 × 100 × 15 mm
  • Package weight: approximately 30 g

Compatibility

  • Exclusively for DJI Matrice 400 Series
  • Do not mix with other damper models
  • 5x DJI Matrice 400 Gimbal Dampers
What is the maximum payload weight these dampers can support?

When configured with a single downward-facing gimbal, these dampers are rated to support payloads up to 3.09 lbs (1,400 g). For dual gimbal setups, the capacity is 2.09 lbs (950 g) for each mounting position. Exceeding these weights may compromise vibration isolation and flight safety.

How often should I replace the gimbal dampers on my Matrice 400?

The service life depends on the weight of the sensors you are currently flying. For payloads under 950 g, the dampers are rated for 1,000 hours of flight time. If you are using heavier equipment exceeding 950 g, the service life is reduced to 400 hours.

Can I use these dampers for an upward-facing gimbal configuration?

No, The DJI Matrice 400 architecture does not support any upward-facing gimbal connectors.

What tools are required to replace the dampers in the field?

While the installation of new dampers is tool-less, you will need a pair of scissors to remove the old ones. The removal process involves cutting the used rubber dampers to clear them from the mounting bracket holes. New dampers are then pulled through the positioning holes until the tabs are fully seated.

Are there specific signs of wear I should look for during pre-flight?

During your pre-flight inspection, you should check for any visible dirt, tears, or significant softening of the silicone. The dampers must be free of defects to ensure they maintain the correct frequency tuning. If you notice any distortion in your video feed, it is time to replace them.
