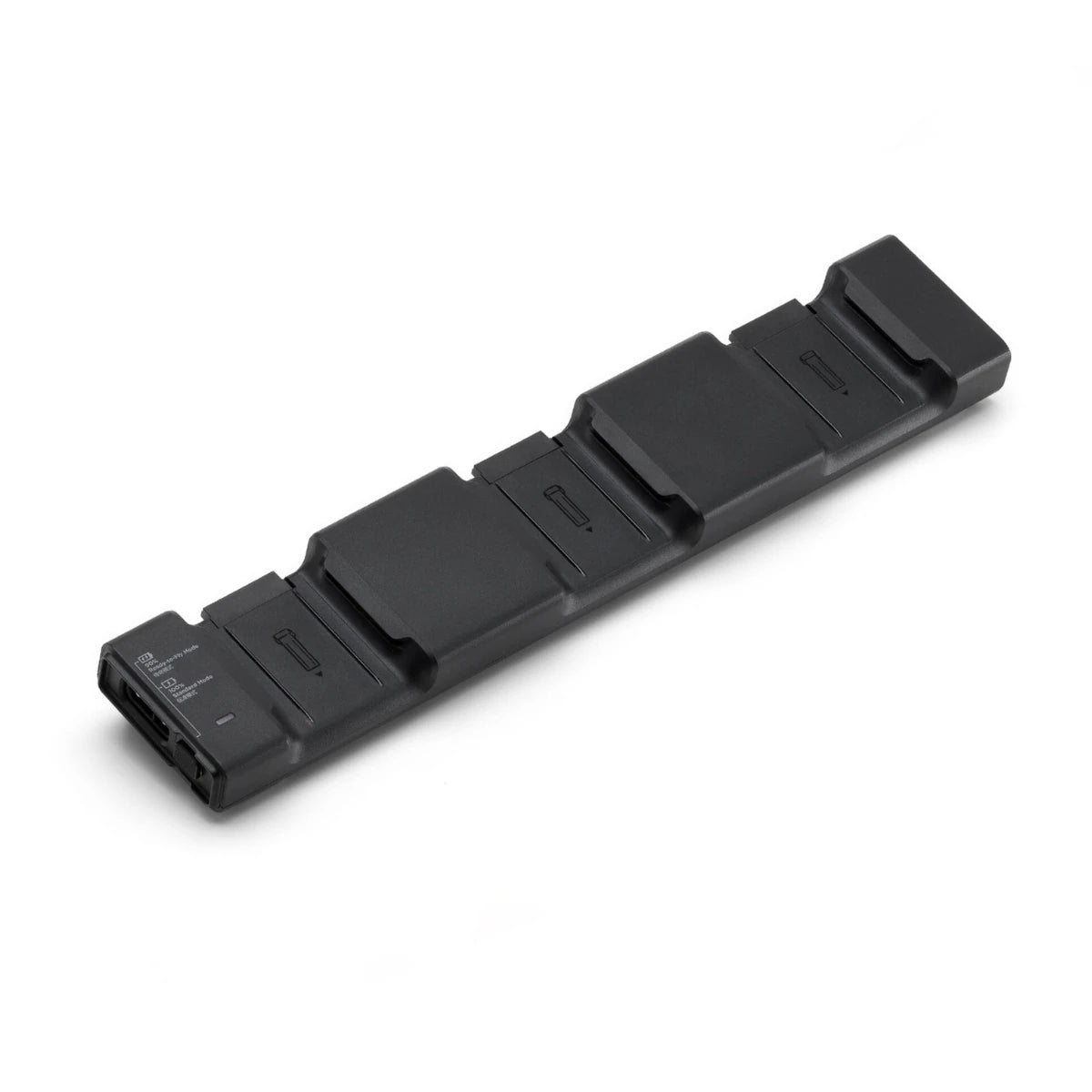

• DJI Matrice 4 Series Charging Hub (200W)

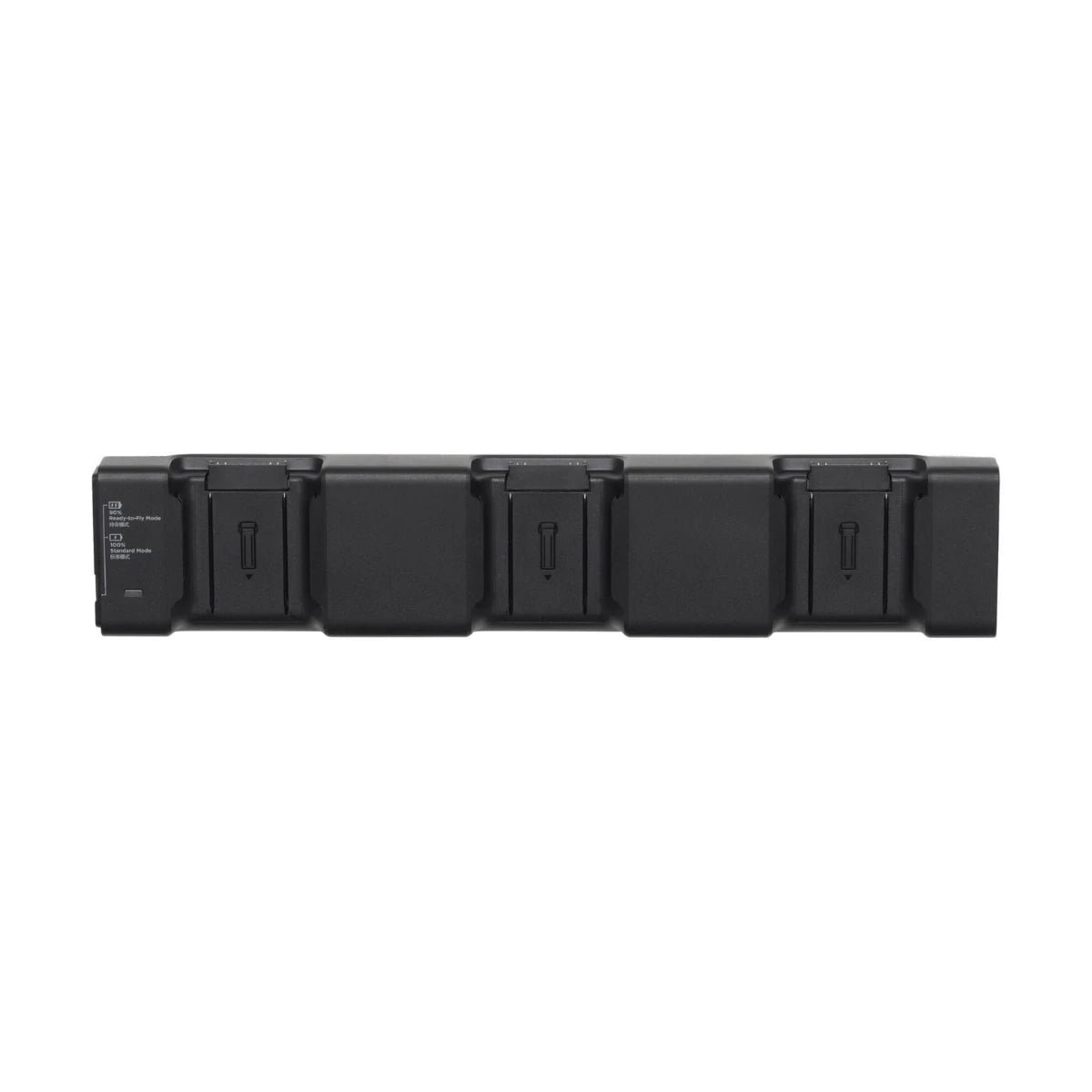

  • DJI Matrice 4 Series 200W charging hub, front view showing four battery slots

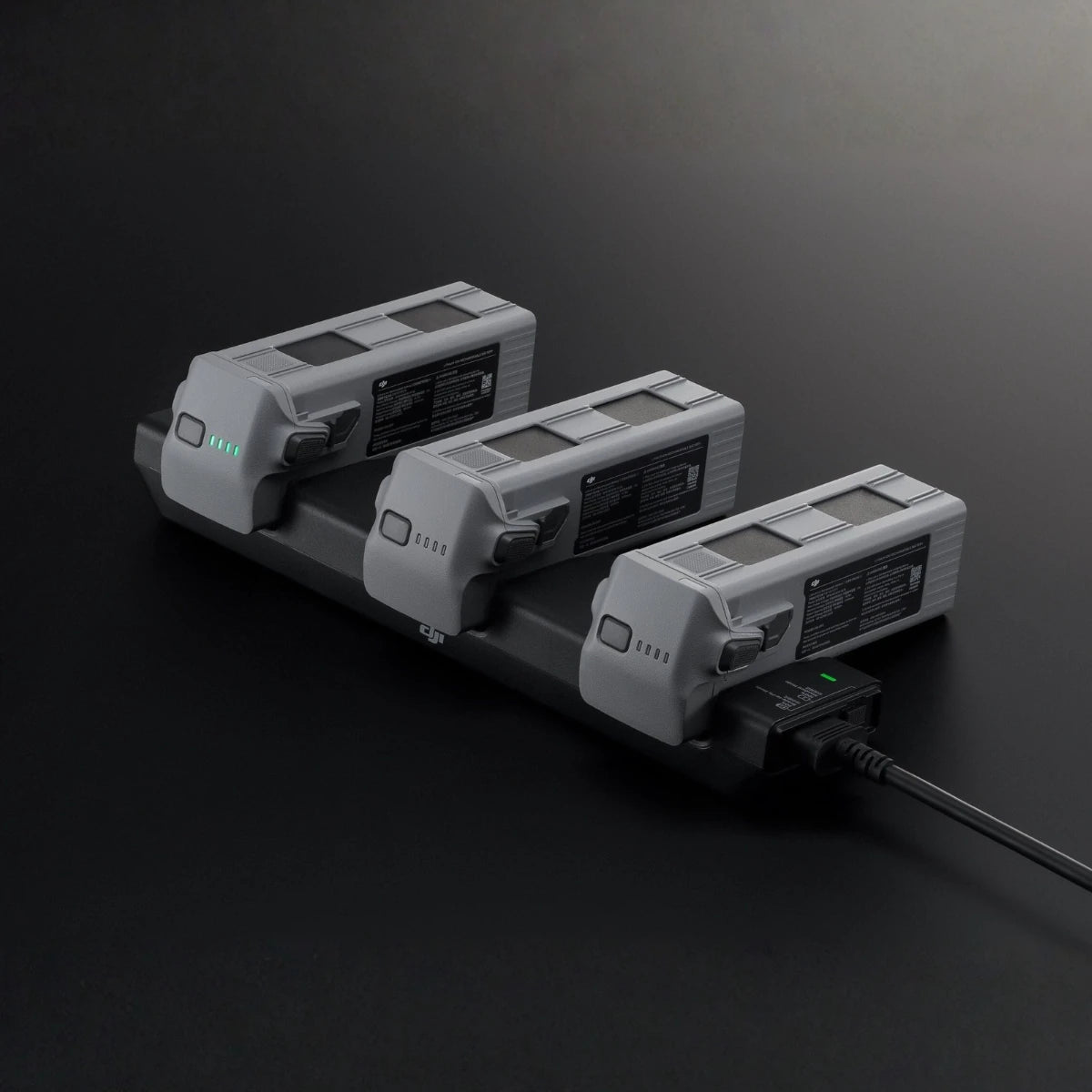

  • DJI Matrice 4 Series charging hub powering three batteries
1 3

DJI Matrice 4 Series Charging Hub (200W)

DJI Matrice 4 Series Charging Hub (200W)

$140.00
$140.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-M4-CH-HUB-200

SKU S-DJI-M4-CH-HUB-200 MPN CP.EN.00000707.01 UPC 190021151109
  • Sequential charging manages three flight batteries from high to low.
  • Rapid power delivery reaches 90% charge within 60 minutes flat.
  • Standard mode completes 100% battery charging in only 78 minutes.
  • Enhanced 200W output charges 30% faster than the 100W version.
  • Dedicated SDC cable ensures safe and stable high current transmission.
  • Intelligent maintenance keeps batteries ready for immediate field deployment tasks.
  • Operational efficiency increases with the DJI 240W portable power adapter.
  • Compact design supports professional teams in diverse and rugged environments.
  • Wide temperature range ensures reliability from 5 to 40 degrees.
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4 Series Charging Hub 200W: rapid power management

The DJI Matrice 4 Series Charging Hub 200W provides a professional grade solution for high tempo unmanned aerial operations. Engineered specifically for the Matrice 4T and Matrice 4E platforms, this hub streamlines energy management by sequentially charging up to three flight batteries.

By prioritizing the battery with the highest remaining energy, the system ensures that operators return to the air with minimal downtime. This helps public safety teams and industrial inspectors who require a reliable, high speed charging infrastructure maintain continuous mission cycles in demanding environments.

Core Features and Advantages

  • Sequential charging: Charges up to three flight batteries from high to low energy levels.
  • Rapid deployment: Reaches 90% charge in approximately 40 minutes for a single battery (when paired with 240W source).
  • Full cycle speed: Completes a 100% standard charge in roughly 55 minutes, significantly reducing ground time.
  • Dual modes: Supports standard 100% charging and "Ready-to-Fly" 90% mode for maximum operational tempo.
  • Enhanced efficiency: Delivers 30% faster charging speeds compared to the standard 100W hub.
  • Power versatility: Pairs natively with DJI 240W Portable Chargers or DJI Power 1000 stations.
  • SDC interface: Includes a specialized SDC Fast Charge Cable to manage high-current 200W power delivery safely.
  • Thermal regulation: Engineered to operate reliably within the 5Β° to 40Β° C (41Β° to 104Β° F) temperature range.

This charging hub eliminates the logistical bottlenecks associated with battery rotation during critical field assignments. Its ability to communicate with the 240W portable charger ensures maximum throughput and hardware safety.

Field teams can rely on this hub to provide a predictable and efficient power supply for sustained flight operations.

DSLRPros understands that in public safety and industrial sectors, every minute of flight time counts toward mission success. We offer the technical expertise and lifecycle support necessary to keep your Matrice 4 fleet mission ready at all times.

Secure your charging infrastructure today and ensure your team is always prepared to deploy with DSLRPros.

  • Model Name:Β CHX345-200.
  • Rated Power: 200W.
  • Battery Capacity: Charges up toΒ threeΒ Intelligent Flight Batteries.
  • Charging Logic: Sequential (charges the battery with the most remaining power first).
  • Input Requirements: 11.2 V to 17 V (maximum 12.1 A).
  • Compatible Batteries: Specifically forΒ BPX345-6741-14.76Β (Matrice 4 Series).
  • Required Power Adapter: Must be used with theΒ DJI 240W Portable ChargerΒ (model:Β CDX230-240) or aΒ DJI Power 100 station to reach full speed.
  • Operational Modes:Standard Mode: Charges to 100% sequentially.Ready-to-Fly Mode: Charges to 90% sequentially and maintains that level for rapid deployment.
  • Operating Temperature: 5Β°C to 40Β°C (41Β°F to 104Β°F).
  • 1x DJI Matrice 4 Series Charging Hub (200W)
  • 1x SDC Fast Charge Cable
Which specific power adapter is required to achieve the full 200W charging speed for this hub?

To reach the rated 200W output, this hub must be paired with the DJI 240W Portable Charger or the DJI Power 1000 station. Using a lower wattage adapter will result in slower charging times and may not support the 200W high speed charging mode. The included SDC cable is specifically designed to facilitate this high current connection.

What is the operational difference between Standard Mode and Ready-to-Fly Mode?

Standard Mode is designed to charge each battery sequentially until they reach a full 100% capacity for maximum endurance. Ready-to-Fly Mode prioritizes speed by charging batteries to 90% and then maintaining that level for immediate takeoff. This allows flight teams to rotate batteries faster during time sensitive missions.

How long does it take to charge a single battery using the 200W hub compared to the 100W version?

When using the recommended 240W adapter, the 200W hub is approximately 30% faster than the 100W version. Specifically, it takes about 40 minutes to reach 90% and 55 minutes to reach 100% for a single battery. The 100W hub takes significantly longer, requiring roughly 60 minutes for 90% and 78 minutes for a full charge.

Is the DJI Matrice 4 Series Charging Hub 200W compatible with older Matrice models like the M300?

No, this charging hub is engineered exclusively for the Matrice 4 Series, including the 4T and 4E models. It uses a specific battery interface and power protocol that is not backward compatible with the M300 or M30 series. Attempting to use incompatible batteries could damage the hardware or the cells.

Can the hub charge all three batteries simultaneously at 200W?

The hub operates using sequential charging logic, meaning it focuses power on one battery at a time starting with the one that has the highest charge. This ensures that the most usable battery is ready for flight as quickly as possible. Once the first battery reaches the set target, the hub automatically begins charging the next one in the sequence.
