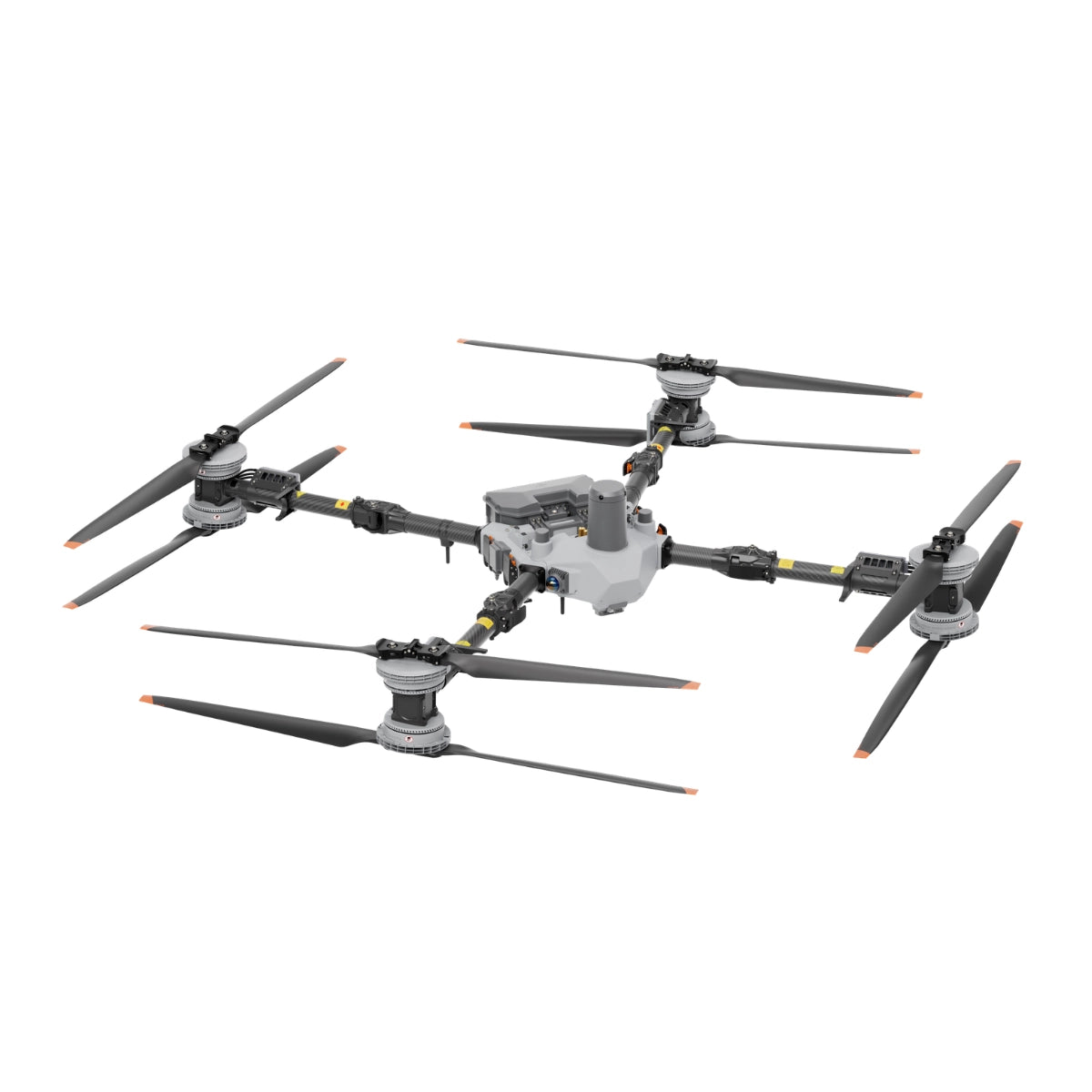

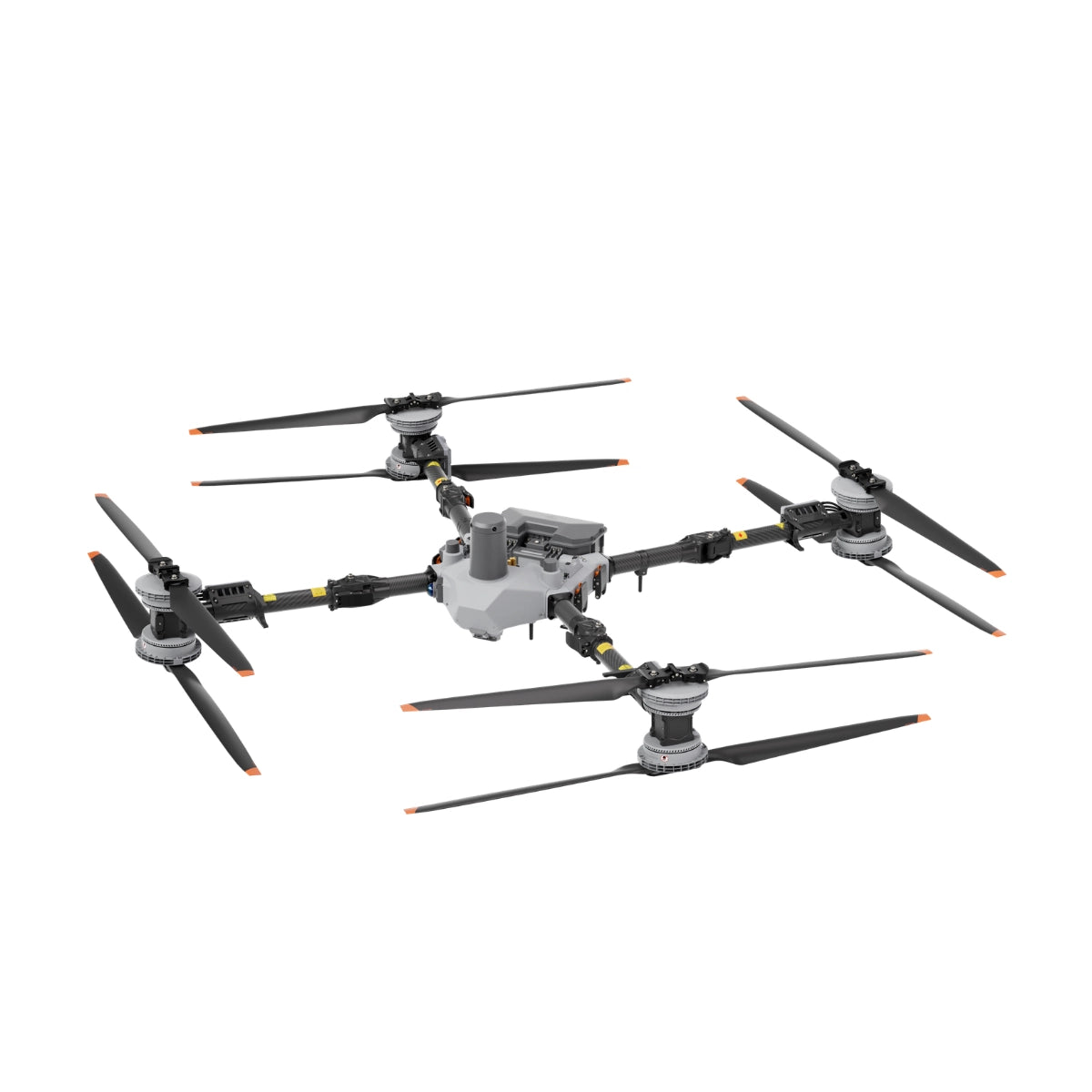

DJI FlyCart 100: Industrial-Grade Cargo Delivery for Heavy-Lift Missions
The DJI FlyCart 100 is DJI's flagship heavy-lift delivery drone, built to carry up to 85 kg of cargo in dual-battery mode across a 12 km flight distance, or up to 100 kg in single-battery mode over shorter range. This base configuration ships as the aircraft and RC Plus 2 controller only, without a battery or payload system installed, giving operators the flexibility to pair it with either the Flagship Winch System or the Dual-Battery Lifting System based on their specific delivery workflow.
Built around an 8-rotor coaxial propulsion system with 62-inch carbon fiber propellers, the FlyCart 100 combines LiDAR, millimeter-wave radar, and a quad-vision sensing suite to operate safely at industrial cargo weights most delivery drones cannot approach.
Key Features and Benefits
- Heavy-lift capacity: carries up to 85 kg in dual-battery configuration.
- Single-battery mode: lifts up to 100 kg for short-range, high-weight deliveries.
- Extended range: reaches up to 12 km flight distance with full cargo.
- Advanced sensing: LiDAR, millimeter-wave radar, and quad-vision detect obstacles from all sides.
- Integrated parachute: deploys automatically to protect cargo and aircraft during emergencies.
- Weatherproof design: IP55 rating supports operation from -20C to 40C.
- Long-range control: DJI O4 transmission reaches up to 20 km FCC.
- Precision positioning: RTK support delivers 10 cm accuracy in both directions.
- Flexible payload options: supports either the Winch System or Lifting System separately.
- Coordinated operations: dual-operator mode supports complex multi-person delivery workflow management.
Moving heavy cargo by air introduces failure modes that standard obstacle avoidance was never built to handle, and the FlyCart 100 is engineered around that reality. An integrated parachute system, redundant dual-battery power, and a full sensing suite covering front, rear, and downward directions give operators a safety margin appropriate to loads in the tens of kilograms, not just a few pounds.
DJI O4 transmission reaches up to 20 km in the US, and the DJI Delivery App-driven RC Plus 2 controller supports RTK positioning and dual-operator mode for coordinated ground crews managing complex delivery routes.
Sensing and Recovery Scaled to the Cargo
Cargo drones operating at industrial weights need more than raw lift; they need a recovery system built for what happens if a heavy aircraft loses control. The FlyCart 100 pairs LiDAR covering 272 degrees vertically with front-facing millimeter-wave radar at 360 degrees horizontal and a quad-vision system for full situational awareness around the airframe.
If something goes wrong, the integrated parachute deploys automatically above 100 meters, bringing the aircraft down at a controlled 7 meters per second or slower. Combined with dual-battery redundancy and RTK positioning accurate to 10 centimeters, this platform suits operators moving cargo where failure carries real consequences.
Compatibility and System Integration
- RC Plus 2 controller: DJI Delivery App ground control station (included).
- DJI Flagship Winch System: 0-30m cable with active hook control (sold separately).
- DJI Dual-Battery Lifting System: fixed 10m cable configuration option (sold separately).
- DB2160 or DB2212 Intelligent Flight Battery: required for flight operations (sold separately).
- C12000 Intelligent Power Supply: fast-charges batteries in 9 minutes (sold separately).
- D-RTK 3 Multifunctional Station: extends signal range in obstructed terrain (sold separately).
- DJI Battery Incubator: maintains battery temperature in extreme conditions (sold separately).
Applications and Use Cases
- Emergency and disaster relief: deliver food, medicine, and equipment to isolated areas.
- Utility and infrastructure supply: transport tower materials and equipment to remote sites.
- Construction material transport: move rebar, cement, and equipment to confined job sites.
- Island and remote community resupply: replace boats and helicopters for regular deliveries.
- Agricultural input transport: carry fertilizer, seeds, and tools across mountainous farmland.
- Industrial park and warehouse logistics: move materials and spare parts between facilities.
Standard delivery drones simply were not built for cargo in the tens of kilograms, and that gap is exactly what the FlyCart 100 closes. Redundant power, integrated parachute protection, and full-coverage sensing turn heavy-lift delivery from a liability into a repeatable, manageable operation.
DSLRPros configures FlyCart 100 systems for operators who need to match the right payload system, battery count, and charging infrastructure to their specific delivery workflow. Our team can help confirm your Winch System or Lifting System choice before your aircraft ships. Order the DJI FlyCart 100 today at DSLRPros.
