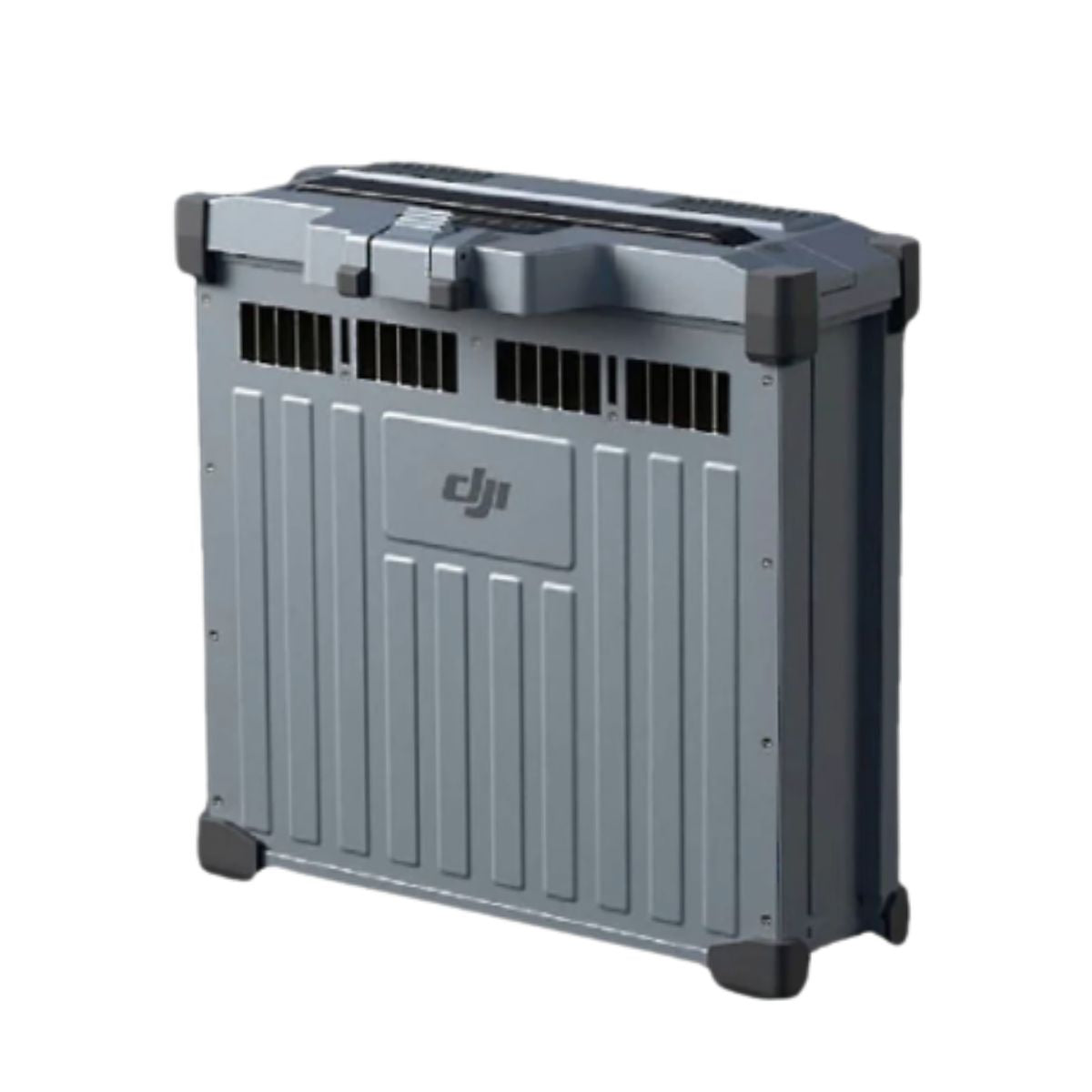

DJI DB1560 Intelligent Flight Battery: Maximum uptime for Agras operations
The DJI DB1560 Intelligent Flight Battery delivers extended flight time and operational reliability for Agras drone fleets. Featuring a high-capacity 30,000 mAh pack at 52.22 V, it's built to handle the heavy energy demands of agricultural spraying and mapping missions. Designed for efficiency, it supports rapid recharging in as little as 9-12 minutes using compatible generators and battery stations, allowing more flights per day and reduced field downtime. Compatible with the Agras T50, T40, T25, T20P, and T30.
Built for performance and durability
Constructed with advanced NMC lithium cells, the DB1560 provides a high discharge rate of 11.5 C, ensuring steady power under load. Its internal thermal management and structural potting protect against overheating, moisture, and dust intrusion. The integrated intelligent battery management system monitors voltage, current, and temperature in real time, balancing cells automatically to maintain peak efficiency over 1,500 charge cycles.
Smarter energy for smarter farming
From sunrise to sunset, operators can count on consistent energy delivery and quick battery rotations. The DB1560 automatically enters self-discharge mode to preserve capacity when stored, while its built-in protection circuit guards against short-circuits, over-voltage, and over-temperature events. Whether powering crop-spray missions, fertilizer runs, or aerial mapping, this intelligent pack keeps Agras platforms mission-ready with dependable uptime.
Key features and benefits
- High capacity 30,000 mAh battery extends flight duration
- Nominal voltage 52.22 V ensures stable power for Agras systems
- Supports up to 1,500 charge cycles for long-term reliability
- Fast recharge time of 9-12 minutes with compatible stations
- 11.5 C discharge rate maintains performance under heavy load
- Intelligent management monitors voltage, temperature, and balance
- IP54-rated construction resists dust and moisture in farm conditions
- Self-diagnostic protection prevents over-current and short circuits
- Thermal control maintains optimal operating temperature
- Plug-and-play design simplifies field battery swaps
Applications and use cases
- Agricultural spraying for large-scale farms and plantations
- Fertilizer and pesticide distribution over wide coverage areas
- Precision mapping and field analysis missions
- Continuous flight operations with generator-based charging setups
- Multi-battery rotation for high-productivity workflows
- Harsh environments with heat, dust, or high humidity
- Cooperative or commercial farming requiring sustained uptime
- Extended-duration missions needing fast recharge turnaround
The DJI DB1560 Intelligent Flight Battery combines high capacity, fast charging, and intelligent monitoring to keep your Agras drone performing at its best in every field condition.
At DSLRPros, we provide certified DJI batteries, reliable after-purchase support, and nationwide consultation to help you optimize your agricultural operations. Purchase the DB1560 today and experience uninterrupted performance in every mission.
Specifications
- Model: DB1560 (BAX702-30000mAh-52.22V)
- Capacity: 30,000 mAh
- Nominal voltage: 52.22 V
- Battery type: Li-ion (LiNiMnCoO₂)
- Energy: Approximately 1,567 Wh
- Maximum discharge rate: 11.5 C
- Maximum charge rate: 6 C
- Typical recharge time: 9-12 minutes (with compatible generator or charger)
- Cycle life: Up to 1,500 charge cycles
- Operating temperature: −5 °C to 45 °C (23 °F to 113 °F)
- Charging temperature range: 0 °C to 60 °C (32 °F to 140 °F)
- Protection features: Over-voltage, over-current, short-circuit, and over-temperature protection
- Protection rating: IP54 with board-level potting
- Intelligent features: Real-time monitoring, cell balancing, auto-discharge, and self-diagnostics
- Installation: Plug-in design for quick field replacement
- Compatible aircraft: DJI Agras T50, T40, T25, T20P, and T30
- Weight: Approximately 12.1 kg
In The Box
- 1x DJI DB1560 Intelligent Flight Battery
