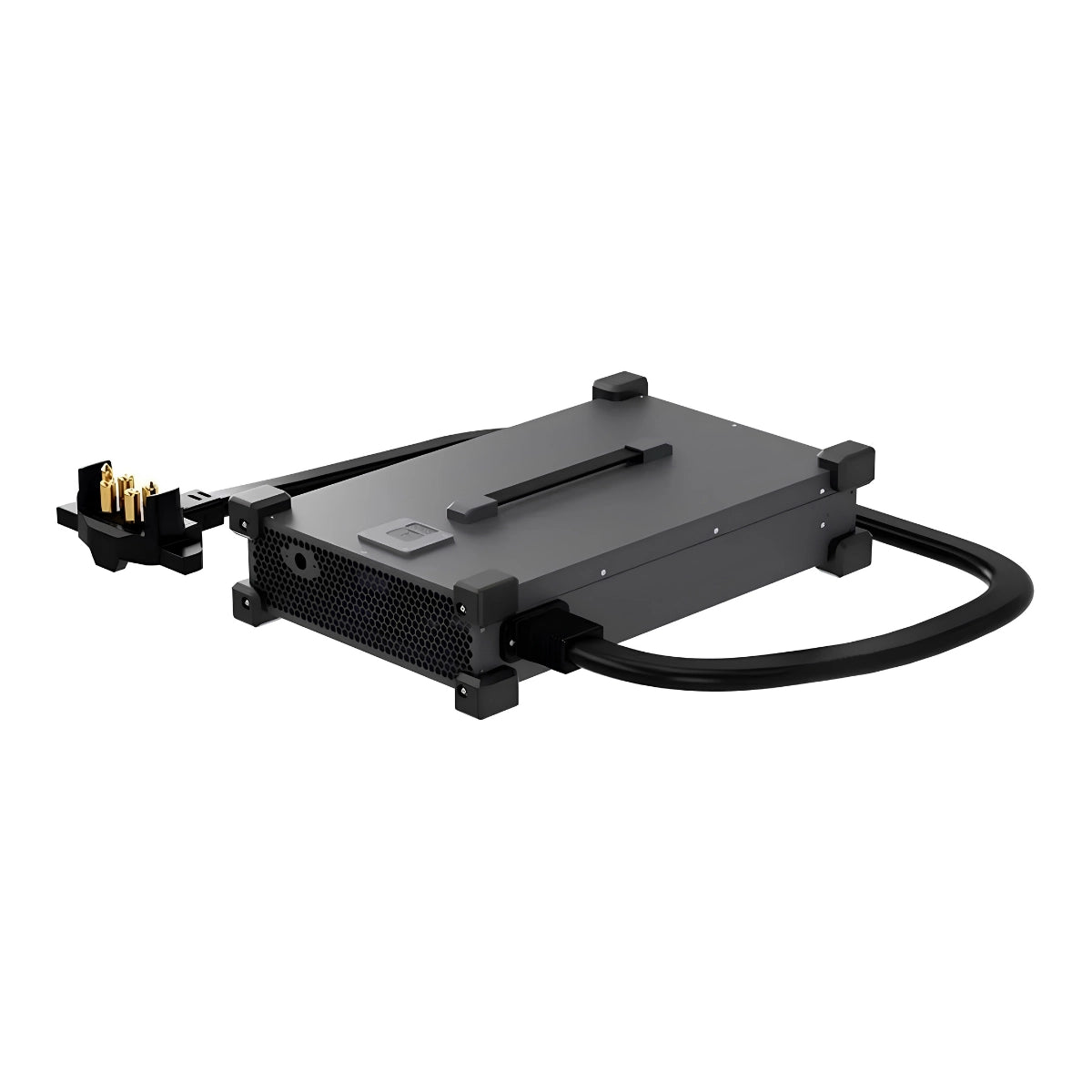

• DJI C12000 Intelligent PowerSupply (EMC)
1 1

DJI C12000 Intelligent PowerSupply (EMC)

DJI C12000 Intelligent PowerSupply (EMC)

$2,279.00
$2,279.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-C12000

SKU S-DJI-C12000 MPN CP.AG.00001012.01 EAN 6937224112087 UPC 190021137578
  • Recharges a battery from 30 to 95 percent in under nine minutes
  • Delivers up to 12000 watts of power through tri-phase input
  • Compatible with battery types for AGRAS T100 and FlyCart 100
  • Accepts both three-phase and single-phase AC power sources
  • Guards against over-voltage, over-temperature, and short-circuit faults
  • Includes a durable 1.8 meter cable for reliable field connections
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI C12000 Intelligent Power Supply: 12,000W Charging Recharges a Battery in Minutes

The DJI C12000 Intelligent Power Supply is a high-speed charging station built to power DB1580 and DB2160 Intelligent Flight Batteries, supporting both the AGRAS T100 and FlyCart 100 platforms. A tri-phase input design delivers up to 12,000W of rated power, recharging a battery from 30% to 95% in as little as 8 to 9 minutes.

Adaptive power protection guards against over-temperature, over-voltage, under-voltage, short-circuit, and fan stall conditions, keeping the unit safe through repeated high-output charging cycles. A robust 1.8-meter cable and single-phase input option add flexibility for different field power setups when three-phase power isn't available.

Key Features and Benefits

  • Ultra fast charging: recharges a battery in 8 to 9 minutes
  • High power output: delivers up to 12000 watts of charging power
  • Cross platform compatibility: charges batteries for AGRAS T100 and FlyCart 100
  • Flexible power input: accepts both three-phase and single-phase AC
  • Layered protection: guards against voltage, temperature, and circuit faults
  • Durable cable: includes a robust 1.8 meter charging cable

Minutes matter when a heavy-lift platform needs to get back in the air, and this power supply exists to cut charging downtime as close to zero as the battery chemistry allows. Its cross-platform compatibility means one charger covers both delivery and agricultural operations running on shared battery types.

DSLRPros stocks the charging infrastructure that keeps AGRAS T100 and FlyCart 100 operations running with minimal downtime. Our technicians can confirm your power source setup before you check out. Order the DJI C12000 Intelligent Power Supply from DSLRPros today.

Model Designation

  • DJI C12000 Intelligent Power Supply (EMC)
  • Charger Model: CSX901-12000

Product Type / Function

  • High-speed charging station for DJI Intelligent Flight Batteries
  • Tri-phase input design for ultra-fast charging
  • Adaptive power protection
  • Includes a 1.8-meter charging cable

Compatibility

  • DB1580 Intelligent Flight Battery (AGRAS T100)
  • DB2160 Intelligent Flight Battery (FlyCart 100)

Technical Specifications

  • Dimensions: 456mm x 291mm x 107mm
  • Weight: 13.13 kg
  • Input voltage: Three-phase AC 175–520V; Single-phase AC 200–264V
  • Output voltage: 62V
  • Rated output current: 194A
  • Rated power: 12,000W (three-phase 380V input); 3,000W (single-phase 220V input)
  • Recharge time: 8–9 minutes for a DB2160 battery from 30% to 95% charge (measured at sea level, 15–40Β°C environment; fast recharge supported when battery cell temperature is 15–75Β°C)
  • Protection functions: over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protections
  • Operating temperature: 0Β°C to 40Β°C (32Β°F to 104Β°F)
  • Output channels: 1
  • 1x DJI C12000 Intelligent Power Supply (EMC)

Which batteries is this power supply compatible with?

This power supply charges the DB1580 Intelligent Flight Battery used with the AGRAS T100 and the DB2160 Intelligent Flight Battery used with the FlyCart 100. Confirm your specific battery model with DSLRPros before ordering.

How fast can this charger recharge a battery?

Using three-phase 380V input, this charger can recharge a DB2160 battery from 30% to 95% in approximately 8 to 9 minutes, measured at sea level in a 15 to 40 degree Celsius environment. Charging time may vary based on battery temperature and input power conditions.

What power sources does this charger accept?

This charger accepts three-phase AC input from 175 to 520V, delivering up to 12,000W, or single-phase AC input from 200 to 264V, delivering up to 3,000W. This flexibility allows it to adapt to different field power setups depending on what's available.

What safety protections does this charger include?

This charger includes protection against over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other fault conditions, helping ensure safe and reliable operation through repeated high-output charging cycles.
