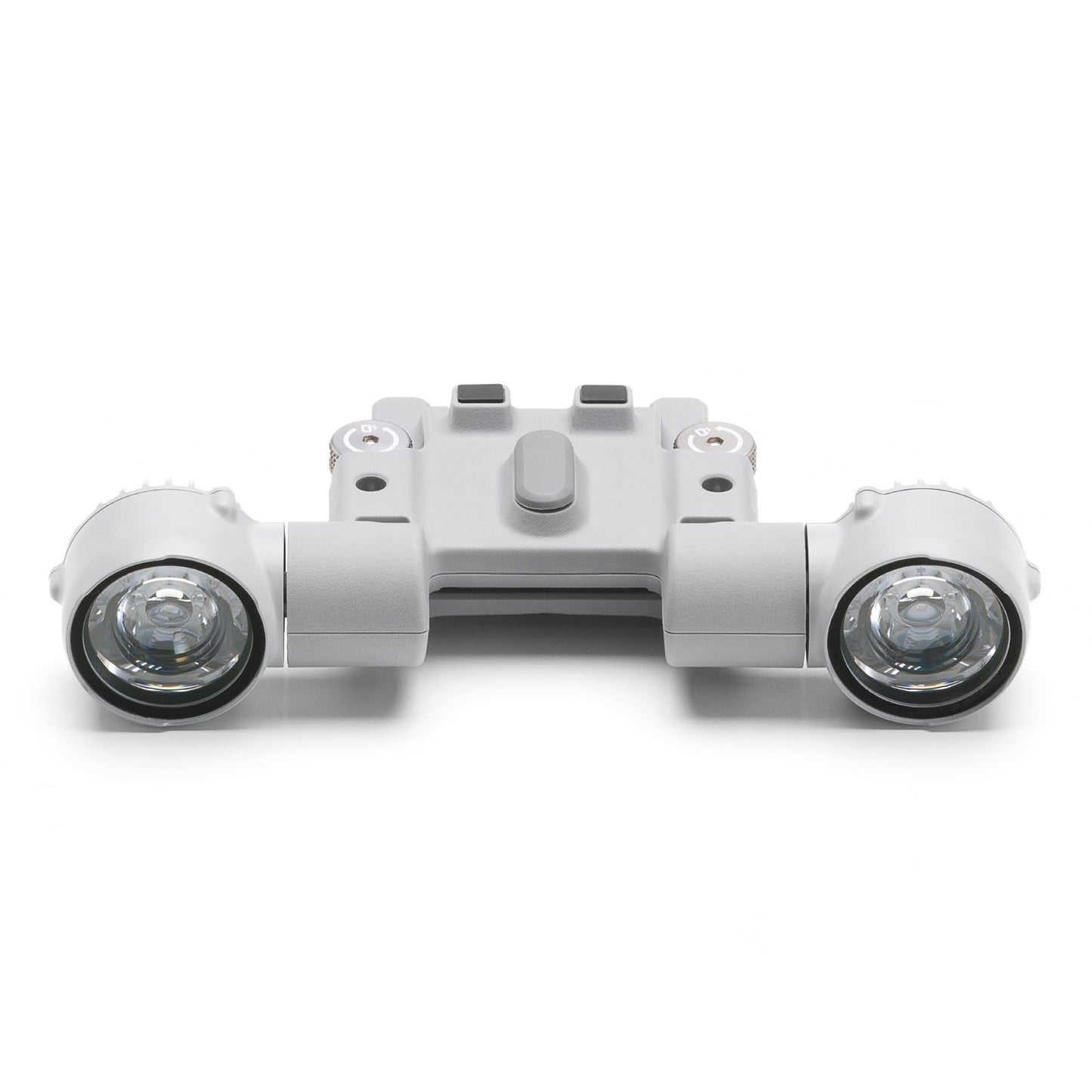

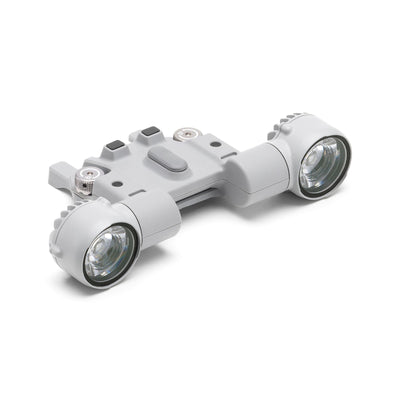

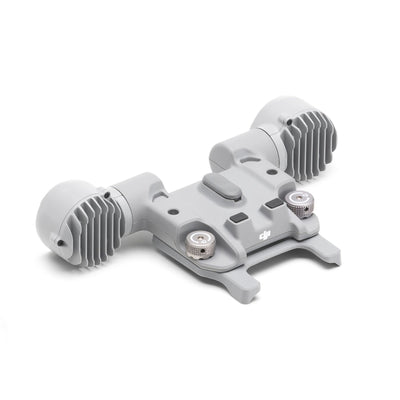

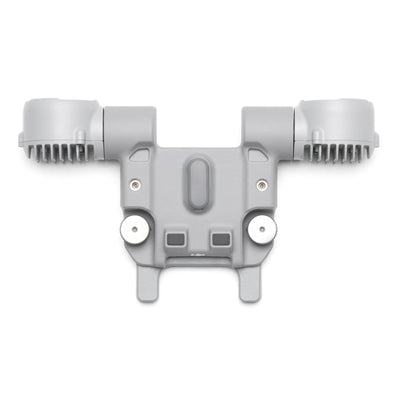

DJI AL1 Spotlight for Matrice 4 Series

DJI AL1 Spotlight: High-Intensity Tactical Lighting for Matrice 4 Series

The DJI AL1 Spotlight is a professional-grade aerial lighting solution designed to provide high-intensity illumination for the DJI Matrice 4 and Matrice 4D aircraft platforms. Weighing only 99 grams including the mounting bracket, this compact and lightweight accessory delivers a powerful 32-watt output to support critical nighttime missions. It is an essential tool for public safety officers, search and rescue teams, and industrial inspectors who require reliable visibility in zero-light environments. The AL1 offers seamless integration with the aircraft's control system, allowing operators to illuminate subjects clearly from significant distances.

Tactical lighting features and system highlights

• Lightweight payload design: Compact 99 g (3.49 oz) build minimizes flight impact.
• High-intensity illumination: Delivers 17 lux at 50 m (164 ft) for clear visibility.
• Long-range performance: Projects 4.3 lux at distances up to 100 m (328 ft).
• Efficient power consumption: Operates at a maximum of 32 W for endurance.
• Rapid field deployment: Features quick-release hand-tightened screws for fast hardware mounting.
• Ruggedized environmental protection: Certified IP55 rating for performance in challenging weather conditions.
• Versatile lighting modes: Supports both always-on and high-frequency strobe operational modes.
• Wide area coverage: Illuminates up to 2,200 square meters in Wide FOV mode.

Precision gimbal control and thermal durability

The DJI AL1 Spotlight features a sophisticated gimbal structural design with a tilt range of -140° to 50°, ensuring total lighting flexibility. With a controllable tilt speed of 120°/s and alignment accuracy of ±0.1°, the spotlight responds instantly to operator commands. This precision is critical when tracking moving subjects or scanning complex structures during nighttime inspections. Built to withstand extreme field temperatures from -4°F to 122°F, the AL1 remains reliable during high-stakes missions where environmental factors are unpredictable.

Automated camera tracking and wide-angle coverage

Operators gain significant tactical advantages through the AL1's intelligent linking capabilities, which allow the spotlight to follow the camera's movements automatically. This ensures that the area illuminated always matches the camera's field of view, reducing operator workload during search and rescue operations. The Wide FOV mode is specifically optimized for use with the aircraft's wide-angle camera, expanding the effective illumination area to 2,200 square meters at a 100-meter distance. This ability to switch between focused and broad lighting makes the AL1 a versatile asset for any mission profile.

Hardware and software sync

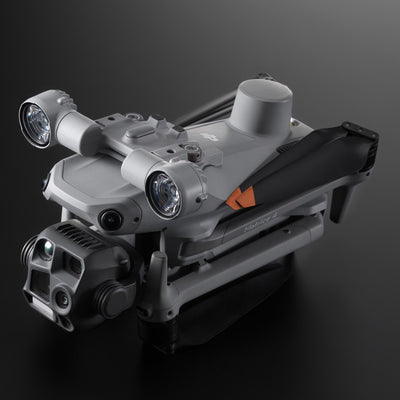

• Seamless aircraft integration: Fully compatible with the DJI Matrice 4 Series platform.
• Multi-platform support: Operates natively with the DJI Matrice 4D Series aircraft.
• Combined mission tools: Can be used simultaneously with the DJI AS1 Speaker.
• Intelligent gimbal control: Links directly with the onboard camera for synchronized tracking.
• Specialized wide-angle mode: Syncs with wide-angle camera views for broader area lighting.
• Efficient payload management: Low power draw preserves aircraft battery for extended flight times.
• Precision hardware mounting: Utilizes standard hand-tightened screws for secure aircraft attachment.

Professional applications and industry use cases

• Search and rescue: Identify subjects from 328 ft (100 m) using focused lighting.
• Public safety patrols: Utilize strobe mode to signal or gain situational awareness.
• Infrastructure inspection: Illuminate dark crevices or structural components during night audits.
• Emergency response: Coordinate ground teams by lighting up 23,681 sq ft areas.
• Law enforcement: Maintain visual contact with subjects via intelligent gimbal tracking.
• Nighttime surveying: Provide auxiliary lighting for visual data collection in low-light.
• Offshore monitoring: Light up maritime vessels or decks for safe night operations.
• Disaster management: Support recovery efforts in zero-light conditions with always-on mode.

Engineered for mission reliability

The DJI AL1 Spotlight is designed for high-performance durability, featuring an IP55 protection rating that allows it to operate alongside the Matrice 4 series in diverse weather conditions. Its precise gimbal alignment ensures that illumination is directed exactly where needed, minimizing shadows and maximizing clarity for the aircraft's camera. Whether used as a standalone light source or in conjunction with other payloads, the AL1 provides the consistent performance required for mission-critical enterprise operations.

The DJI AL1 Spotlight is a versatile and powerful lighting tool that enhances the night-mission capabilities of the Matrice 4 series. Its intelligent tracking and high-intensity output make it an indispensable asset for search, rescue, and security operations.
