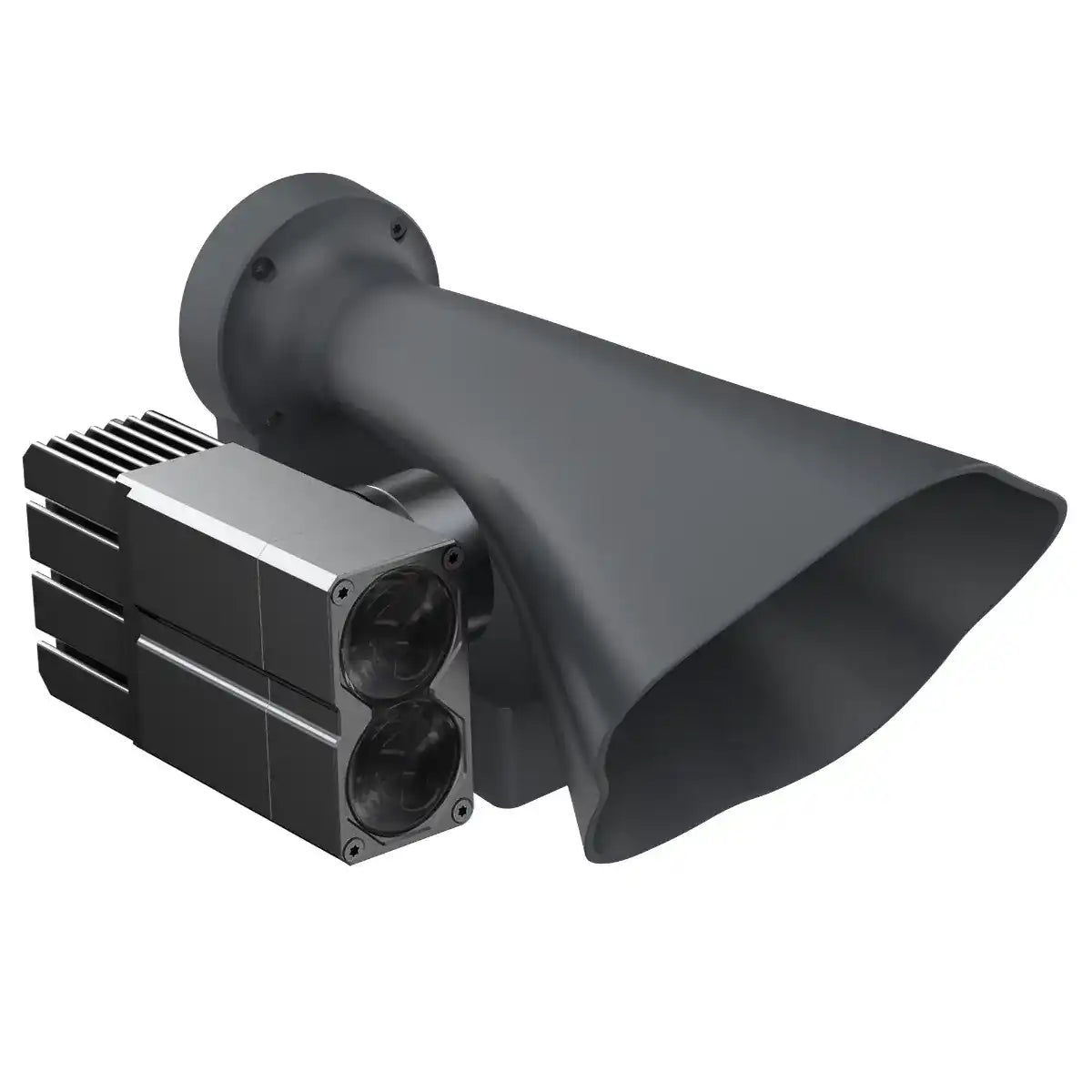

• CZI LP12 loudspeaker and spotlight 2-in-1 payload for DJI Matrice 30 drones, designed for aerial communication and illumination
1 1

CZI LP12 Spotlight & Loudspeaker 2-in-1 Payload for DJI Matrice 30 Drone

CZI LP12 Spotlight & Loudspeaker 2-in-1 Payload for DJI Matrice 30 Drone

$2,599.00
$2,599.00
Sale Sold out
Shipping calculated at checkout.

S-NB-LS-SL-M30

SKU S-NB-LS-SL-M30 MPN LP12
  • Integrated dual-purpose system combines searchlight and 122dB loudspeaker
  • Streamlined 270g lightweight design preserves Matrice 30 flight endurance
  • High-intensity 2700 lumen output illuminates targets up to 150m
  • Long-range broadcasting technology reaches distances of up to 350m
  • Deep software integration allows control via DJI Pilot 2
  • Multi-language text-to-speech supports global operations and localized messaging
  • Flexible gimbal pitch range provides coverage from different altitudes
  • Quick-mount bracket ensures rapid attachment for time-sensitive missions
  • Weather-resistant construction facilitates operation in temperatures down to -20C
  • Advanced optical imaging technology produces a sharp 13-degree beam

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

CZI LP12: Integrated searchlight and broadcasting system

The CZI LP12 is a sophisticated two-in-one payload designed specifically for the DJI Matrice 30 series, merging high-intensity illumination with long-range vocal broadcasting. By combining advanced optical imaging with LRAD technology into a single 270g unit, this system provides public safety and industrial professionals with a streamlined solution for night operations and communication. It eliminates the need for multiple payloads, maintaining the aerodynamic profile of the aircraft to ensure maximum flight endurance. Whether conducting search and rescue missions or law enforcement patrols, the LP12 delivers critical situational awareness and command capabilities from the air.

LP12 core features and advantages

  • Dual functionality: Integrated searchlight and loudspeaker capabilities in one lightweight unit
  • High pressure sound: Maximum sound pressure of 122dB for clear long-distance communication
  • Powerful illumination: Searchlight delivers 2700 lumens for effective lighting up to 150m
  • Aerodynamic profile: Streamlined design significantly reduces wind resistance during high-speed flight
  • Rapid deployment: Quick-mount bracket allows for fast installation on Matrice 30 airframes
  • Intelligent broadcasting: Supports text to speech, live voice, and uploaded audio files
  • Specialized optics: GL series imaging optics provide a concentrated 13-degree field of view
  • Temperature resilience: Operates reliably in extreme environments from -20C to +50C
  • Multi-mode lighting: Features normal, ultra-bright, and strobe modes for diverse operational needs

Field-proven tactical visibility and audible reach

The CZI LP12 provides field operators with an unparalleled combination of visual and auditory reach during critical missions. This payload utilizes a 15W speaker to broadcast commands or alerts up to 350 meters, ensuring ground teams or subjects receive clear instructions. Simultaneously, the 40W ultra-bright mode provides a 34-meter spot diameter at a 150-meter distance, cutting through darkness to identify targets or hazards. Its deep integration with the DJI Pilot interface allows pilots to toggle between modes and adjust the gimbal pitch instantly, providing a seamless workflow during high-pressure search and rescue or tactical law enforcement scenarios.

Platform and software integration

  • Aircraft compatibility: Designed exclusively for DJI Matrice 30 and Matrice 30T
  • Hardware interface: Connects through the official DJI OSDK PSDK electrical port
  • Software support: Deep native integration within DJI Pilot and Pilot 2
  • Gimbal control: Full pitch range movement from -120 to +45 degrees
  • File support: Compatible with mp3, wav, m4a, flac, and aac formats
  • Mount system: Includes dedicated M30 series quick mount and dismount bracket

Operational use cases

  • Search and rescue: Illuminate terrain while broadcasting instructions to missing persons
  • Law enforcement: Maintain visual contact during night patrols with strobe capabilities
  • Crowd control: Deliver clear audible warnings and directions from safe standoff distances
  • Forest management: Use thermal imaging and light to locate fire hotspots
  • Industrial inspection: Light up dark infrastructure while communicating with ground-level technicians
  • Disaster response: Provide public address announcements in areas with failed infrastructure
  • Perimeter security: Conduct autonomous night sweeps of large-scale industrial or utility sites

Optimized for operational readiness

The CZI LP12 is engineered to fit into professional workflows without compromising aircraft performance or battery life. Its lightweight build ensures the Matrice 30 retains its agile flight characteristics while adding two essential mission tools. By centralizing control within the DJI Pilot app, operators can focus on the mission rather than managing complex hardware.

The CZI LP12 stands as the definitive multi-purpose payload for operators who require both visibility and communication in a single flight. Its robust build and high-output specifications ensure reliable performance across the most demanding professional environments. This integrated system solves the challenge of payload weight limits while maximizing the utility of the Matrice 30 platform.

DSLRPros provides the expertise and lifecycle support necessary to integrate the LP12 into your existing professional UAV fleet. Our team ensures you receive a mission-ready solution backed by years of industry experience and technical proficiency. Secure your operations by purchasing the CZI LP12 today from DSLRPros.

General

  • Model: LP12
  • Electrical interface: DJI OSDK
  • Weight: 270 g (without quick-mount fixture), 283 g (with quick-mount fixture)
  • Dimensions: 162 × 115 × 75 mm
  • Power supply voltage: 24 V
  • Operating temperature: −20° to 50°C

Searchlight

  • Regular mode power: 30 W
  • Ultra-bright / flashing mode power: 40 W
  • Luminous flux: 2700 lm ±3%
  • Field of view: 13°

Illumination Performance

  • 150 m: spot diameter 34 m, illuminated area 917 m², 1.7 lux
  • 130 m: spot diameter 29.6 m, illuminated area 688 m², 2.5 lux
  • 100 m: spot diameter 22.8 m, illuminated area 407 m², 6.3 lux
  • 50 m: spot diameter 11.4 m, illuminated area 102 m², 25 lux (95% humidity)

Gimbal

  • Pitch range: −120° to +45°

Speaker

  • Power: 15 W
  • Maximum sound pressure: 122 dB
  • Effective broadcasting distance: 200 m @ 76 dB, 350 m @ 69 dB

Broadcast Functions

  • Live broadcasting
  • Upload recording files
  • Play audio files
  • Text-to-speech (multi-language and regional dialect)
  • Background sound

Audio

  • Formats: MP3, WAV, M4A, FLAC, AAC

Software Compatibility

  • DJI Pilot / DJI Pilot 2
  • 1x LP12 Speaker & Spotlight
  • 1x Mounting Plate
  • 4x Mounting Screws
  • 1x H2.0 Hex Driver
  • 1x USB to Micro-USB Cable
How far does the LP12 searchlight and speaker reach during flight?

The system provides effective illumination up to 150 meters with a 13-degree field of view for high-intensity spot lighting. The loudspeaker utilizes LRAD technology to reach an effective broadcasting distance of 350 meters at 69dB. This ensures the operator can maintain a safe altitude while remaining effective in both visual and auditory tasks.

Is the CZI LP12 compatible with the DJI Matrice 300 RTK?

This specific model is designed with a mounting bracket and OSDK interface specifically for the DJI Matrice 30 and M30T series. While it uses standard DJI PSDK protocols, the physical quick-mount bracket and aerodynamic shape are optimized for the M30 airframe. For larger platforms like the M300, different CZI models are recommended to ensure proper mounting.

What audio formats can I use for recorded broadcasts?

The LP12 supports a wide variety of industry-standard audio files including mp3, wav, m4a, flac, and aac. These files can be easily uploaded to the internal storage via a micro USB connection to a computer. This flexibility allows operators to prepare high-quality pre-recorded messages for different operational scenarios.

Can I speak through the drone in real-time?

Yes, the LP12 supports live broadcasting functions through the DJI Pilot app, allowing pilots to transmit their voice directly. It also features an advanced text-to-speech engine that supports multiple languages and regional dialects. This ensures clear communication regardless of whether the operator is using a microphone or typed commands.

How does the LP12 affect the flight time of the M30?

The payload is exceptionally lightweight at only 270 grams, which is specifically intended to minimize the impact on battery life. Its streamlined, bionic design is shaped to reduce wind resistance compared to traditional boxy payloads. This allows the Matrice 30 to maintain professional-grade flight endurance even during extended search missions.
