Colorado Drone Chargers DJI Matrice 4 Series PRCS

Colorado Drone Chargers DJI Matrice 4 Series PRCS

$1,345.00
$1,345.00
Sale Sold out
Shipping calculated at checkout.

S-CDC-M4T-PRCS

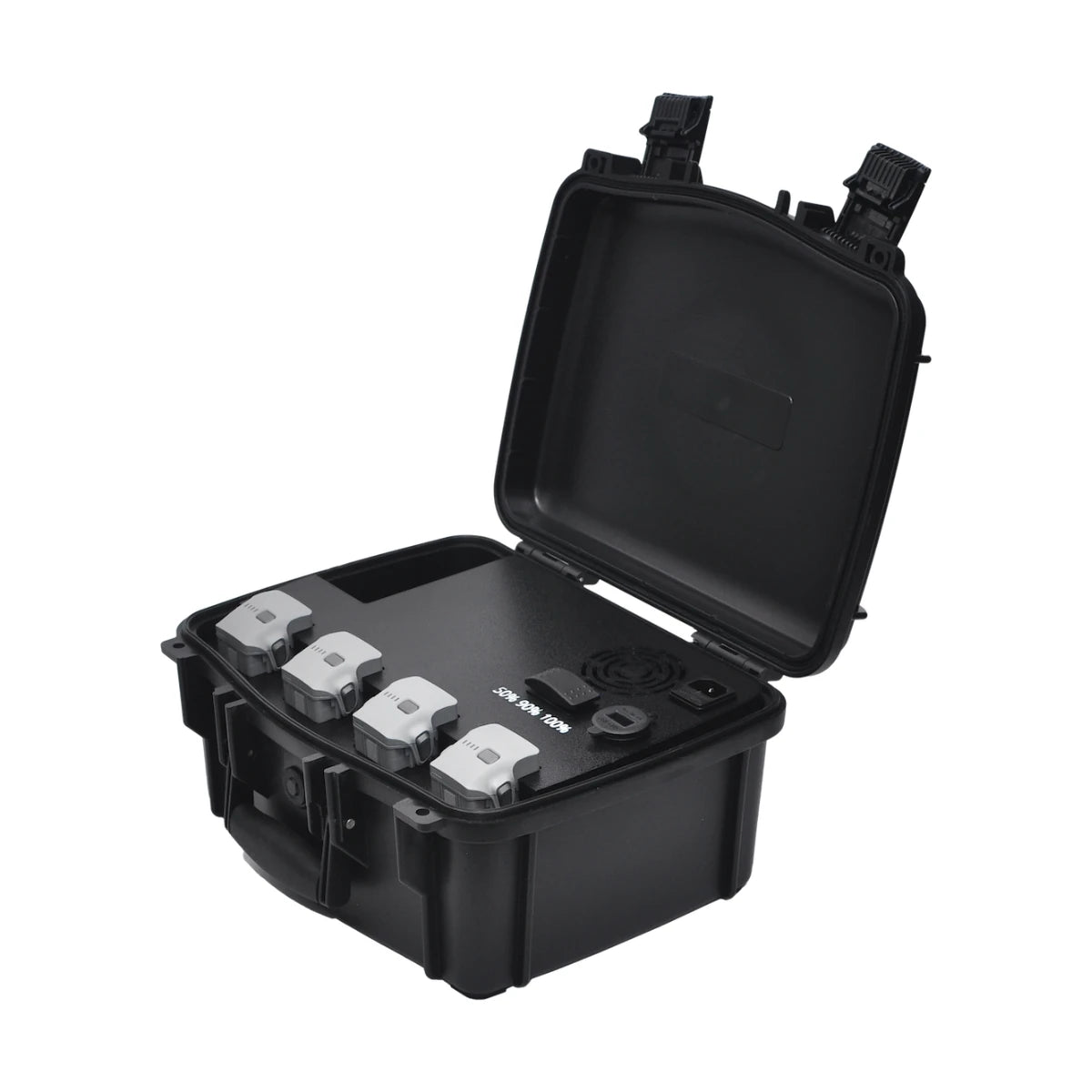

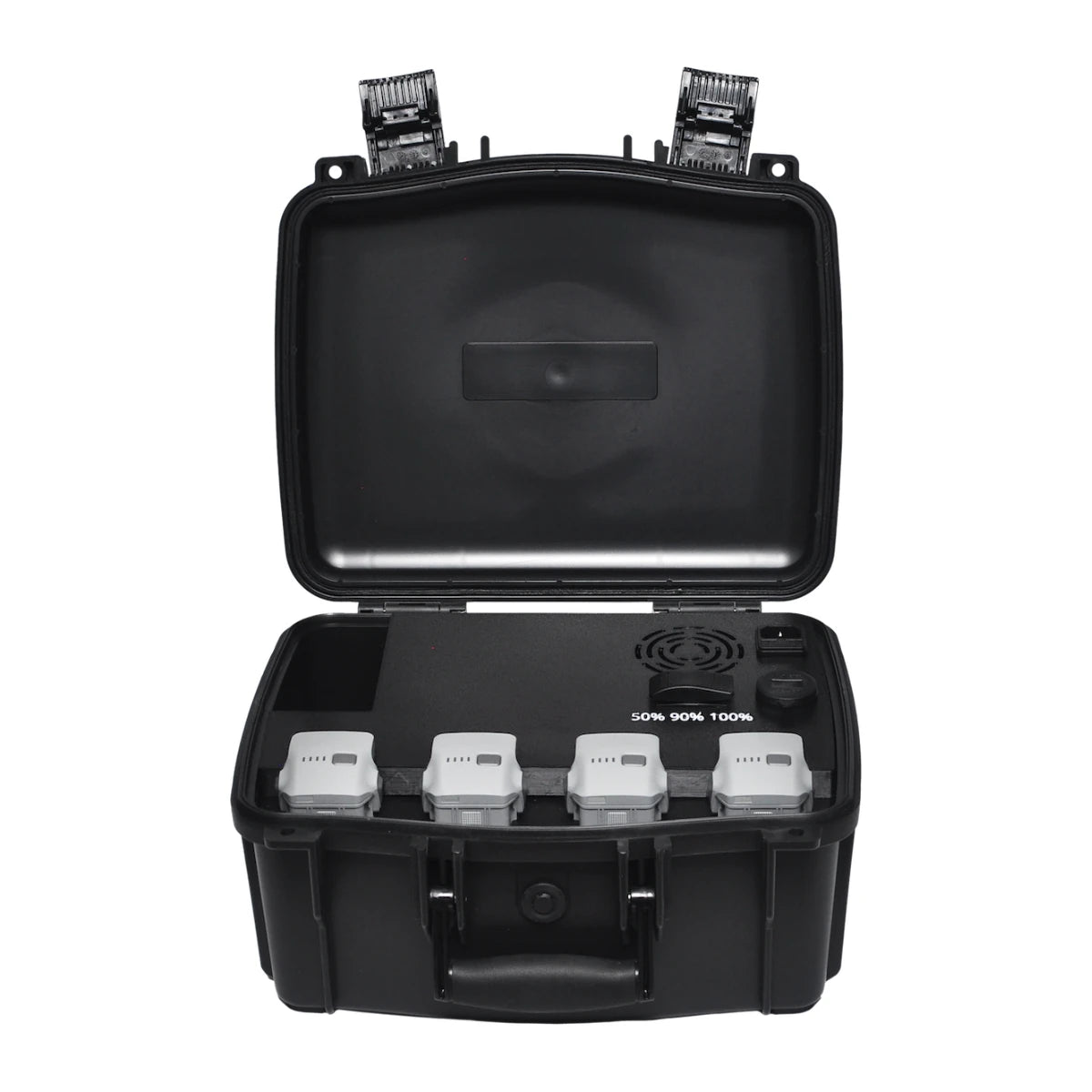

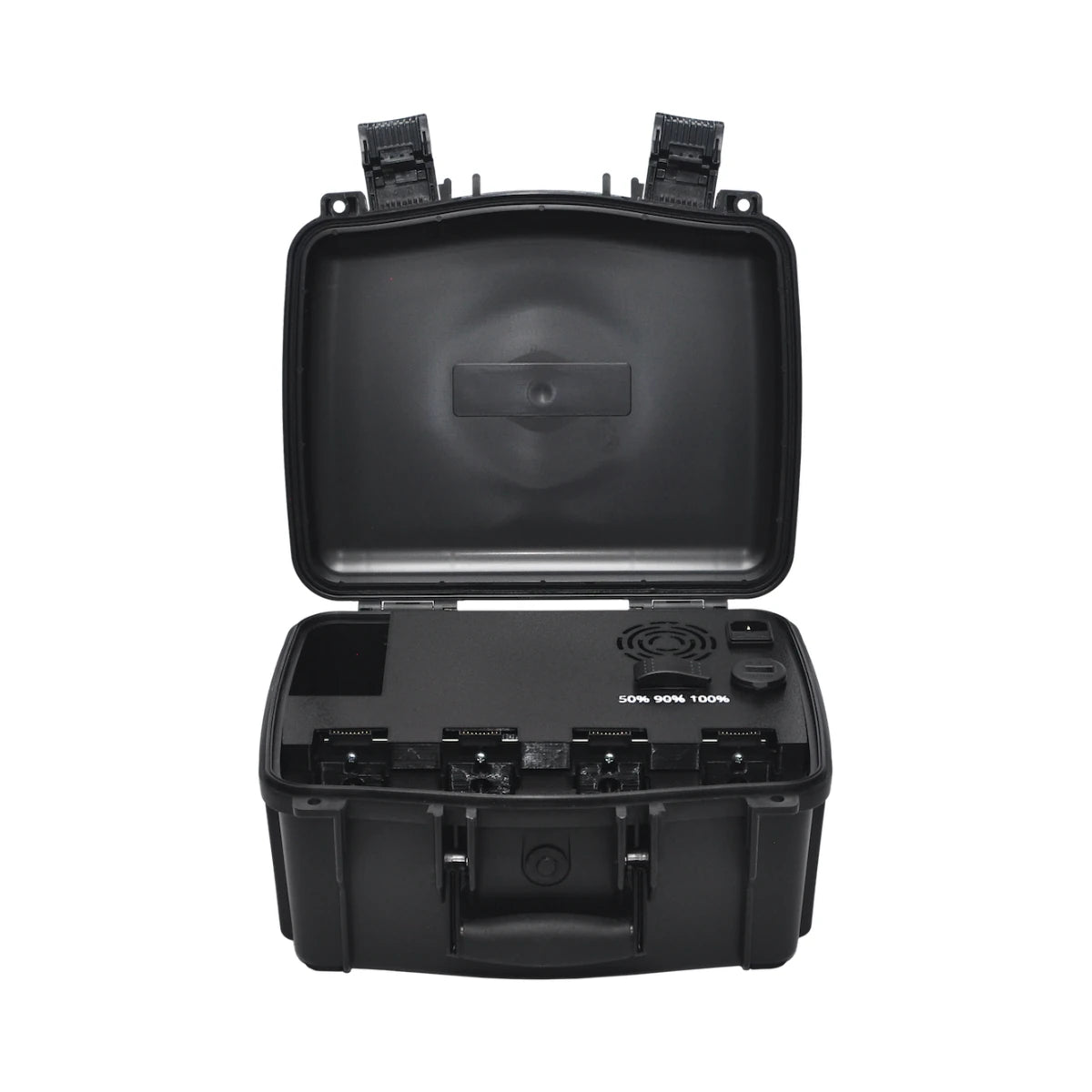

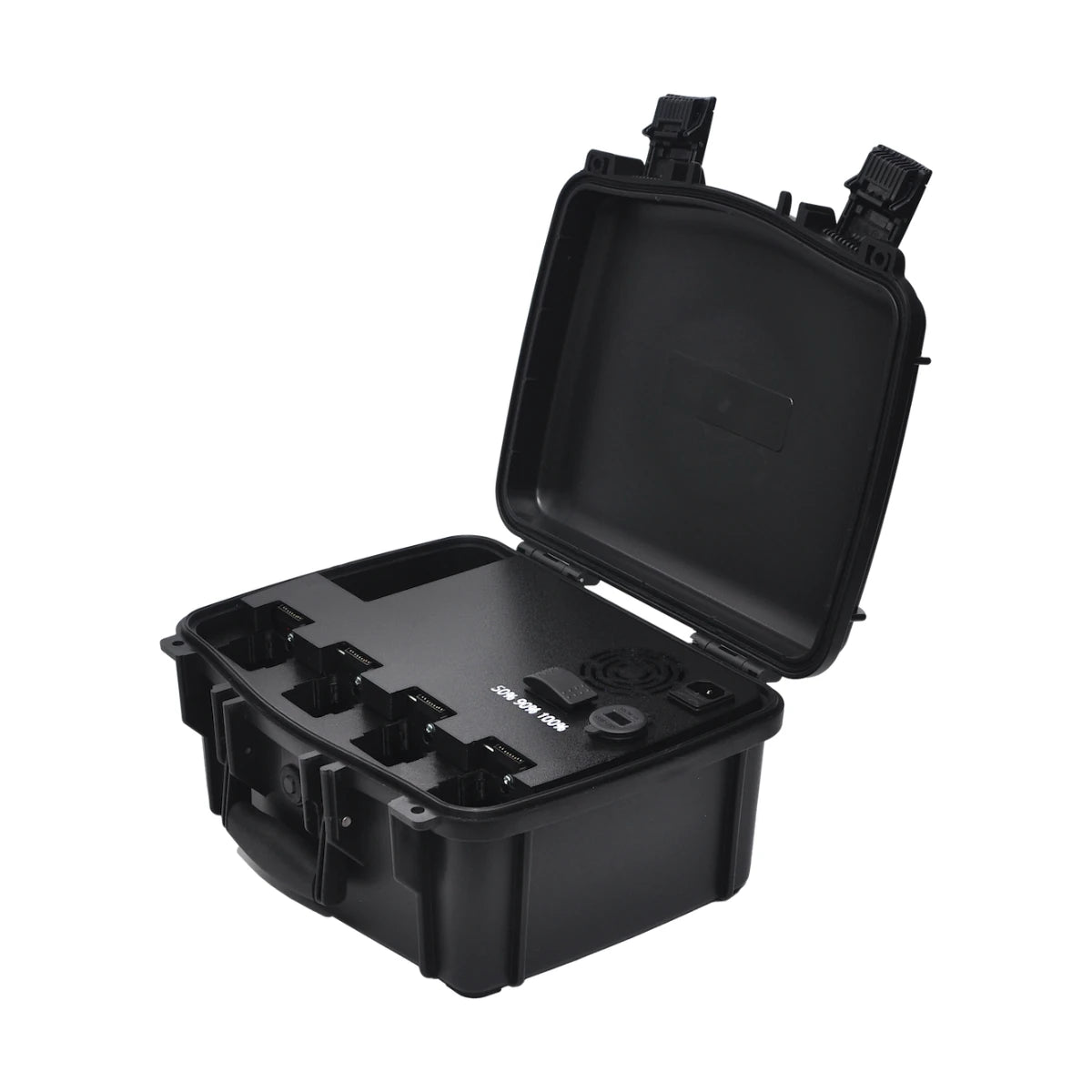

  • Portable Rapid Charging System (PRCS) for DJI Matrice 4E/4T intelligent flight batteries
  • Simultaneous charging for four batteries and two USB accessories
  • High-speed performance restoring batteries from 20% to 90% in 60 minutes
  • Selectable charging modes for 50%, 90%, or 100% battery capacity levels
  • Ruggedized impact-resistant case is watertight and dust-proof for field use
  • Compatible with pure or modified sine wave generators and vehicle inverters
  • Integrated multi-fan cooling system supports a continuous 100% duty cycle.
  • Intelligent management of current and temperature for maximum battery health
  • Lightweight 10.1 lb design functions as a secure battery storage case
  • Automatic switching input voltage supports a wide 88V to 264V range
  • Backed by a limited lifetime warranty for long-term operational reliability

NOTE: DJI Matrice 4 Series batteries NOT included.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

High-Performance Rapid Charging with Colorado Drone Chargers DJI Matrice 4 Series PRCS

The Colorado Drone Chargers DJI Matrice 4 Series PRCS is an industrial-grade Portable Rapid Charging System designed to minimize downtime for critical enterprise missions.

Core Features and Advantages

  • Simultaneous rapid charging: powers four DJI Matrice 4 Series batteries and two USB devices at the same time.
  • Intelligent power management: actively monitors current, voltage, and temperature to optimize charging safety.

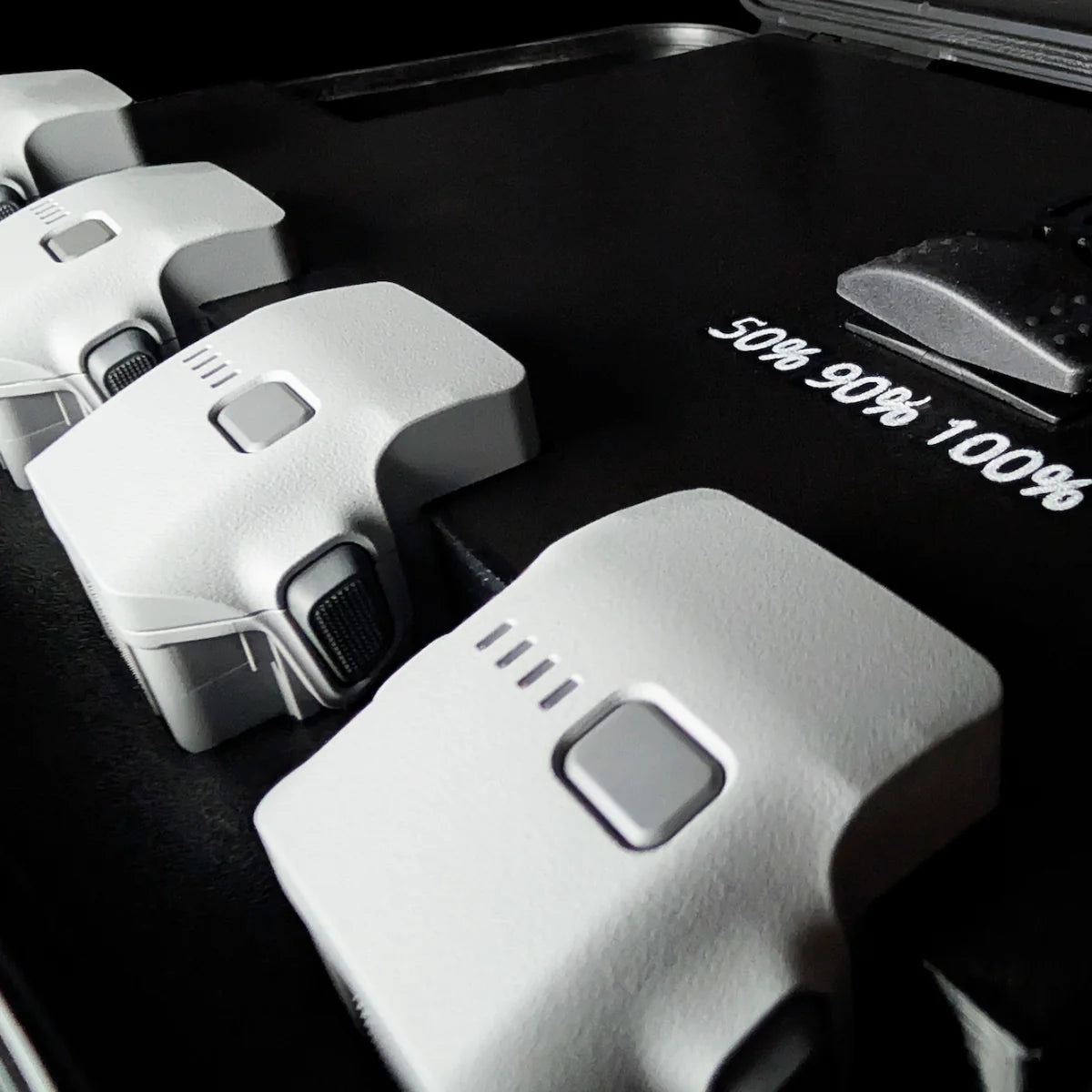

  • Multiple charging modes: features a rocker switch to select between 50%, 90%, or 100% charge levels.
  • High-speed efficiency: restores batteries from 20% to 90% capacity in approximately 60 minutes.
  • Ruggedized protection: housed in an impact-resistant, watertight, and dust-proof hard case with a pressure valve.
  • Versatile power compatibility: functions reliably with pure or modified sine wave inverters and portable generators.
  • Integrated cooling system: utilizes multi-fan cooling with a 100% duty cycle for continuous heavy-duty use.
  • Portable storage solution: serves as a secure and lightweight carrying case for batteries between missions.
  • Universal USB support: includes USB-A and USB-C ports to charge flight controllers and mobile devices.

This all-in-one solution allows field operators to simultaneously charge up to four Intelligent Flight Batteries and two USB accessories, providing a complete power management hub in a single ruggedized case.

Engineered for the most demanding environments, the PRCS intelligently manages voltage and temperature to ensure battery longevity while delivering speeds that can restore four batteries in the time a standard charger handles one.

Its ability to run on both pure and modified sine wave power sources makes it a versatile tool for remote operations relying on generators or vehicle inverters.

Definitive Solution to Logistical Downtime

The Colorado Drone Chargers DJI Matrice 4 Series PRCS is the definitive solution for operators who need to sustain continuous flight operations with fewer batteries in the field. It solves the challenge of logistical downtime by ensuring a constant rotation of fresh batteries is always available.

This charging system delivers the professional-grade durability and rapid turnaround times required for high-stakes public safety and industrial inspection workflows.

The DSLRPros team is dedicated to providing specialized power solutions that maximize your airtime and operational efficiency. We focus on delivering verified technical hardware that ensures your Matrice fleet remains mission-ready during long days in the field.

Secure your rapid charging capabilities and purchase the Colorado Drone Chargers DJI Matrice 4 Series PRCS from DSLRPros.

Input Voltage

  • 88 ~ 264VAC (Automatic Switching)
  • Max Power Rating: 500W

Frequency

  • 47 ~ 63Hz

Output Voltage

  • 17VDC

External Dimensions

  • 14" × 12" × 6.9"

Weight (without batteries)

  • 10.1 lbs.
  • 1x Colorado Drone Chargers 500W Portable Rapid Charging System
  • 1x AC Power Cord
What is the minimum generator power required to run this charger?

For optimal performance, you should use a generator or inverter rated for at least 650W of continuous power per PRCS unit. If you plan to run multiple units from a single source, multiply the requirement accordingly. For example, three simultaneous units would require at least 1950W of continuous power.

Can I leave the lid closed while the batteries are charging?

No, the lid must remain open during the entire charging process. The system uses an integrated multi-fan cooling array to manage temperatures, and closing the lid restricts airflow. Keeping the lid open ensures that the safety sensors do not pause charging due to heat buildup.

What happens if my batteries are too hot immediately after a flight?

The PRCS includes intelligent thermal sensors that will automatically pause the charging process if a battery is detected as being too hot. It is a safety best practice to allow batteries to cool to room temperature before inserting them into the charger to prevent fire hazards.

Is this charger compatible with the Matrice 4TD batteries?

The Matrice 4T PRCS is designed specifically for the standard DJI Matrice 4T and 4E series Intelligent Flight Batteries. It is not compatible with the batteries used in the Matrice 4TD dock version. Always verify your battery model before attempting to use the rapid charging slots.

How should I maintain the charging system for long-term use?

Maintenance is simple and should be performed at least monthly. Use a clean air source with less than 50 psi to blow out any dust or debris from the charging slots and fan intake areas. This ensures that the cooling system remains efficient and the electrical contacts stay clean.
