Autel Robotics Live Deck 2

Autel Robotics Live Deck 2: 7.5-Mile (12 km) Video Link With 1080p/60fps HDMI Output

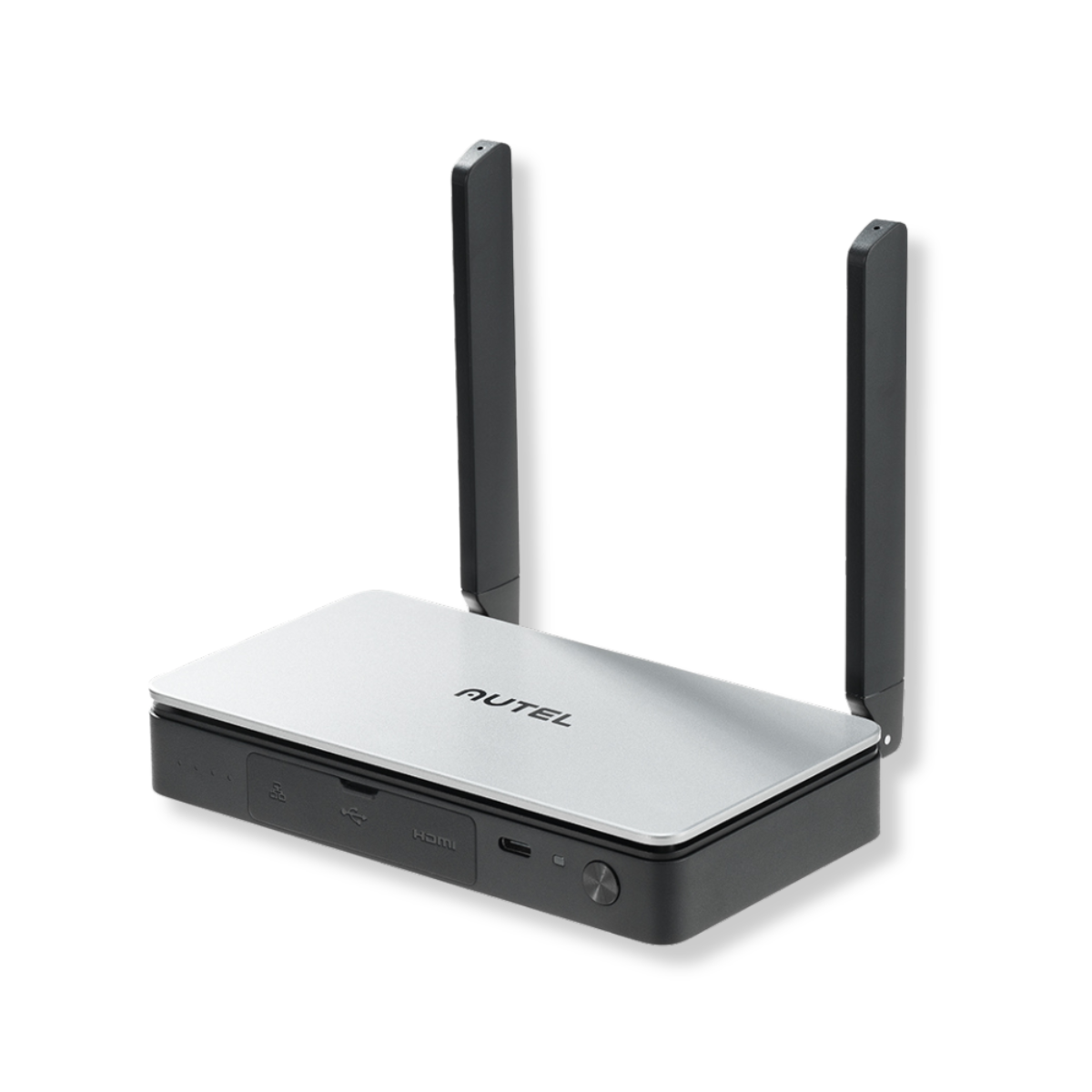

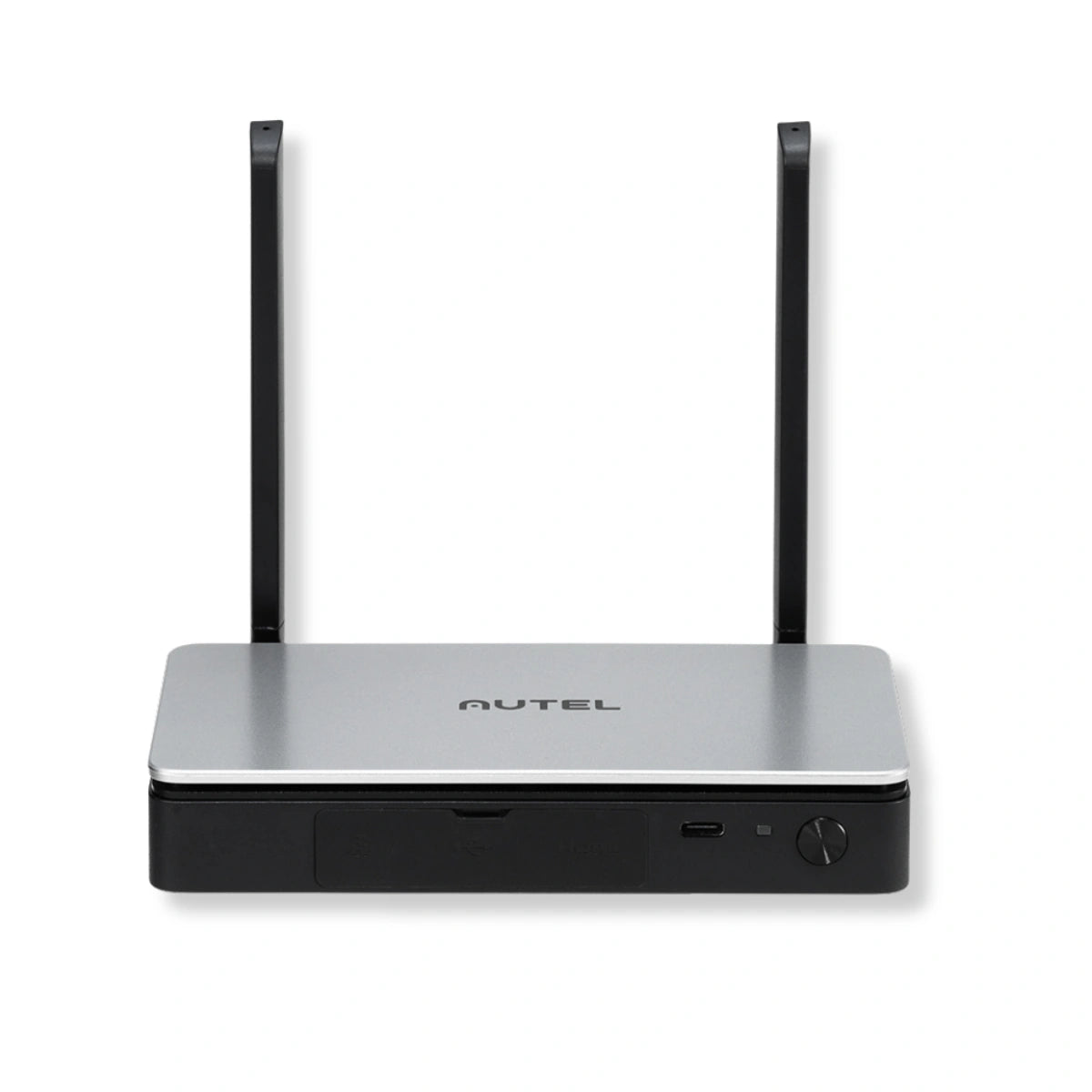

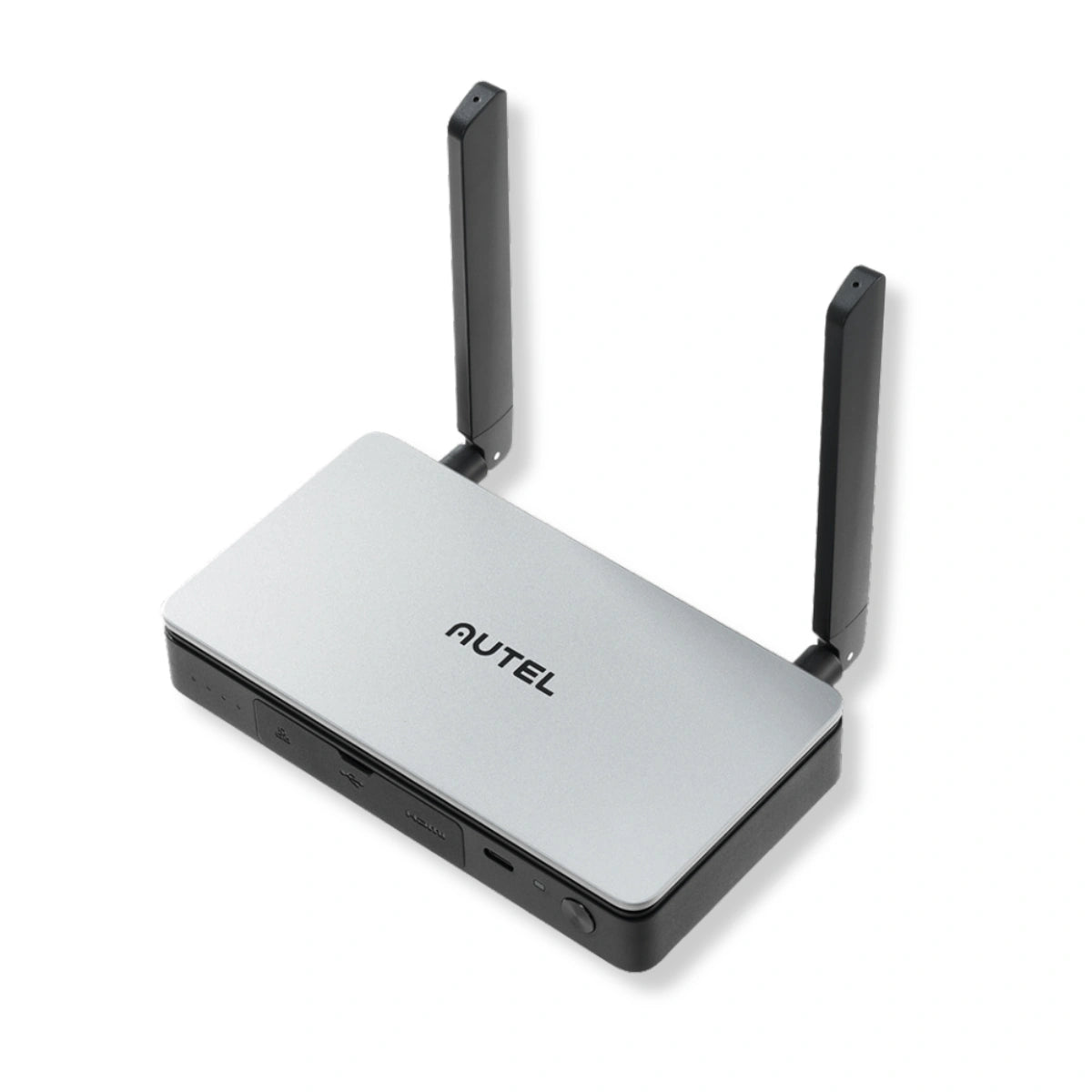

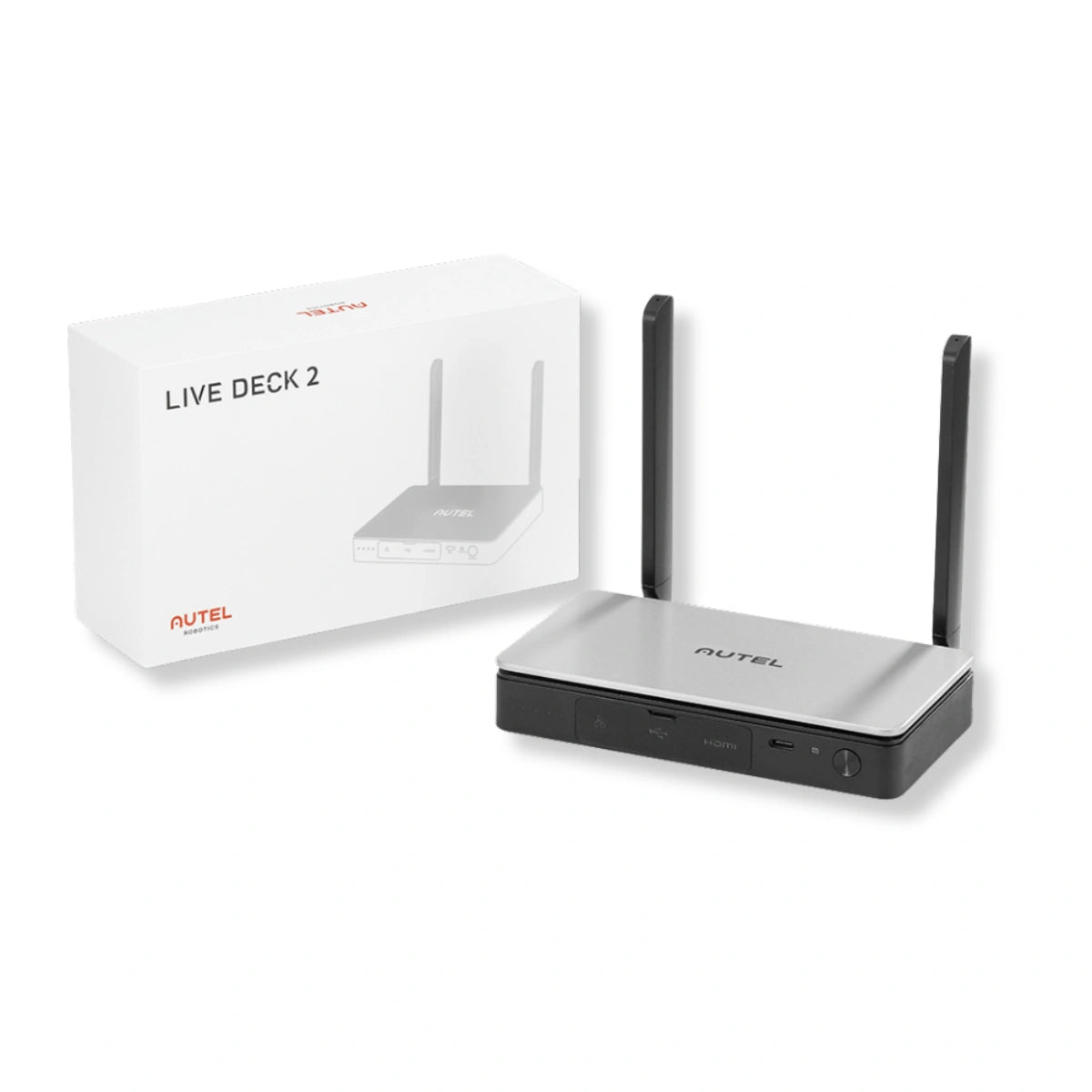

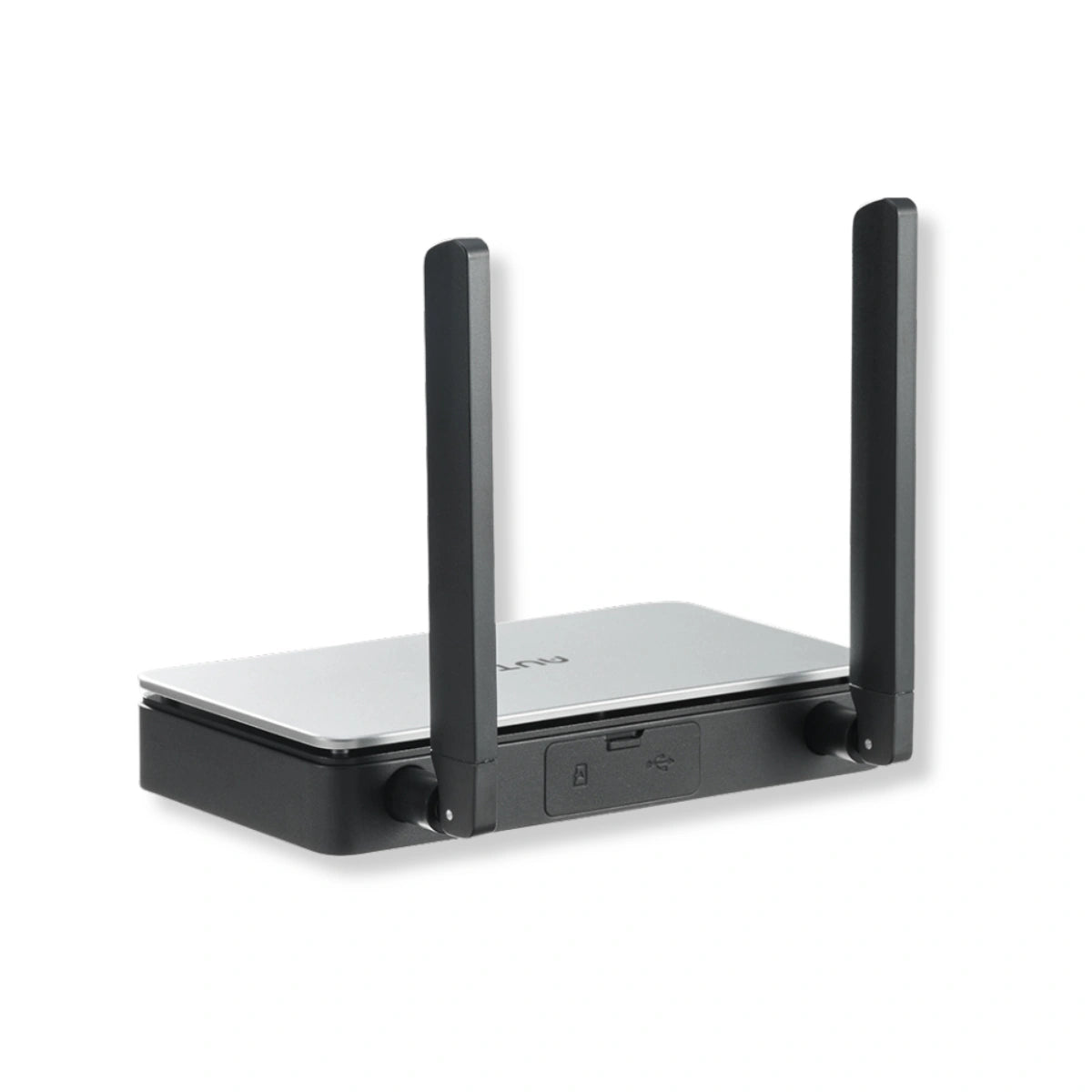

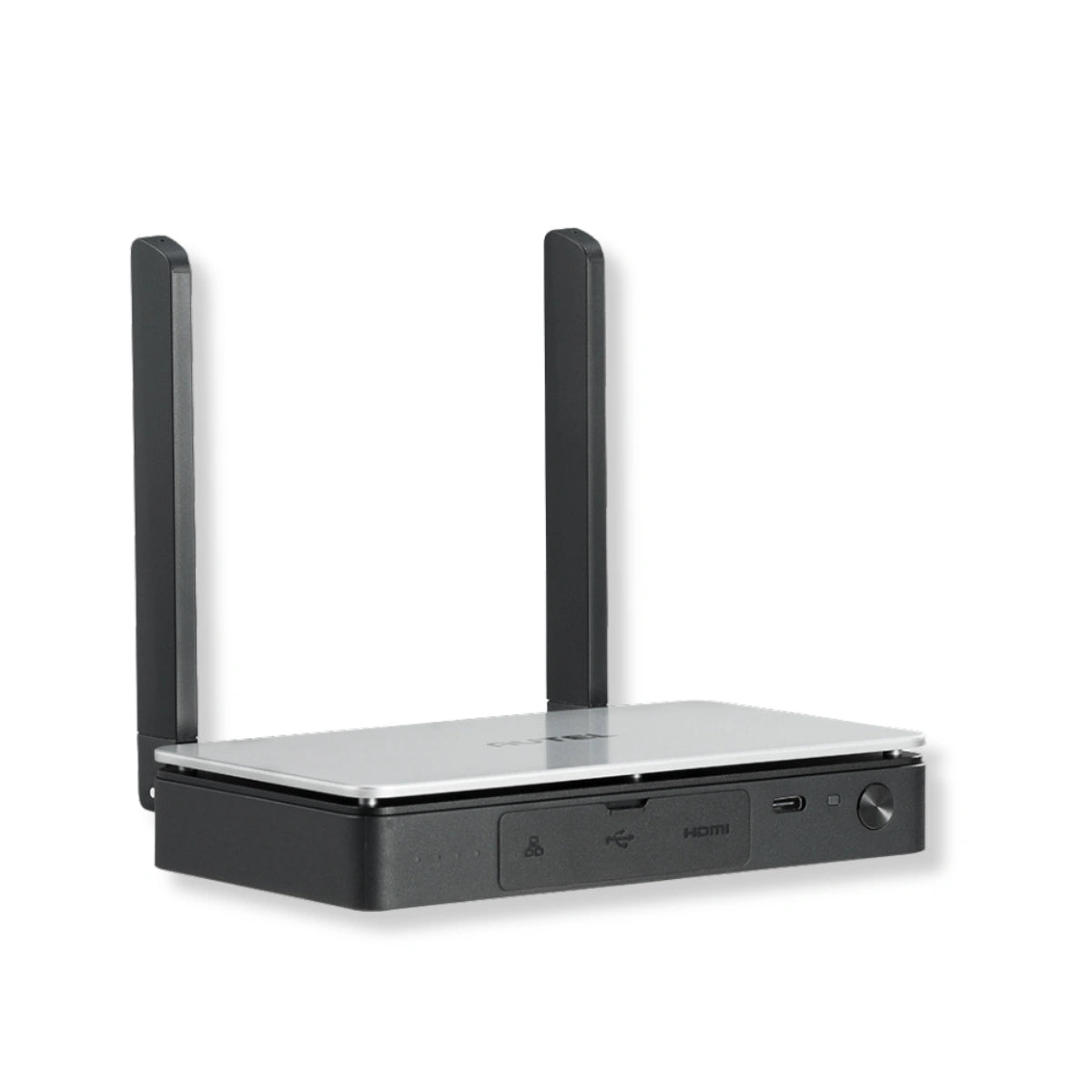

The Autel Robotics Live Deck 2 is a wireless video relay that connects to a compatible EVO II V3 aircraft and puts the live image on a monitor or computer, so everyone around the flight sees what the pilot sees. It links to the UAV on 2.4 GHz, 5.8 GHz, and 900 MHz using the adaptive aircraft band, and it reaches 7.5 miles (12 km) under interference-free conditions. The 900 MHz band is available only in countries covered by FCC certification. HDMI output runs up to 1080p at 60 fps, while the Ethernet port carries real-time video using RTMP.

On a scene, a search grid, or an inspection site, the pilot is rarely the only person who needs the picture. Incident commanders, engineers, and clients all make decisions from the same feed, and a controller screen is a poor way to share it. The Live Deck 2 moves that feed to a larger display or a laptop, and its HDMI and Ethernet connections can run at the same time. At 0.94 lb (424.5 g) with its battery, it is light enough to travel in the flight case and set up next to the pilot.

Key Features and Benefits

• Video range: reaches 7.5 miles (12 km) in interference-free conditions
• HDMI output: sends 1080p video at 60 fps to monitors
• Ethernet streaming: delivers real-time video to computers using the RTMP protocol
• Dual outputs: HDMI and Ethernet connections work at the same time
• Frequency support: works across 2.4 GHz, 5.8 GHz, and 900 MHz
• Quick pairing: dedicated button on the unit links it to aircraft
• Battery indicators: LED lights show remaining battery level at a glance
• Operating time: runs up to 5 hours on 6,200 mAh battery
• Ingress protection: carries an IP43 rating for use during field operations
• Compact size: weighs 0.94 lb (424.5 g) including its battery

Getting the Pilot's View to the Crew

With the Live Deck 2, the live image stops being something only the pilot can use. A monitor on the HDMI port receives up to 1080p at 60 fps, and a laptop on the Ethernet port receives the stream over RTMP once the address is set through the Autel Smart Controller. Both connections can run together, so one flight feeds a launch-point screen and a command vehicle computer. Setup is short: power on both units, press each pairing button, and wait for the aircraft LEDs to flash slowly. Teams spend less time relaying what the pilot sees.

Compatibility and System Integration

• EVO II Pro V3 (sold separately): supported aircraft for video relay
• EVO II Dual 640T V3 (sold separately): compatible thermal imaging aircraft
• EVO II RTK Series V3 (sold separately): compatible RTK aircraft models
• EVO II Enterprise V3 (sold separately): compatible enterprise aircraft for video relay
• Autel Smart Controller (sold separately): connects by USB Type-A for settings
• HDMI monitor (sold separately): receives 1080p video through the HDMI port
• Computer with RTMP software (sold separately): receives video over Ethernet

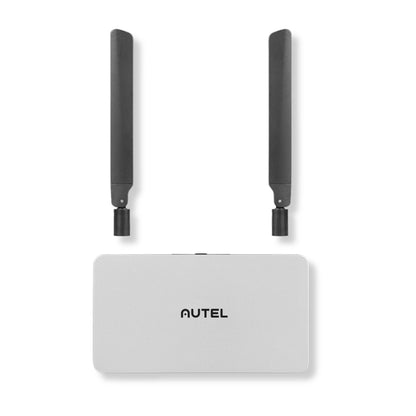

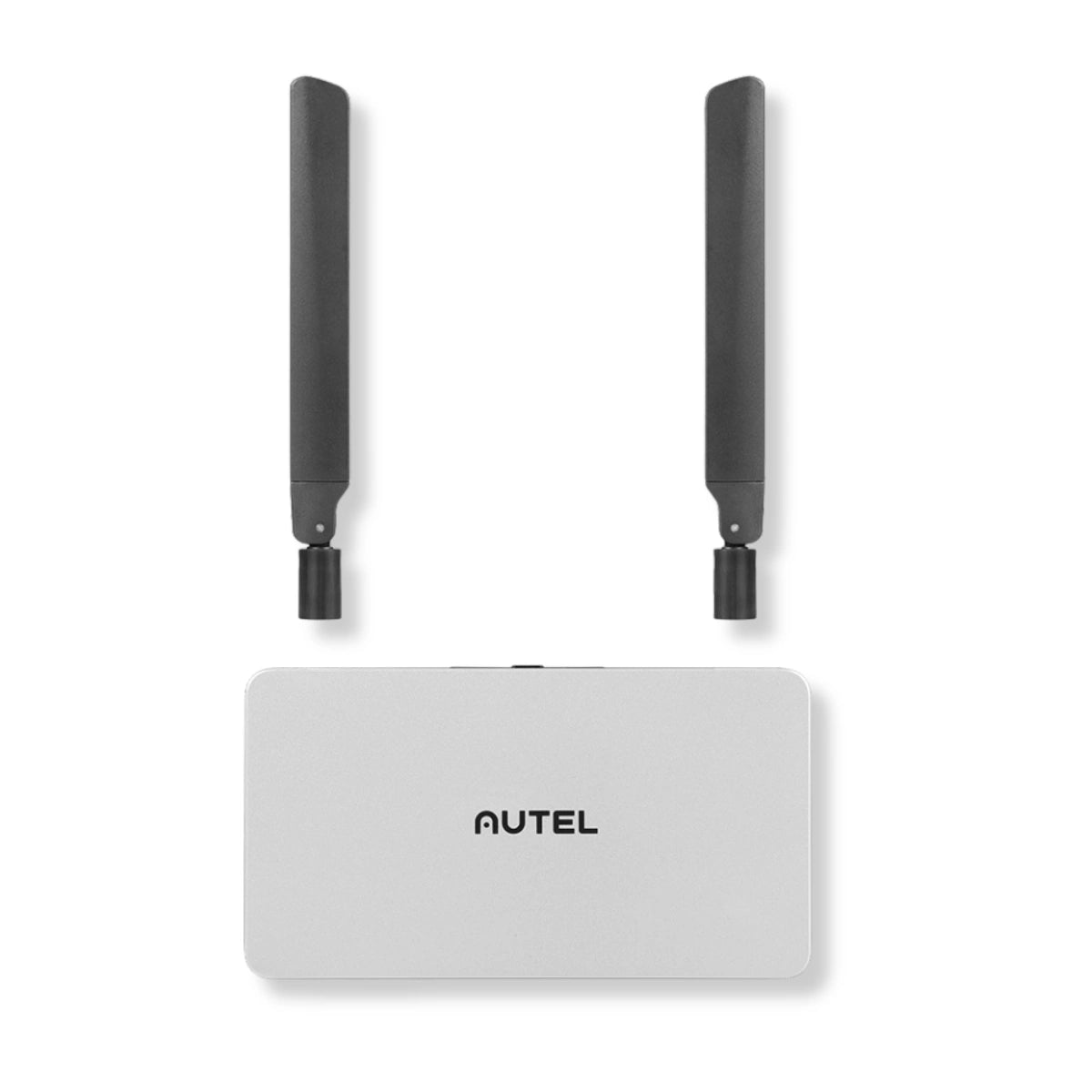

• Pair of SMA Threaded Antennas x2 (included): supplied in the box

Applications and Use Cases

• Public safety: share the live aerial view with incident commanders
• Search and rescue: show ground teams the live search area
• Infrastructure inspection: let engineers review live video from a nearby monitor
• Training: let instructors and students watch the same flight on one screen
• Client demonstrations: show stakeholders live aerial footage on a large display
• Live streaming: send video to RTMP-compatible software for wider viewing

A controller screen is a poor place to share a flight with a team. The Live Deck 2 puts the aircraft's video on the displays and computers crews already use, with the range, ports, and pairing steps Autel documents for EVO II V3 aircraft. Everyone on site then works from the same live picture.

When the pilot's view has to reach the rest of the crew, the order should match the field setup. DSLRPros lists the Live Deck 2 with the EVO II V3 models it supports and the accessories that are sold separately, backed by years of experience supporting public safety, inspection, and mapping operators. Order your Autel Robotics Live Deck 2 from DSLRPros today.
