Autel Robotics EVO Nest

Autel EVO Nest: Autonomous docking infrastructure for EVO Max remote operations

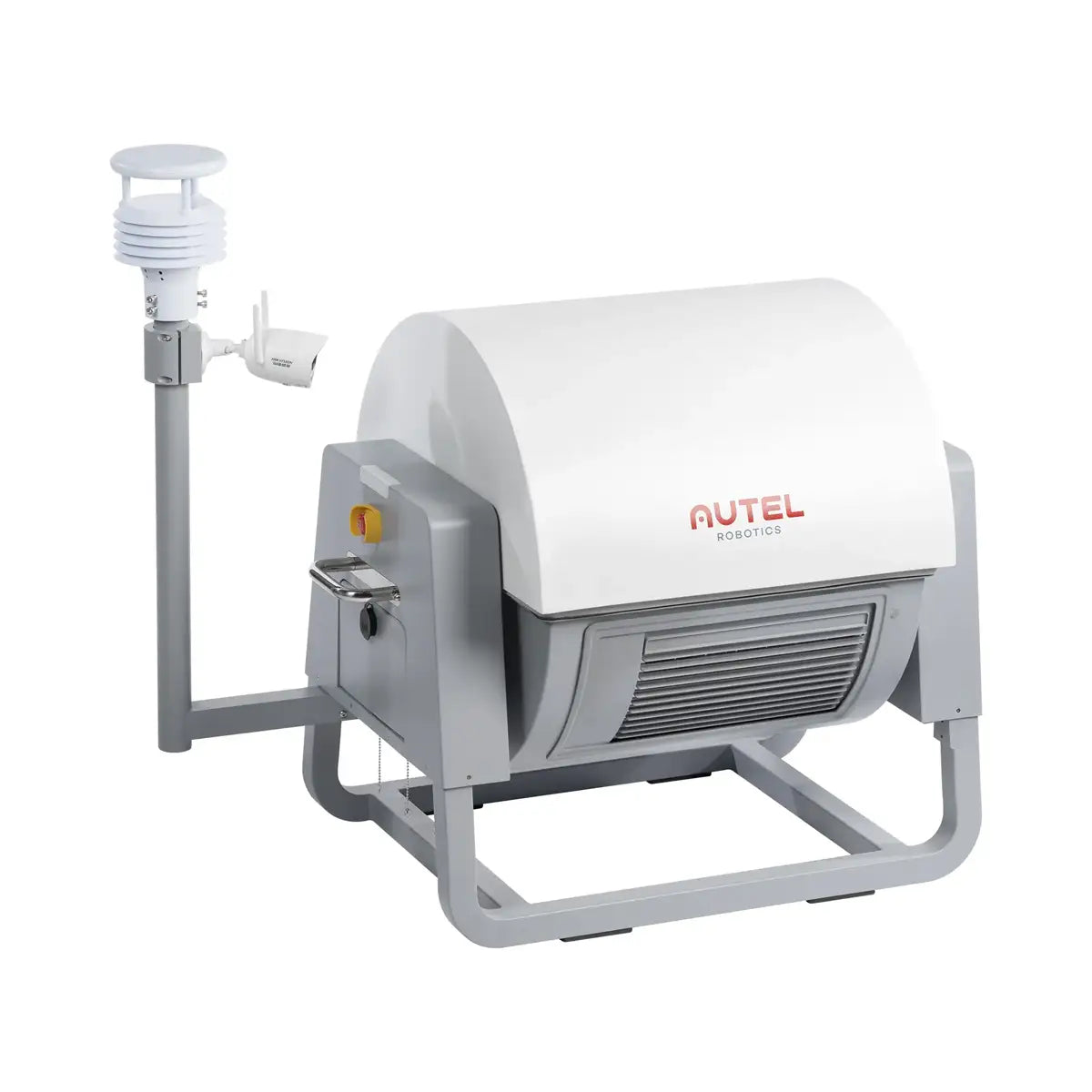

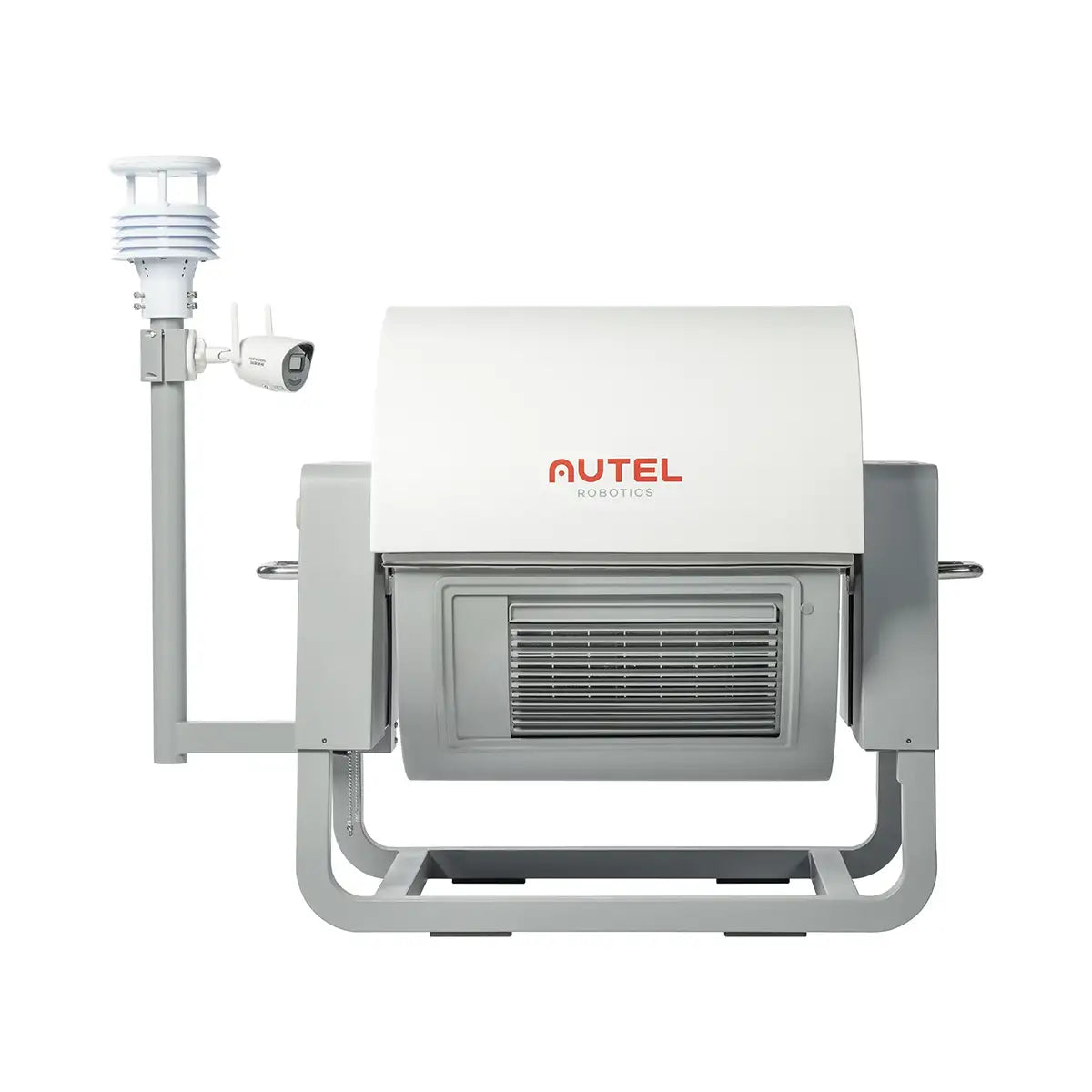

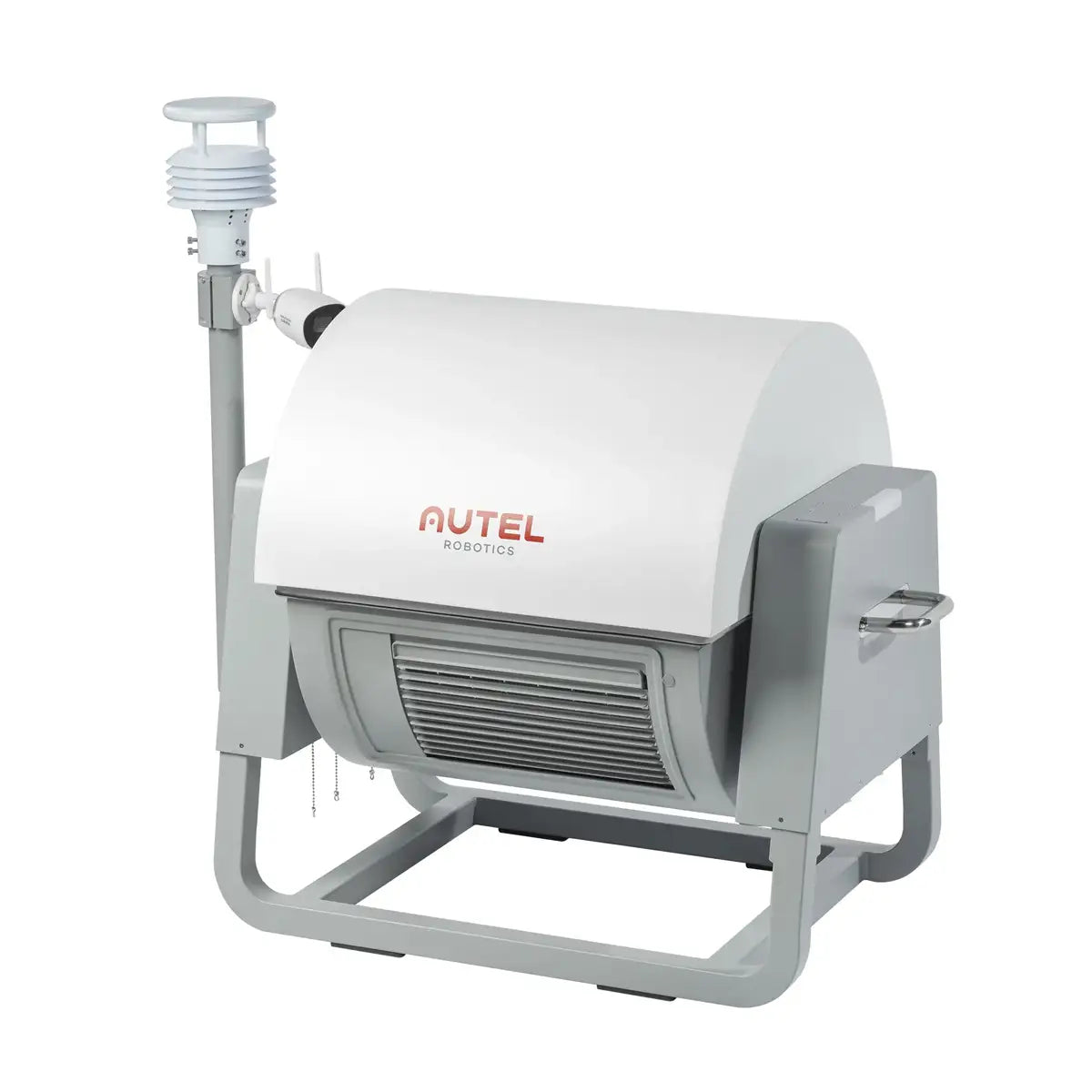

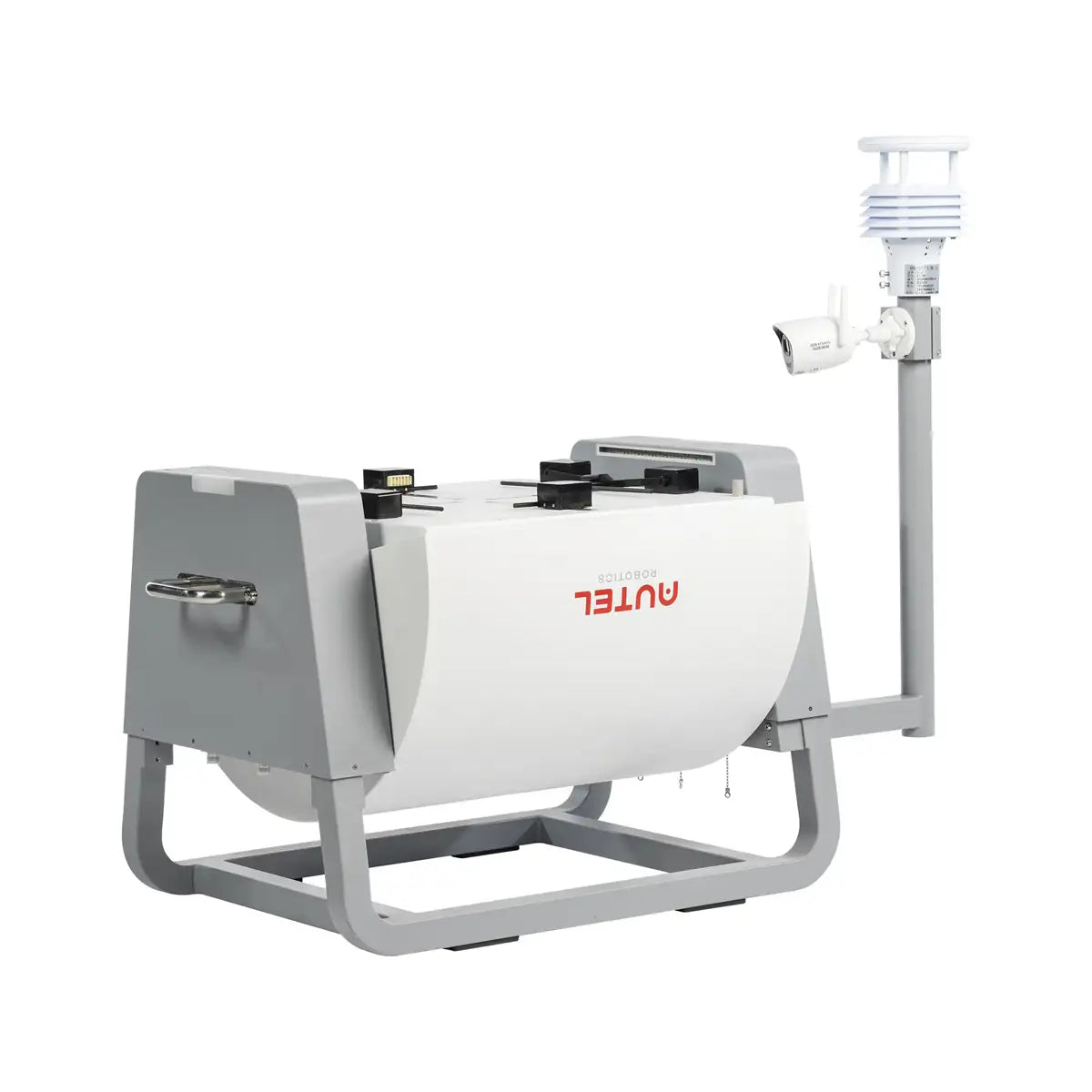

The Autel EVO Nest is an autonomous drone docking station designed to support remote takeoff, landing, charging, and mission execution for the EVO Max Series. It serves as a self-contained remote operations base that enables continuous deployment without requiring permanent on-site personnel.

The Nest integrates automated charging hardware, environmental monitoring sensors, encrypted data transmission, and cloud-based fleet management through the Autel Integrated Command System.

With IP55 environmental protection and an operating range from -22°F to 131°F, the system is engineered for year-round outdoor deployment in inspection, infrastructure monitoring, public safety, and industrial security environments.

Autel EVO Nest system architecture and charging capabilities

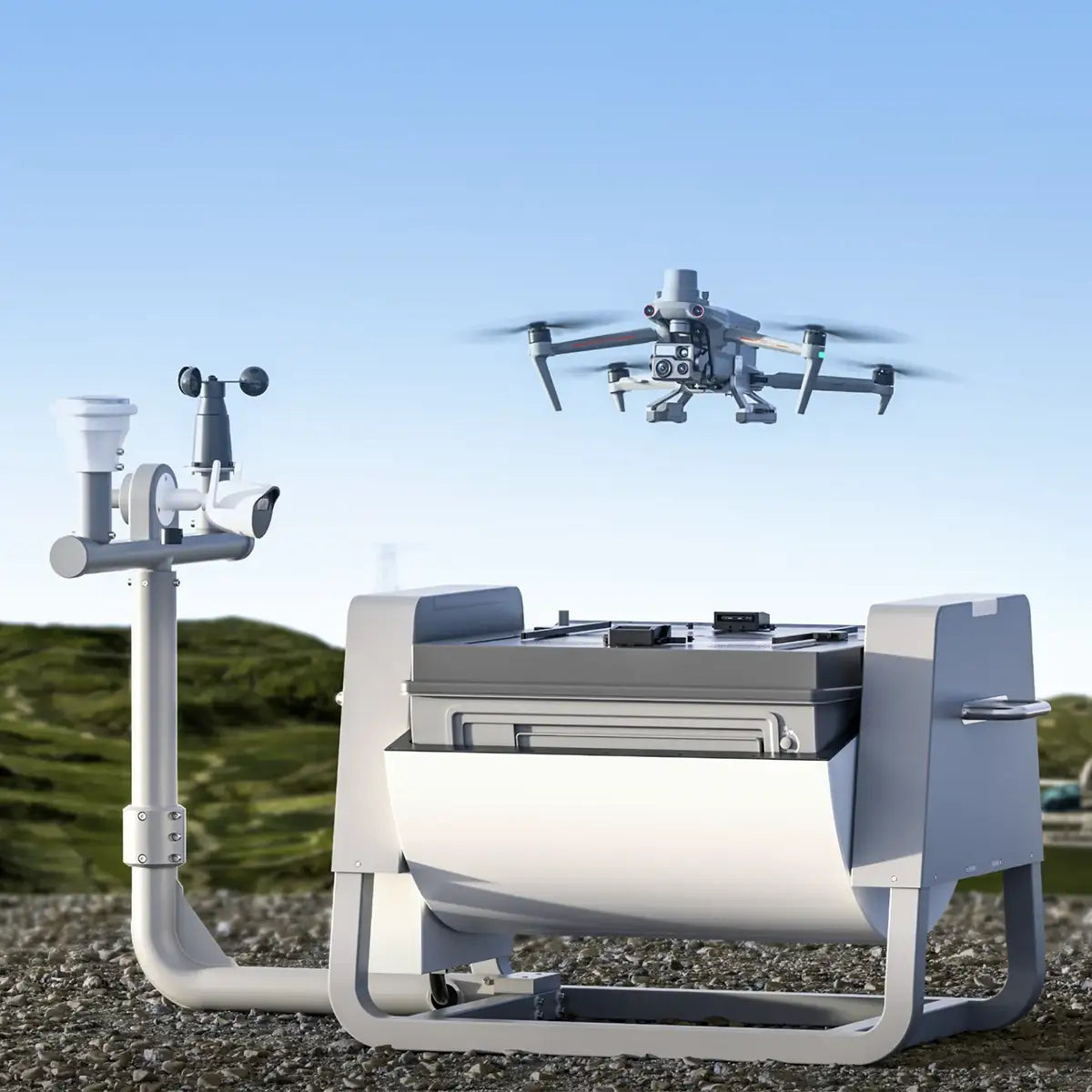

• Autonomous deployment: Executes automatic takeoff and landing sequences.
• Rapid charging: Restores battery from 10% to 90% in 25 minutes.
• High-output power: Delivers 1200–2000 W charging performance.
• Environmental protection: Rated IP55 for outdoor installations.
• Weather integration: Measures wind speed, rainfall, humidity, temperature.
• Secure transmission: Supports AES 256 encrypted image streaming.
• Cloud connectivity: Integrates with Autel Integrated Command System.
• Multi-site scalability: Networks multiple nests across wide areas.
• Mechanical durability: Rated for ≥500,000 hatch cycles.

Continuous mission readiness through integrated charging and monitoring

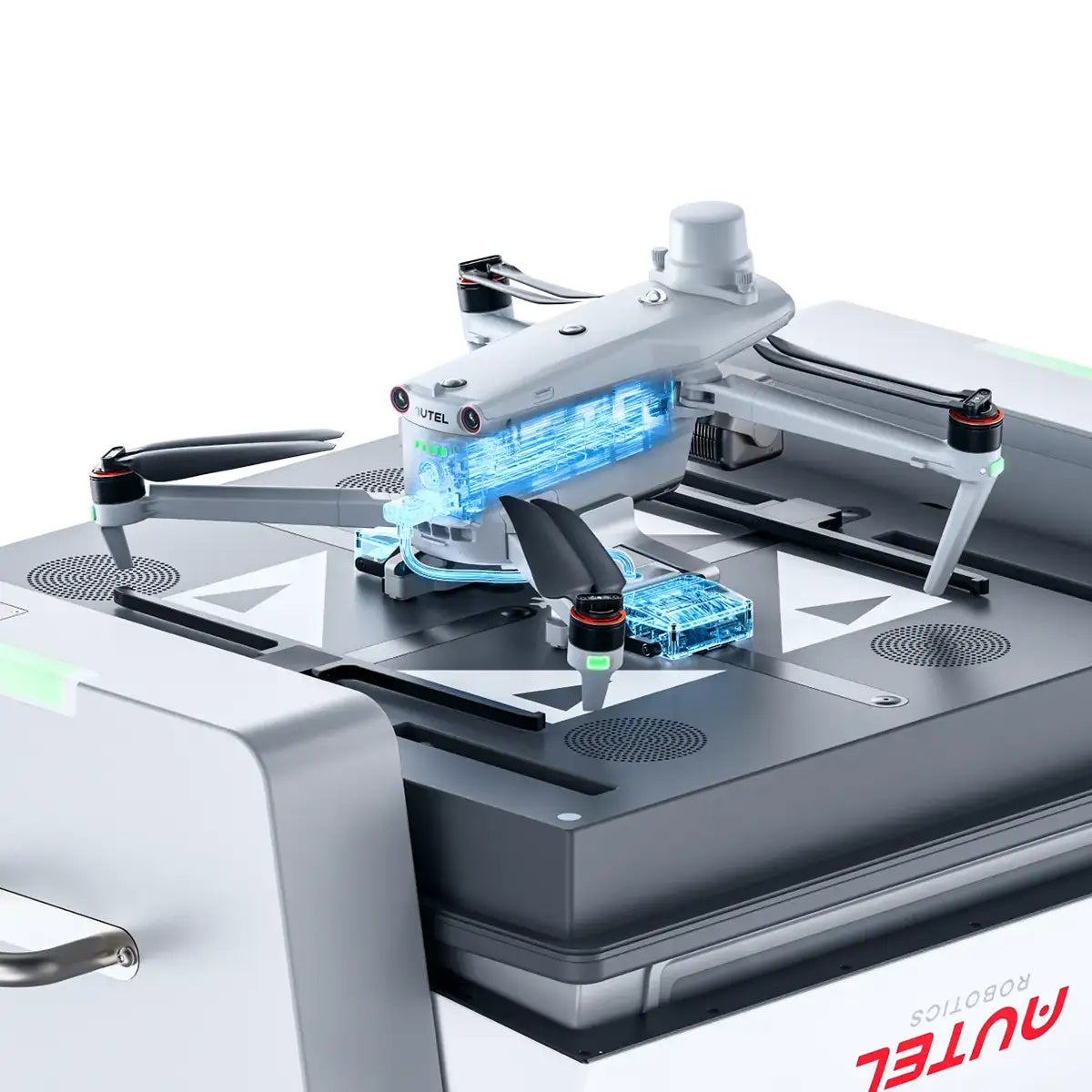

The EVO Nest provides 1200–2000 W of charging power with a maximum charge current of 16 A, restoring EVO Max aircraft from 10% to 90% in approximately 25 minutes. This turnaround time supports persistent inspection cycles where aircraft must redeploy quickly between sorties.

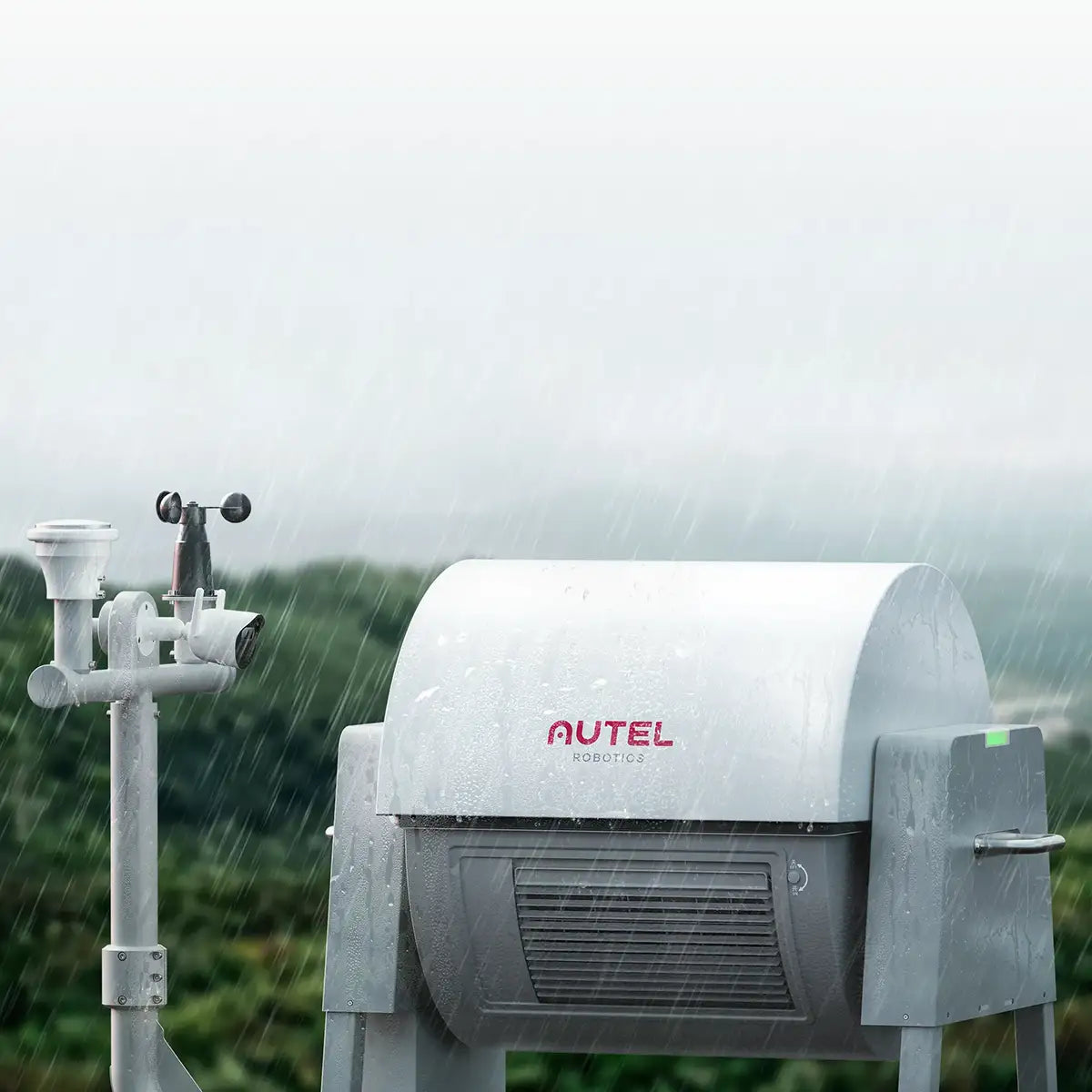

The integrated weather monitoring pole supplies localized wind speed, rainfall, temperature, and humidity data to improve autonomous flight safety decisions. IP55 sealing and an industrial temperature control unit allow reliable operation from -22°F to 131°F.

Through Ethernet connectivity or optional internal 4G integration, encrypted mission data is transmitted securely to the Autel Integrated Command System for centralized command and fleet oversight.

Compatible aircraft and command system integration

• EVO Max Series aircraft: Primary supported docking platform.
• EVO ecosystem alignment: Positioned within broader EVO family.
• Command interface: Managed via Autel Integrated Command System.
• Network connectivity: Supports Ethernet RJ45 aviation interface.
• Cellular expansion: Optional internal 4G module supported.
• RTK configuration: Enables remote RTK base station calibration.
• Video protocol output: Provides GB28181 compliant streaming.

Enterprise inspection and monitoring deployment scenarios

• Powerline inspection: Automates recurring electric infrastructure assessments.
• Solar array inspection: Enables scheduled photovoltaic monitoring missions.
• Construction monitoring: Documents progress through repeatable flight plans.
• Bridge inspection: Supports structural integrity evaluation workflows.
• Industrial security: Maintains persistent perimeter surveillance coverage.
• Asset management: Enables remote infrastructure condition monitoring.

Designed for scalable remote operations infrastructure

The Autel EVO Nest is engineered for long-term enterprise deployment where reliability, environmental resilience, and secure communications are operational requirements. Its single-piece protective drum reduces mechanical complexity and simplifies maintenance intervals. The system requires grounding of ≤10 Ω and integrates a structured power distribution cabinet with circuit protection.

Multi-Nest networking allows operators to expand coverage areas without increasing field personnel. Combined with encrypted transmission and centralized cloud oversight, the Nest provides a repeatable framework for persistent remote drone deployment across infrastructure, energy, and industrial sectors.

The EVO Nest addresses a central operational need: maintaining aircraft readiness without permanent site staffing. By combining automated charging, environmental awareness, and secure data connectivity, it supports predictable mission continuity while reducing manpower requirements and response times.
