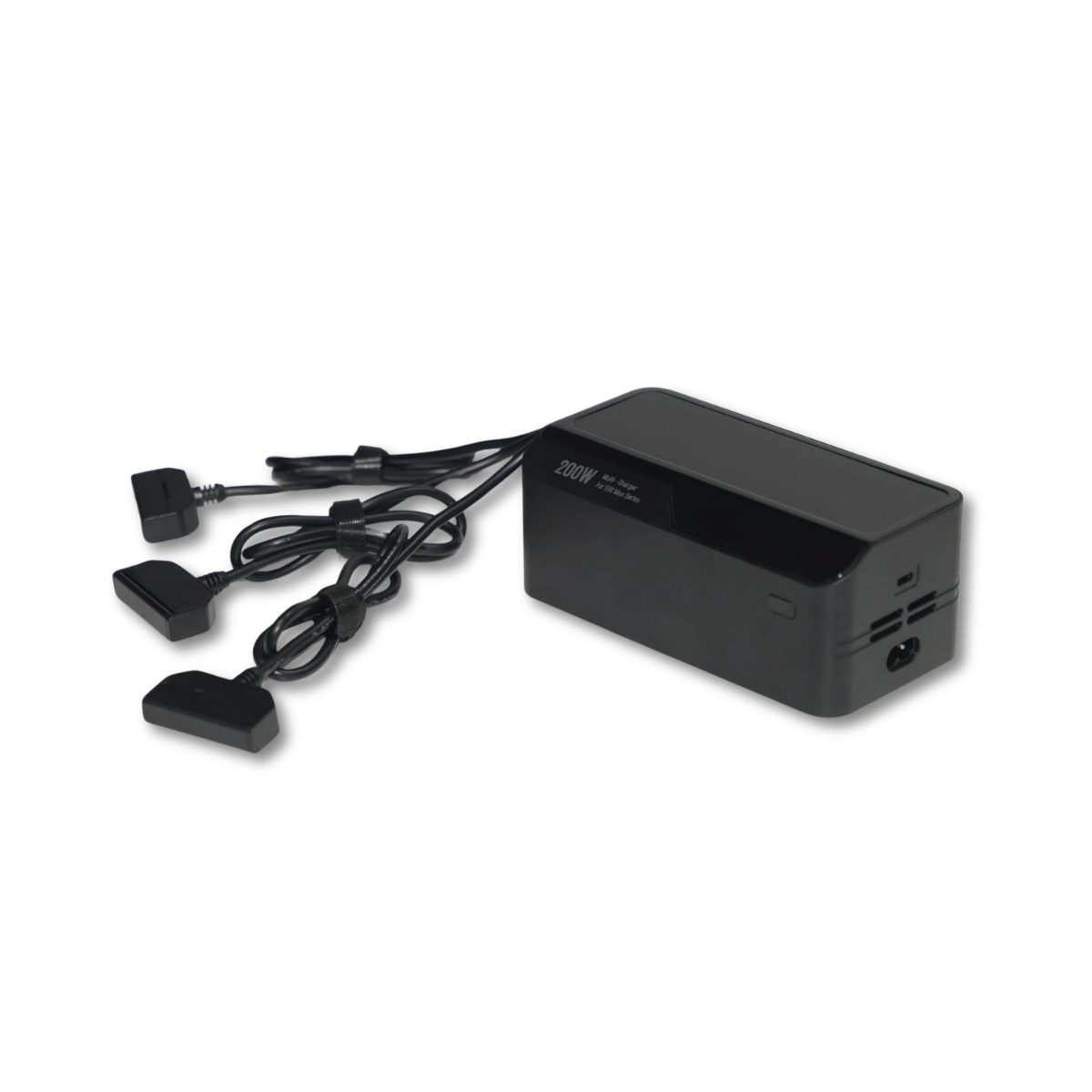

Autel EVO Max Series Multi-Charger

Autel EVO Max Series Multi-Charger

$145.00
$145.00
Sale Sold out
Shipping calculated at checkout.

S-AR-MAX-MULTICH

SKU S-AR-MAX-MULTICH MPN 102002546 UPC 190211186560
  • Intelligent power management prioritizes the most charged batteries for rapid turnaround
  • Triple charging bays restore three batteries in under 110 minutes
  • Integrated 100 W USB-C port supports PPS fast-charging for controllers
  • High-output 200 W system enables efficient energy distribution across all ports
  • Sequential charging logic ensures your fleet stays mission-ready throughout the day
  • Built-in safety suite protects against overcharging and extreme operating temperatures
  • Global AC compatibility supports international flight operations and diverse power grids
  • Lightweight 560 g design facilitates easy transport in standard gear bags
  • Specialized circuitry maintains long-term health of EVO Max flight battery cells

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max Series Multi-Charger: Intelligent high-speed power management

The Autel EVO Max Series Multi-Charger is a high-performance power station designed to streamline the replenishment of flight batteries for the EVO Max 4T and 4N platforms. Capable of housing up to three intelligent flight batteries, this charger utilizes a smart power distribution system that delivers up to 200 W of shared output. The unit prioritizes charging based on the remaining power levels of connected batteries, ensuring that the unit with the highest charge is fully restored first to minimize downtime between flights. With an integrated USB-C port supporting PPS fast-charging, operators can simultaneously power their remote controllers or mobile devices, making this a central hub for all mission-critical energy needs.

Autel EVO Max Series Multi-Charger mission-ready capabilities

  • Triple battery capacity: Manages and charges up to three EVO Max batteries in one session.
  • Optimized power delivery: Provides a robust 120 W for single batteries or 200 W for multiple units.
  • Intelligent sequential logic: Targets the battery with the highest charge first for rapid aircraft turnaround.
  • Fast recovery times: Restores a full set of three batteries in approximately 100 to 110 minutes.
  • Auxiliary USB-C port: Includes a 100 W max output port for controllers and mobile hardware.
  • Comprehensive circuit safety: Guards against overcharging, short circuits, and thermal irregularities during high-output cycles.
  • Universal voltage support: Compatible with 100V to 240V AC inputs for global operational flexibility.
  • Compact footprint: Streamlined 151 mm length ensures the unit fits easily into field deployment cases.

This multi-charger acts as the logistical heart of any EVO Max flight operation, effectively eliminating the need for multiple individual power bricks. By automating the charging sequence and providing high-wattage throughput, it allows field teams to maintain a consistent rotation of fresh batteries throughout the workday. The inclusion of secondary fast-charging for controllers ensures that the entire system—not just the aircraft—is ready for immediate deployment.

At DSLRPros, we recognize that efficient energy management is just as important as the drone itself for successful enterprise missions. Our team provides the lifecycle support necessary to keep your fleet powered and your operators focused on the task at hand rather than battery levels. Maintain your operational tempo and mission readiness by sourcing your Autel EVO Max power solutions from DSLRPros.

Multi-charger overview

  • Operating Temperature:0-40℃
  • AC Input Voltage: 100V-240V～2.5A 50Hz/60Hz 230W
  • USB Type-C Input: 9V～3A; 12V～3A; 15V～3A; 20V～5A
  • USB Type-C Output: 5V⎓2A; 9V⎓3A; 12V⎓3A; 15V⎓3A; 20V⎓5A
    PPS: 3.3V-21V⎓5A
  • Charging Power: Max. 120W (One Battery) / Max. 200W (Multi-battery)

Charging time

  • One battery: 60-70 mins
  • Two batteries: 100-110 mins
  • Three batteries: 100-110 mins

Product dimensions

  • 151×75×60 mm

Compatibility

  • EVO Max Series
  • 1x Autel EVO Max Series Multi-Charger
How does the charger decide which battery to charge first?

The Autel EVO Max Multi-Charger uses a sequential charging logic that analyzes the remaining energy in all connected batteries. It starts by charging the battery with the highest power level first. This ensures that the battery closest to being full is ready for flight as quickly as possible, allowing for a faster return to operations.

Can I charge my phone or controller while the batteries are charging?

Yes, the charger includes a dedicated USB-C port with PPS and PD fast-charging support. You can use this port to power up your Autel Smart Controller, a smartphone, or even a tablet while your flight batteries are undergoing their charging cycle. The total output power is managed intelligently between all connected devices to maintain safety.

How long does it take to charge a full set of three batteries?

When three EVO Max batteries are connected, the charger will fully replenish the set in approximately 100 to 110 minutes. If you are only charging a single battery, the charger can output up to 120 W, completing the cycle in about 60 to 70 minutes. These times are optimized to balance speed with long-term battery cell health.

Is this charger compatible with other Autel EVO series batteries?

No, the EVO Max Series Multi-Charger is exclusively designed for the 8070mAh batteries used in the EVO Max 4T and EVO Max 4N. It is not compatible with batteries from the EVO II, EVO Lite, or EVO Nano series due to different voltage requirements and physical connector designs. Using incorrect chargers can lead to equipment damage.

What safety features are built into this multi-charger?

The unit is equipped with a comprehensive power management system that provides protection against overcharging, overheating, and short circuits. It is designed to operate safely within a temperature range of 32 degrees to 104 degrees Fahrenheit. These protections are essential for maintaining the stability of high-capacity lithium polymer batteries during professional use.
