Autel EVO Max 4T XE (Max Power Bundle) Promotion

Autel EVO Max 4T XE (Max Power Bundle) Promotion

$5,699.00
$9,782.00 $5,699.00
Sale Sold out
Shipping calculated at checkout.

B-AR-MAX-4T-XE-PROMO

SKU B-AR-MAX-4T-XE-PROMO MPN 102003290

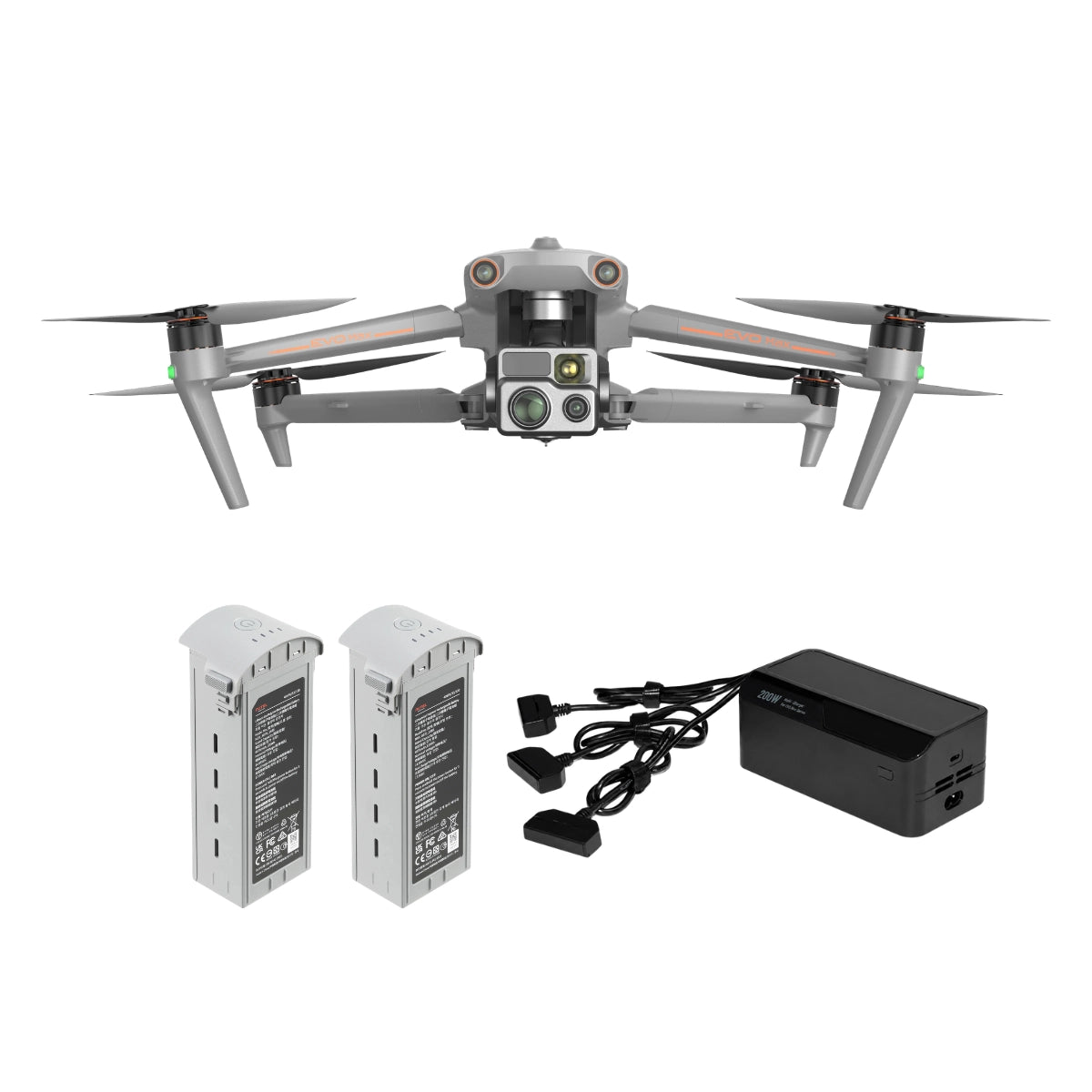

  • Promotion includes two bonus batteries and one multi-charger free.
  • 720° obstacle avoidance via fisheye vision and millimeter-wave radar.
  • SkyLink 3.0 transmission delivers a stable 12.4-mile operational range.
  • Three included batteries extend total field flight time significantly.
  • Multi-charger included recharges multiple batteries simultaneously to reduce downtime.
  • Quad-sensor FusionLight payload combines zoom, wide, thermal, and rangefinder.
  • A-Mesh 1.0 networking links drones and ground terminals freely.
  • IP43 rated for dust and light rain field conditions.
  • Operates reliably across a wide -20°F to 122°F temperature range.
  • High-precision visual navigation maintains stability in GPS-denied areas.
  • Hot-swappable batteries keep field missions running without aircraft shutdown.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max 4T XE Max Power Bundle: Bonus Batteries and Charger Included with This Promotion

The Autel EVO Max 4T XE is an enterprise-grade quadcopter built for mission-critical operations where signal reliability and obstacle avoidance cannot be compromised. Powered by Autel Autonomy's autonomous flight technology, it delivers global path planning, 3D scene reconstruction, and return-to-home capability in complex environments, including areas where GPS signals are weak, occluded, or unavailable.

A binocular fisheye vision and millimeter-wave radar sensor fusion system provides 720° all-round obstacle sensing, keeping the aircraft stable in conditions that ground less capable platforms.

Key Features and Benefits

  • 720° obstacle avoidance: binocular fisheye vision and millimeter-wave radar enable all-weather sensing.
  • SkyLink 3.0 transmission: 12.4-mile range keeps the link stable across long-distance missions.
  • A-Mesh 1.0 networking: connects multiple drones and ground terminals without traditional network infrastructure.
  • Triple-battery bundle: three 120Wh batteries deliver up to 42 minutes of flight time each.
  • Multi-charger included: charges up to three batteries simultaneously to minimize field downtime.
  • Quad-sensor payload: 10x optical zoom, wide-angle, thermal, and laser rangefinder in one gimbal.
  • High-precision visual navigation: SLAM-based positioning maintains stability in GPS-denied environments.
  • Hot-swappable batteries: field-replaceable packs support continuous operation without aircraft shutdown.
  • IP43 ingress protection: rated for operation in light rain and dusty field conditions.
  • Wide operating range: functions across -20°F to 122°F for year-round field deployment.

The Max Power Bundle pairs the standard EVO Max 4T XE package with two additional Autel EVO Max Smart Flight Batteries and an Autel EVO Max Series Multi-Charger, giving field crews three batteries in rotation instead of one.

With the integrated FusionLight 4T XE payload combining a 10x optical zoom camera, wide-angle camera, thermal imager, and laser rangefinder, this bundle is built for operators who need extended runtime and multi-sensor data collection in a single deployment.

Three Batteries Mean Three Times the Mission Window

A single dead battery shouldn't end a mission day. The Max Power Bundle gives field crews three EVO Max Smart Flight Batteries and a multi-charger built to recharge two packs in 100 to 110 minutes, keeping rotations moving instead of waiting on a single charger. Each 8070mAh, 120Wh battery uses laminated cell technology to reduce internal resistance and extend usable capacity, while a self-heating function automatically engages below 41°F to protect performance in cold weather.

Combined with the EVO Max 4T XE's 42-minute endurance rating and hot-swap capability, this bundle is built to keep the aircraft airborne across longer inspection routes, multi-site surveys, and extended search operations without returning to base for a recharge.

Compatibility and System Integration

  • Autel Smart Controller V3: integrated controller for flight operation and live FusionLight camera feed (included).
  • EVO Max 4 Series Intelligent Flight Battery: standard battery included with the base aircraft bundle (included).
  • EVO Max Smart Flight Battery: two additional 120Wh batteries included as part of the Max Power Bundle promotion (included).
  • EVO Max Series Multi-Charger: simultaneous multi-battery charging unit included with this promotion (included).
  • EVO Max 4 Series Rugged Case: protective transport case for the full aircraft and accessory kit (included).
  • 64GB MicroSD Card: onboard storage for FusionLight camera data capture (included).
  • FusionLight 4T XE camera payload: 10x zoom, wide-angle, thermal, and laser rangefinder gimbal (included).
  • Autel SkyLink 3.0: proprietary transmission protocol supporting 12.4-mile operational range (included).
  • Autel Robotics Care plans: optional extended warranty and service coverage (sold separately).
  • A-Mesh compatible devices: additional drones or ground terminals for mesh network expansion (sold separately).

Applications and Use Cases

  • Power line inspection crews: thermal and zoom cameras identify faults without de-energizing infrastructure.
  • Emergency search and rescue teams: thermal imaging locates subjects in low-visibility or nighttime conditions.
  • Law enforcement units: long transmission range supports situational awareness from a safe operating distance.
  • Geographical survey operators: laser rangefinder and zoom camera capture precise distance and terrain data.
  • Firefighting rescue operations: thermal imaging identifies hotspots through smoke for tactical decision-making.
  • Multi-site inspection contractors: triple-battery rotation keeps crews on schedule across consecutive job sites.
  • Remote area operators: A-Mesh networking maintains control links in mountainous or no-network areas.

The EVO Max 4T XE Max Power Bundle exists to remove the single biggest constraint on enterprise drone operations: battery downtime. With three batteries, a multi-charger, and a sensor suite built for public safety, inspection, and emergency response, this bundle keeps crews airborne longer and moving faster between missions.

DSLRPros has decades of experience equipping UAS professionals with enterprise platforms built for demanding fieldwork. When you purchase the Autel EVO Max 4T XE Max Power Bundle through DSLRPros, you get a team that understands how to configure this system for your specific mission profile.

Order today at DSLRPros and put a triple-battery, all-weather drone to work on your next deployment.

Aircraft

  • Weight (battery & propellers included): 1640 g (3.62 lbs, ABX40 battery, Fusion 4T gimbal, propellers)
  • Maximum take-off mass: 1999 g (4.41 lbs)
  • Maximum take-off mass for C2 certification (EU): 1890 g (4.17 lbs)
  • Dimensions unfolded (incl. propellers): 562 × 651 × 147 mm
  • Dimensions unfolded (excl. propellers): 318 × 400 × 147 mm
  • Dimensions folded (excl. propellers): 257 × 145 × 131 mm
  • Diagonal wheelbase: 466 mm (1.53 ft)
  • Propeller dimension: 11 inches
  • Propeller weight: 10.5 g
  • Maximum propeller rotational speed: 8000 RPM
  • Maximum ascent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 8 m/s
  • Maximum descent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 6 m/s
  • Maximum horizontal speed (windless): Slow 3 m/s, Smooth 10 m/s, Standard 15 m/s forward/back, 10 m/s sidewards, Ludicrous 23 m/s forward, 18 m/s backward, 20 m/s sidewards
  • Maximum service ceiling: 4000 m (ABX40), 3000 m (ABX41)
  • Maximum flight altitude limit (in app): 800 m (2625 ft)
  • Maximum flight time (windless): 42 minutes
  • Maximum hovering time (windless): 38 minutes
  • Maximum wind resistance: 12 m/s (27 mph)
  • Ingress protection rating: IP43 (custom service)
  • Maximum tilt angle: Slow 10°, Smooth 30°, Standard 30°, Ludicrous 36°
  • Maximum angular velocity: Pitch 300°/s, Heading 120°/s
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Internal storage: 128 GB (64 GB available depending on firmware)
  • GNSS system: GPS, Galileo, BeiDou, GLONASS

Wi-Fi & Connectivity

  • Wi-Fi frequencies: 2.400–2.476 GHz, 2.400–2.4835 GHz, 5.15–5.25 GHz, 5.17–5.25 GHz (DE), 5.725–5.829 GHz, 5.725–5.850 GHz
  • Wi-Fi protocol: 802.11a/b/g/n/ac/ax, supports 2×2 MIMO
  • Wi-Fi EIRP: 2.4G ≤30 dBm (FCC), ≤20 dBm (CE/SRRC/UKCA), ≤12.14 dBm (MIC)
  • 5.2G ≤30 dBm (FCC), ≤23 dBm (CE/UKCA)
  • 5.8G ≤30 dBm (FCC/SRRC), ≤14 dBm (CE/UKCA)
  • Hovering accuracy vertical: ±0.1 m (vision), ±0.5 m (GNSS)
  • Hovering accuracy horizontal: ±0.3 m (vision), ±0.5 m (GNSS)

Gimbal

  • Mechanical range 4T XE: Pitch -135° to 45°, Yaw -45° to 45°, Roll -45° to 45°
  • Mechanical range 4N: Pitch -135° to 45°, Yaw -50° to 50°, Roll -45° to 45°
  • Controllable pitch range: -90° to 30°
  • Stabilization: 3-axis mechanical (pitch, yaw, roll)
  • Max pitch control speed: 100°/s
  • Angular vibration range: < 0.005°

EVO Max 4T XE Zoom Camera

  • Sensor: 1/2" CMOS, 48 MP
  • Lens: 11.8–43.3 mm, 64–234 mm equivalent, f/2.8–f/4.8
  • Focusing distance: 5 m to ∞
  • ISO (auto): 100–6400
  • Shutter speed: 1/8 s ~ 1/10000 s
  • Optical zoom: 2.7–10×, up to 160× hybrid zoom
  • Photo resolution: JPG 4000×3000, 8192×6144; DNG 4000×3000
  • Video resolution: 4000×3000 30P

EVO Max 4T XE Thermal Camera

  • Sensor: Uncooled VOx Microbolometer
  • FOV: 61°
  • Focal length: 9.1 mm, f/1.0
  • Temperature accuracy: ±2°C or ±2%
  • Video resolution: 640 × 512 30P
  • Photo size: 640 × 512
  • Measurement modes: Center, spot, rectangular
  • Temperature ranges: -20°C to 150°C, 0°C to 550°C
  • Palettes: White Hot, Black Hot, Ironbow, Rainbow

Laser Rangefinder

  • Wavelength: 905 nm
  • Accuracy: ±(1 m + D×0.15%)
  • Range: 5–1200 m

Wide-Angle Camera

  • Sensor: 1/1.28" CMOS, 50 MP
  • Lens: DFOV 85°, 4.5 mm (23 mm equivalent), f/1.9
  • ISO: Photo 100–6400, Video up to 64000
  • Shutter: Photo 0.5 s ~ 1/8000 s, Video 1/30 s ~ 1/8000 s
  • Video resolution: 4000×3000 30P
  • Photo resolution: 4000×3000 or 8000×6000

Image Transmission

  • Frequencies: 900M, 2.4G, 5.2G, 5.8G (region-dependent)
  • Max transmission distance FCC: 15 km
  • Max transmission distance CE: 8 km
  • Controller: Autel Smart Controller V3
  • EIRP 900M: ≤30 dBm
  • EIRP 2.4G: ≤30 dBm (FCC/ISED), ≤20 dBm (CE/SRRC)
  • EIRP 5.8G: ≤30 dBm (FCC/SRRC), ≤14 dBm (CE)

Millimeter-Wave Radar System

  • Operating frequencies: 60–64 GHz, 24.0–24.25 GHz
  • EIRP: 60G ≤20 dBm, 24G ≤20 mW
  • Sensing range (60G): Up 0.3–20 m, Down 0.15–80 m, Forward/Backward 0.3–50 m
  • Sensing range (24G): Down 0.8–12 m
  • FOV: Horizontal ±60°/±22°, Vertical ±30°/±20°

Visual Obstacle Sensing

  • Forward: 0.5–31 m
  • Backward: 0.5–25 m
  • Sideward: 0.5–26 m
  • Upward: 0.2–26 m
  • Downward: 0.3–23 m
  • FOV forward/backward: 60° H, 80° V
  • FOV upward/downward: 180° sideward, 120° forward/backward

Autel Smart Controller V3

  • Display: 7.9 inches, 2000 nits, 2048×1536, 60 Hz
  • Battery: 5800 mAh, 11.55 V, 67 Wh
  • Operating time: 2.5 hr (max brightness), 4.0 hr (50%)
  • Charging time: 120 minutes
  • Max transmission distance: 15 km (FCC), 8 km (CE)
  • IP rating: IP43
  • Internal storage: 128 GB
  • Operating temperature: -20°C to 40°C
  • Wi-Fi: 802.11a/b/g/n/ac, 2×2 MIMO
  • Wi-Fi frequencies: 2.4G & 5.8G

Smart Battery

  • Dimensions: 158.4 × 74.3 × 50.7 mm
  • Operating temperature: -20°C to 50°C
  • ABX40 capacity: 8070 mAh, 14.88 V, 120 Wh, 520 g
  • ABX41 capacity: 9248 mAh, 14.76 V, 136.5 Wh, 533 g
  • Battery type: LiPo 4S
  • Charging temperature: 5°C to 45°C
  • Hot swappable: Supported
  • 1x EVO Max 4 Aircraft
  • 1x FusionLight 4T XE Gimbal Camera
  • 1x Smart Controller V3
  • 1x Intelligent Flight Battery
  • 1x Gimbal Cover
  • 1x Battery Charger & Power Cable
  • 1x RC Charger
  • 1x RC Charging Cable
  • 1x Data Cable
  • 3x Clockwise Propellers
  • 3x Counter-Clockwise Propellers
  • 1x Smart Controller Cover
  • 1x Smart Controller Lanyard
  • 1x Pair of Spare Smart Controller Joysticks
  • 1x 64GB MicroSD Card
  • 1x Screwdriver
  • 1x Rugged Hard Case
  • 1x Product Manual & Quick Start Guide Kit
  • 2x Autel EVO Max Smart Flight Battery
  • 1x Autel EVO Max Series Multicharger
What does the Max Power Bundle include that the standard EVO Max 4T XE does not?

The Max Power Bundle adds two additional Autel EVO Max Smart Flight Batteries and one Autel EVO Max Series Multi-Charger on top of the standard EVO Max 4T XE package. This gives operators three batteries total instead of one, along with a charger capable of recharging multiple batteries simultaneously. These items are automatically added to your cart during the promotion period.

What sensors are included in the EVO Max 4T XE camera payload?

The FusionLight 4T XE payload integrates four sensors in a single gimbal: a 48MP camera with 10x optical zoom and up to 160x hybrid zoom, a 48MP wide-angle camera, a 640x512 thermal camera with a range of -4°F to 1022°F, and a laser rangefinder measuring up to 1200 meters. This combination supports inspection, surveying, and public safety missions without swapping payloads.

How long does the EVO Max 4T XE fly on a single battery?

Each EVO Max Smart Flight Battery delivers up to 42 minutes of flight time, rated at 8070mAh and 120Wh. With three batteries included in this bundle, operators can rotate packs in the field to extend total mission time well beyond a single flight, particularly when paired with the included multi-charger.

What is the maximum flight time of the EVO Max 4T XE?

The aircraft supports up to 42 minutes of maximum flight time.

Does the EVO Max 4T XE support thermal inspections of turbines?

Yes. The thermal camera captures radiometric infrared data at 640 × 512 resolution.

Does the EVO Max 4T XE support radiometric thermal inspections?

Yes. The thermal camera captures radiometric infrared data at 640 × 512 resolution.

How long does the EVO Max 4T XE fly on a single battery?

The EVO Max 4T XE delivers up to 42 minutes of maximum flight time and 38 minutes of maximum hovering time under windless conditions, using the included hot-swappable Intelligent Flight Battery. Additional batteries and a multi-charger are available separately for extended field rotations.

How does the EVO Max 4T XE perform in poor weather or low visibility?

The aircraft uses 720° obstacle avoidance through binocular fisheye vision and millimeter-wave radar sensor fusion. It carries an IP43 ingress protection rating and operates across a wide temperature range, with high-precision SLAM visual navigation that remains stable even when GPS signals are weak or obstructed.
