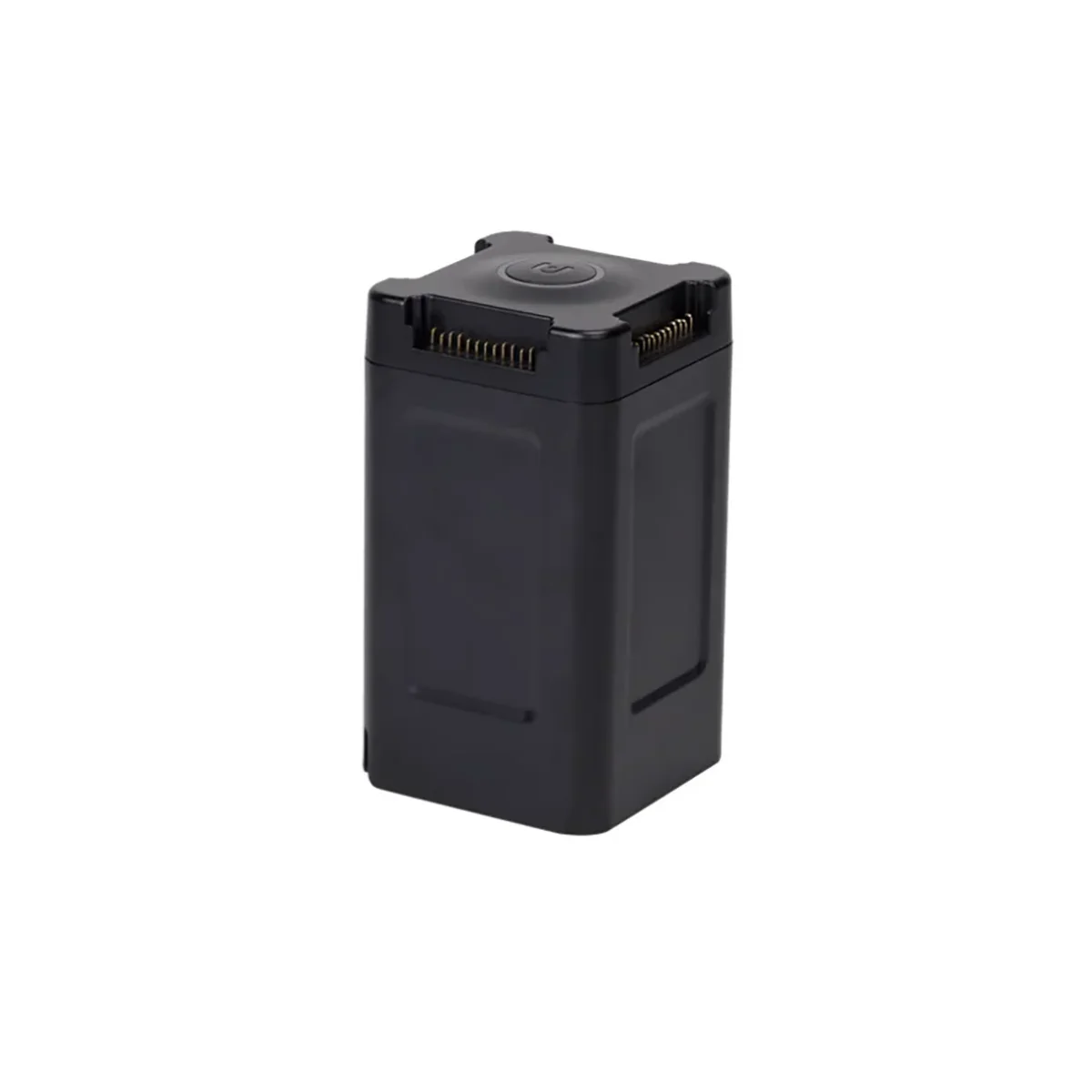

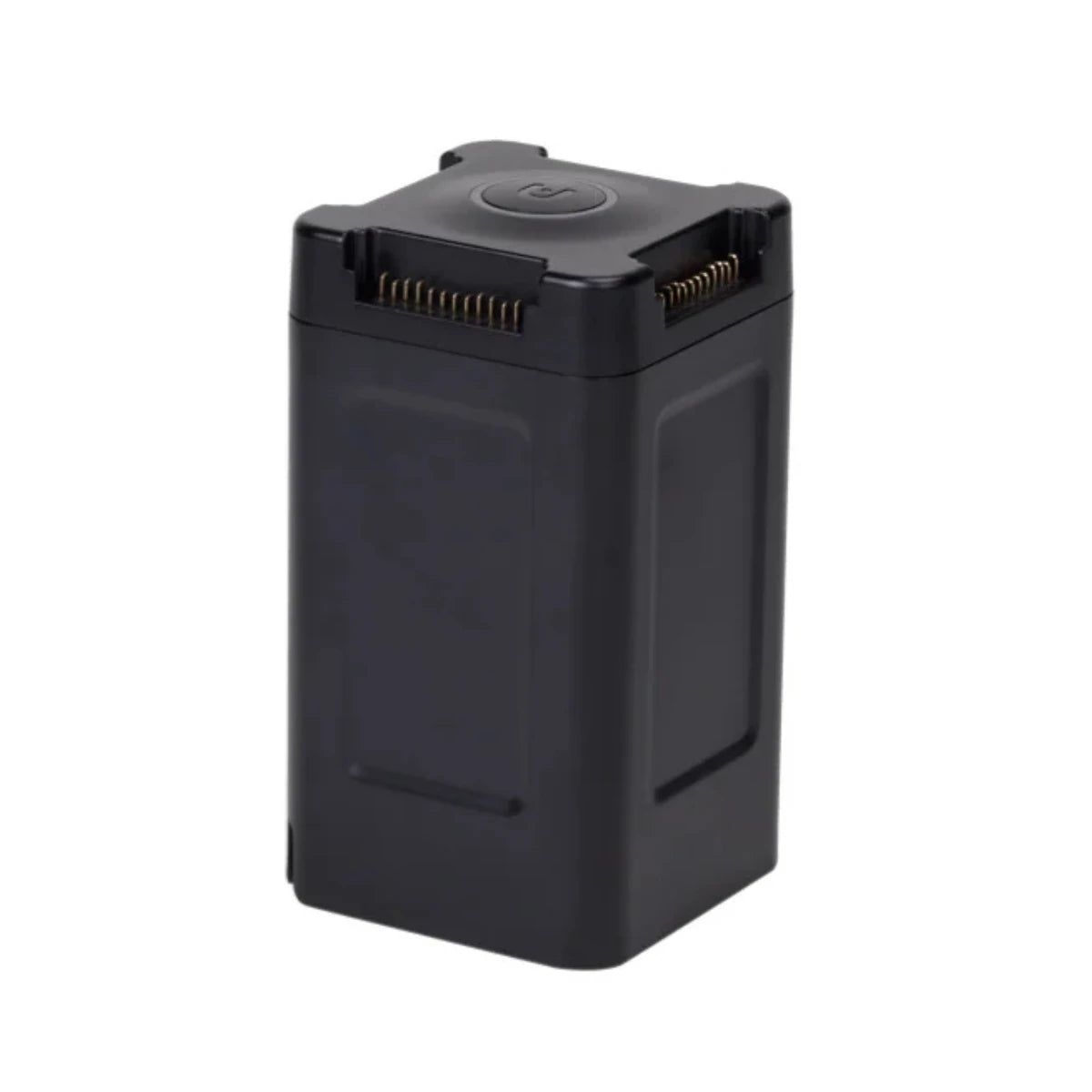

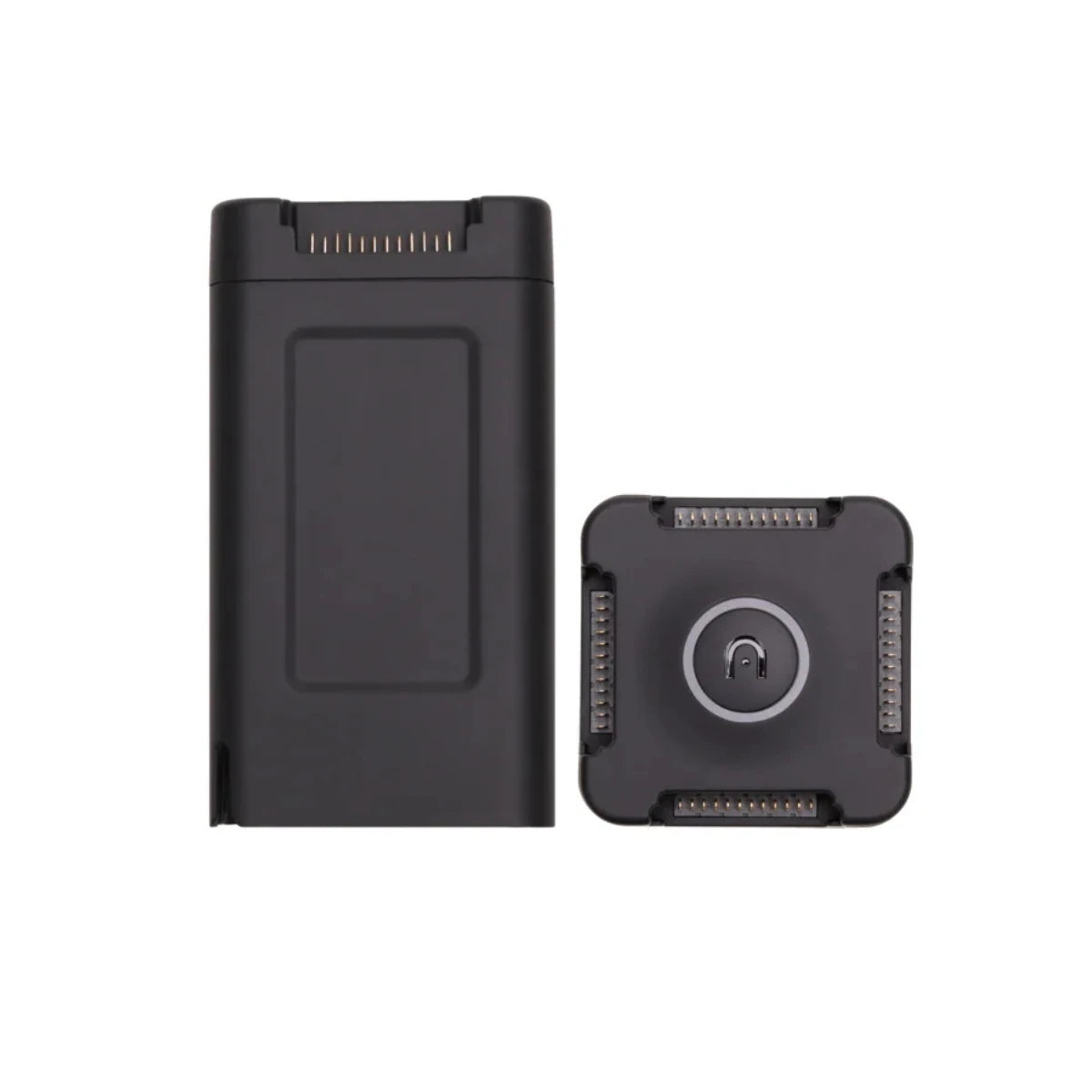

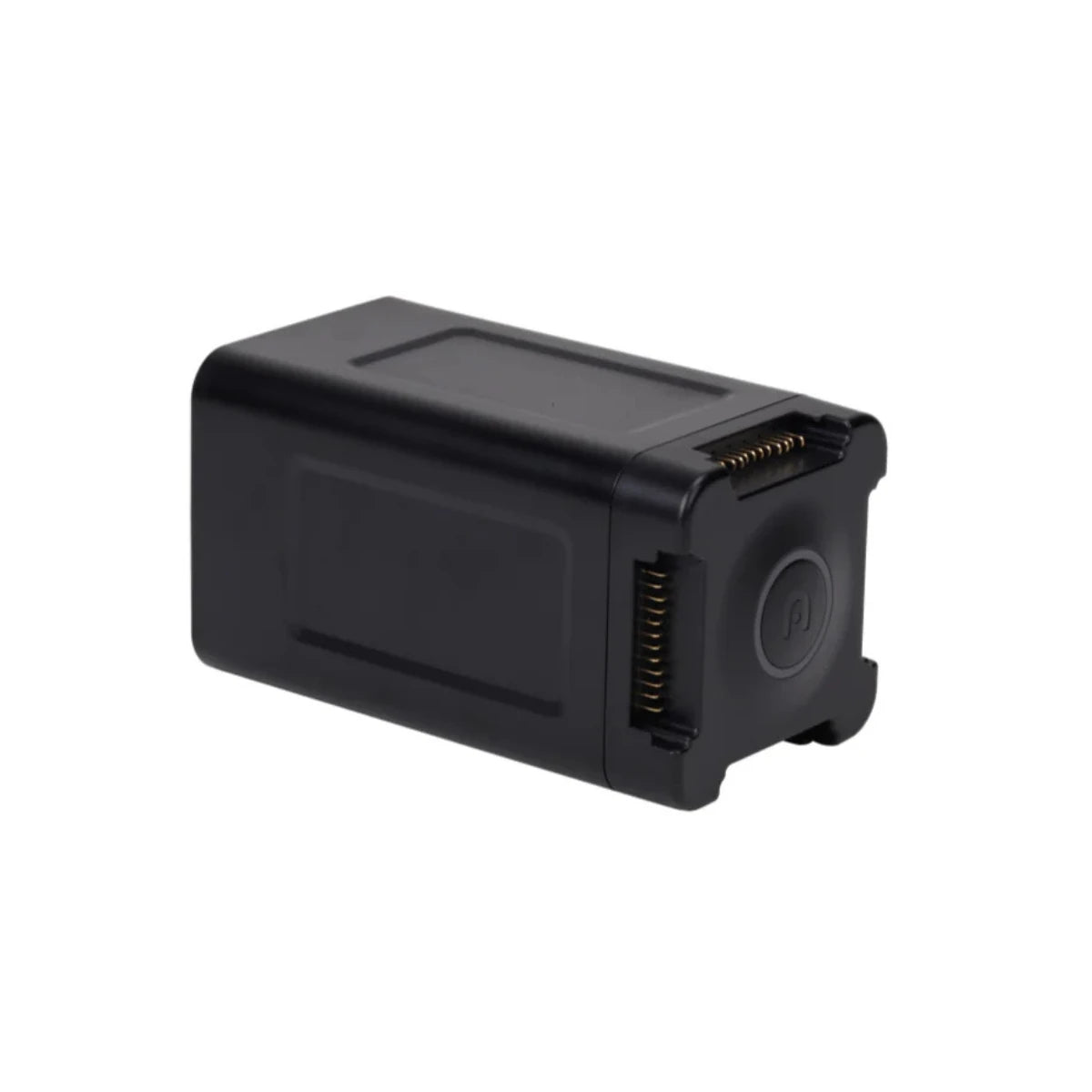

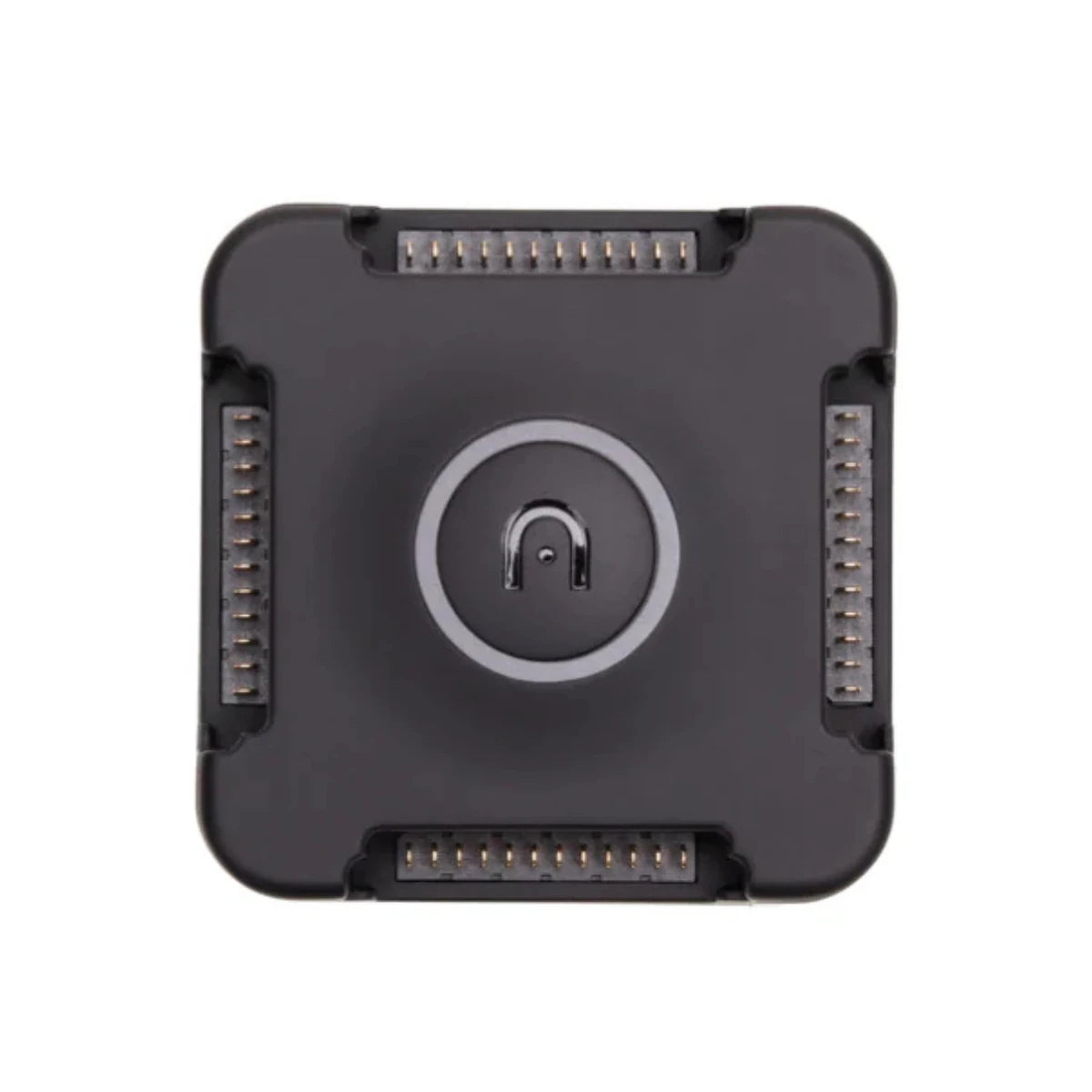

Autel EVO II Battery Charging Hub

Autel EVO II Battery Charging Hub

$89.00
$89.00
Sale Sold out
Shipping calculated at checkout.

S-AR-E2-MCHG

SKU S-AR-E2-MCHG MPN 102000204 UPC 889520010924
  • Four-slot hub supports charging up to 4 EVO II batteries
  • Simultaneous mode charges 2 batteries for faster turnaround time
  • Alternate mode enables sequential charging across all batteries
  • 5.5-hour charging cycle supports full battery set rotation
  • Requires standard EVO II charger for power input operation
  • 13.2 V working voltage matches EVO II charging system requirements
  • LED display provides clear charging status and system feedback
  • Red alert indicator warns of abnormal voltage and temperature
    Compatible with EVO II, Pro, Dual 640T, Enterprise, RTK batteries

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Four-Battery Charging Expansion for EVO II Power Management

The Autel EVO II Battery Charging Hub is a multi-port charging accessory designed to expand a single EVO II charger into a four-battery charging system. It does not include a power adapter and must be used with the standard EVO II battery charger supplied with the aircraft.

The hub supports both simultaneous and alternate charging modes, allowing it to charge two batteries at once before continuing sequentially across all connected batteries. With LED status indicators and fault alerts, it provides clear visibility into charging progress and system conditions, helping maintain battery readiness during extended flight operations.

Key Features and Benefits

  • Four-battery support: charges up to 4 EVO II flight batteries
  • Simultaneous charging: charges 2 batteries at once for faster turnaround
  • Alternate charging: enables sequential charging across all connected batteries
  • 5.5-hour cycle: charges 4 batteries in approximately 5.5 hours total
  • 13.2 V input: operates using standard EVO II charger voltage
  • External power required: uses standard EVO II charger, not included
  • LED status display: shows charging progress and system feedback clearly
  • Fault indicator: red light alerts abnormal voltage or temperature conditions
  • Wide compatibility: supports multiple EVO II battery models and variants

The charging hub organizes power distribution across multiple batteries using a controlled sequence. This allows users to manage charging cycles more efficiently without needing multiple chargers.

With DSLRPros, you get access to reliable UAV accessories that support consistent field performance. Order the Autel EVO II Battery Charging Hub from DSLRPros today.

  • Working Voltage: 13.2V
  • Working Temp.: 41-104Β°F (5-40Β°C)
  • Reference Charging Time (4 batteries): 5.5h
  • 1x Autel EVO II Battery Charging Hub
What does the Autel EVO II Battery Charging Hub do?

The Autel EVO II Battery Charging Hub allows multiple batteries to be charged using a single charger. It manages charging automatically across up to four batteries. This helps streamline battery management during operations.

Does the Autel EVO II Battery Charging Hub include a charger?

No, the hub does not include a charger or power adapter. It requires the standard EVO II battery charger that comes with the drone. Without it, the hub cannot function.

How many batteries can the Autel EVO II Battery Charging Hub charge at once?

The hub can charge up to four batteries. It charges two batteries simultaneously first, then continues charging the remaining batteries sequentially. This balances speed and efficiency.

Which batteries are compatible with the Autel EVO II Battery Charging Hub?

It supports EVO II Flight Battery (7100 mAh), EVO II Pro, Dual 640T, Enterprise, and RTK series batteries. This ensures compatibility across the EVO II lineup. It is designed for flexible use.

What happens if there is a charging issue?

The hub uses a red light indicator to signal abnormal voltage or temperature conditions. It also provides status feedback through its LED display. This helps identify charging issues quickly.
