Autel Alpha DT60S+DH1E Loudspeaker & Spotlight

S-AR-ALPHA-DT60S

Autel Alpha DT60S+DH1E Loudspeaker & Spotlight

$1,399.00

Request Enterprise Price

Estimated delivery

Delivers in 1–5 business days after dispatch
Product Summary

The Autel Alpha DT60S+DH1E combines a 10W loudspeaker producing up to 114 dB with a 60W dual-spotlight system delivering 36 lux of focused illumination across roughly 200 square meters, giving Alpha operators simultaneous voice broadcast and night illumination from a single payload. Broadcast range extends to 984 ft (300 m), and the spotlights automatically track gimbal pitch across a 120-degree tilt range to stay aligned with the camera view. It's built for public safety, search and rescue, and industrial operations that require coordinated lighting and communication during nighttime or emergency response missions.

Key Features
  • Dual spotlight and loudspeaker payload expands capabilities of Autel Alpha drones
  • 60W spotlight system supports nighttime search rescue and inspection missions
  • Follow gimbal pitch lighting maintains illumination aligned with camera view
  • 114 dB speaker output enables clear aerial broadcasting during operations
  • Broadcast range reaches up to 984 ft (300 m) distance
  • 14° beam angle delivers focused long-range illumination from altitude
  • Lighting coverage reaches approximately 200 square meters ground area
  • 120° controllable spotlight tilt allows precise directional lighting control
  • PSDK interface ensures seamless payload integration with Autel Alpha platform

Vendor: Autel

MPN: 102002769

Fulfilled by: DSLRPros

Pickup available at EUAS

Usually ready in 24 hours

All about the

Autel Alpha DT60S+DH1E Loudspeaker & Spotlight

Product Details & Specifications

Description

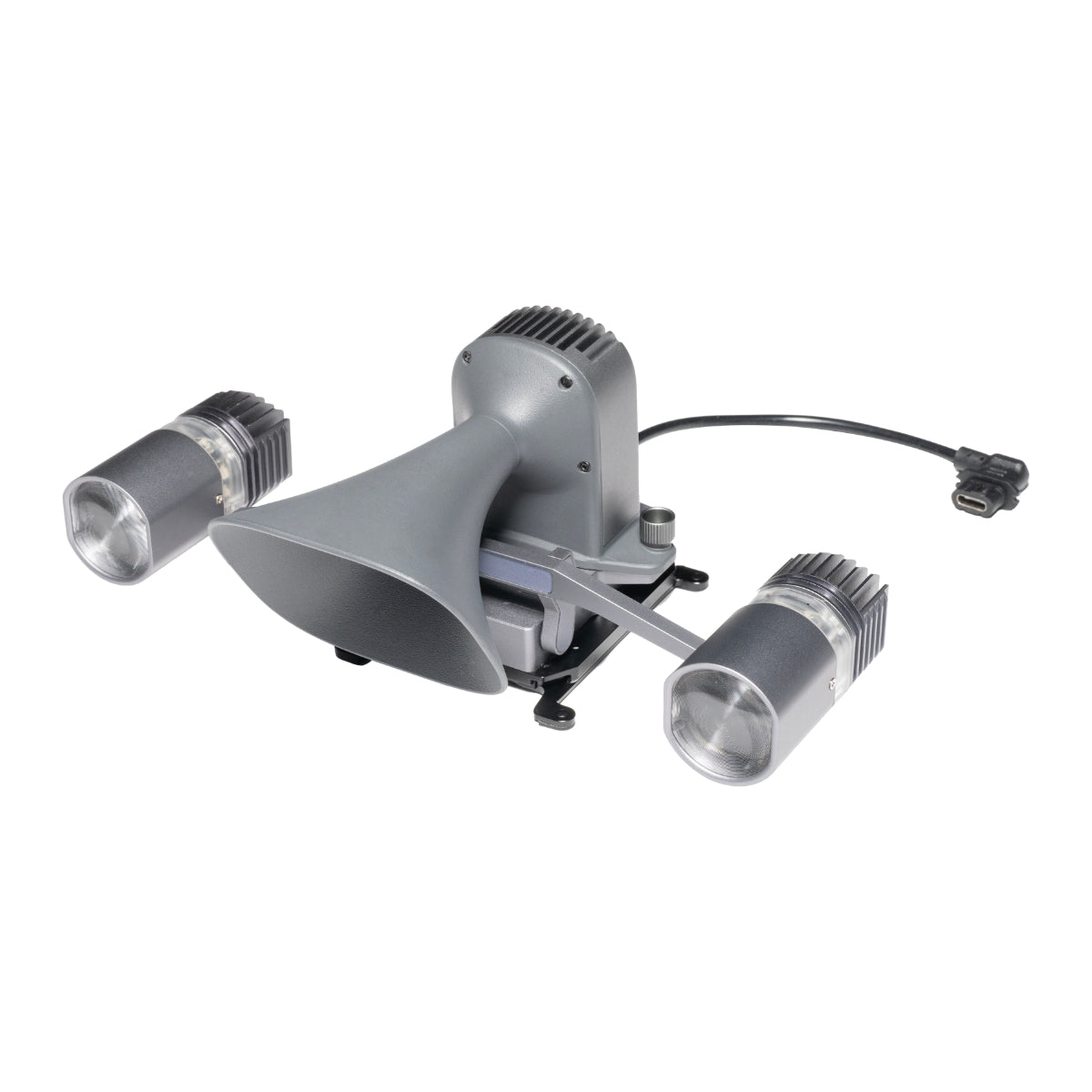

Autel Alpha DT60S+DH1E Loudspeaker & Spotlight: Dual spotlight illumination and aerial broadcast payload

The Autel Alpha DT60S+DH1E Loudspeaker & Spotlight is a dual-function payload designed for the Autel Alpha drone platform, combining high-intensity illumination with long-range aerial broadcasting. Built for public safety, search and rescue, and industrial operations, the payload integrates a 10W loudspeaker with a powerful dual-spotlight system.

The lights automatically follow the drone’s gimbal pitch to maintain illumination aligned with the camera view. With adjustable brightness, focused beam optics, and a quick-release payload interface, the DT60S+DH1E enables operators to illuminate targets while delivering clear voice communication from the air.

Autel Alpha DT60S+DH1E spotlight illumination and aerial broadcast capabilities

  • I ntegrated loudspeaker system: Broadcasts aerial messages during emergency response and safety missions
  • High-output audio projection: Produces up to 114 dB sound pressure at 3.3 ft
  • Long-range broadcasting capability: Delivers voice communication up to 984 ft (300 m)
  • Dual spotlight power output: Provides 60W high-intensity illumination for nighttime missions
  • Central illuminance performance: Produces up to 36 lux focused lighting output
  • Wide illumination coverage: Lights ground areas up to approximately 200 square meters
  • Narrow 14° beam angle: Focuses spotlight for long-distance target illumination
  • 120° controllable tilt range: Adjusts lighting from +30° upward to −90° downward
  • Gimbal pitch synchronization: Automatically aligns spotlights with camera viewing direction

The Autel Alpha DT60S+DH1E Loudspeaker & Spotlight expands the Alpha platform’s operational capability by combining illumination and communication in a single payload. Operators can illuminate ground targets while broadcasting instructions, improving coordination during emergency response and nighttime field operations.

DSLRPros supports enterprise UAV teams with mission-ready payload systems and expert integration guidance. Order the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight from DSLRPros to enhance the operational capability of your Autel Alpha drone.

Key Features
  • Dual spotlight and loudspeaker payload expands capabilities of Autel Alpha drones
  • 60W spotlight system supports nighttime search rescue and inspection missions
  • Follow gimbal pitch lighting maintains illumination aligned with camera view
  • 114 dB speaker output enables clear aerial broadcasting during operations
  • Broadcast range reaches up to 984 ft (300 m) distance
  • 14° beam angle delivers focused long-range illumination from altitude
  • Lighting coverage reaches approximately 200 square meters ground area
  • 120° controllable spotlight tilt allows precise directional lighting control
  • PSDK interface ensures seamless payload integration with Autel Alpha platform
Specifications
  • Total Power: 60W (Spotlight) + 10W (Speaker).
  • Weight: 250g (approximately 8.8 oz).
  • Dimensions: 196 x 129 x 78 mm.
  • Spotlight Brightness: 36 Lux central illuminance.
  • Lighting Coverage: Illuminates an area of approximately 200 square meters.
  • Beam Angle: 14° (focused beam).
  • Tilt Range: +30° to -90° (can follow the drone camera's pitch).
  • Speaker Volume: 114dB at 1 meter.
  • Broadcast Range: Effective audio up to 300 meters (approx. 984 feet).
  • Connection: Quick-release via the Autel PSDK interface.
  • Operating Temperature: -10°C to 50°C (14°F to 122°F).
What's in the Box?
  • 1x Autel Alpha DT60S+DH1E Loudspeaker & Spotlight

Frequently Asked Questions

More questions? Speak with an Expert.

What does the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight do?

The Autel Alpha DT60S+DH1E Loudspeaker & Spotlight provides both aerial illumination and voice broadcasting from the drone. Dual spotlights illuminate the ground while the loudspeaker broadcasts instructions or warnings. This combination supports emergency response and nighttime missions.

Which drone is compatible with the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight?

The Autel Alpha DT60S+DH1E Loudspeaker & Spotlight is designed for the Autel Alpha drone platform. It mounts using the Alpha quick-release payload system. The device connects through the aircraft’s PSDK interface.

How powerful are the spotlights on the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight?

The dual spotlight system delivers a combined output of 60W. It produces approximately 36 lux of central illuminance. The lights can illuminate an area of roughly 200 square meters.

How far can the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight broadcast sound?

The loudspeaker can broadcast messages up to about 984 ft (300 m). It produces up to 114 dB sound pressure at 3.3 ft (1 m). This allows operators to communicate clearly from the air.

How do the lights follow the camera on the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight?

The spotlight system automatically synchronizes with the drone’s gimbal pitch. As the camera tilts up or down, the lights adjust accordingly. This keeps the illuminated area centered on the camera’s subject.
