All about the

ACSL SOTEN Mission Package

Product Details & Specifications

Description

ACSL SOTEN Mission Package: Field-Ready, Mission-Tested

The ACSL SOTEN Mission Package is a complete NDAA-compliant drone system designed for high-demand tasks such as disaster response, infrastructure inspection, and surveying.

Featuring the ACSL SOTEN Standard Camera, rugged TENSO Smart Controller, and five smart flight batteries, this package is mission-ready straight out of the box.

Key Features

This package combines durability, clarity, and flight endurance for teams operating in real-world, mission-critical scenarios.

  • ACSL SOTEN Standard Camera with 1" sensor, 20MP resolution, and mechanical shutter
  • TENSO Controller with 1920x1080 resolution,  AES256 encrypted communications, and IP43 rating
  • 5x ACSL SOTEN Smart Batteries - up to 28 minutes per battery

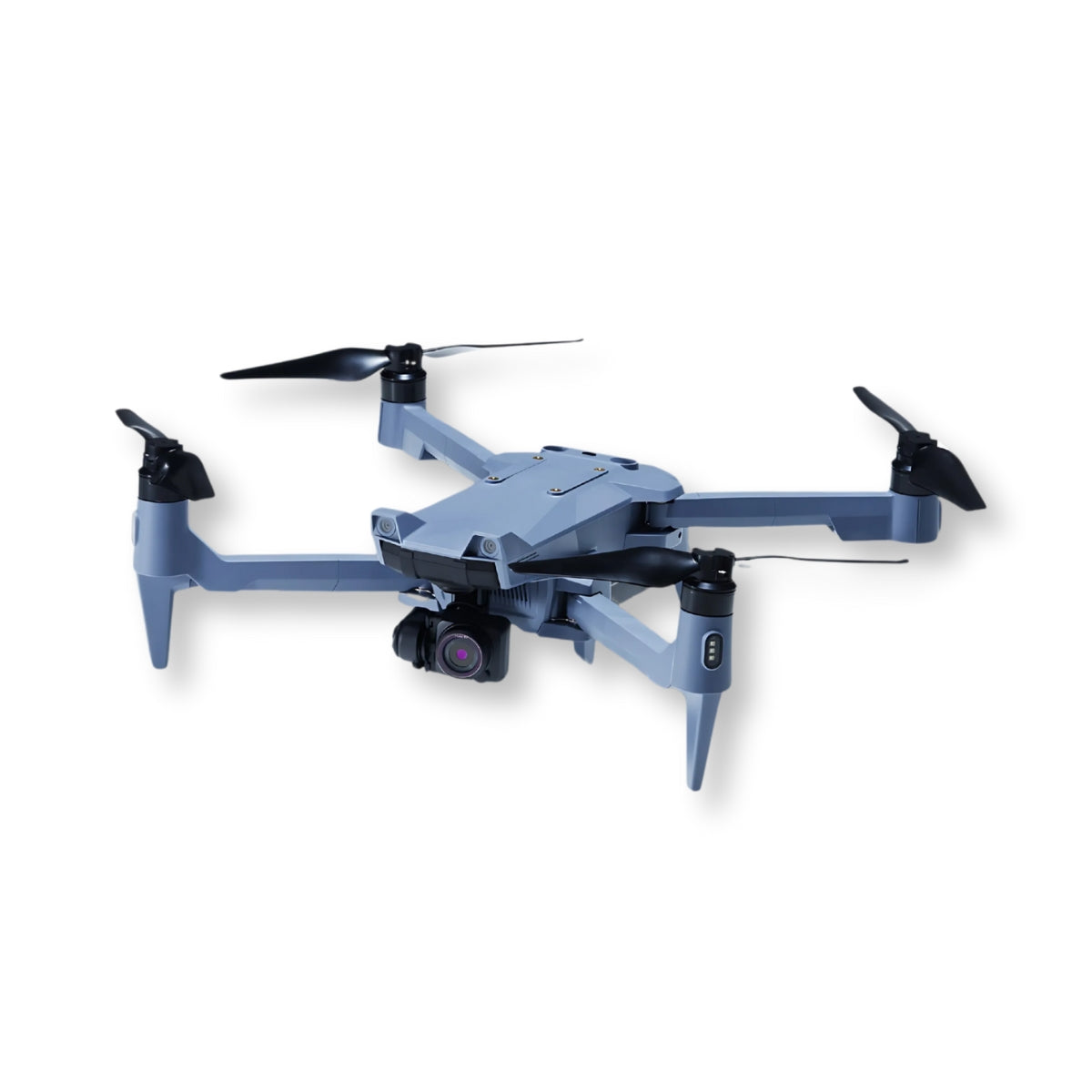

  • Foldable 1.7 kg drone designed for rapid deployment
  • Swappable payload bay allows future camera upgrades
  • FAA Remote ID ready
  • ISO15408-certified system with secure data workflows
  • Multi-directional obstacle avoidance for safer flight
  • LTE-enabled for long-range, BVLOS operations (smartphone LTE required)
  • IP43-rated drone and controller for weather and dust resistance

Focused on Security and Performance

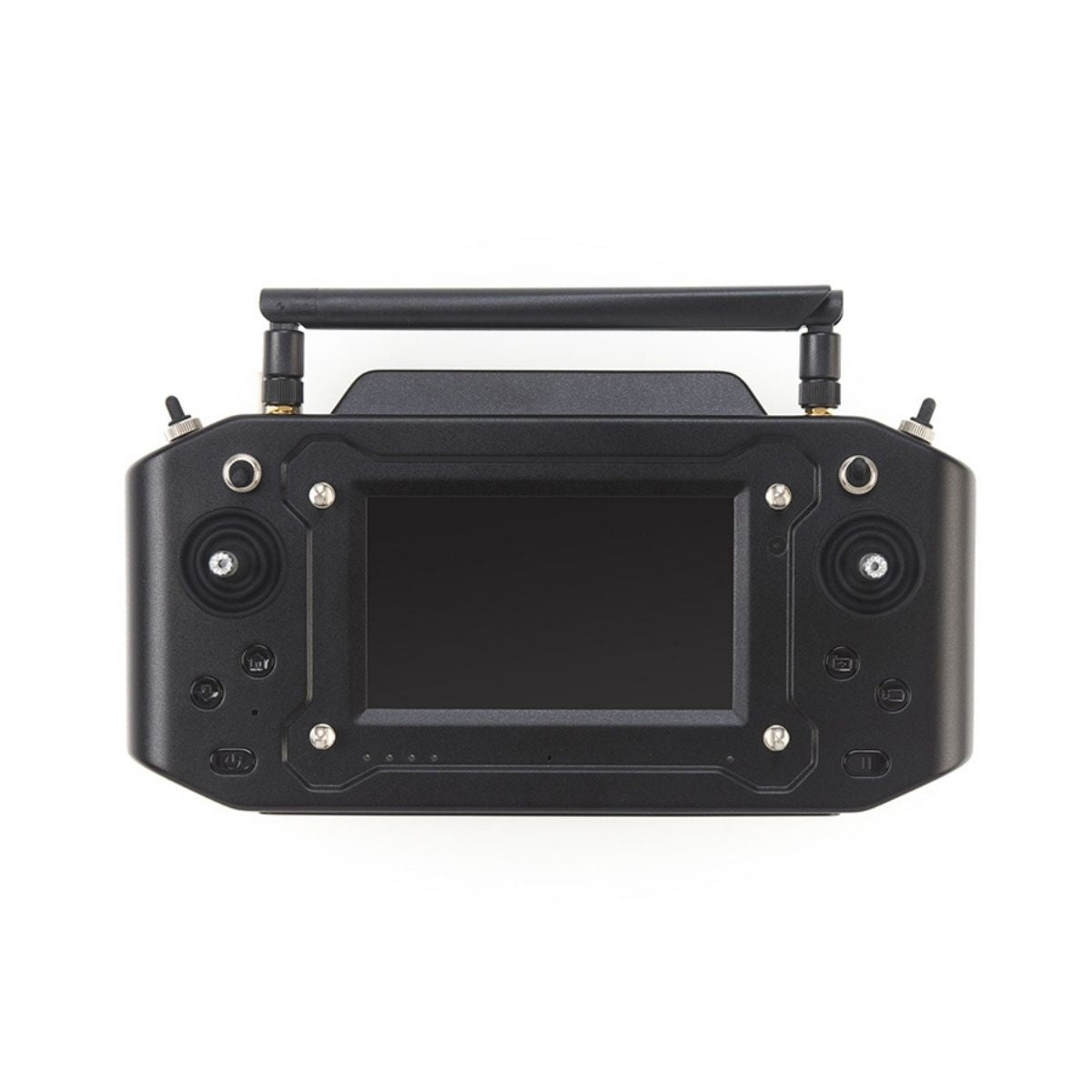

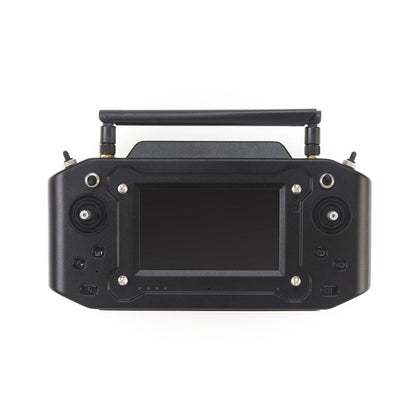

The included ACSL TENSO Smart Controller is built for secure, precise operation in the field. With AES 256 encryption and an IP43-rated body, it offers dependable control under pressure.

The Standard Camera delivers 20MP stills via a 1" RGB sensor and mechanical shutter-ideal for capturing accurate visual data. With five smart batteries offering up to 28 minutes of flight time each, you'll keep your missions moving without unnecessary downtime.

Applications

The Mission Package is built for teams that need consistent uptime and reliable performance across field operations.

  • Disaster response and emergency management
  • Utility and infrastructure inspections
  • Environmental and geographic surveying
  • Construction and site documentation
  • Law enforcement and public safety operations
  • Search and rescue missions

Get the ACSL SOTEN Mission Package from DSLRPros and fly smarter, longer, and safer-every time.

Key Features
  • NDAA-compliant drone with AES256 encryption and secure data storage

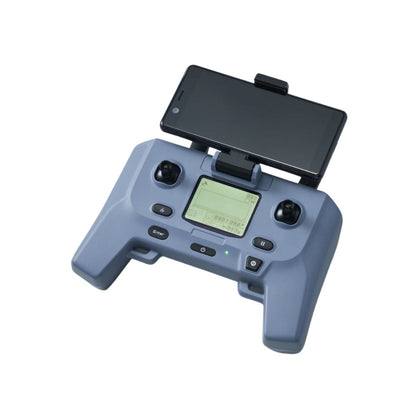

  • Standard Controller with IP43 rating for field durability (smartphone required)
  • Includes 5x ACSL SOTEN Smart Batteries for extended mission time
  • 1" sensor Standard Camera with 20MP photos and mechanical shutter
  • FAA Remote ID compliant and ISO15408-certified system
  • Swappable payload bay for camera upgrades without shutdown
  • Foldable 1.7 kg drone with IP43-rated build for rapid deployment
Specifications
  • Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
  • Height: Unfolded 153mm (including propellers)
  • Weight: 1,720g (including standard camera and battery)
  • Number of rotor blades: 4
  • Intelligent battery: Lithium-ion battery 94Wh, 1 pc
  • Operating frequency: 2.412 - 2.477 GHz
  • Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
  • Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
  • Maximum pitch angle: 30°
  • Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
  • Maximum ascent speed: 3m/s
  • Maximum descent speed: 2m/s
  • Maximum takeoff weight: 2,000g
  • Maximum speed (no wind): 15m/s
  • Operational limit altitude: 2000m
  • Maximum airspeed: 15m/s
  • Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
  • Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
  • Ingress protection: IP43 (with camera, gimbal, and battery)
  • GNSS: GPS + QZSS + GLONASS + SLAS
  • Operating temperature: 0°C to 40°C
  • Optional items: LTE Comms Module, Spare Battery
  • Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
  • Obstacle detection angle: 70° horizontal, 40° vertical
  • Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
  • Operating environment: Adequate lighting and clear texture
  • Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
  • Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
  • Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
  • Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
  • Remote Controller - Operating frequency: 2.412 to 2.477 GHz
  • Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
  • Remote Controller - Battery life: Up to 4 hours
  • Remote Controller - Operating temperature: 0°C to 40°C
  • Remote Controller - Security: AES encryption method
  • Remote Controller - Multiple operations: Control can be transferred between two radio controllers
  • Supported Mobile Devices - OS: Android™ 4.1 or higher
  • Supported Mobile Devices - Terminal: USB Type-C
  • Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
  • Visible Camera - Effective pixels: 20 megapixels
  • Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
  • Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
  • Visible Camera - Video method: MOV / H.264
  • Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
  • Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
  • Visible Camera - Sensor size: 1 inch
  • Visible Camera - Shutter system: Mechanical
  • Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
  • Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
  • Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
  • Visible Camera - Security: Data encryption can be enabled/disabled
  • Camera Gimbal - Mechanism: 3-axis
  • Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
  • Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
  • Camera Gimbal - Control accuracy: ±0.02°
  • Camera Gimbal - Switching method: One-touch camera switching
  • Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
  • Infrared + Visible Camera - Temperature resolution: <60mK
  • Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
  • Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
  • Infrared + Visible Camera - Video method: MOV / H.264
  • Infrared + Visible Camera - Video quality: Full HD / HD
  • Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
  • Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
  • Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

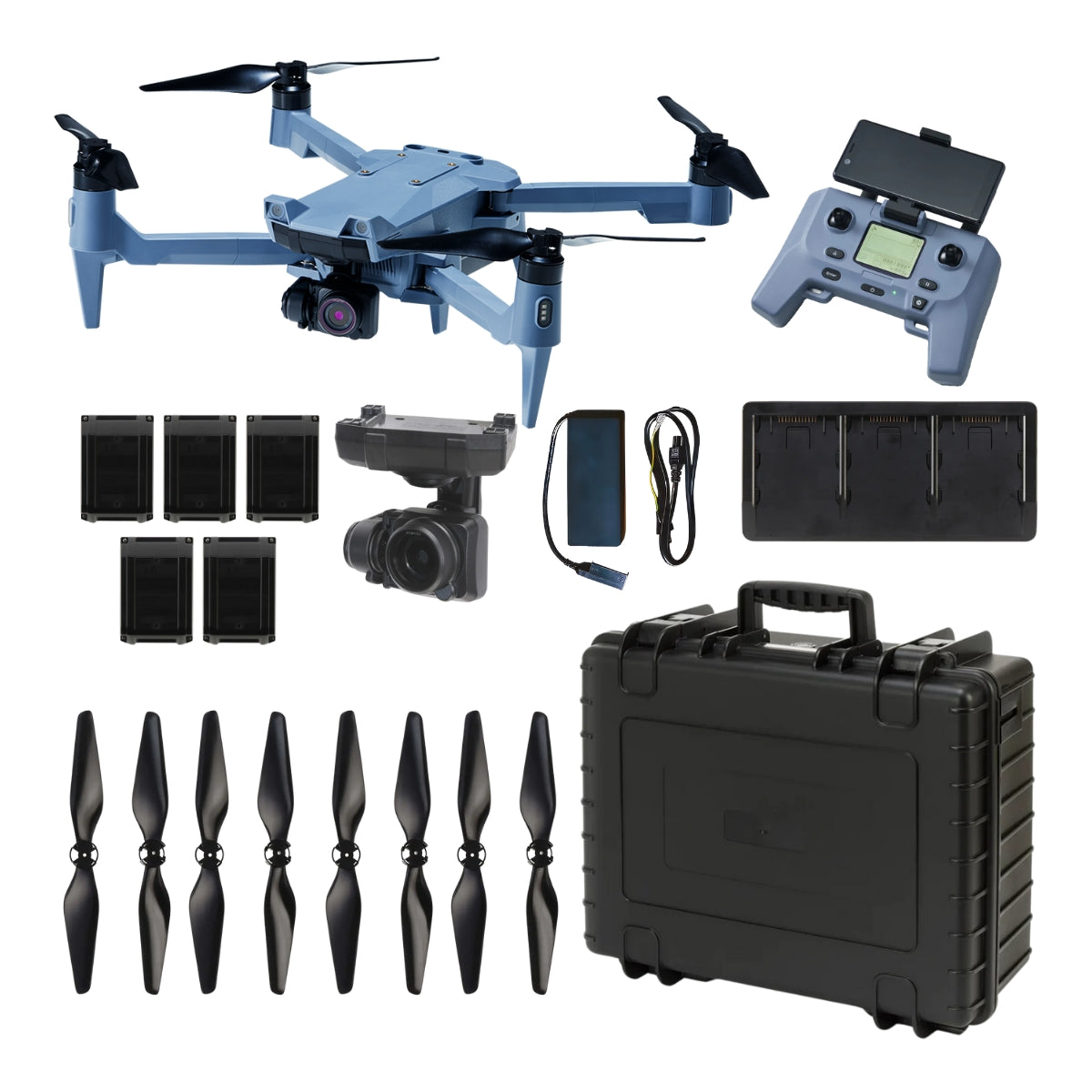

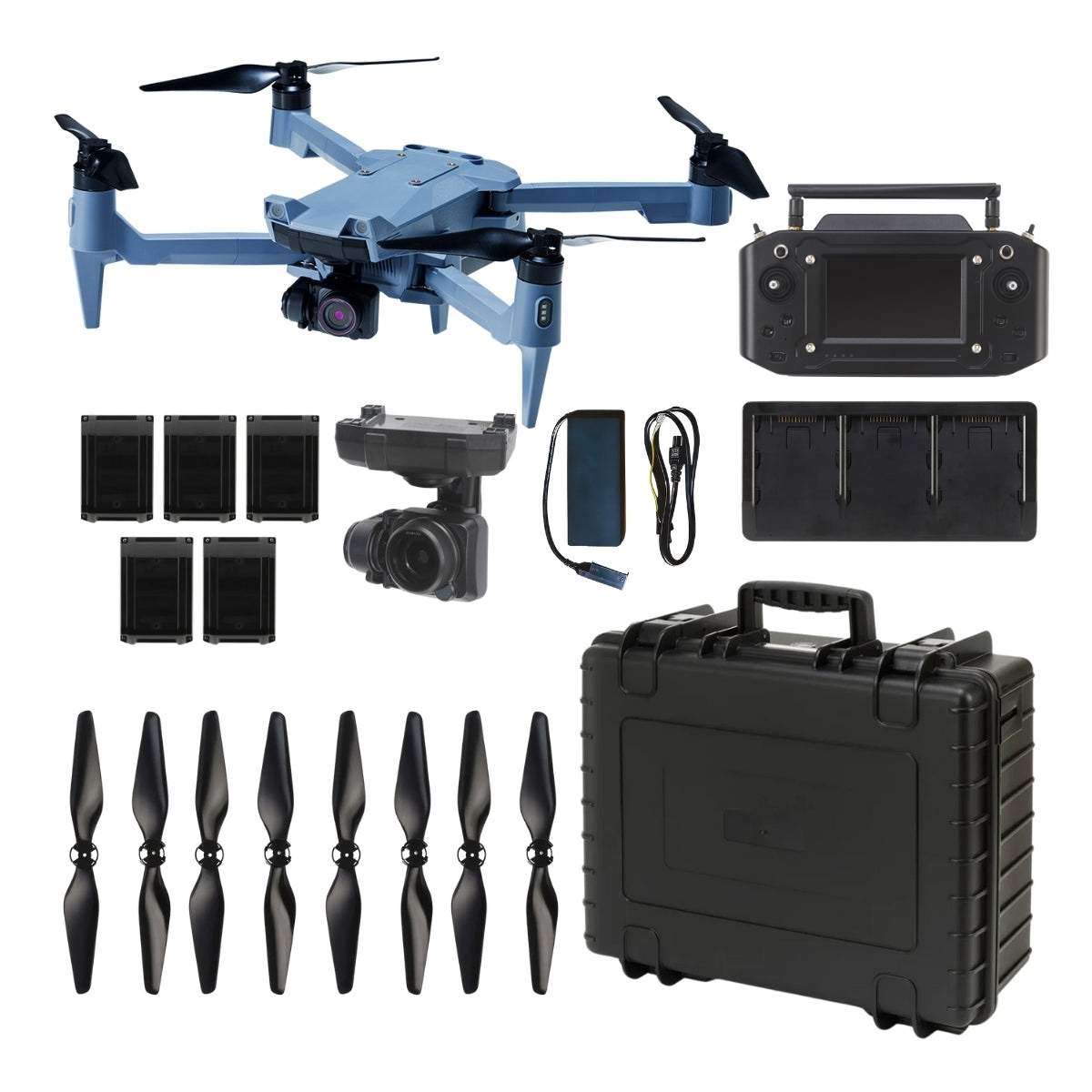

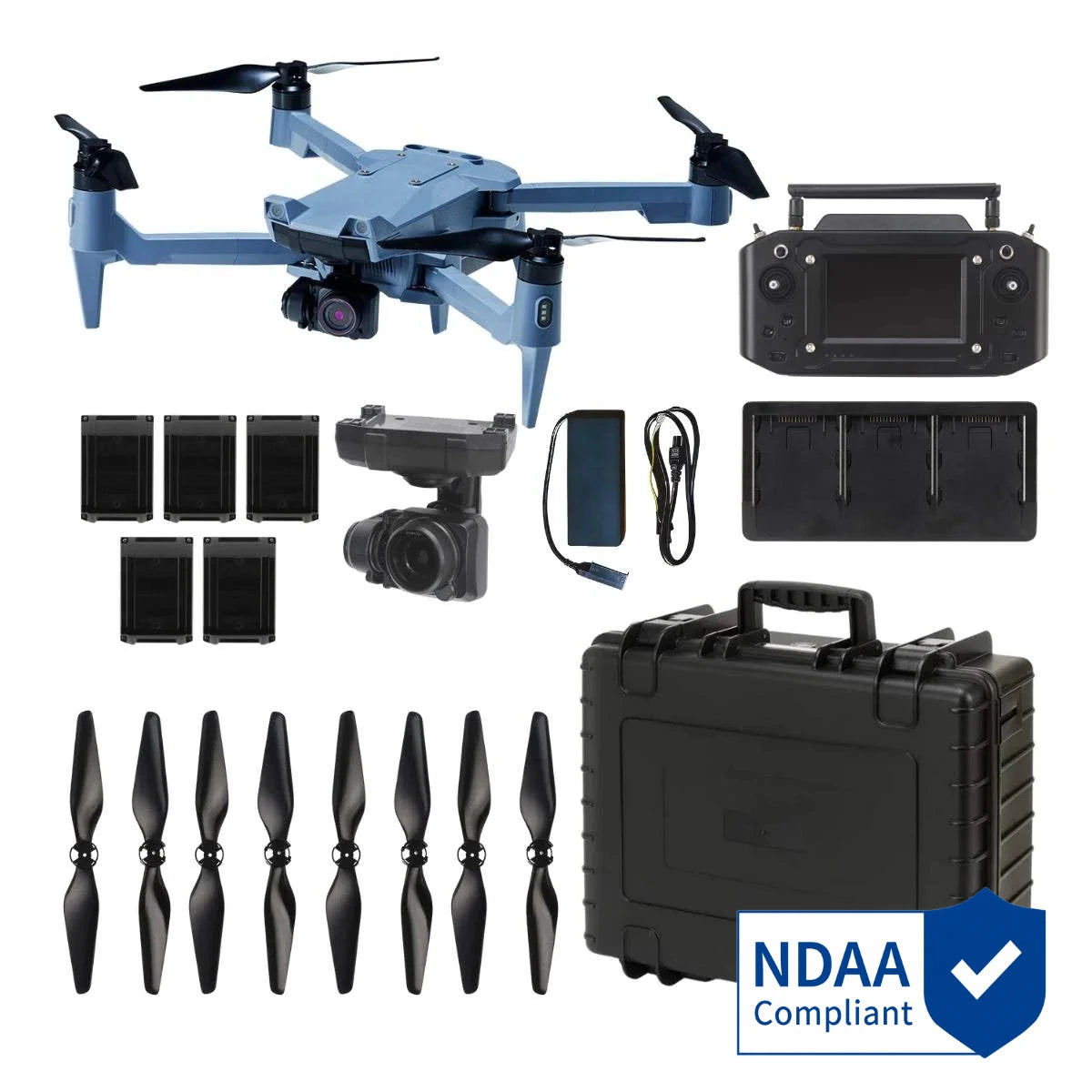

What's in the Box?
  • 1x SOTEN Airframe
  • 1x TENSO Remote Controller
  • 1x Battery Charger
  • 1x Triple Battery Charger
  • 5x Smart Batteries
  • 2x CW Propeller set
  • 2x CCW Propeller Set
  • 1x Standard 20MP Camera
  • 1x Hard Storage Case
DSLRPRosCare Extended Warranty

DSLRPROS DJI Care is our exclusive extended warranty program, designed to give you peace of mind and extra protection for your drone investment.

  • Coverage Length: 13 months from the date your product ships
  • What’s Covered: Accidental damage from pilot error, collisions, drops, water exposure, signal interference, and internal malfunctions
  • What’s Not Covered: Intentional misuse, modifications, loss or theft, cosmetic wear, consumables (like propellers or batteries), or operation outside manufacturer guidelines
  • Replacements: One replacement during the coverage term. Replacement may be new or refurbished. If unavailable, we’ll provide a product of similar capability.
  • How to File a Claim: Notify support@dslrpros.com within 7 days of an incident. Ship the product using the label we provide.
  • Eligibility: Policy must be purchased before your product ships from DSLRPROS. Coverage applies only to the original purchaser.

Simple, clear protection—so you can focus on flying, not worrying.

Warranty Terms and Conditions

Frequently Asked Questions

More questions? Speak with an Expert.

What kind of payload/camera options does SOTEN support?

SOTEN supports a one-touch swappable camera system: standard RGB (20 MP, 4K video), multispectral camera, optical zoom camera, and EO/IR combination cameras.

Is SOTEN designed for bad weather?

While SOTEN has IP43 resistance (light water spray / dust), it is not fully rain-proof. Flying in rain or heavy wind is not recommended; the IP43 rating helps with unexpected exposure to spray but does not mean full all-weather use.

What makes ACSL SOTEN different from personal drones?

Unlike consumer drones, the ACSL SOTEN is designed for enterprise use—featuring modular payload support, NDAA-compliant builds, and secure data transmission. It’s ideal for government agencies, utilities, and commercial inspection teams who require professional-grade results and data protection.

Is the ACSL SOTEN drone NDAA-compliant?

Yes. Both the SOTEN aircraft and the TAITEN Smart Controller are NDAA-compliant. As of the time of this listing, the system is not currently on the DIU Blue UAS list, but meets NDAA Section 848 compliance requirements. Communications are secured with AES-256 encryption through ACSL Fides-Link, and the security architecture is built around ISO/IEC 15408 principles.

Can the SOTEN fly BVLOS?

Yes, the platform supports LTE and encrypted telemetry links designed for BVLOS readiness, subject to FAA waiver approval.

Which industries use the ACSL SOTEN?

The SOTEN is deployed for infrastructure inspection, mapping, agriculture, and public safety—anywhere modular payload flexibility is key.

Where can I buy ACSL SOTEN drones in the U.S.?

DSLRPros is an official U.S. reseller providing full integration support, firmware updates, and bundle customization.

Where is the SOTEN made?

ACSL SOTEN is made in Japan.
