• MAX FLIGHT TIME

    49 mins

  • MAX TRANSMISSION DISTANCE

    15.5 mi

  • MAX SPEED

    47 mph

  • MAX WIND RESISTANCE

    39.4 ft/s

Wide Camera Sensor: 1/1.3-inch CMOS, 48 MP
Medium Tele Camera Sensor: 1/1.3-inch CMOS, 48 MP
Tele Camera Sensor: 1/1.5-inch CMOS, 48 MP
Infrared Resolution: 640 x 512 pixels
Infrared Framerate: 30 Hz
Thermal Imager: Uncooled vanadium oxide (VOx)
Infrared Wavelength: 8um to 14um
Water Proof Rating: Not rated

Request Info/Quote

Portable, Deployable, Dependable

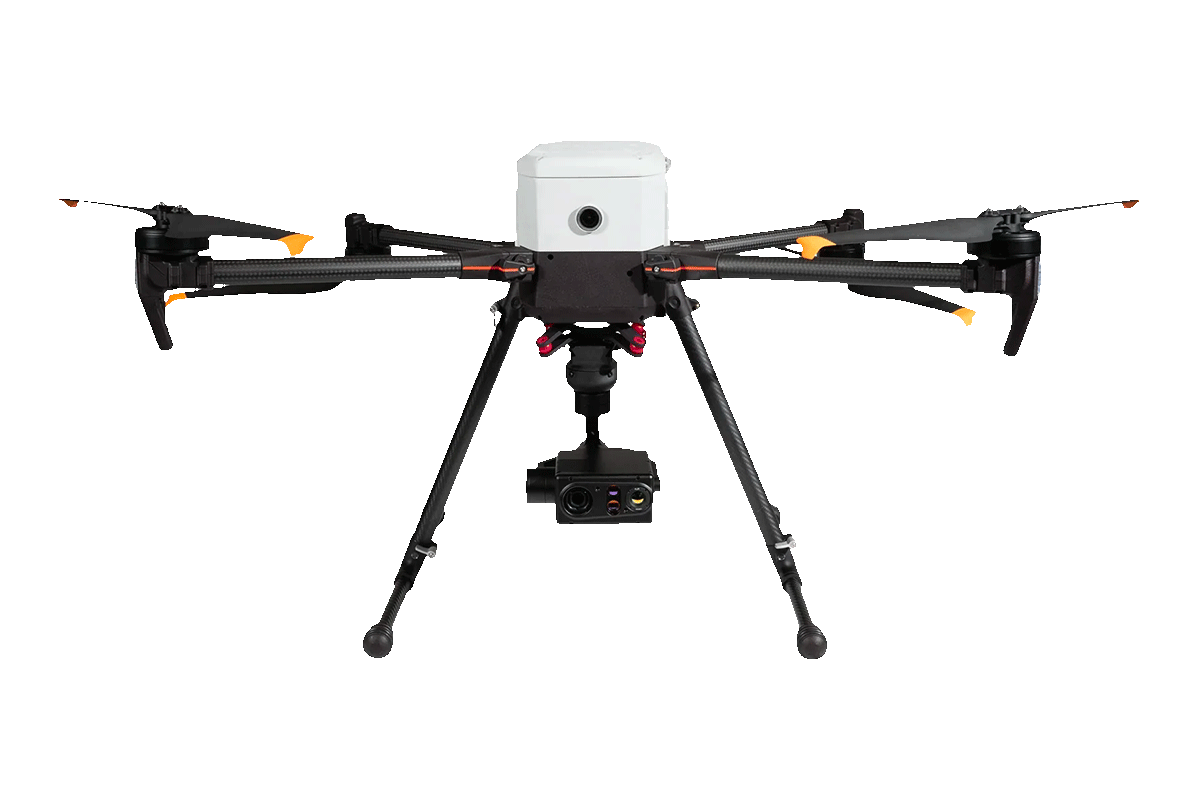

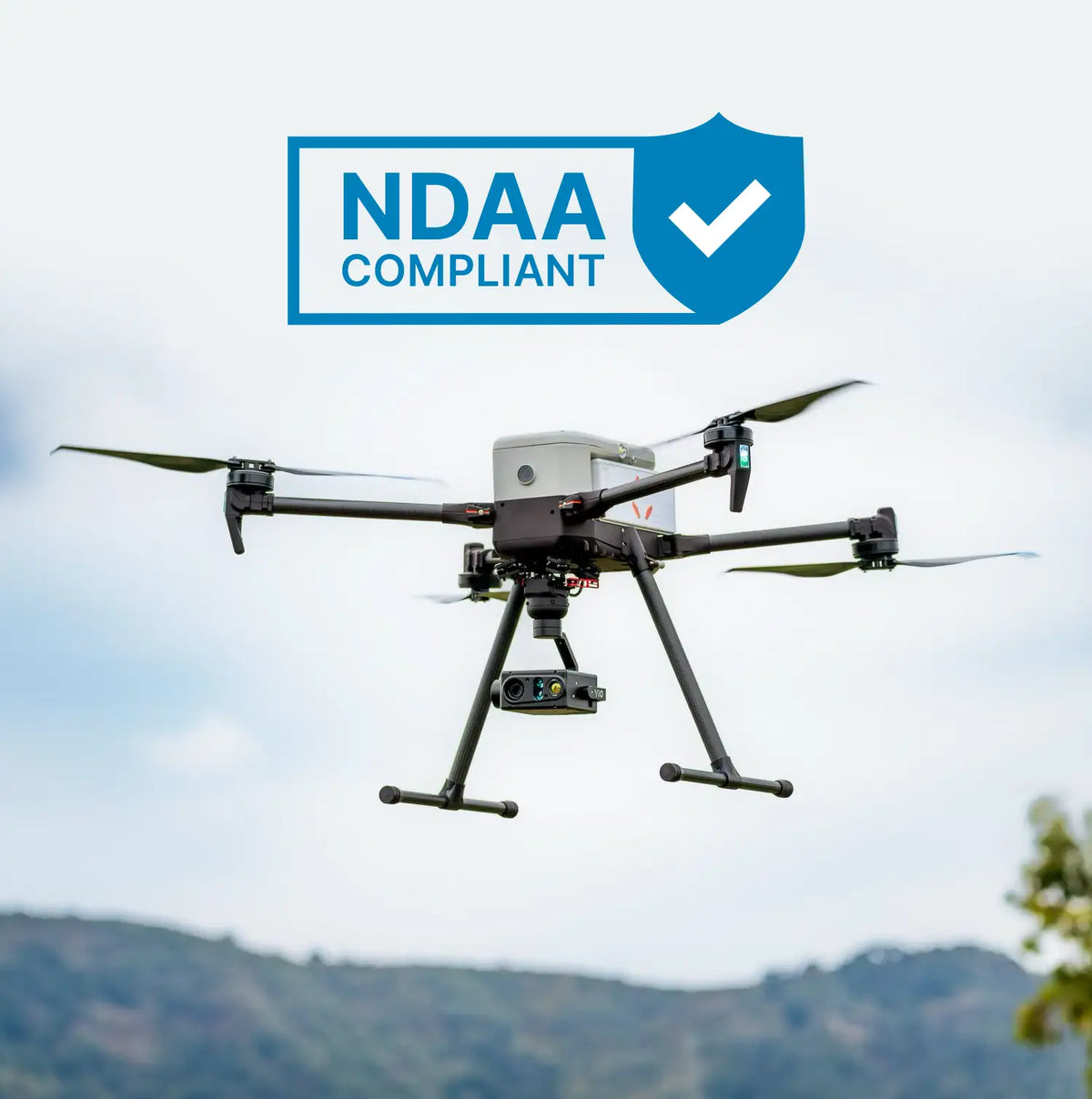

Inspired Flight IF800

BLUE HERELINK + GREMSY VIO BUNDLE

Max Flight Time: 40 mins
Max Transmission Distance: 12+ mi
Max Speed: 55 mph
Max Wind Resistance:  33.5 ft/s
Payload Capacity: Up to 3 kg
Gimbal: Gremsy VIO Dual-Sensor (IR + RGB)
Thermal Resolution: 640 × 512 pixels
Thermal Framerate: 30 Hz
Thermal Sensitivity (NETD): ≤50 mK
Water Proof Rating:Not rated

Request Info/Quote

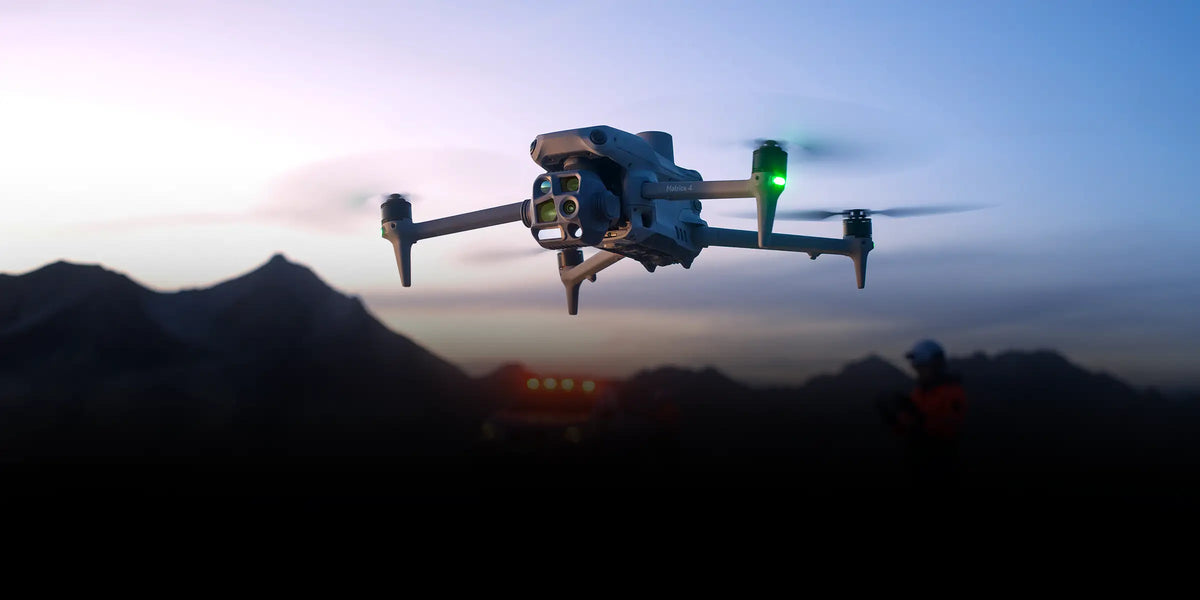

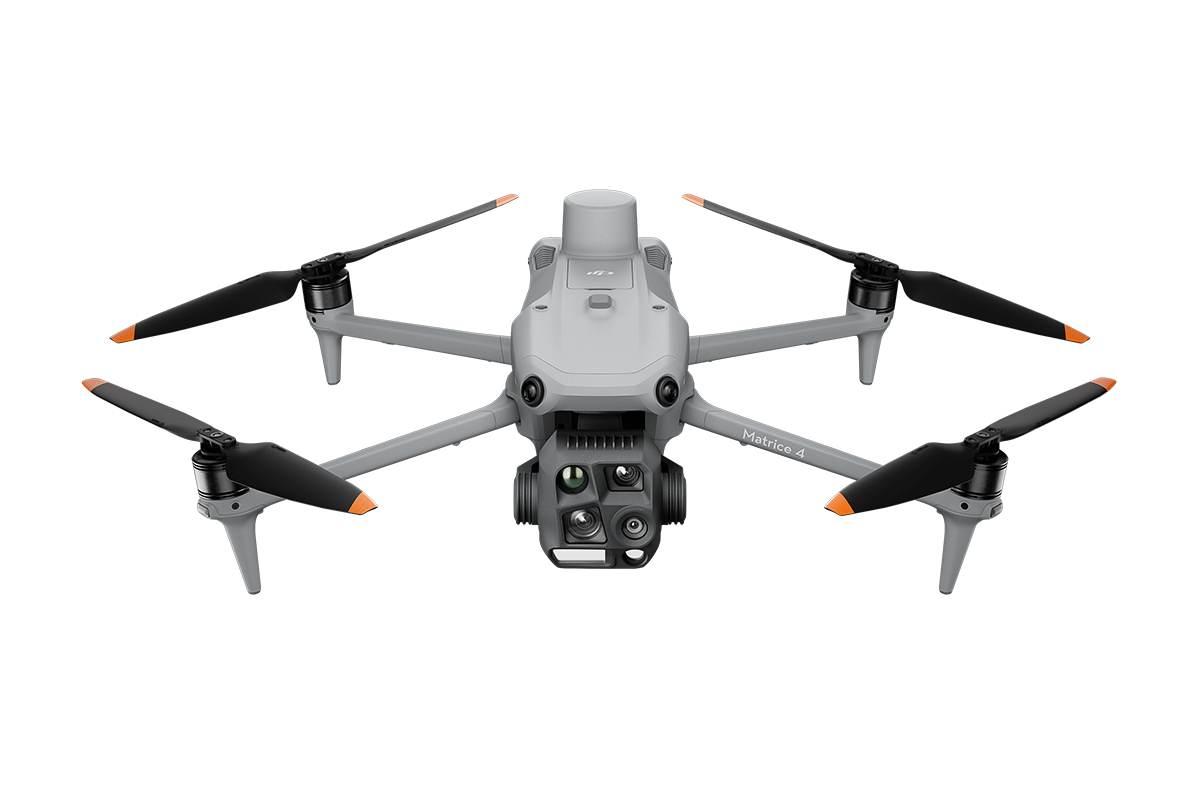

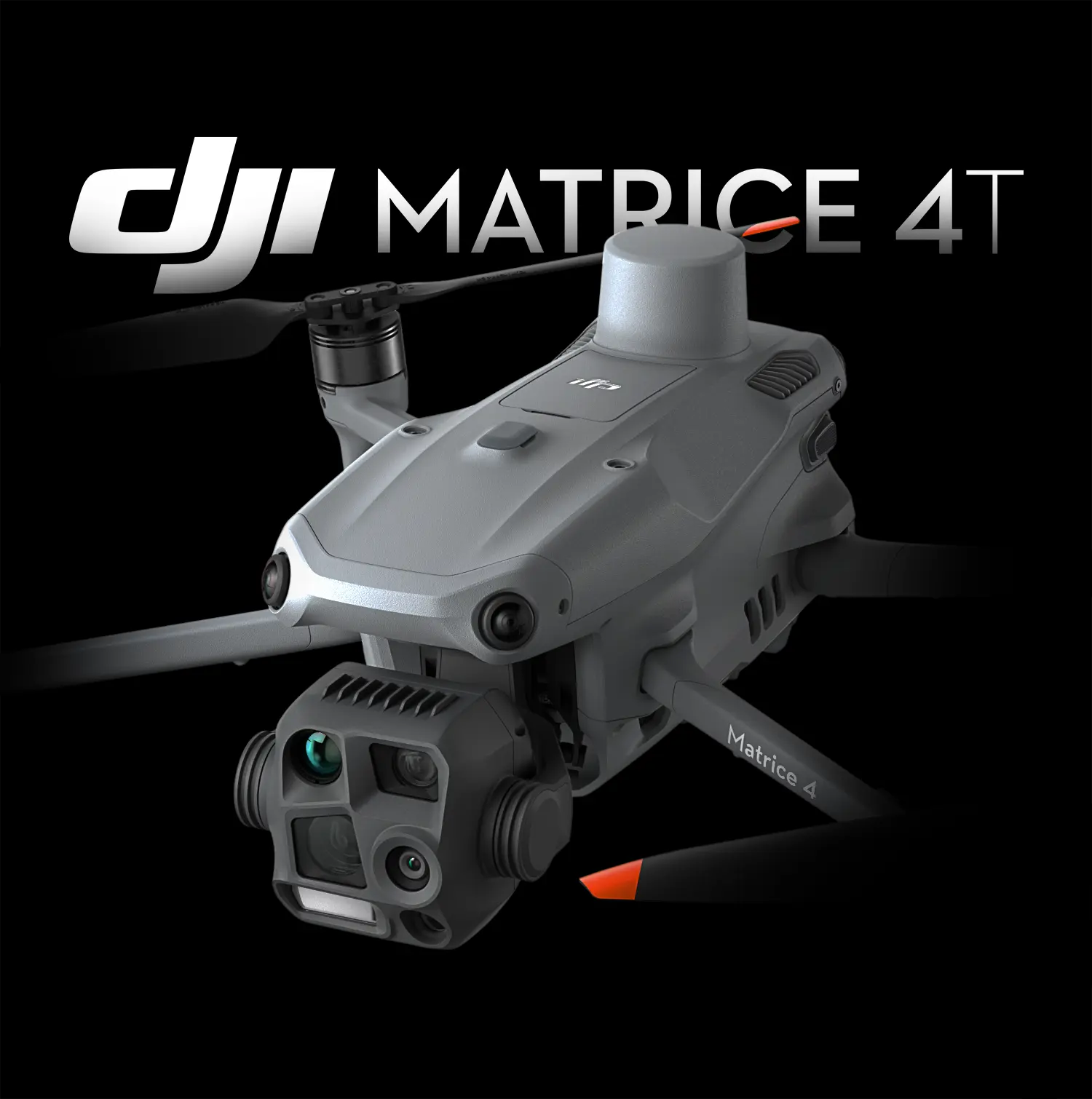

  • DJI Matrice 4T

    Max Flight Time: 49 mins
    Max Transmission Distance: 15.5 mi
    Max Speed: 47 mph
    Max Wind Resistance: 39.4 ft/s

    Waterproof Rating: Not rated
    Wide Camera Sensor: 1/1.3-inch CMOS, 48 MP
    Medium Tele Camera Sensor: 1/1.3-inch CMOS, 48 MP
    Tele Camera Sensor: 1/1.5-inch CMOS, 48 MP
    Infrared Resolution: 640 x 512 pixels, 30 Hz

    Request Info/Quote

  • DJI Matrice 30T

    Max Flight Time: 41 mins
    Max Transmission Distance: 5 mi
    Max Speed: 51.4 mph
    Max Wind Resistance: 39.4 ft/s

    Waterproof Rating: IP55
    Zoom Camera Sensor: 1/2-inch CMOS, 48 MP
    Wide Camera Sensor: 1/2-inch CMOS, 12 MP
    FPV Camera: 1920 × 1080 pixels at 30 fps
    Thermal Imager: Uncooled VOx Microbolometer

    Request Info/Quote

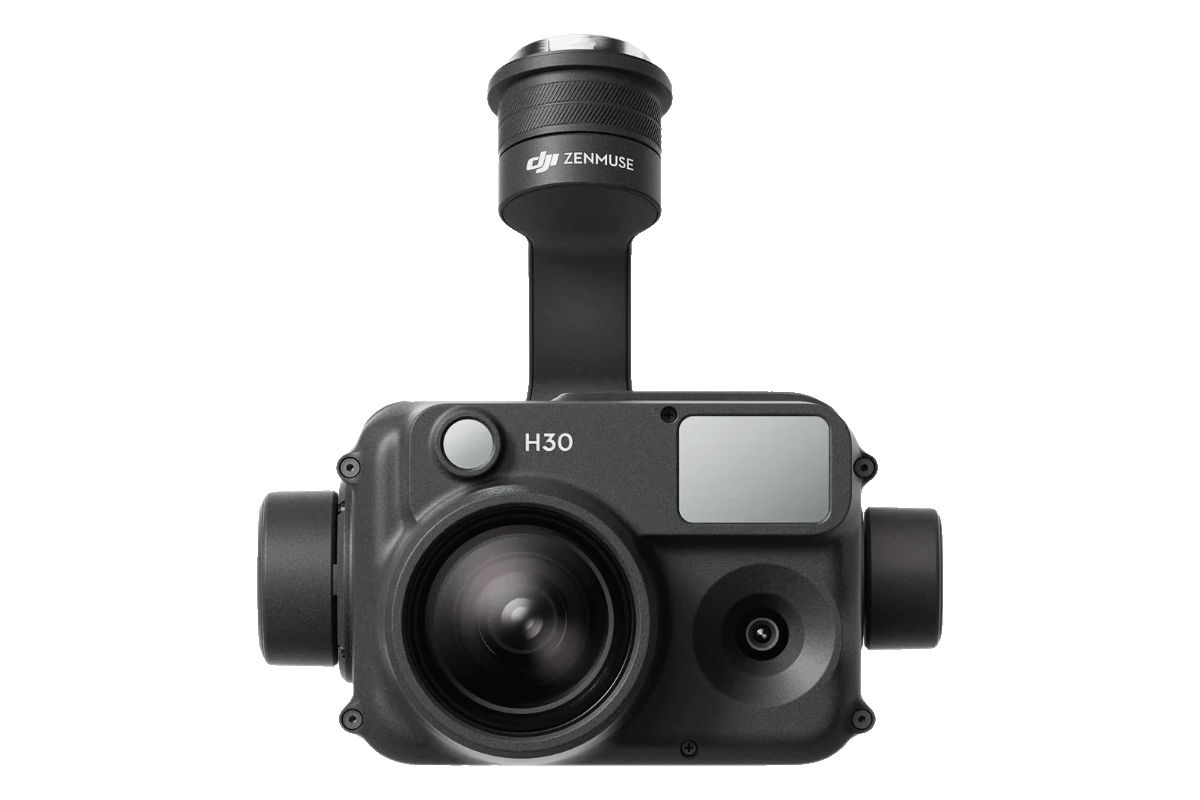

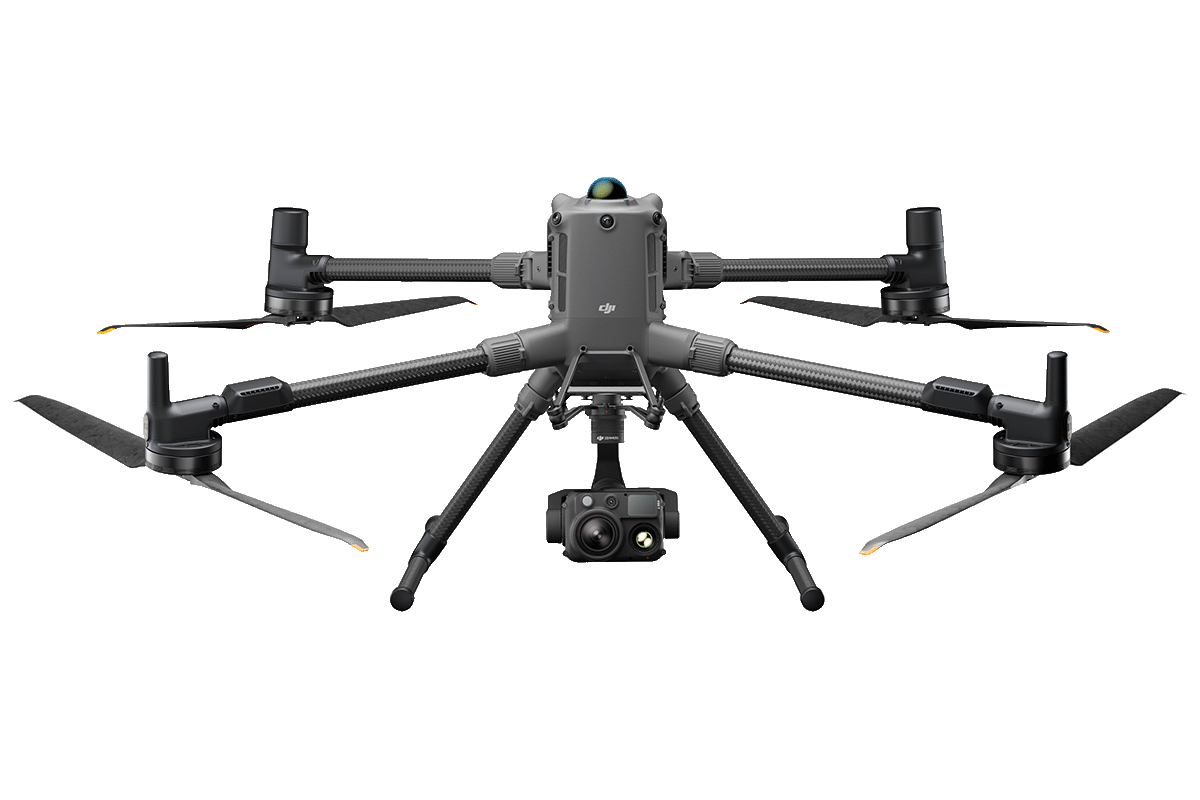

  • DJI Matrice 400 + Zenmuse H30T

    Max Flight Time: 59 mins
    Max Transmission Distance: 24.9 mi
    Max Speed: 56 mph
    Max Wind Resistance: 39.4 ft/s

    Waterproof Rating: IP55
    Zenmuse H30T Resolution: 1280×1024
    Zoom: 34× optical + 400× digital zoom
    Rangefinder: 3 km (1.8 mi) laser rangefinder
    Features: AI smart detection and Smart Track for automatic subject following

    Request Info/Quote

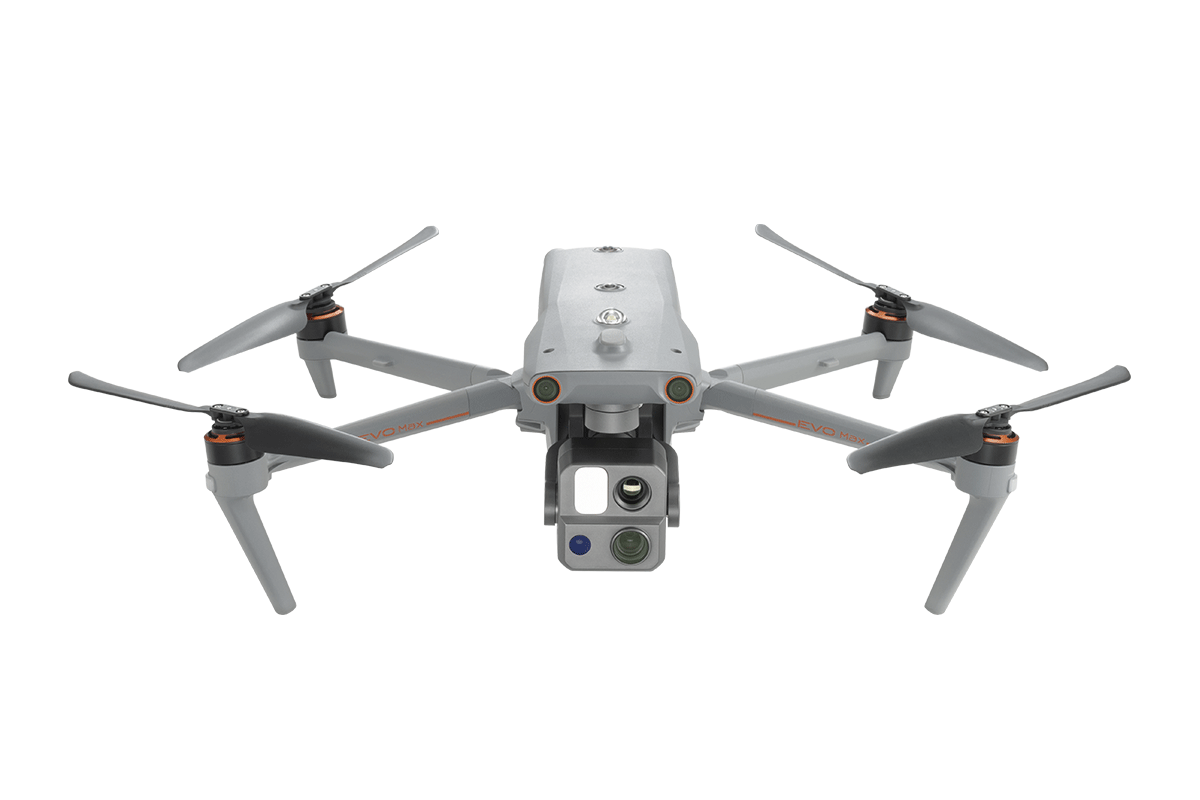

  • Autel EVO Max 4T

    Max Flight Time: 42 mins
    Max Transmission Distance: 12.4 mi
    Max Speed: 51.4 mph
    Max Wind Resistance: 39.6 ft/s

    Waterproof Rating: IP43
    Visual Sensor Size: 1/1.28-inch CMOS, 50 MP
    Thermal Camera Resolution: 640 x 512 pixels
    Thermal Camera Lens: 13mm; Focus: f/1.2
    Thermal Imager: Uncooled VOx Microbolometer

    Request Info/Quote

  • Autel EVO II V3 640T

    Max Flight Time: 40 mins
    Max Transmission Distance: 9.3 mi
    Max Speed: 44.7 mph
    Max Wind Resistance: 57.2 ft/s

    Water Proof Rating: Not rated
    Visual Sensor Size: 1/1.28-inch (0.8-inch) CMOS - 8K Video
    Infrared Resolution: 640 x 512 pixels at 25 fps
    Infrared Framerate: 30Hz
    Infrared FOV: H33°V26°
    Camera Zoom: 1 - 16x zoom

    Request Info/Quote

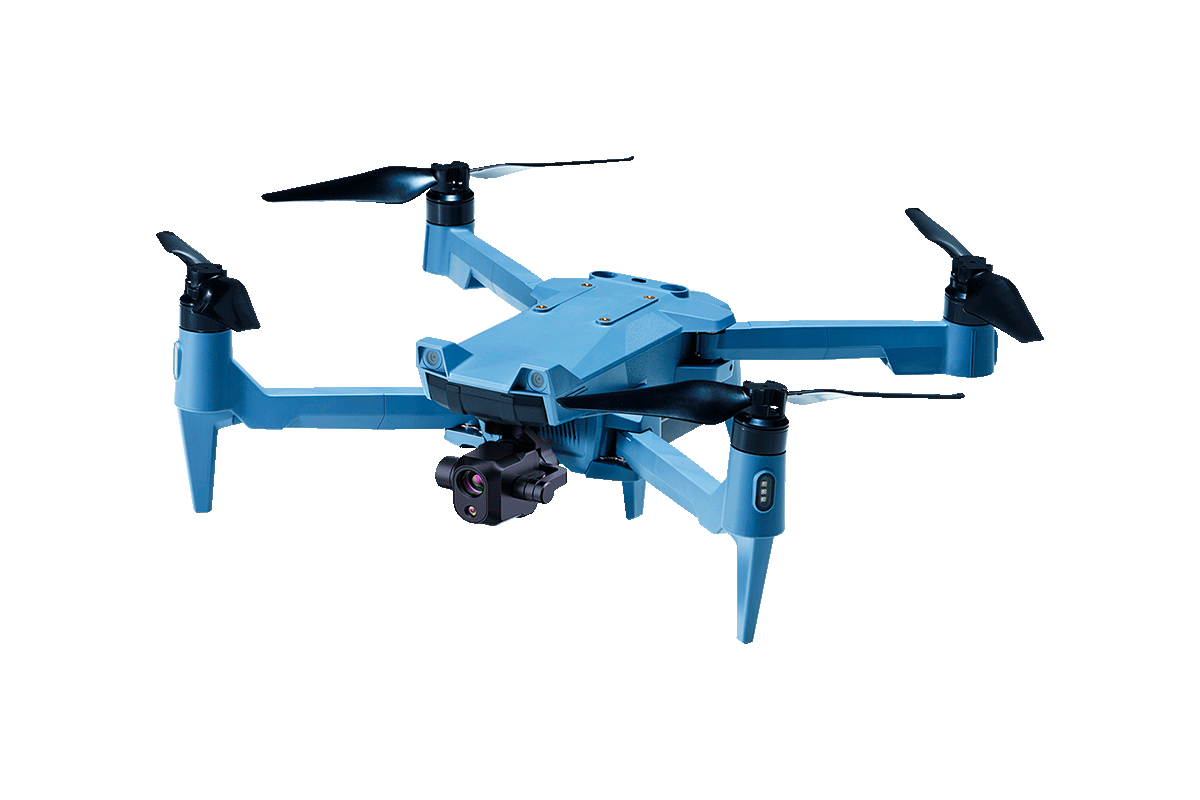

  • ACSL SOTEN Thermal

    Max Flight Time: 45 mins
    Max Transmission Distance: 3.1 mi
    Max Speed: 33.5 mph
    Max Wind Resistance: 22.4 ft/s

    Water Proof Rating: IP43
    Wide Camera Sensor:     20 MP 1-inch CMOS
    Thermal Camera Sensor: Uncooled VOx Microbolometer, 640 × 512 pixels
    Infrared Resolution: 640 × 512 pixels
    Infrared Framerate: 30 Hz
    Infrared Wavelength: 8 µm to 14 µm

    Request Info/Quote

THERMAL IMAGING CAPABILITY

Thermal cameras on these drones detect infrared radiation, allowing users to visualize temperature variations and heat signatures in the environment.

ENHANCED VISION

Thermal drones enable users to see in low-light conditions and through obscurants like smoke, fog, and dust, making them ideal for nighttime operations and challenging environments.

IMPROVED SAFETY AND EFFICIENCY

Thermal drones can be used for remote inspections, reducing the need for manual inspections in hazardous or hard-to-reach areas. This enhances safety and saves time, resources, and labor costs.

REAL-TIME DATA COLLECTION

Thermal drones provide real-time visualizations of thermal data, enabling immediate analysis and decision-making.

INTEGRATION WITH MAPPING AND GIS

Thermal drone data can be integrated with mapping and GIS technologies, providing valuable geospatial information for analysis and planning.

FLEXIBILITY AND MOBILITY

Thermal drones are typically compact, portable, and easy to deploy, making them highly flexible for various applications.

  •

    DJI Zenmuse XT2

    Infrared Resolution: 640 × 512
    or 336 × 256 pixels

    Infrared Frame Rates: 9 or 30Hz

    Sensor: 1/1.7-inch CMOS

    Digital Zoom: 1x, 2x, 4x, 8x (Live View Only)

    FLIR Tau 2 Sensor for Thermal Imaging

    Gimbal Stabilization: Built In

    Weather Resistance: IP44

    Scene Temp Range: -40 to 1022° F

    Compatible with: DJI Matrice 200 and Matrice 600 series

    Request Info/Quote

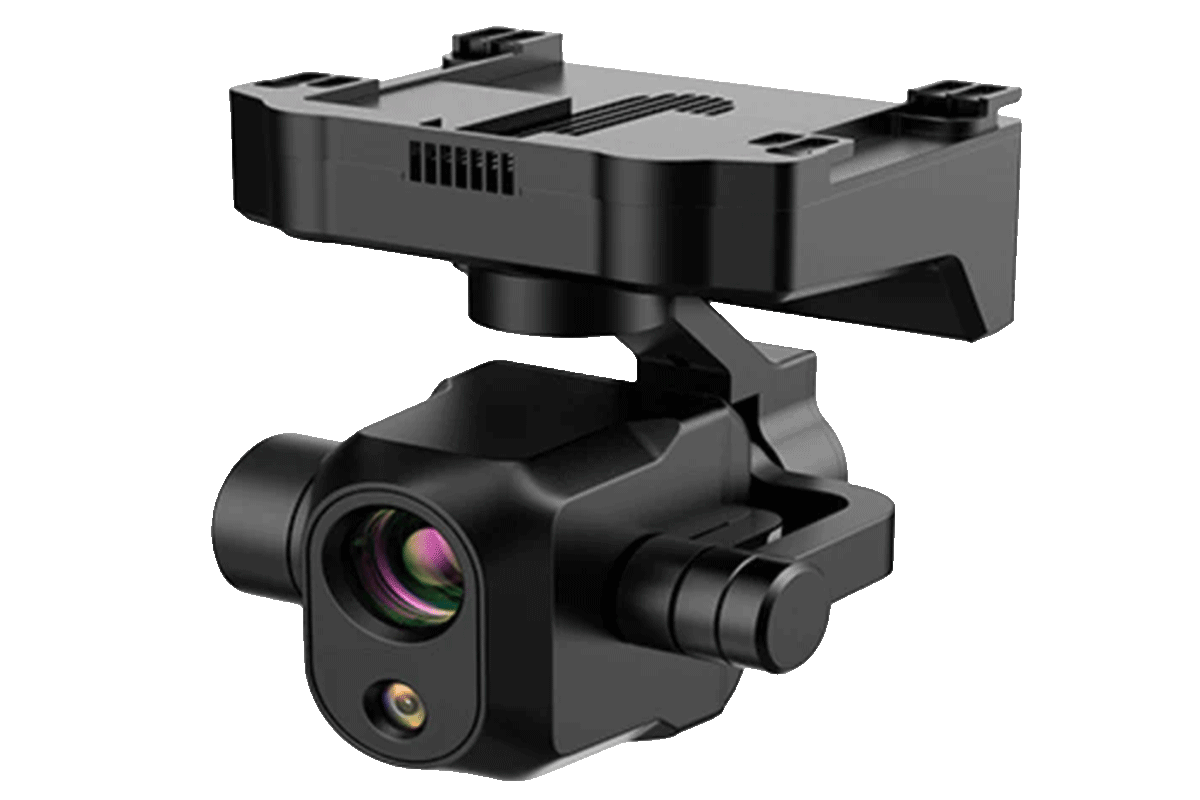

  • ACSL SOTEN Thermal Camera

    Infrared Resolution: 640 × 512 pixels

    Infrared Frame Rates: 30 Hz

    Sensor: VOx uncooled infrared sensor

    Digital Zoom: Up to 8×

    Thermal Lens Options: 13 mm, 19 mm, 25 mm

    Gimbal Stabilization: 3-axis built-in

    Weather Resistance: IP44 equivalent

    Scene Temp Range: –20° to 150°C (–4° to 302°F)

    Compatible with: ACSL SOTEN drone platform

    Request Info/Quote

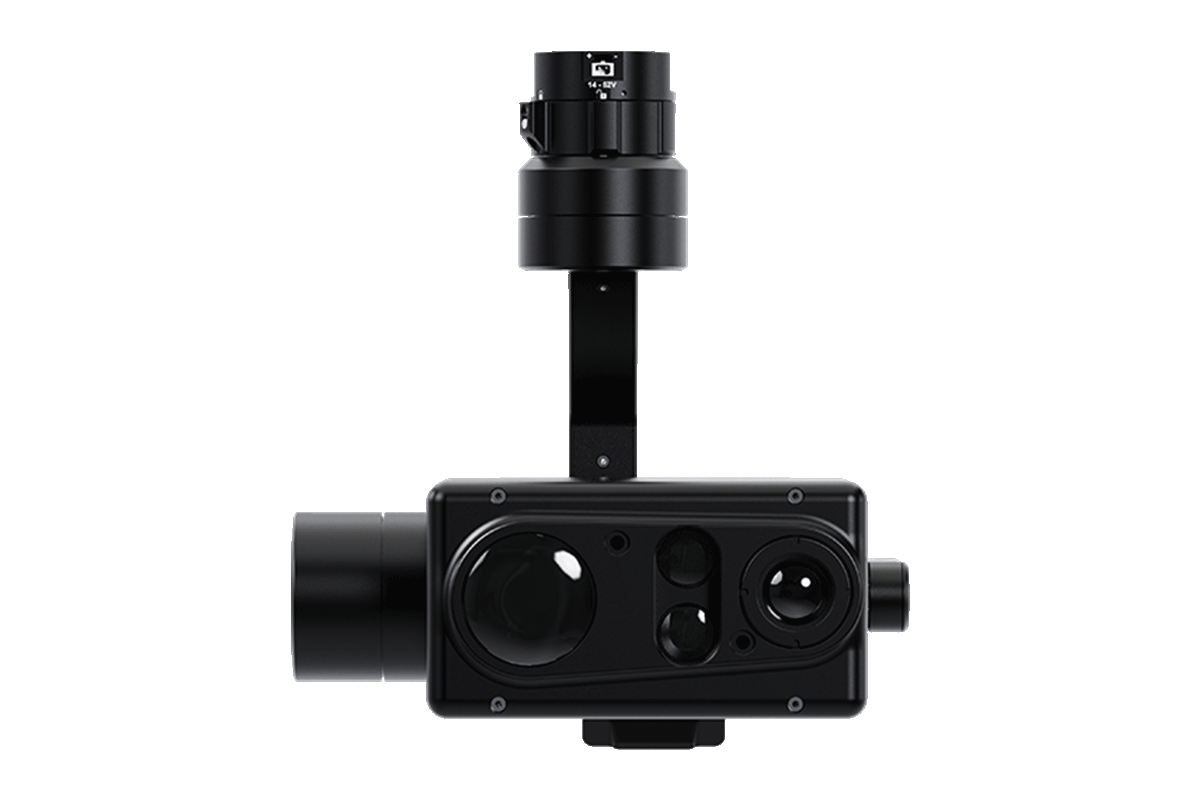

  • Inspired Flight Gremsy VIO

    Infrared Resolution: 640 × 512 pixels
    Infrared Frame Rates: 30 Hz
    Sensor: Dual-sensor (Thermal + RGB)
    Digital Zoom: Up to 4× (thermal) / up to 20× (optical)
    Special Features: AI object tracking, in-flight palette switching, metadata logging
    Gimbal Stabilization: 3-axis built-in
    Weather Resistance: IP44 equivalent
    Compatible with: Inspired Flight IF800 platform

    Request Info/Quote

  • Autel EVO Max 4N

    Infrared Resolution: 640 × 512 pixels

    Infrared Frame Rates: 30 Hz

    Sensor: Starlight Night Vision + Thermal + RGB multi-sensor system

    Digital Zoom: Up to 16× (optical + digital)

    Special Features: AI-powered target tracking, true low-light starlight imaging, obstacle avoidance integration

    Gimbal Stabilization: 3-axis built-in

    Weather Resistance: IP43 equivalent

    Scene Temp Range: –20° to 150°C (–4° to 302°F)

    Compatible with: Autel EVO Max drone series

    Request Info/Quote

  • Autel EVO Max 4T Gimbal Camera

    Infrared Resolution: 640 x 512 pixels

    Infrared Lenses: 13 mm wide, 16x digital zoom

    4-in-1 imaging system: Two RGB cameras, a thermal camera, and a laser rangefinder

    Still photos: 8K resolution, f/2.8 to f/4.8 aperture

    Video: 4K video, 85° FOV

    Operating Temp Range: -4° to 140°F

    Request Info/Quote

  • Deepthink S3

    Full-color night vision for DJI M300/M350 RTK

    30X optical zoom, 160X integrated zoom, 4 MP camera

    0.0001 Lux full-color HD imaging

    Laser rangefinder: 5-1500 meters, ±1m accuracy

    Infrared Resolution: 640 x 512 pixels, 45.76° DFOV

    Operating Temp Range: -20°C to 150°C, 0°C to 550°C

    Additional Features: Low wind resistance, high-density aluminum shell

    Request Info/Quote
