MAX FLIGHT TIME
49 mins
-
MAX TRANSMISSION DISTANCE
15.5 mi
-
MAX SPEED
47 mph
-
MAX WIND RESISTANCE
39.4 ft/s
PERFECT FOR:
Search & rescue, firefighting with thermal detection
Wide Camera Sensor: 1/1.3-inch CMOS, 48 MP
Medium Tele Camera Sensor: 1/1.3-inch CMOS, 48 MP
Tele Camera Sensor: 1/1.5-inch CMOS, 48 MP
Infrared Resolution: 640 x 512 pixels @ 30 Hz
Thermal Imager: Uncooled vanadium oxide (VOx)
Infrared Wavelength: 8um to 14um
Engineered for Excellence, Designed for Versatility
DJI Matrice 400
PERFECT FOR:
Energy inspection, disaster response with multi-sensor precision
Max Flight Time: 59 mins
Max Transmission Distance: 40 km
Max Speed: 25 m/s
Max Wind Resistance: 12 m/s
Portable, Deployable, AND Dependable
Inspired Flight IF800
PERFECT FOR:
High-precision mapping and infrastructure inspections
Max Flight Time: 40 mins
Max Transmission Distance: 12+ mi
Max Speed: 55 mph
Max Wind Resistance: 33.5 ft/s
Payload Capacity: Up to 3 kg
Gimbal: Gremsy VIO Dual-Sensor (IR + RGB)
Thermal Resolution: 640 × 512 pixels @ 30 Hz
Our Thermal Drone Lineup
-
DJI Matrice 4T
Request Info/QuoteMax Flight Time: 49 mins
Max Transmission Distance: 15.5 mi
Max Speed: 47 mph
Max Wind Resistance: 39.4 ft/sWaterproof Rating: Not rated
Wide Camera Sensor: 1/1.3-inch CMOS, 48 MP
Medium Tele Camera Sensor: 1/1.3-inch CMOS, 48 MP
Tele Camera Sensor: 1/1.5-inch CMOS, 48 MP
Infrared Resolution: 640 x 512 pixels, 30 Hz
Features: AI Detection, Anti-GNSS interference -
DJI Matrice 400
Request Info/QuoteWITH ZENMUSE H30T
Max Flight Time: 59 mins
Max Transmission Distance: 24.9 mi
Max Speed: 56 mph
Max Wind Resistance: 39.4 ft/sWaterproof Rating: IP55
Zenmuse H30T Resolution: 1280×1024
Zoom: 34× optical + 400× digital zoom
Rangefinder: 3 km (1.8 mi) laser rangefinder
Features: AI smart detection and Smart Track for automatic subject following -

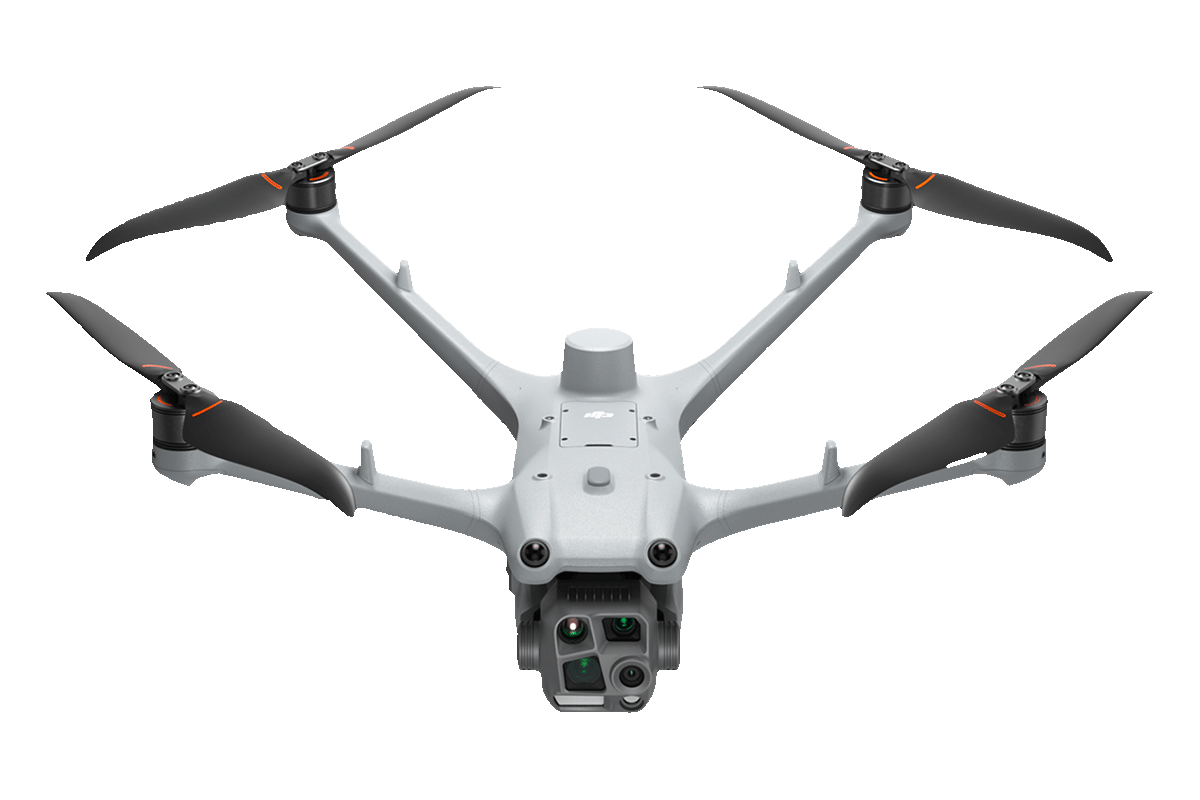

DJI Matrice 4TD
Request Info/QuoteMax Flight Time: 54 mins
Max Transmission Distance: 15.5 mi
Max Speed: 34 mph
Max Wind Resistance: 39.4 ft/sWaterproof Rating: IP55
Cameras: Triple 48 MP cameras
Thermal Sensor Resolution: 640 × 512
Thermal Video: Up to 1280 × 1024 at 30 fps with UHR enabled
Features: Wire detection, 80° upward gimbal tilt, Night Scene mode -

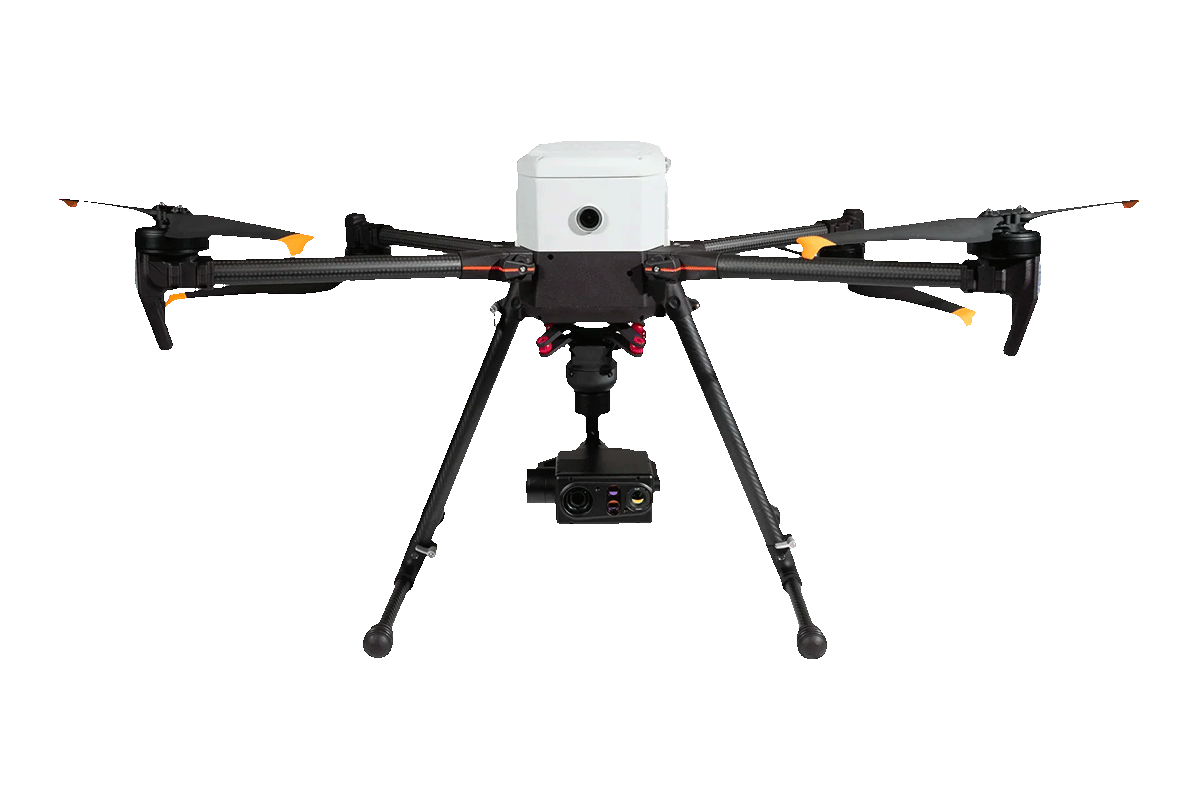

Inspired Flight IF800 with Gremsy VIO
Request Info/QuoteMax Flight Time: 40 mins
Max Transmission Distance: 12+ mi
Max Speed: 55 mph
Max Wind Resistance: 33.5 ft/sPayload Capacity: Up to 3 kg
Gimbal: Gremsy VIO Dual-Sensor (IR + RGB)
Thermal Resolution: 640 × 512 pixels @ 30 Hz
Features: Blue UAS–approved, NDAA-compliant, U.S.-designed and manufactured platform -

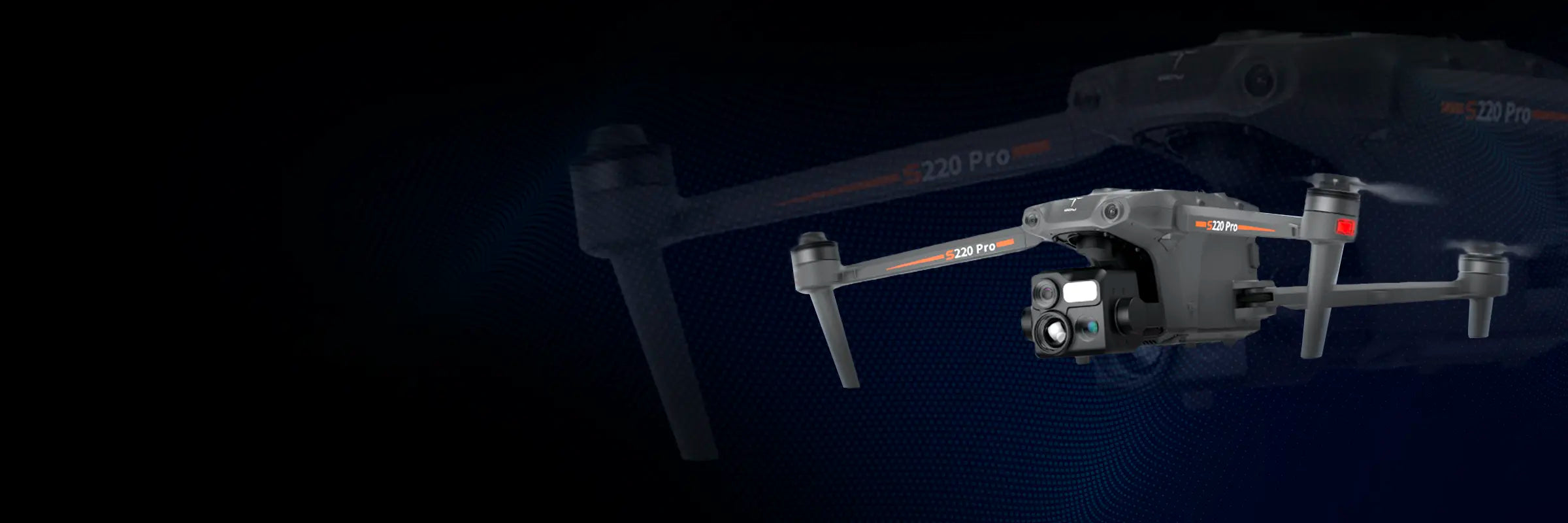

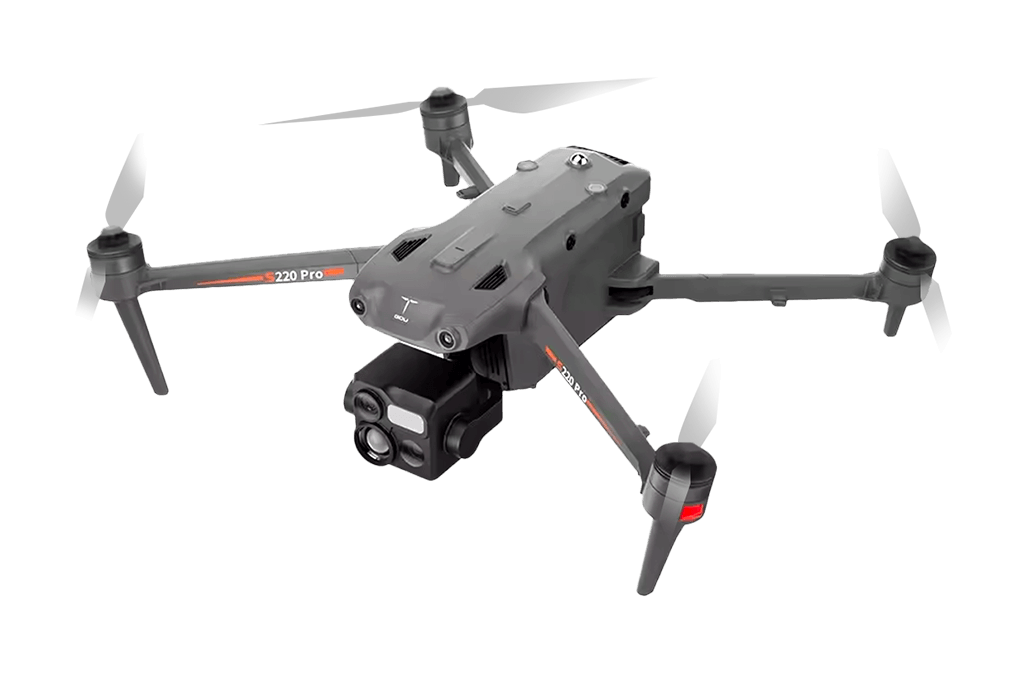

GDU S220 Pro 640 Thermal
Request Info/QuoteMax Flight Time: 41 mins
Max Transmission Distance: 9.3 mi
Max Speed: 47 mph
Max Wind Resistance: 39.4 ft/sCameras: Wide + Telephoto, max resolution 7264 × 4086
Thermal Resolution: 640 × 512 pixels @ 30 fps
Laser rangefinder: 10–1500 m
Video transmission: Supports 4K/60 fps H.264 and H.265 -
GDU S220 Pro 1K Thermal
Request Info/QuoteMax Flight Time: 41 mins
Max Transmission Distance: 9.3 mi
Max Speed: 47 mph
Max Wind Resistance: 39.4 ft/sCameras: Wide + Telephoto, max resolution 7264 × 4086
Thermal Resolution: 1280×1024 pixels @30 fps
Laser rangefinder: 10–1500 m
Video transmission: Supports 4K/60 fps H.264 and H.265 -
Autel Alpha
Request Info/QuoteWITH L35T GIMBAL CAMERA
Max Flight Time: 40 mins
Max Transmission Distance: 12.4 mi
Max Speed: 56 mph
Max Wind Resistance: 39.4 ft/sWater Proof Rating: IP55
Wide Camera Sensor: 48MP, 1/2 CMOS
Thermal Camera Sensor: Uncooled VOx Microbolometer, 640 × 512 pixels
Rangefinder Measuring Range: 10 to 2000 m
Measurement Accuracy: ±(1 m + D×0.3%) -

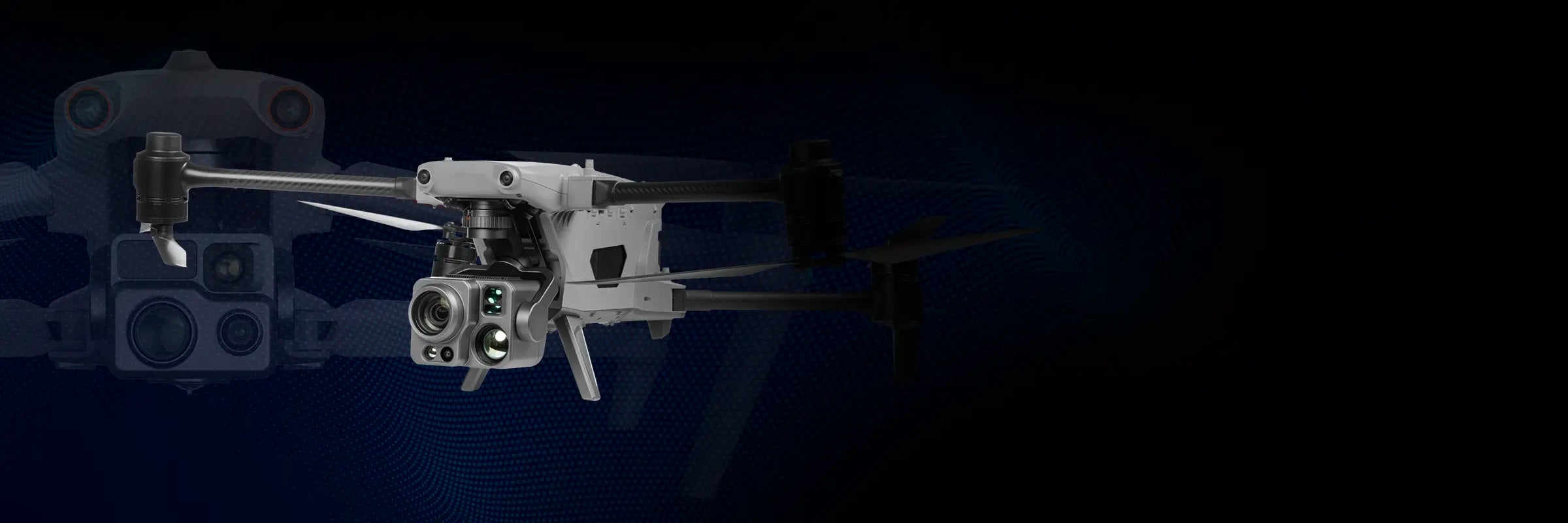

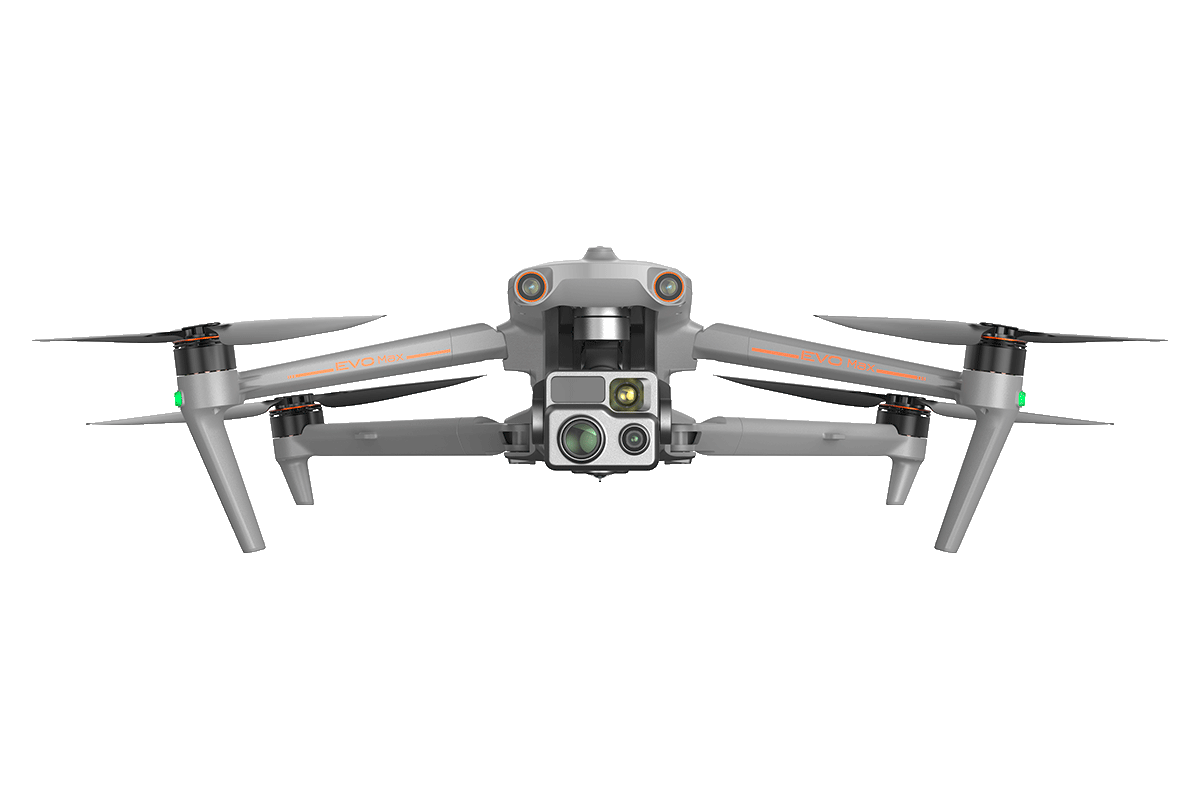

Autel EVO Max 4T XE
Request Info/QuoteMax Flight Time: 42 mins
Max Transmission Distance: 12.4 mi
Max Speed: 49 mph
Max Wind Resistance: 39.4 ft/sWater Proof Rating: IP43
Wide Camera Sensor: 50 MP, 1/1.28" CMOS
Thermal Camera Sensor: Uncooled VOx Microbolometer, 640 × 512 pixels
Rangefinder Measuring Range: 5 to 1200 m
Measurement Accuracy: ±(1 m + D×0.15%)
Features: 720° all-weather obstacle avoidance -

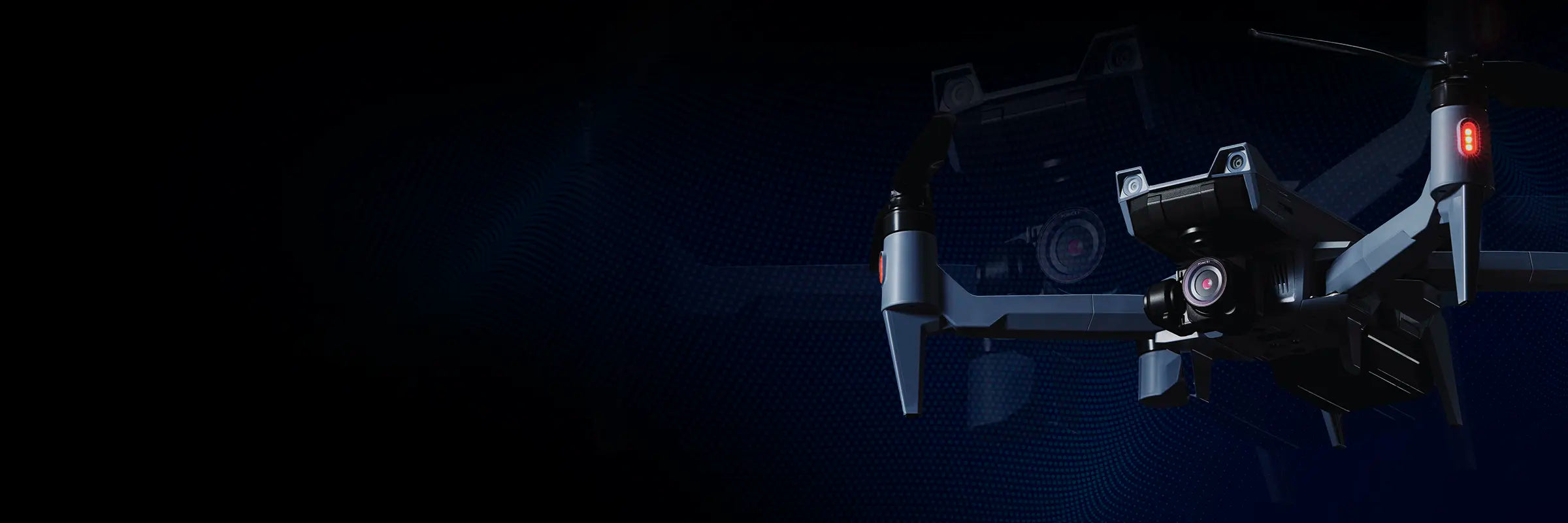

ACSL SOTEN Thermal
Request Info/QuoteMax Flight Time: 45 mins
Max Transmission Distance: 3.1 mi
Max Speed: 33.5 mph
Max Wind Resistance: 22.4 ft/sWater Proof Rating: IP43
Wide Camera Sensor: 20 MP 1-inch CMOS
Thermal Camera Sensor: Uncooled VOx Microbolometer, 640 × 512 pixels
Infrared Resolution: 640 × 512 pixels
Infrared Framerate: 30 Hz
Infrared Wavelength: 8 µm to 14 µm
-
THERMAL IMAGING CAPABILITY
Visualize heat and temperature differences using infrared sensors for precise thermal imaging.
-
ENHANCED VISION
See through smoke, fog, and darkness for nighttime or low-visibility operations.
-
IMPROVED SAFETY AND EFFICIENCY
Perform remote inspections safely, reducing risk, time, and labor in hazardous locations.
-
REAL-TIME DATA COLLECTION
Get real-time thermal data for immediate analysis and informed decision-making.
-
INTEGRATION WITH MAPPING & GIS
Integrate thermal data with mapping and GIS for advanced geospatial insights.
-
FLEXIBILITY AND MOBILITY
Compact and portable, thermal drones deploy quickly for versatile field applications.
-

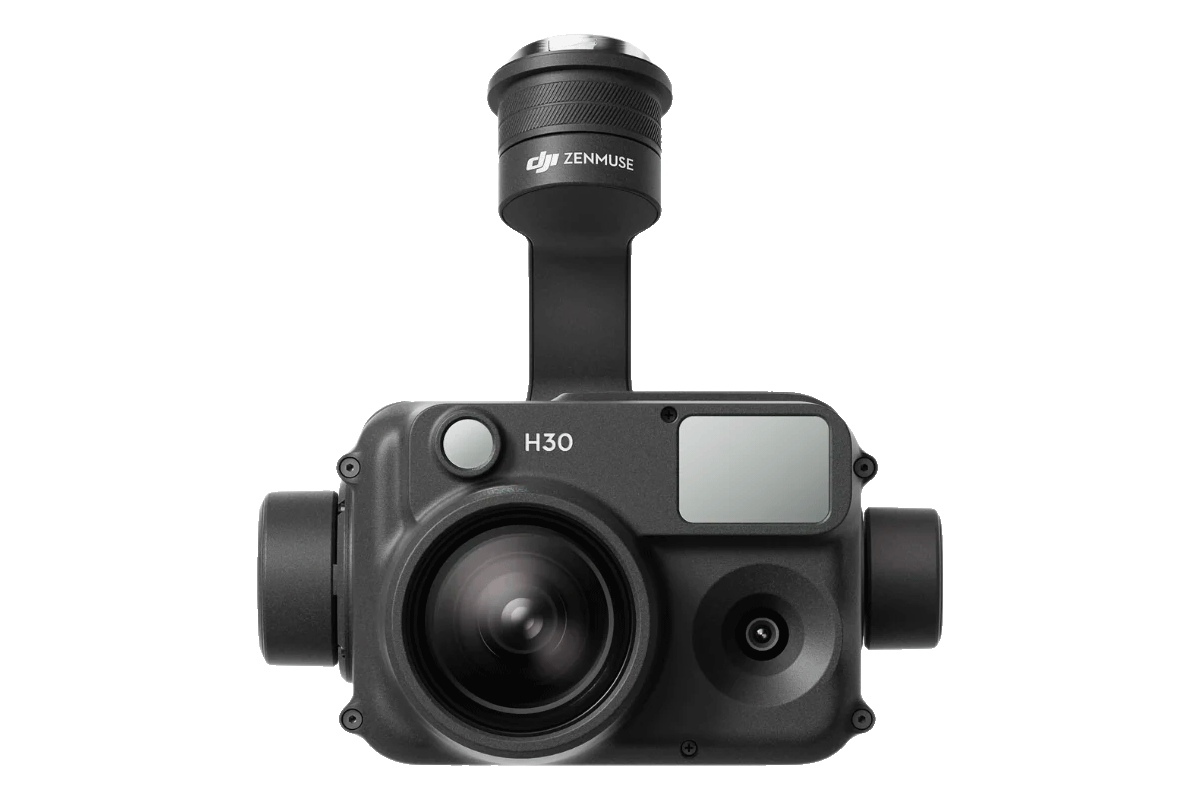

DJI Zenmuse H30T
Request Info/QuoteInfrared Resolution: 1280 × 1024
Infrared Frame Rates: 30Hz
Sensor: 1/1.3-inch CMOS
Digital Zoom: 400x
48 MP wide-angle camera captures high-resolution situational awareness
Laser rangefinder measures targets up to 9,842 ft accurately
IP Rating: IP54
Compatible with: DJI Matrice 300 RTK, 350 RTK, and 400 RTK
-
ACSL SOTEN Thermal Camera
Request Info/QuoteInfrared Resolution: 640 × 512 pixels
Infrared Frame Rates: 30 Hz
Sensor: VOx uncooled infrared sensor
Digital Zoom: Up to 8×
Thermal Lens Options: 13 mm, 19 mm, 25 mm
Gimbal Stabilization: 3-axis built-in
Weather Resistance: IP44 equivalent
Scene Temp Range: –20° to 150°C (–4° to 302°F)
Compatible with: ACSL SOTEN drone platform
-
Inspired Flight Gremsy VIO
Request Info/QuoteInfrared Resolution: 640 × 512 pixels
Infrared Frame Rates: 30 Hz
Sensor: Dual-sensor (Thermal + RGB)
Digital Zoom: Up to 4× (thermal) / up to 20× (optical)
Special Features: AI object tracking, in-flight palette switching, metadata logging
Gimbal Stabilization: 3-axis built-in
Weather Resistance: IP44 equivalent
Compatible with: Inspired Flight IF800 platform -
Autel EVO Max 4N
Request Info/QuoteInfrared Resolution: 640 × 512 pixels
Infrared Frame Rates: 30 Hz
Sensor: Starlight Night Vision + Thermal + RGB multi-sensor system
Digital Zoom: Up to 16× (optical + digital)
Special Features: AI-powered target tracking, true low-light starlight imaging, obstacle avoidance integration
Gimbal Stabilization: 3-axis built-in
Weather Resistance: IP43 equivalent
Scene Temp Range: –20° to 150°C (–4° to 302°F)
Compatible with: Autel EVO Max drone series
-
Autel EVO Max 4T Gimbal Camera
Request Info/QuoteInfrared Resolution: 640 x 512 pixels
Infrared Lenses: 13 mm wide, 16x digital zoom
4-in-1 imaging system: Two RGB cameras, a thermal camera, and a laser rangefinder
Still photos: 8K resolution, f/2.8 to f/4.8 aperture
Video: 4K video, 85° FOV
Operating Temp Range: -4° to 140°F
-
Deepthink S3
Request Info/QuoteFull-color night vision for DJI M300/M350 RTK
30X optical zoom, 160X integrated zoom, 4 MP camera
0.0001 Lux full-color HD imaging
Laser rangefinder: 5-1500 meters, ±1m accuracy
Infrared Resolution: 640 x 512 pixels, 45.76° DFOV
Operating Temp Range: -20°C to 150°C, 0°C to 550°C
Additional Features: Low wind resistance, high-density aluminum shell
