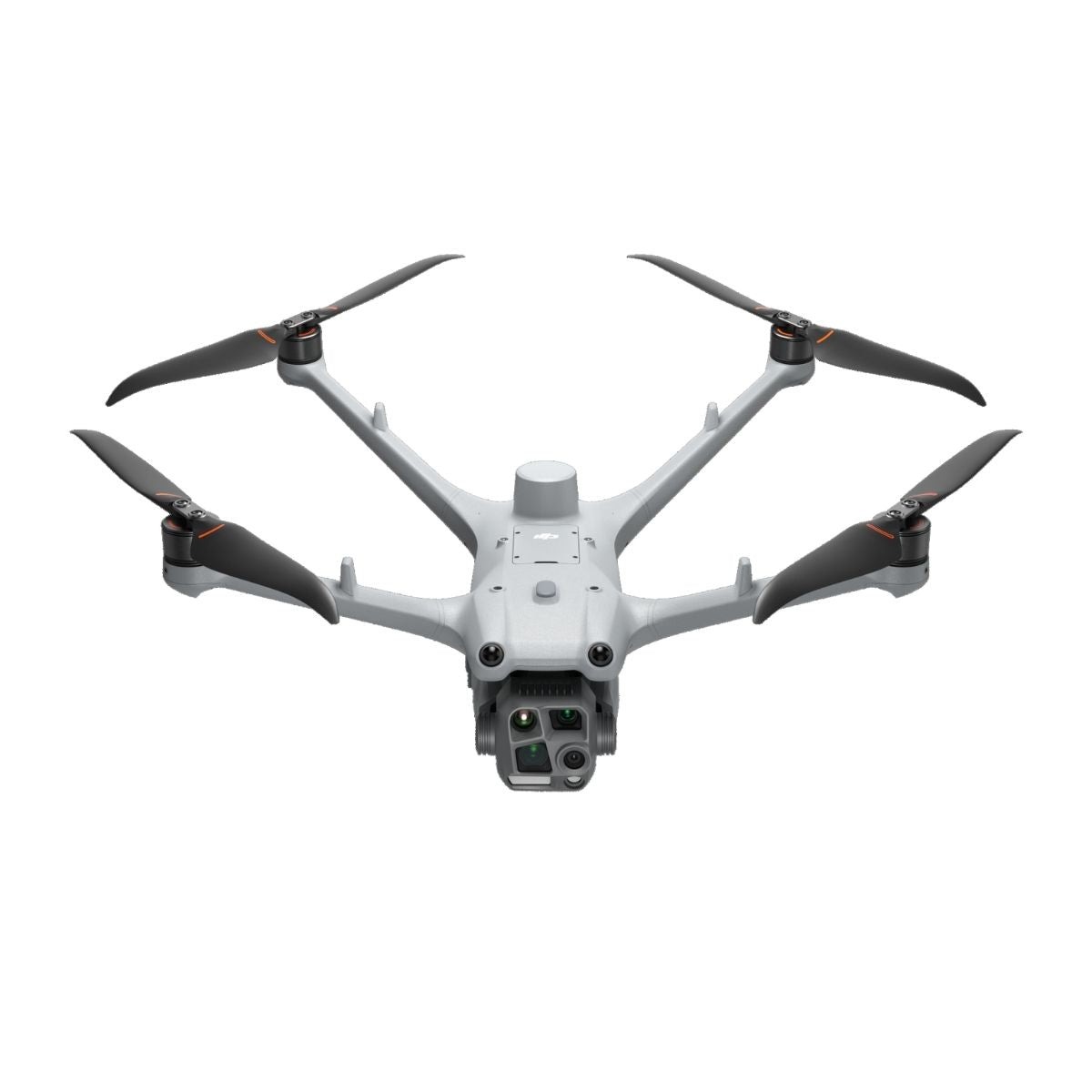

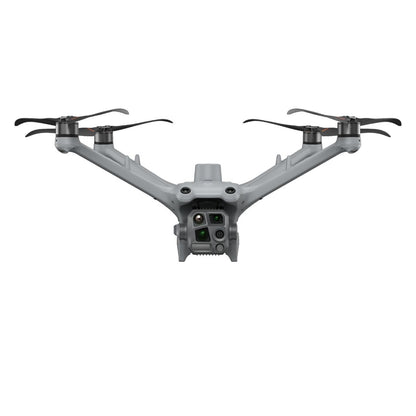

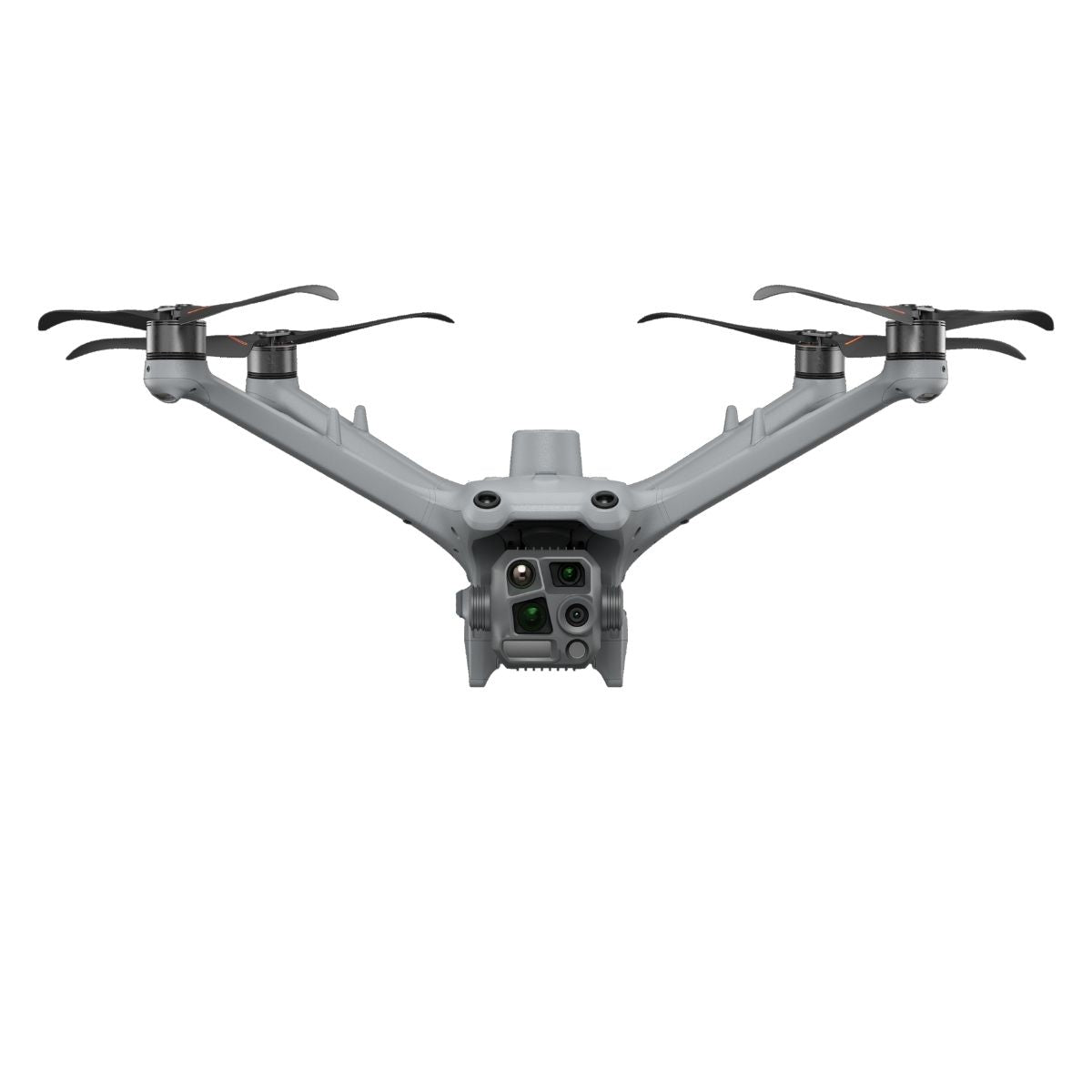

DJI Matrice 4TD: Next-Generation Visibility for Critical Operations
Designed for public safety, infrastructure monitoring, and industrial inspections, the DJI Matrice 4TD combines advanced thermal and telephoto imaging into a rugged, enterprise-ready platform. Offering up to 47 minutes of flight time in ideal conditions and obstacle sensing tuned for high-speed operation, the 4TD provides clarity and reliability in critical environments.
The 80° upward-tilting telephoto camera enables detailed views of bridges, towers, and overhangs, while IP55-rated protection and wire detection down to ~12 mm keep flights safe in complex spaces. DJI Care Enterprise Plus is included, ensuring enterprise protection with rapid replacements to minimize downtime.
Thermal Meets Telephoto for Real-World Results
With its 48MP telephoto camera and high-resolution thermal sensor (640 × 512, enhanced to 1280 × 1024), the Matrice 4TD identifies anomalies and captures actionable data at range. Onboard relay mode lets one aircraft maintain communication while another executes the mission-ideal for operations beyond cellular coverage.
The DJI RC Plus 2 Controller delivers hybrid O4/4G video transmission through a glove-friendly, high-brightness 7-inch display, ensuring uninterrupted command in the field.
Key Features and Benefits
- 48MP telephoto camera with 80° upward tilt capability
- Thermal imaging 640 × 512 (up to 1280 × 1024 in enhanced mode)
- Up to 47 minutes of flight time in optimal conditions
- IP55 protection against dust, moisture, and rain exposure
- Wire detection down to ~12 mm at 15 m/s flight speed
- Relay mode extends communication range via secondary aircraft
- RC Plus 2 Controller with ultra-bright 7-inch hybrid O4/4G display
- Night Scene Mode and NIR auxiliary light for night operations
- DJI Care Enterprise Plus included for replacements and support
Applications and Use Cases
- Powerline, substation, and utility inspections
- Search-and-rescue missions in low-visibility terrain
- Disaster response mapping and documentation
- Industrial and solar field thermal assessments
- Bridge and building inspections from unique upward angles
The DJI Matrice 4TD delivers precision imaging and dependable communication for field teams. Backed by enterprise-grade support and optional DJI Care Enterprise Plus, it's a trusted solution for professionals who cannot afford downtime.
With over a decade of experience, DSLRPros specializes in mission-specific drone packages, hands-on training, and after-purchase care. Talk to our team today to configure your Matrice 4TD for mission-ready deployment.
Specifications
- Model: Matrice 4TD
- Number of Rotors: 4
- Configuration: Drone with Camera
- Edition: Standard
- FAA Registration: Required for Non-Commercial Use
- Features: Camera Included
- Kit Style: Base
- Skill Level: Enterprise
- Color: White
- Maximum Flight Time: 54 minutes
- Takeoff Weight: Up to 4.6 lbs (2.0 kg)
- Max Ascent Speed: 6 m/s (Normal), 10 m/s (Sport)
- Max Descent Speed: 6 m/s (Normal), 8 m/s (Sport)
-
Max Horizontal Speed:
- Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways
- Sport Mode: 21 m/s forward, 19 m/s backward, 15 m/s sideways
- Max Wind Resistance: 12 m/s
- Max Takeoff Altitude: 21325 ft (6500 m)
- Max Hover Time: 47 minutes
- Max Pitch Angle: 25° (Normal), 30° (Sport)
- Max Flight Distance: 43 km
- Max Angular Velocity: 200°/s
- GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
-
Hovering Accuracy:
- Vertical: ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
- Horizontal: ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Ingress Protection Rating: IP55
-
Recommended microSD Cards:
- U3/Class 10/V30 or above (exFAT format)
- Lexar 1066x: 64GB to 512GB
- Kingston Canvas Go! Plus: 64GB to 512GB
- Remote Controller: RC Plus 2 Enterprise
- RC Operating Temperature: -4°F to 122°F (-20°C to 50°C)
-

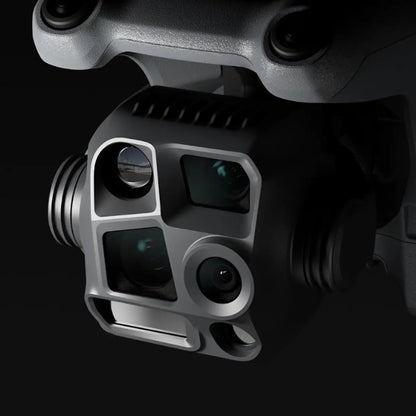

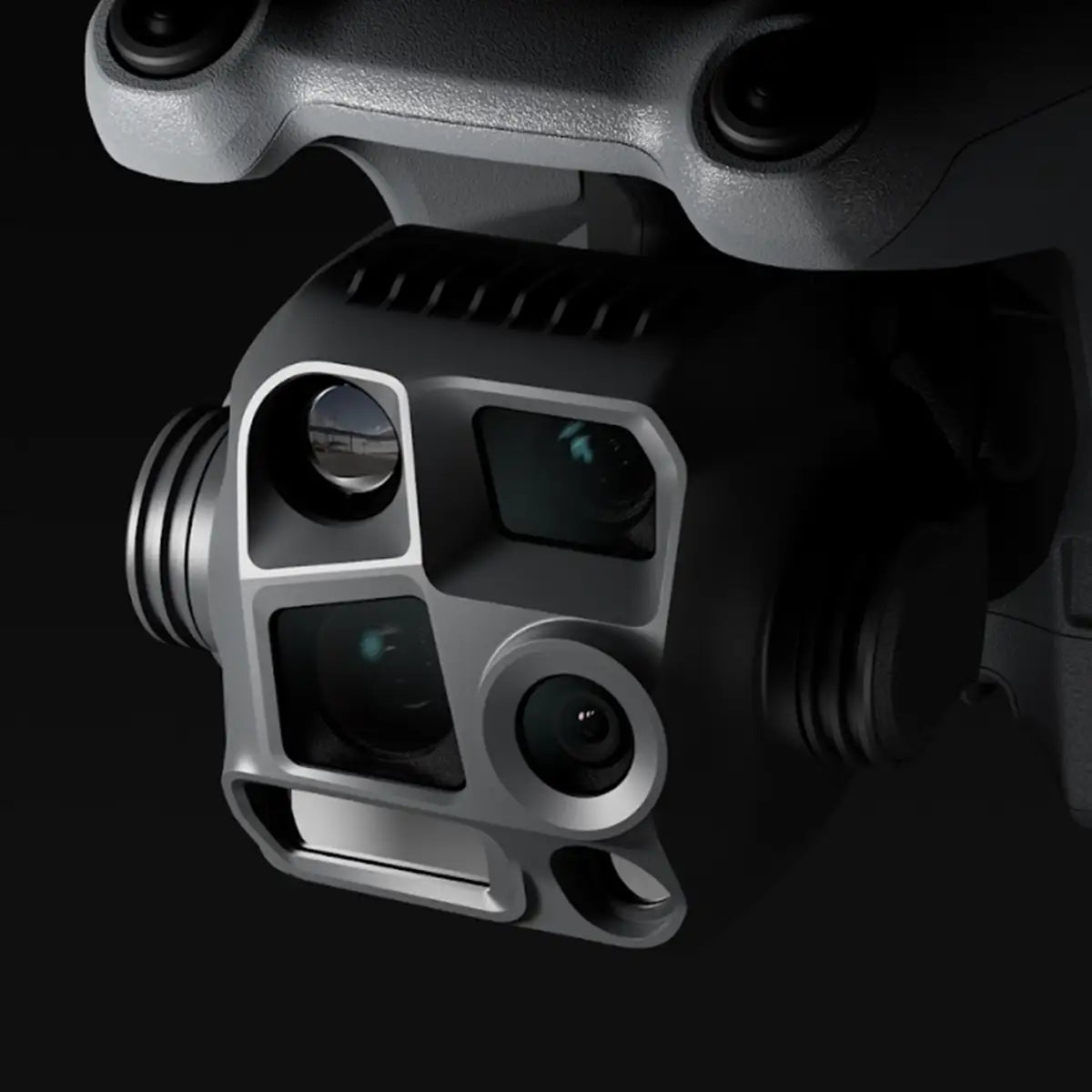

Camera Still Resolution:
- Wide-Angle: 20 MP
- Medium Tele: 12/48 MP
- Tele: 12/48 MP
- Video Resolution: 4K: 3840×2160@30fps, FHD: 1920×1080@30fps
-
Image Sensor:
- Wide: 1/1.3" CMOS, 48 MP
- Medium Tele: 1/1.3" CMOS, 48 MP
- Tele: 1/1.5" CMOS, 48 MP
-
Lens:
- Wide: 82° FOV, 24 mm, f/1.7, Focus: 1 m-∞
- Medium Tele: 35° FOV, 70 mm, f/2.8, Focus: 3 m-∞
- Tele: 15° FOV, 168 mm, f/2.8, Focus: 3 m-∞
- Digital Zoom: Tele Camera: 16x (112x hybrid)
- ISO Range: Up to 409600 (Tele: 819200)
- Shutter Speed: 2 - 1/8000 s
- Still Photo Modes: Single, Timed, Smart Capture, Panorama
- Photo Format: JPEG
- Video Format: MP4 (H.264)
- Max Video Bitrate: H.264: 60 Mbps, H.265: 40 Mbps
- File System: exFAT
-
Gimbal:
- 3-axis mechanical (tilt, roll, pan)
- Controllable Tilt: -90° to +90°
- Angular Vibration: ±0.005°
- Sensing System: Omnidirectional binocular vision + 3D infrared
-
Obstacle Detection:
- Forward/Backward: 0.5-20 m
- Lateral: 0.5-16 m
- Upward: 0.5-20 m
- Downward: 0.5-16 m
- Video Transmission: DJI O4+ Enterprise
- Live View: 720p/30fps or 1080p/30fps
- Frequencies: 2.4GHz / 5.1GHz / 5.8GHz
-
Max Transmission Distance:
- FCC: 25 km
- CE/SRRC/MIC: 12 km
- With interference: 1.5-25 km
- Latency: 100 ms (aircraft to dock, dependent on network)
-
Battery:
- Capacity: 6768 mAh
- Voltage: 22.14 V
- Type: LiNiMnCoO2
- Energy: 149.9 Wh
- Quantity: 1
- Dimensions: 37.77 × 41.62 × 21.25 cm (no propellers)
- Weight: Approx. 1.85 kg (4.07 lbs)

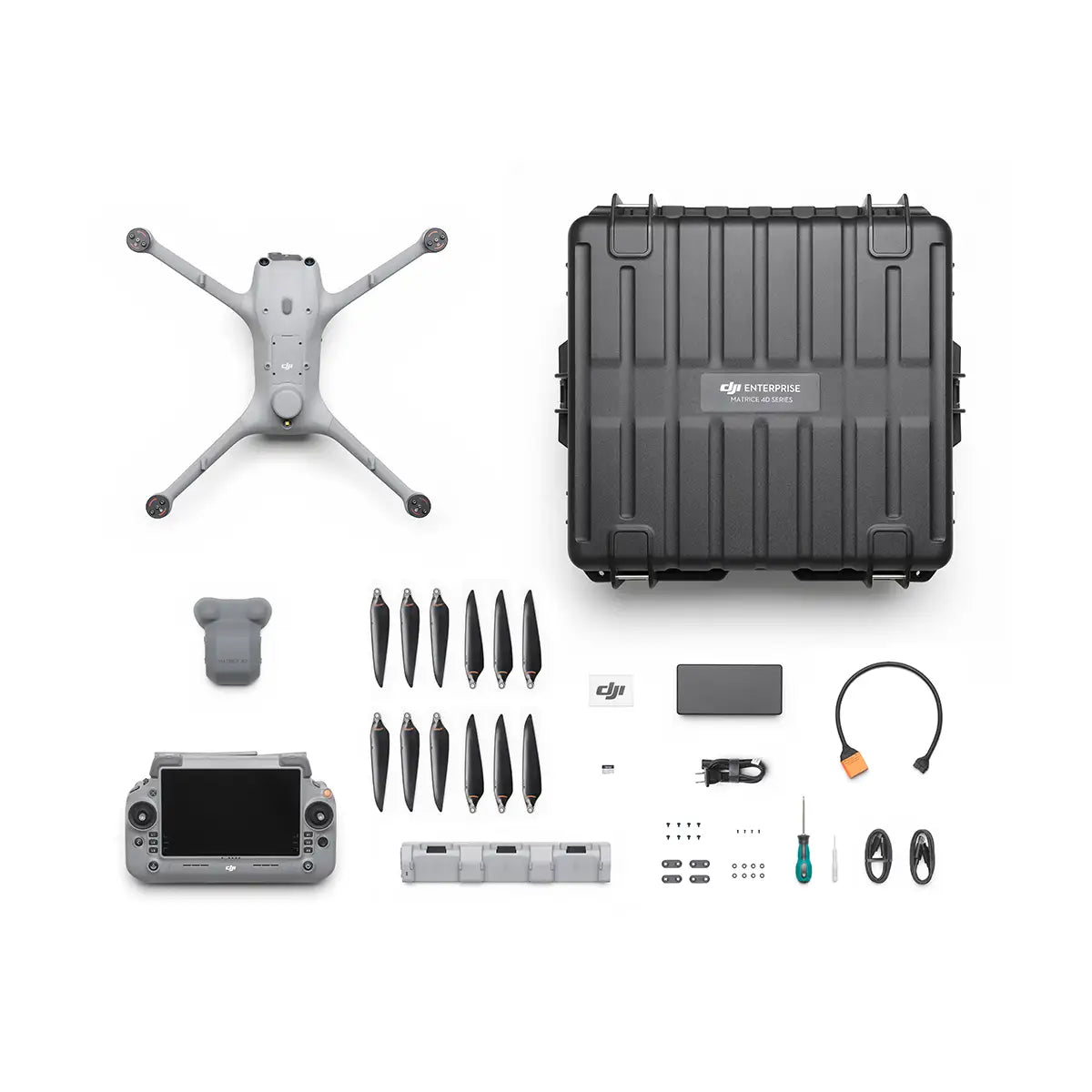

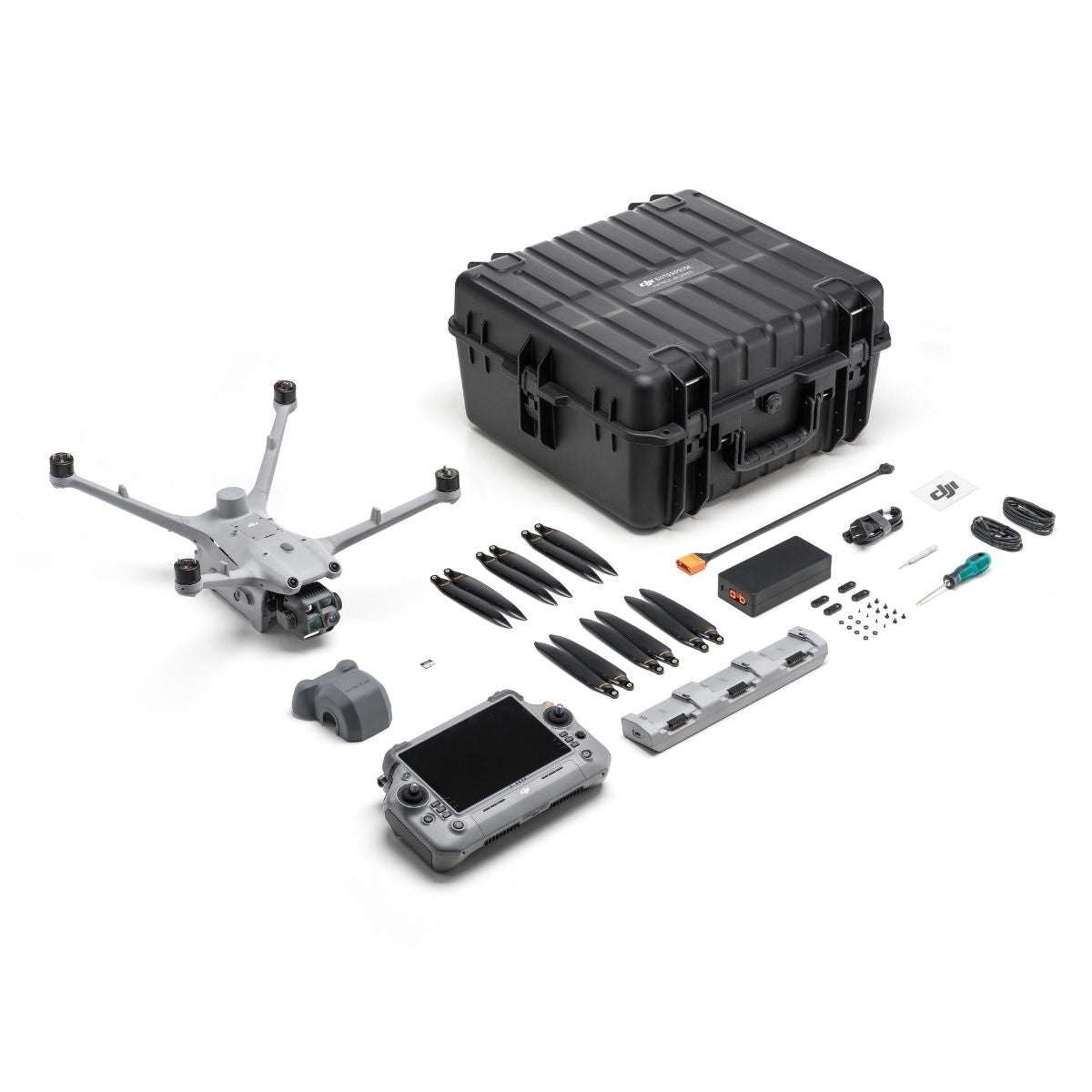

In The Box
- 1x DJI Matrice 4TD Aircraft
- 1x DJI RC Plus 2 Enterprise Controller
- 1x DJI Matrice 4 Series 240W Charging Hub
- 1x DJI 240W USB-C Power Adapter
- 3x DJI Matrice 4TD Propellers (Pair)
- 1x DJI WB37 Remote Controller Battery
- 1x USB-C to USB-C Cable
- 1x USB-A to USB-C Cable
- 1x Gimbal Cover
- Screwdriver & Screws
- 1x microSD Card 64GB
- 1x DJI Matrice 4TD Hard Case
- 1x DJI Care Enterprise Plus for Matrice 4TD
