DJI Matrice 4TD with Care Enterprise Plus

DJI Matrice 4TD - Optimized Thermal Intelligence for Demanding Missions

The DJI Matrice 4TD is a high-performance commercial drone tailored for critical thermal, visual, and environmental intelligence. With a max flight time of 47 minutes and IP55-rated weather resistance, it's designed for deployment in unpredictable conditions. From precision powerline inspections to 24/7 public safety response, the Matrice 4TD pairs endurance with superior imaging.

Engineered with advanced obstacle sensing-combining rotating LiDAR and millimeter-wave radar-it achieves wire-level detection, enabling safe navigation in complex industrial spaces. Its powerful 48MP tele camera captures fine details from up to 250 meters, while UHR thermal capabilities provide accurate temperature data even in total darkness.

Key Features of the DJI Matrice 4TD

The DJI Matrice 4TD is designed for teams that require real-time thermal awareness, obstacle intelligence, and operational flexibility in any environment.

Extended Endurance for Demanding Missions

• Max Flight Time: Up to 47 minutes at 15 m/s
• Flight Efficiency: 18 minutes of aerial operation at a 10 km radius
• All-Weather Ready: IP55 dust and water resistance for operation in rain, wind, and industrial zones
• Anti-Ice Propellers: Fly in freezing conditions while maintaining quiet, efficient performance

Advanced Imaging for Tactical Situational Awareness

• Telephoto Camera: 48MP sensor with up to 80° upward tilt-ideal for viewing under bridges, solar arrays, and overhangs
• Thermal Imaging: UHR infrared camera supports up to 1280 × 1024 resolution with High-Res temperature mode
• Night Scene Mode: Enables full-color imaging in low-light environments using a near-infrared auxiliary light
• Precise Detection: Capable of thermal target recognition up to 100m, even in darkness

Superior Obstacle Sensing and Flight Safety

• Rotating LiDAR + mm-Wave Radar: Detects wires as small as 12mm, even at high speeds
• Multi-Directional Sensing: Protects during complex maneuvers and tight operations
• Safe Navigation at 15 m/s: Maintain speed and safety even through narrow corridors or dense industrial zones

Onboard Relay Functionality

• Airborne Relay Mode: One Matrice 4TD hovers as a live transmission relay while another drone operates at range
• No Cellular Signal Required: Ideal for mountain SAR and rural patrols where LTE/4G signal is unavailable
• Seamless Video Link: Relay drone automatically orients to maintain stable video feed

Care Enterprise Plus Coverage

Every DJI Matrice 4TD includes one year of DJI Care Enterprise Plus, offering peace of mind with enterprise-grade protection:

• Free repair services with shared coverage
• Up to 2 battery replacements per year
• Water damage protection
• Free two-way shipping

Why Matrice 4TD and Dock 3 Are a Powerful Combination

Deploying the DJI Matrice 4TD with DJI Dock 3 transforms it into an autonomous, round-the-clock aerial tool:

• Autonomous Takeoff, Landing, and Charging: Enables true remote missions with minimal human input
• Cloud-Based Flight Planning: Use DJI FlightHub 2 for advanced mission management, even across multiple locations
• Mobile and Fixed Deployment: Mount the dock on vehicles or install it at critical sites
• Dual-Drone Coordination: Operate with a second drone for continuous coverage and dynamic relay

Applications and Use Cases

The DJI Matrice 4TD is the go-to drone for professionals in need of actionable thermal intelligence, safe navigation, and continuous deployment options.

Public Safety and Emergency Response

• Search and Rescue: Night operations with NIR lighting and onboard relay support in rugged terrain
• Firefighting: Monitor firelines and detect heat signatures through smoke and darkness
• Police & Tactical: Thermal tracking for suspect pursuit and situational intelligence

Utility and Energy Infrastructure

• Power Grid Monitoring: Safely inspect substations, transmission lines, and hard-to-reach assets
• Wind and Solar Farms: Use upward tilt to view turbine blades and underside of solar arrays
• Pipeline Inspections: Conduct long-range assessments with minimal downtime

Industrial Inspection & Construction

• Bridge & Structural Surveys: Use the 80° upward tilt to view under-structure components
• Large Site Management: Thermal mapping, oblique imaging, and safety compliance monitoring

Environmental and Maritime Monitoring

• Coastal and Forest Patrols: Monitor illegal activity or track wildlife with long-range thermal vision
• Flood Risk Assessment: Combine terrain following and thermal layers to detect overflow points

Why Buy from DSLRPros

At DSLRPros, we specialize in high-performance drone systems for critical field applications. Our team works with public safety agencies, energy providers, and inspection professionals to deliver fully supported UAV solutions-ready for real-world deployment.

We provide configuration assistance, integration support with DJI Dock 3, and access to real-time consultation during setup and flight operations. When you're flying the Matrice 4TD in high-stakes scenarios, trust a partner who understands the mission as well as the machine.

Equip your team with proven aerial intelligence. Get the DJI Matrice 4TD with Care Enterprise Plus from DSLRPros today.

Specifications

• Weight: Approx. 1850 g
  Includes battery, propellers, microSD card; actual weight may vary due to materials or external factors.
• Max Takeoff Weight: 2090 g
• Dimensions: 377.7 × 416.2 × 212.5 mm (L × W × H, without propellers)
• Wheelbase:
  • Diagonal: 498.5 mm
  • Front Motor L-R: 383.0 mm
  • Rear Motor L-R: 343.0 mm
  • Front-Rear: 341.6 mm
• Max Ascent Speed:
  • 6 m/s (Normal Mode)
  • 10 m/s (Sport Mode)
• Max Descent Speed:
  • 6 m/s (Normal Mode)
  • 8 m/s (Sport Mode)
• Max Horizontal Speed:
  • Normal Mode (Obstacle Sensing Enabled): 15 m/s forward, 12 m/s backward, 10 m/s sideways
  • Sport Mode: 21 m/s forward, 19 m/s backward, 15 m/s sideways
  When used with DJI Dock, only Normal Mode is supported.
• Max Wind Speed Resistance: 12 m/s (during operation, takeoff, or landing)
• Max Takeoff Altitude: 6500 m
• Max Flight Time: 54 minutes
  Measured at 12 m/s forward flight in a windless lab at 20 m ASL, Obstacle Avoidance Off, from 100% to 0% battery. Results vary.
• Max Hovering Time: 47 minutes
  Measured hovering in a windless environment at 20 m ASL from 100% to 0% battery. Results vary.
• Max Operating Radius: 10 km
  Approx. 25°C, safe battery level of 15%, no wind, flight speed ~15 m/s, 18 min hover. Results vary.
• Max Flight Distance: 43 km
  Measured at 16 m/s in a windless environment at 20 m ASL from 100% to 0% battery. Results vary.

• GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS supported only when the RTK module is enabled.)
• RTK Module: Built-in, no installation required.
• Cellular Dongle 2 Compartment: Yes
• AI Detection: Yes
• Wide Angle Camera:
  • Image Sensor: 1/1.3-inch CMOS, 48 MP
  • Lens: FOV: 82°, 24 mm eq., f/1.7, Focus: 1 m to ∞
  • Night Scene Mode: Full-Color Night Scene
  • ISO Range: 100-25600 (Night: 100-409600)
  • Shutter Speed: Electronic Shutter: 2-1/8000 s
  • Max Photo Size: 8064×6048
  • Still Photography Modes: Single (12/48 MP), Timed, Smart Capture, Panorama
  • Minimum Photo Interval: 0.7 s
  • Video Codec and Resolution: H.264/H.265, 4K@30fps, FHD@30fps
  • Photo Format: JPEG/DNG (RAW)
  • Video Format: MP4 (MPEG-4 AVC/H.264)
• Medium Tele Camera:
  • Image Sensor: 1/1.3-inch CMOS, 48 MP
  • Lens: FOV: 35°, 70 mm eq., f/2.8, Focus: 3 m to ∞
  • Night Scene Mode: Full-Color Night Scene
  • ISO Range: 100-25600 (Night: 100-409600)
  • Shutter Speed: Electronic Shutter: 2-1/8000 s
  • Max Photo Size: 8064×6048
  • Still Photography Modes: Single (12/48 MP), Timed, Smart Capture
  • Video Codec and Resolution: H.264/H.265, 4K@30fps, FHD@30fps
  • Photo Format: JPEG
  • Video Format: MP4 (MPEG-4 AVC/H.264)
• Tele Camera:
  • Image Sensor: 1/1.5-inch CMOS, 48 MP
  • Lens: FOV: 15°, 168 mm eq., f/2.8, Focus: 3 m to ∞
  • Night Scene Mode: Full-Color Night Scene, Black-and-White Night Scene
  • ISO Range: 100-25600 (Night: 100-409600)
  • Shutter Speed: Electronic Shutter: 2-1/8000 s
  • Max Photo Size: 8192×6144
  • Still Photography Modes: Single (12/48 MP), Timed, Smart Capture
  • Video Codec and Resolution: H.264/H.265, 4K@30fps, FHD@30fps
  • Photo Format: JPEG
  • Video Format: MP4 (MPEG-4 AVC/H.264)
• Digital Zoom: 16x (112x hybrid zoom)

• Infrared Thermal Camera:
  • Sensor Type: Uncooled VOx Microbolometer
  • Pixel Pitch: 12 μm
  • Frame Rate: 30 Hz
  • Lens: DFOV: 45°, 53 mm eq., f/1.0, Focus: 5 m to ∞
  • Temperature Measurement: Spot & Area
  • Measurement Range: High Gain: -20°C to 150°C, Low Gain: 0°C to 550°C
  • Palette: White Hot, Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1, Rainbow 2
  • Photo Format: JPEG (8-bit), R-JPEG (16-bit)
  • Video Resolution: 1280×1024@30fps (UHR); 640×512@30fps
  • Video Bitrate: H.264: 6.5 Mbps (640), 12 Mbps (1280); H.265: 5 Mbps (640), 8 Mbps (1280)
  • Video Format: MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes: Single & Timed (1280×1024 or 640×512)
  • Digital Zoom: 28x
  • Infrared Wavelength: 8–14 μm
  • Temperature Accuracy: ±2°C or ±2% (whichever is greater)
• NIR Auxiliary Light:
  • Infrared Illumination: FOV: 5.7° ± 0.3°
• Laser Module:
  • Laser Rangefinding: Normal: 1800 m; Oblique: 600 m; Blind Zone: 1 m
  • Accuracy: 1-3 m: <0.3 m system error, <0.1 m random error; Others: ±(0.2+0.0015D)
• Sensing:
  • Type: Omnidirectional binocular vision + 3D infrared sensor
• Video Transmission:
  • System: DJI O4+ Enterprise
  • Live View Quality: Up to 1080p/30fps
  • Frequency: 2.4 GHz / 5.1 GHz / 5.8 GHz (varies by region)
  • Max Distance (No Interference): FCC: 25 km; CE/SRRC/MIC: 12 km
  • Max Distance (With Interference): Strong: 1.5–5 km; Medium: 5–15 km; Weak: 15–25 km
  • Max Download Speed: 20 MB/s
  • Latency: ~100 ms aircraft to dock
  • Antenna: 8 antennas, 2T4R
• Remote Controller:
  • Screen Resolution: 1920×1200
  • Screen Size: 7.02 inches
  • Brightness: 1400 nits
  • Storage: 128GB internal, microSD expansion supported
  • Operating Time: Built-in: 3.8 hrs, External: 3.2 hrs
  • External Battery: Supported
  • Output Port: HDMI
  • Model: TKPL 2

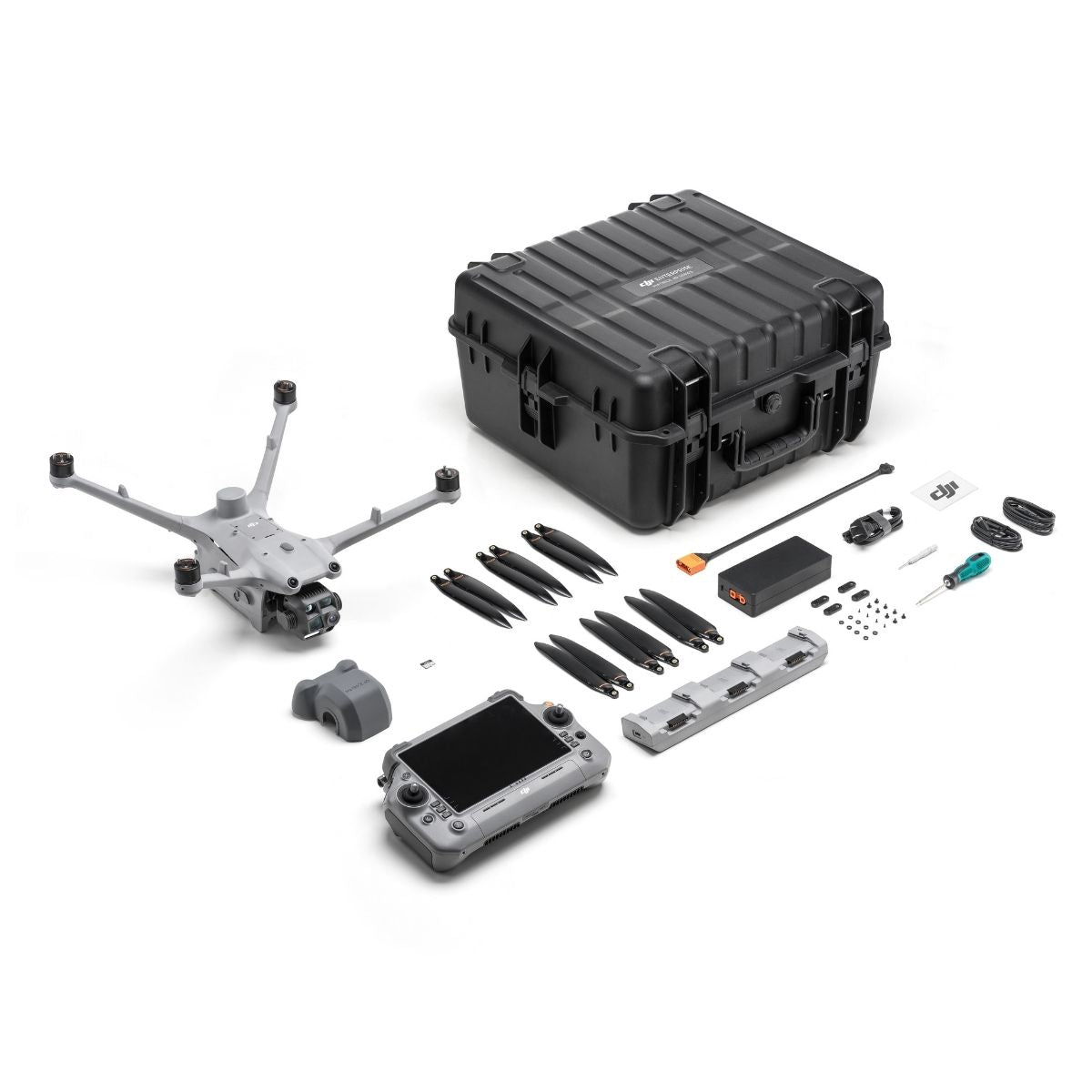

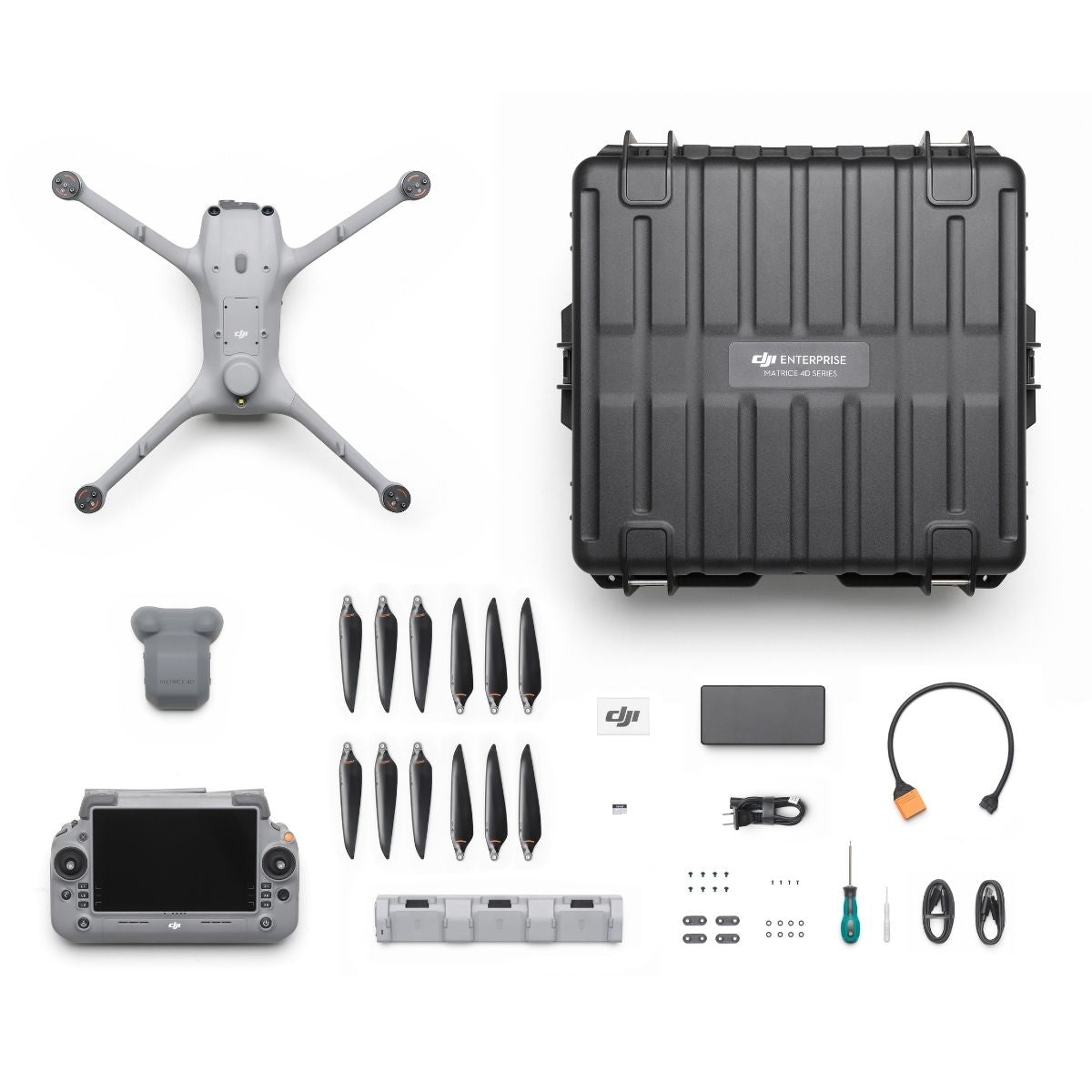

In The Box

• 1x DJI Matrice 4TD Aircraft (Battery Not Included)
• 1x DJI Care Enterprise Plus
• 1x CW Low-Noise Anti-Ice Propellers (Pair)
• 1x CCW Low-Noise Anti-Ice Propellers (Pair)
• 1x Screws and Washers
• 1x DJI 1-Year Limited Warranty
