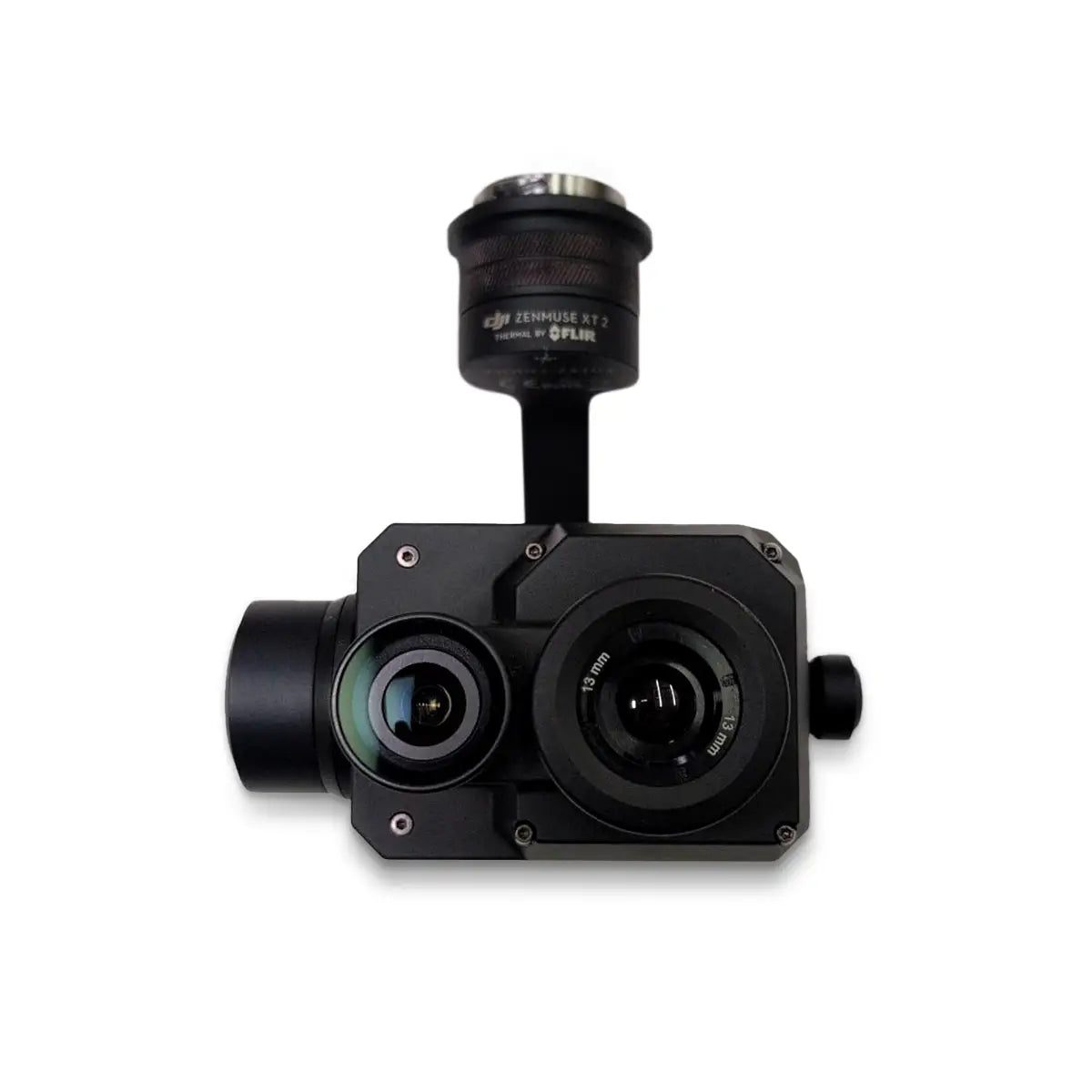

The DJI Zenmuse XT2 R 640 19MM (30Hz) delivers real-time thermal and visual insight in a compact, rugged design-built for professionals who need reliable data from the air. This open-box unit features a high-resolution 640 × 512 thermal camera paired with a 4K color sensor, transforming aerial footage into actionable intelligence.
Seamlessly integrated with DJI's M200 Series and M600 Pro drones, the XT2 is ready for complex field missions in infrastructure inspection, firefighting, energy, and search and rescue. Its weather-resistant IP44 housing lets pilots operate in rain, fog, and smoke, while onboard tools like Temp Alarm, Heat Track, and MSX ensure you never miss a critical detail.
With instant access to live temperature data, object tracking, and customizable thermal views, the XT2 helps your team make smarter decisions-right on site.
Key Features
- 640 x 512 thermal resolution and 30Hz frame rate
- 19mm lens for balanced field-of-view and target clarity
- Integrated 4K visual camera with 12MP sensor
- FLIR MSX: visual detail embossed onto thermal feed for clarity
- Picture-in-Picture, overlay, or side-by-side viewing options
- Instant Temp Alarms when scene temps exceed thresholds
- Heat Track auto-locks to the hottest object in view
- Temp Check for real-time spot and area measurements
- Adjustable isotherms and thermal color palettes
- Compatible with DJI M200 Series, M200 V2, and M600 Pro
- IP44 weather resistance for smoke, fog, light rain
Applications
- Firefighting: Identify hot spots fast and overlay thermal data on live video
- Search and Rescue: Locate people in tough terrain or low visibility
- Infrastructure: Detect cracks, leaks, and hotspots in structures or utilities
- Energy: Pinpoint failing solar panels or overheating systems during inspections
Why Buy from DSLRPros
At DSLRPros, every open-box unit is carefully inspected for full functionality. The XT2's intelligent tools, high-resolution thermal imaging, and compatibility with DJI's most trusted enterprise drones make it a smart, cost-effective addition to any professional fleet.
Stay one step ahead with the DJI Zenmuse XT2 R 640 19MM (30Hz) from DSLRPros-tested, trusted, and ready for action.
Specifications
- General Dimensions: 118.02 × 111.6 × 125.5 mm (4.65 × 4.39 × 4.94 in)
-
Thermal Imaging:
- Imager Type: Uncooled VOx Microbolometer
- Resolution: 640 × 512
- Pixel Pitch: 17 µm
- Spectral Band: 7.5 - 13.5 µm
- Frame Rate: 30 Hz (Full Frame)
- Sensitivity (NEdT): <50 mK at f/1.0
- Scene Temperature Range:
- High Gain: -25°C to 135°C (-13°F to 275°F)
- Low Gain: -40°C to 550°C (-40°F to 1022°F)
- Digital Zoom Levels: 1x, 2x, 4x, 8x
- Thermal Lens: 19 mm, f/1.25
- Field of View: 32° × 26°
- Instantaneous Field of View (iFoV): 0.895 mrad
- Min Focus Distance: 15.3 cm
- Hyperfocal Distance: 9.5 cm
- Hyperfocal Depth of Field: 4.8 cm
-
Visual Camera:
- Sensor: 1/1.7" CMOS
- Effective Pixels: 12 MP
- Lens Type: Prime lens, Focus at 8 mm
- Field of View: 57.12° × 42.44°
- Digital Zoom: 1x, 2x, 4x, 8x
- Still Photography Modes:
- Single Shot
- Burst (3 or 5 frames)
- Interval: 2/3/4/7/10/15/20/30 seconds
- Photo Format: JPEG
- Video Format: MOV, MP4
- Resolutions:
- 4K UHD: 3840 × 2160 at 29.97p
- FHD: 1920 × 1080 at 29.97p
- Working Modes: Capture, Record, Playback
- Anti-Flicker Options: Auto, 50 Hz, 60 Hz
- Video Captioning: Supported
-
Gimbal Specifications:
- Angular Vibration Range: ±0.01°
- Controllable Range:
- Tilt: +30° to -90°
- Pan: ±320°
- Mechanical Range:
- Tilt: +45° to -130°
- Pan: ±330°
- Roll: -90° to +60°
- Max Speed: 90°/s (Tilt & Pan)
- Mount: Detachable
-
Image Processing Features:
- Image Optimization: Yes
- Digital Detail Enhancement: Yes
- Polarity Control: Black Hot / White Hot
- Color and Monochrome Palettes (LUT): Supported
-
Storage & Media:
- Photo Formats: JPEG, TIFF, R-JPEG
- Video Formats:
- 8-bit: MOV, MP4
- 14-bit: TIFF Sequence, SEQ
- Media: microSD (up to 128GB)
- File System Support: FAT32 (≤32GB), exFAT (>32GB)
- Recommended Cards:
- SanDisk Extreme 16/32GB UHS-3 microSDHC
- SanDisk Extreme 64/128GB UHS-3 microSDXC

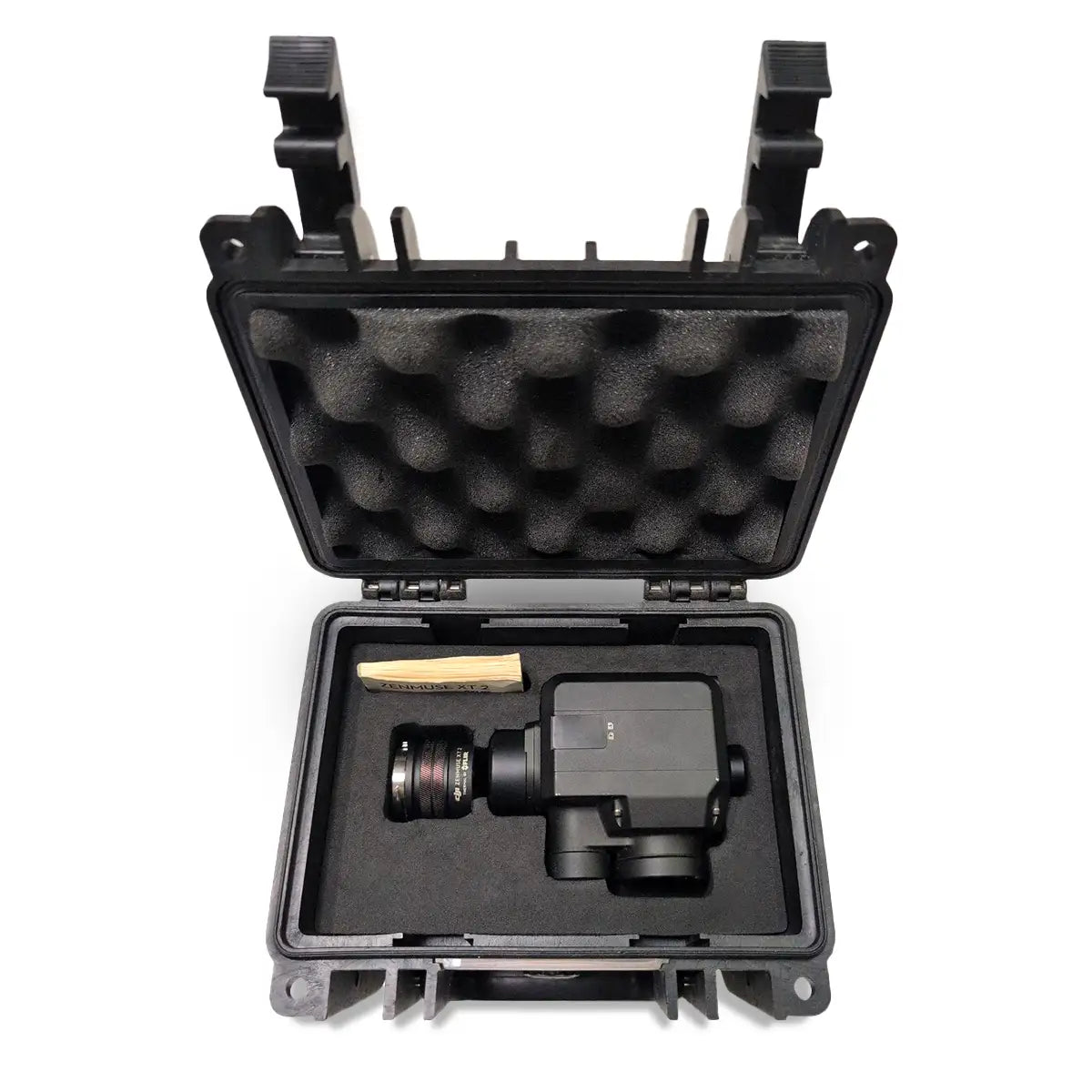

In The Box
- 1x DJI Zenmuse XT2 R 640 19MM (30hz) (Open Box)
- 1x Rugged Case
